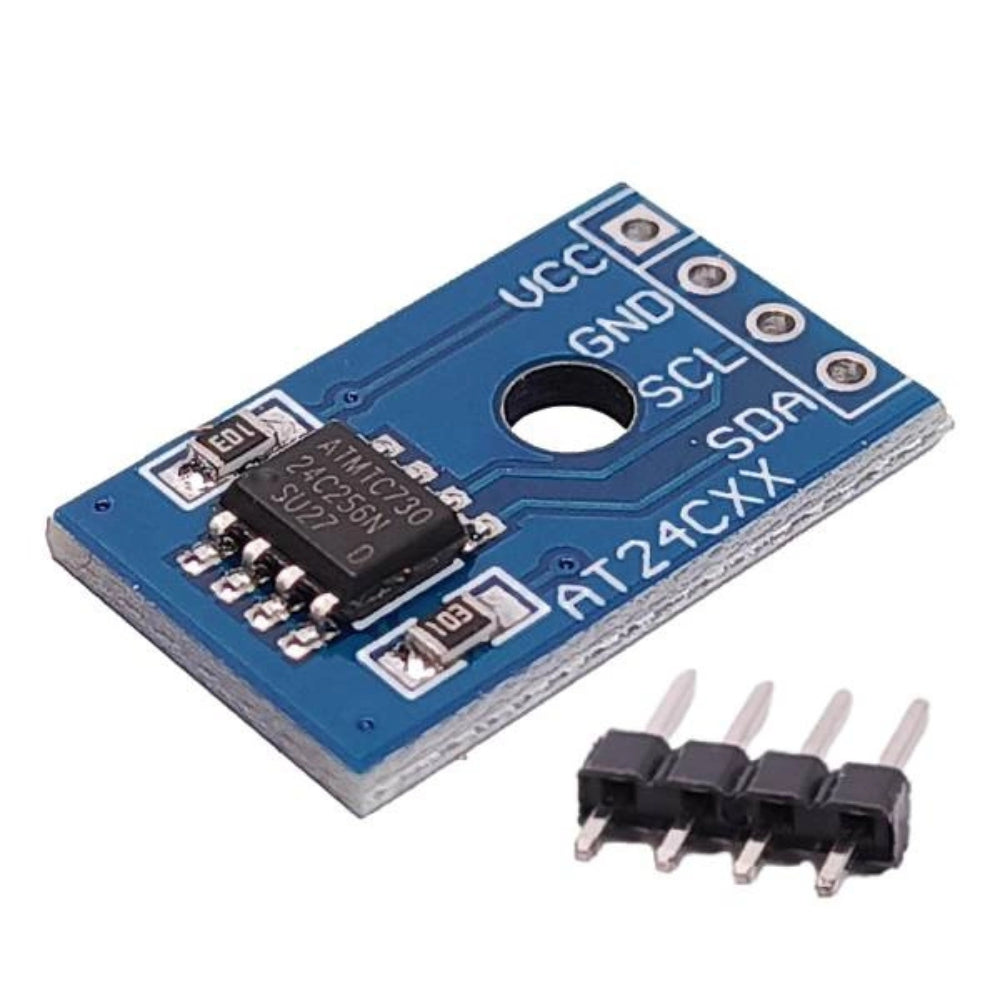

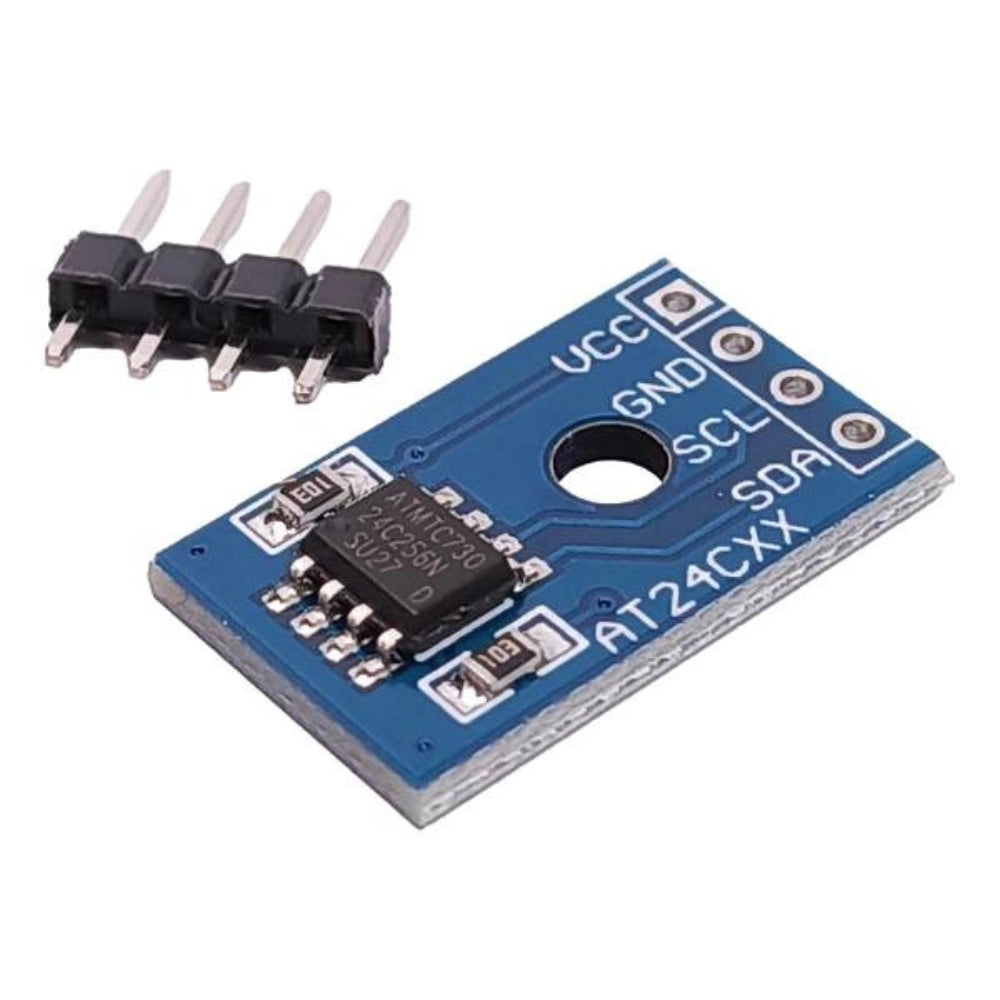

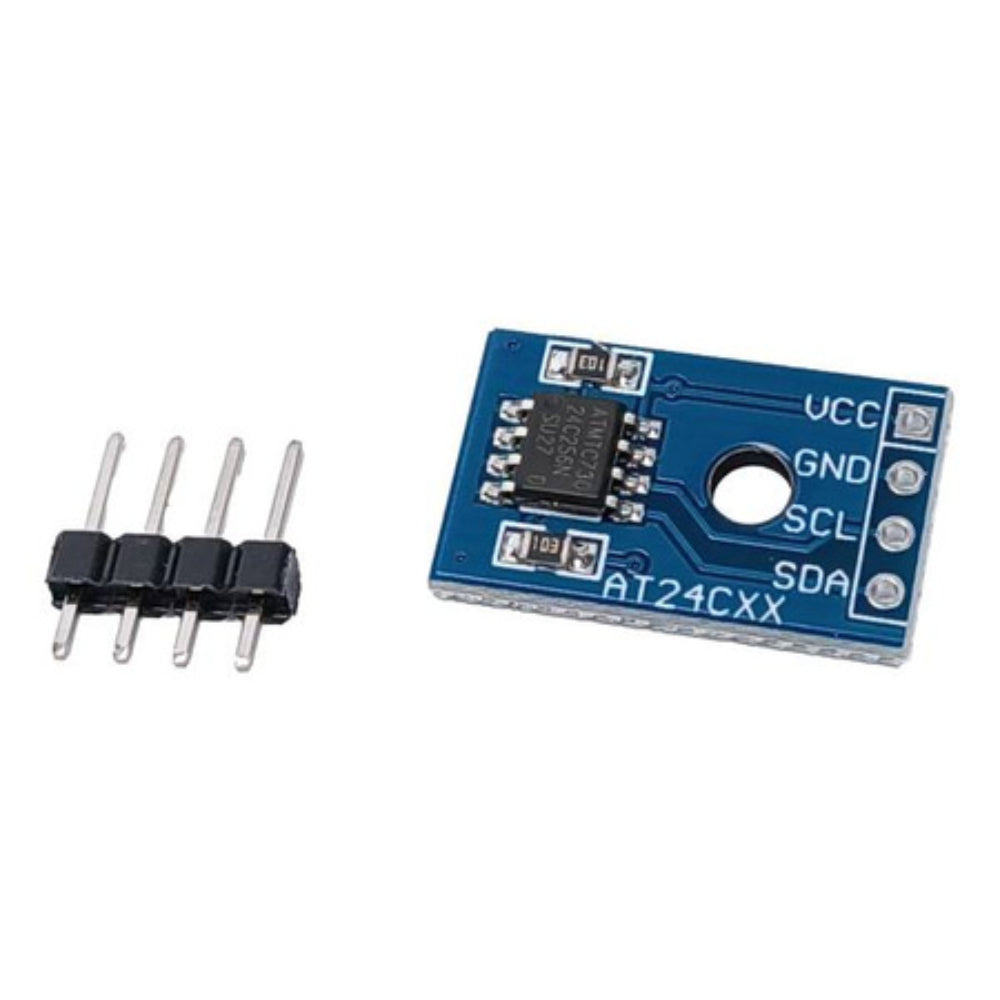

AT24C128 Module I2C IIC Interface EEPROM Memory Module
The AT24C128 Module I2C IIC Interface EEPROM Memory Module is a compact non-volatile memory module designed for storing larger configuration records, calibration values, device settings, identification data, and small logs in embedded projects. It is based on the AT24C128 EEPROM IC and provides 128K bit memory capacity, making it useful where more external storage is required than smaller AT24C series EEPROM modules.This I2C EEPROM memory module communicates through the I2C / IIC serial interface, allowing easy connection with Arduino, STM32, ESP boards, Raspberry Pi, and other compatible controller platforms. It supports standard EEPROM read and write operations, offers non-volatile data retention, and is suitable for low-power memory expansion in microcontroller-based systems.
Features
- Based on AT24C128 EEPROM IC
- 128K bit non-volatile memory
- I2C / IIC serial communication interface
- Retains stored data without power
- Suitable for larger configuration storage
- Supports byte write operation
- Supports page write operation
- Low power memory operation
- Compact PCB breakout board
- Easy microcontroller interfacing
- Useful for external memory expansion
Technical Details
- Item Type: EEPROM Memory Module
- Memory IC: AT24C128
- Memory Capacity: 128K bit
- Memory Organization: 16384 × 8 bit
- Memory Type: Non-volatile EEPROM
- Operating Voltage: 2.7V to 5.5V DC
- Interface Type: I2C / IIC
- Clock Frequency: Up to 400KHz
- Write Cycle Time: 5ms typical
- Data Retention: 100 years typical
- Endurance: 1 million write cycles typical
Interfaces
- VCC: Power supply input 2.7V to 5.5V
- GND: Ground connection
- SCL: I2C clock line
- SDA: I2C data line
- WP: Write protect control pin
- A0: Address select bit 0
- A1: Address select bit 1
- A2: Address select bit 2
Applications
- Embedded data storage projects
- Arduino EEPROM memory expansion
- Sensor calibration data storage
- Device parameter storage
- Configuration memory backup
- Small data logging applications
- Product ID and serial data storage
- DIY electronics and learning projects

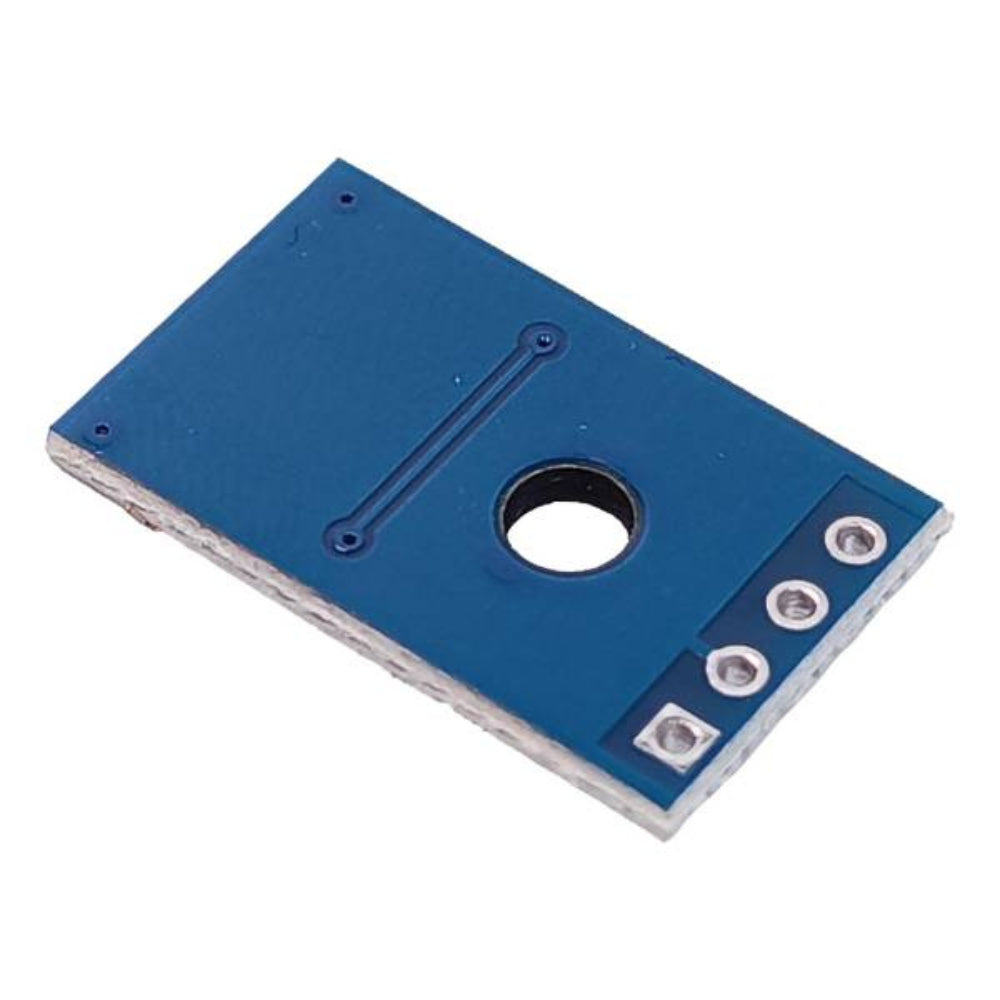

Physical Attributes
- Board Type: EEPROM breakout module
- Connection Type: Pin header interface
- Mounting Style: PCB module
- PCB Board Size: 19 × 11 mm
- Design: Compact and lightweight
- Weight: 2g
Package Includes
- 1 × AT24C128 Module I2C IIC Interface EEPROM Memory Module
