This I2C EEPROM memory module uses the I2C / IIC serial communication interface, so it can be easily connected with Arduino, STM32, ESP boards, Raspberry Pi, and other compatible controller platforms. It supports standard EEPROM read and write operations, offers low power operation, and is useful where a small, simple, and dependable memory expansion module is required.
-25%
AT24C16 Module I2C IIC Interface EEPROM Memory Module
Available:In Stock
- Product SKU: KG1373
₹ 59
₹ 79
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
AT24C16 Module I2C IIC Interface EEPROM Memory Module

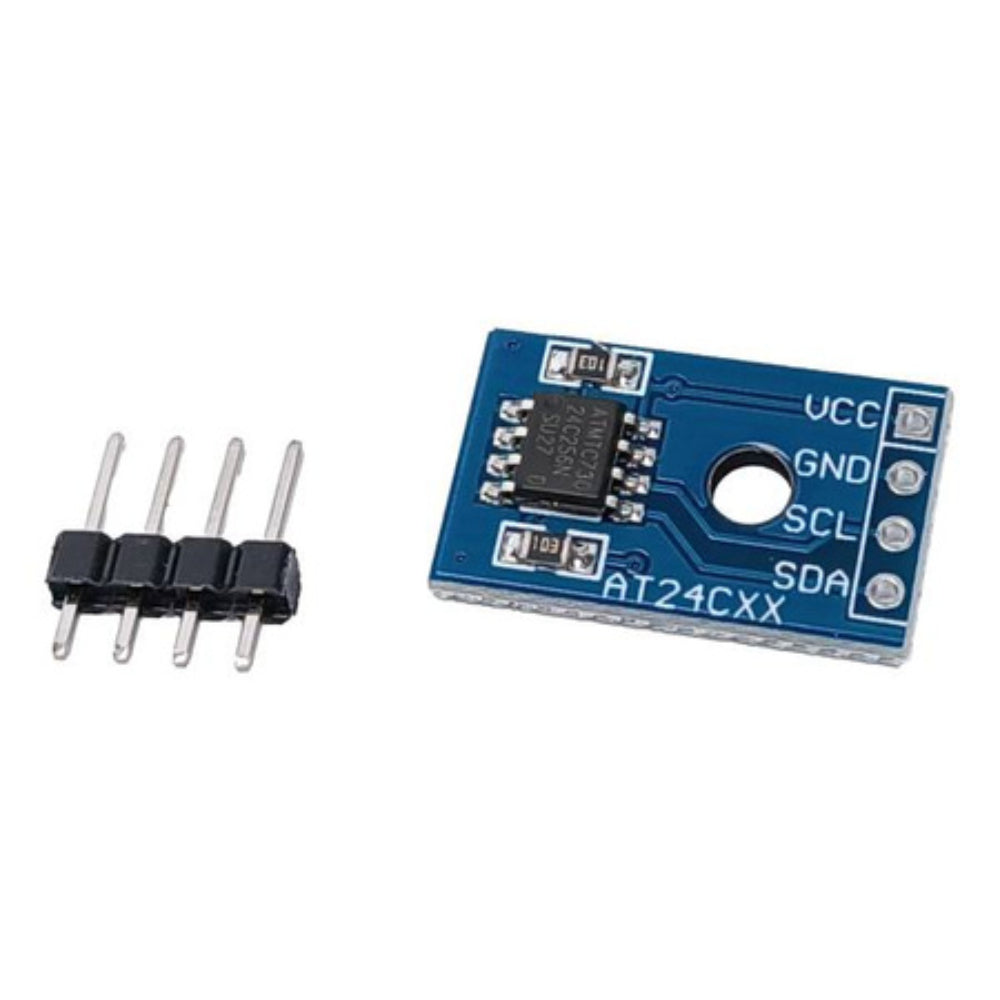

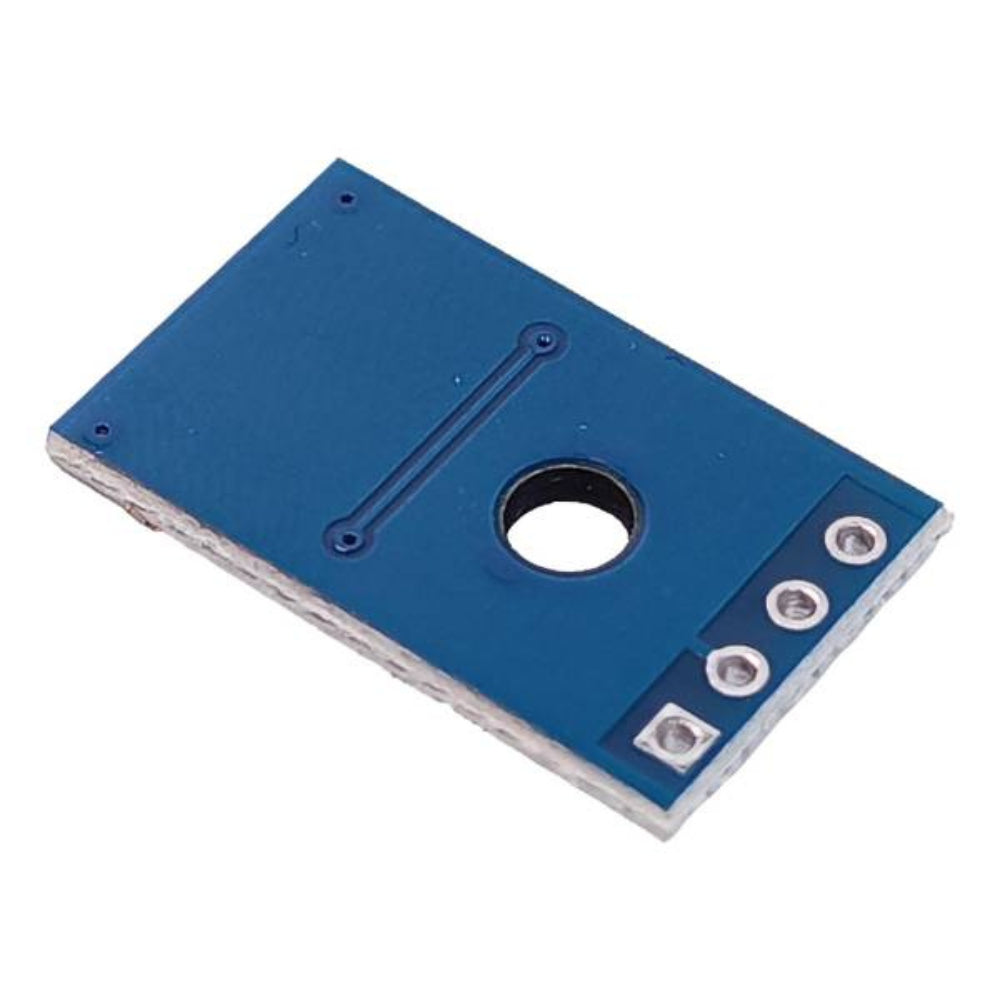

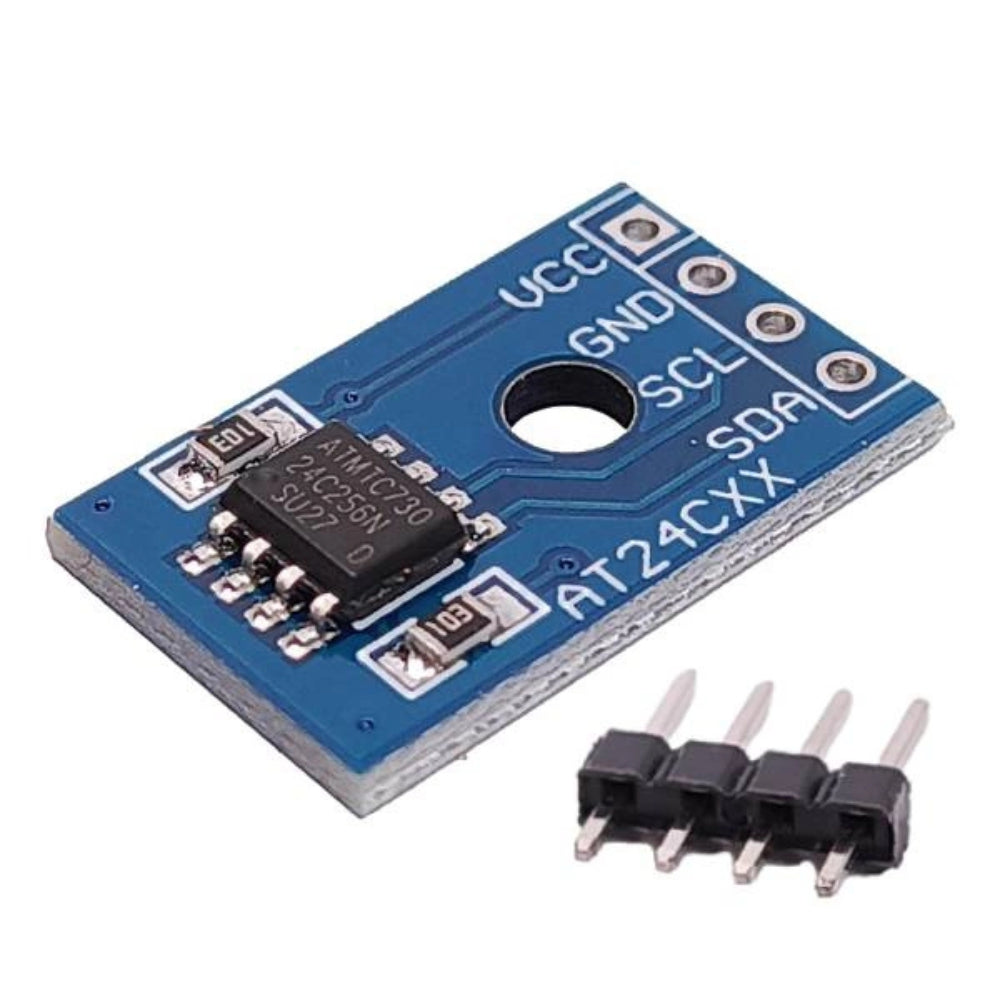

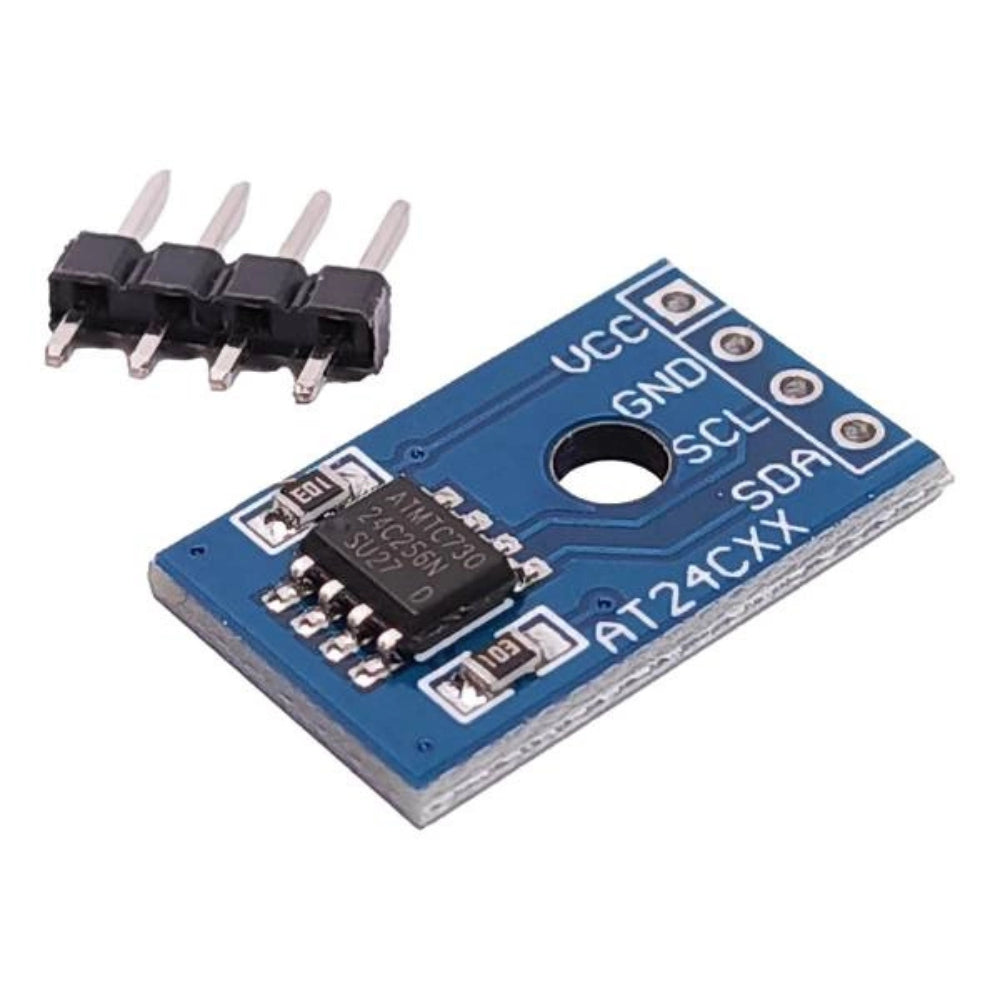

The AT24C16 Module I2C IIC Interface EEPROM Memory Module is a compact non-volatile memory module designed for reliable external data storage in embedded and microcontroller-based projects. It is based on the AT24C16 EEPROM IC and provides 16K bit memory capacity, making it suitable for storing configuration settings, calibration values, device IDs, user parameters, and small data records that need to remain saved after power is removed.This I2C EEPROM memory module uses the I2C / IIC serial communication interface, so it can be easily connected with Arduino, STM32, ESP boards, Raspberry Pi, and other compatible controller platforms. It supports standard EEPROM read and write operations, offers low power operation, and is useful where a small, simple, and dependable memory expansion module is required.
Features
- Based on AT24C16 EEPROM IC
- 16K bit non-volatile memory
- I2C / IIC serial communication interface
- Retains stored data without power
- Suitable for external memory expansion
- Supports byte write operation
- Supports page write operation
- Low power consumption
- Compact PCB breakout board
- Easy to interface with microcontrollers
- Useful for repeated read/write applications
Technical Details
- Item Type: EEPROM Memory Module
- Memory IC: AT24C16
- Memory Capacity: 16K bit
- Memory Organization: 2048 × 8 bit
- Memory Type: Non-volatile EEPROM
- Operating Voltage: 2.7V to 5.5V DC
- Interface Type: I2C / IIC
- Clock Frequency: Up to 400KHz
- Write Cycle Time: 5ms typical
- Data Retention: 100 years typical
- Endurance: 1 million write cycles typical
Interfaces
- VCC: Power supply input 2.7V to 5.5V
- GND: Ground connection
- SCL: I2C clock line
- SDA: I2C data line
- WP: Write protect control pin
- A0: Address select bit 0
- A1: Address select bit 1
- A2: Address select bit 2
Applications
- Arduino data storage projects
- Microcontroller parameter storage
- Device configuration memory
- Sensor calibration data storage
- Small data logging applications
- Product ID and serial data storage
- Embedded system memory expansion
- DIY electronics and learning projects
Physical Attributes
- Board Type: EEPROM breakout module
- Connection Type: Pin header interface
- Mounting Style: PCB module
- PCB Board Size: 19 × 11 mm
- Design: Compact and lightweight
- Weight: 2g
Package Includes
- 1 × AT24C16 Module I2C IIC Interface EEPROM Memory Module
