This I2C IIC EEPROM module communicates through a simple two-wire serial interface, making it easy to connect with Arduino, STM32, ESP boards, Raspberry Pi, and other development platforms. Its compact board format, low power operation, and non-volatile memory support make it suitable for embedded systems, learning projects, and external memory expansion applications.
-25%
AT24C32 Module I2C IIC Interface EEPROM Memory Module
Available:In Stock
- Product SKU: KG1374
₹ 59
₹ 79
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description

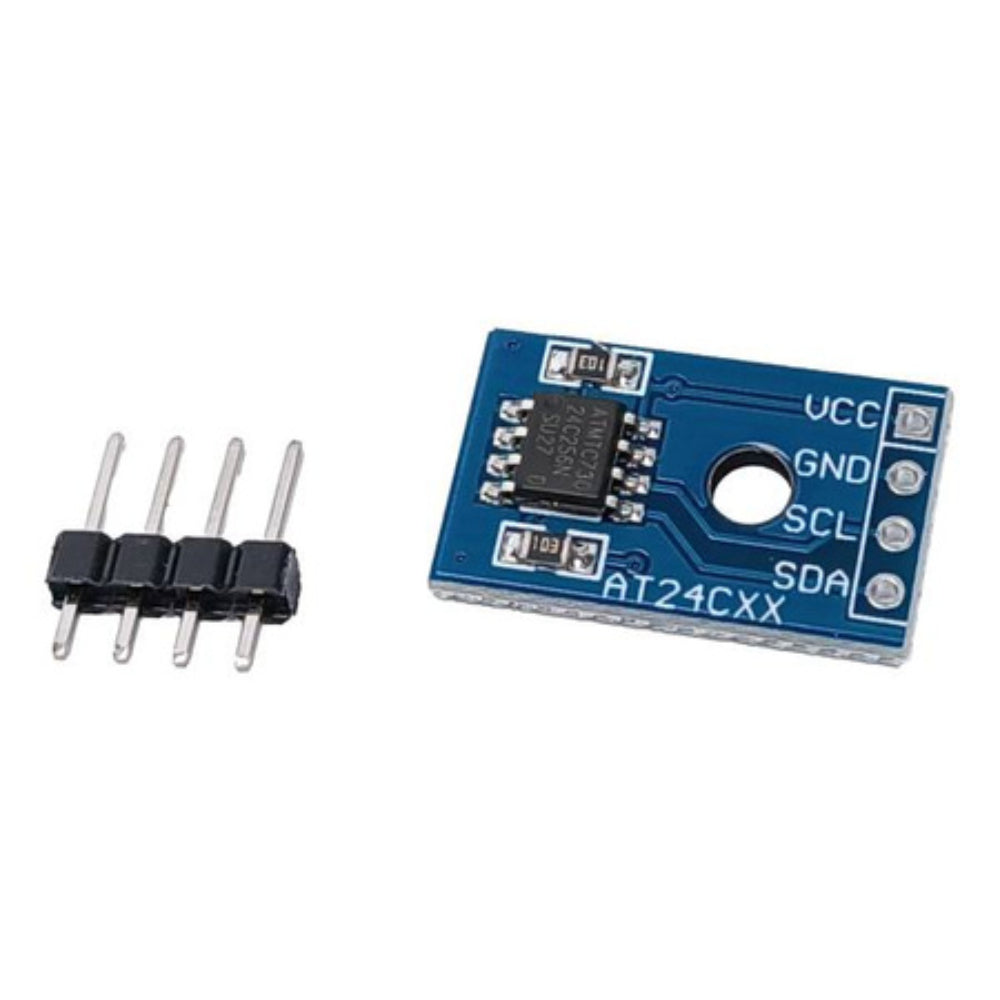

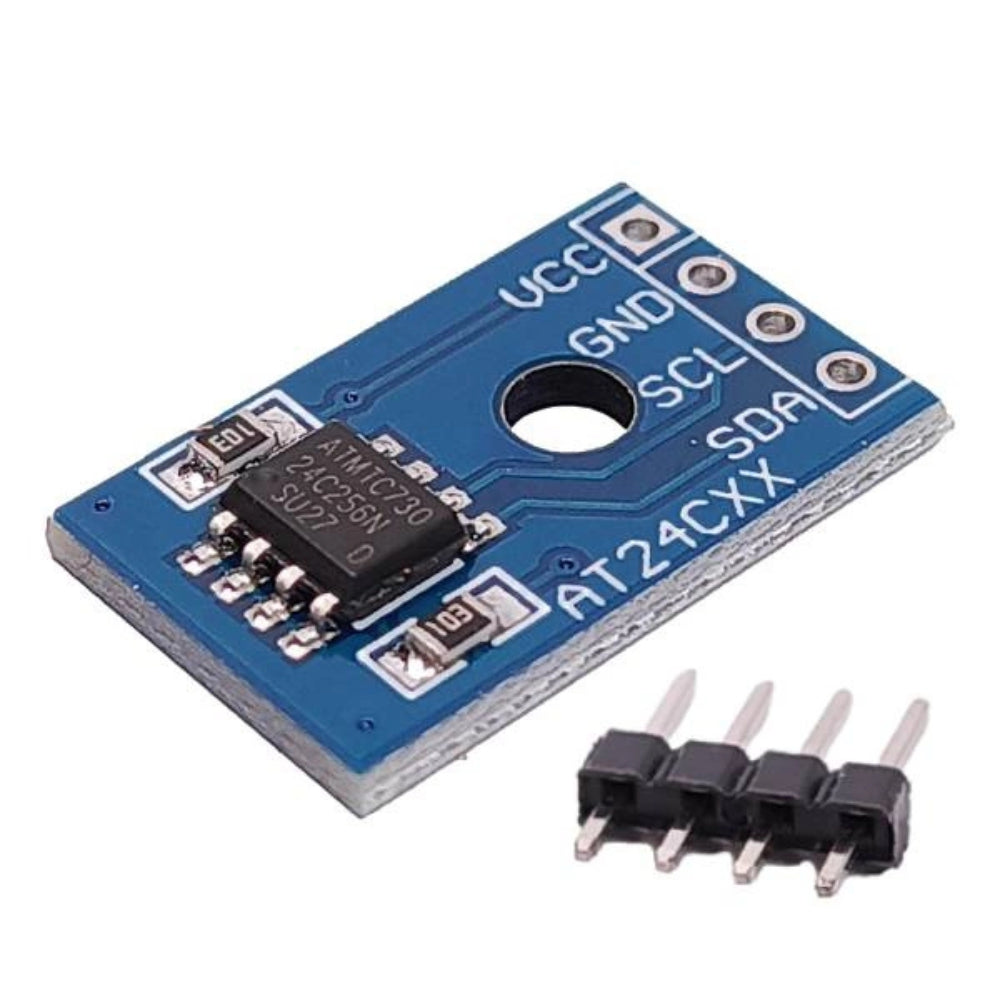

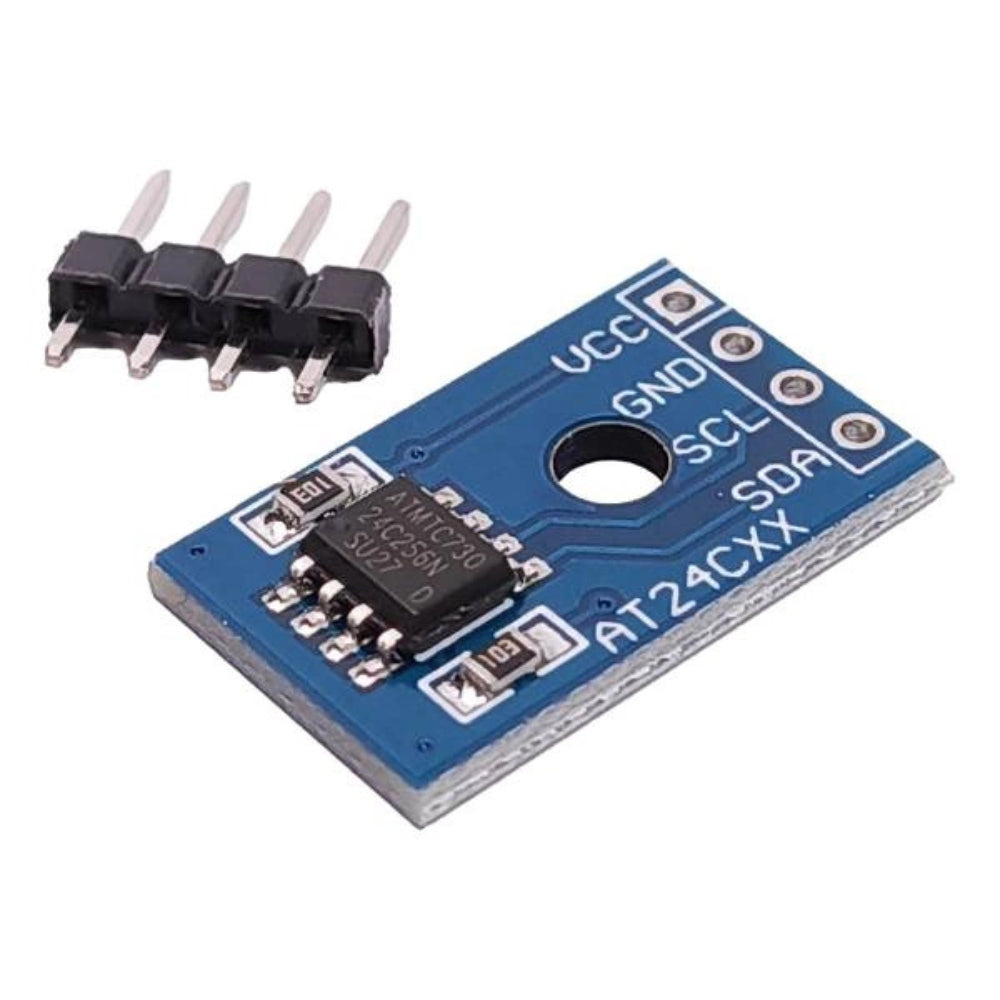

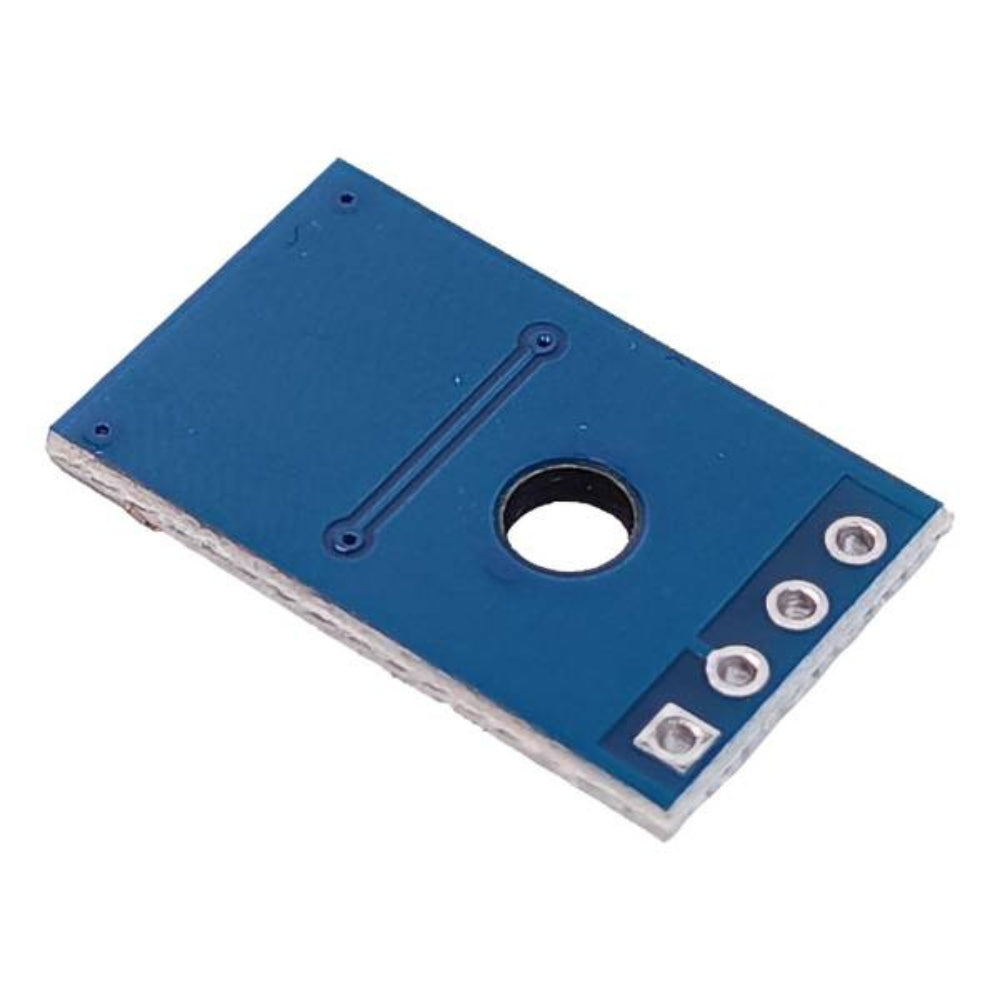

AT24C32 Module I2C IIC Interface EEPROM Memory Module
The AT24C32 Module I2C IIC Interface EEPROM Memory Module is a compact non-volatile storage module designed for saving project data that should remain available even after power is removed. It uses the AT24C32 EEPROM IC and provides 32K bit memory capacity, making it useful for storing device settings, calibration values, configuration parameters, ID data, and small application records.This I2C IIC EEPROM module communicates through a simple two-wire serial interface, making it easy to connect with Arduino, STM32, ESP boards, Raspberry Pi, and other development platforms. Its compact board format, low power operation, and non-volatile memory support make it suitable for embedded systems, learning projects, and external memory expansion applications.
Features
- Based on AT24C32 EEPROM IC
- 32K bit non-volatile memory
- I2C / IIC two-wire interface
- Retains data without power
- Good for configuration storage
- Supports byte write operation
- Supports page write operation
- Low power memory module
- Compact PCB breakout design
- Easy to use with Arduino
- Suitable for embedded storage projects
Technical Details
- Item Type: EEPROM Memory Module
- Memory IC: AT24C32
- Memory Capacity: 32K bit
- Memory Organization: 4096 × 8 bit
- Memory Type: Non-volatile EEPROM
- Operating Voltage: 2.7V to 5.5V DC
- Interface Type: I2C / IIC
- Clock Frequency: Up to 400KHz
- Write Cycle Time: 5ms typical
- Data Retention: 100 years typical
- Endurance: 1 million write cycles typical
Interfaces
- VCC: Power supply input 2.7V to 5.5V
- GND: Ground connection
- SCL: I2C clock line
- SDA: I2C data line
- WP: Write protect control pin
- A0: Address select bit 0
- A1: Address select bit 1
- A2: Address select bit 2
Applications
- Arduino memory expansion
- Embedded parameter storage
- Sensor calibration data storage
- Device configuration backup
- Small data logging projects
- Identification data storage
- Microcontroller learning projects
- DIY electronics projects
Physical Attributes
- Board Type: EEPROM breakout module
- Connection Type: Pin header interface
- Mounting Style: PCB module
- PCB Board Size: 19 × 11 mm
- Design: Compact and lightweight
- Weight: 2g
Package Includes
- 1 × AT24C32 Module I2C IIC Interface EEPROM Memory Module
