Specification
Description

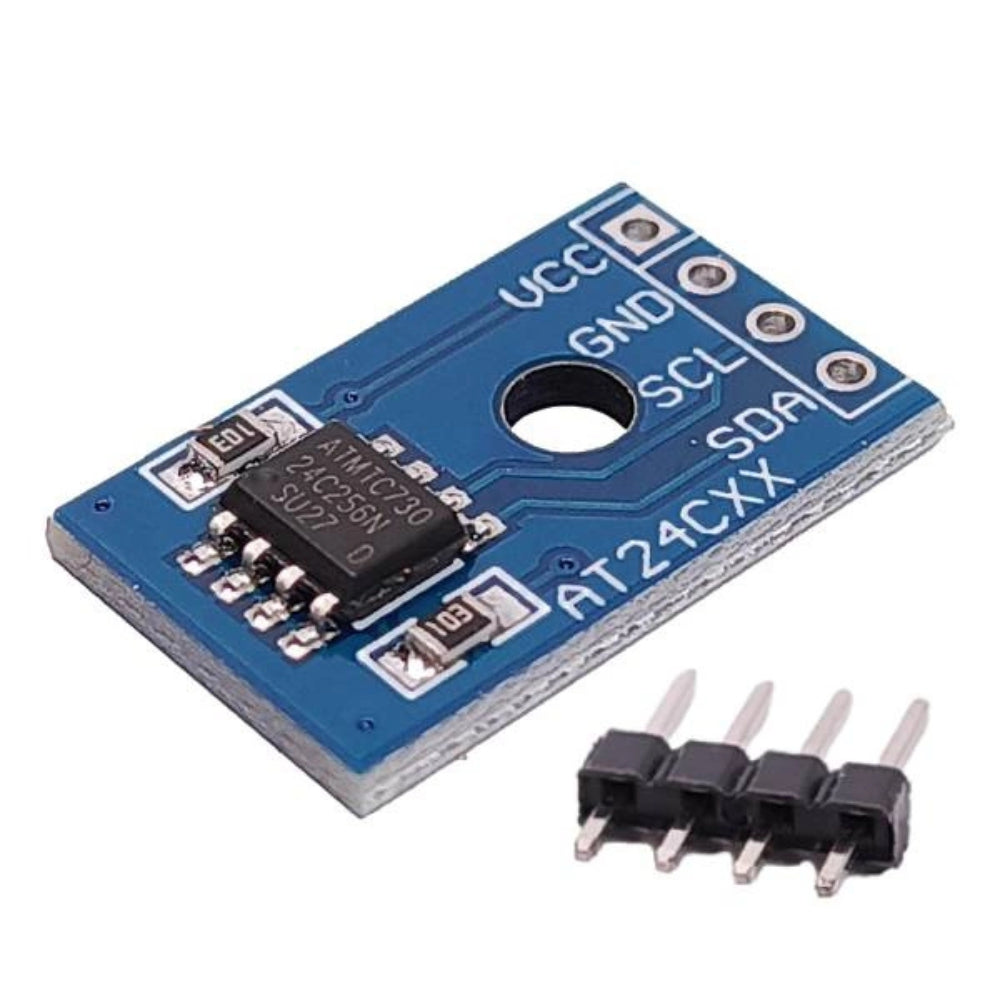

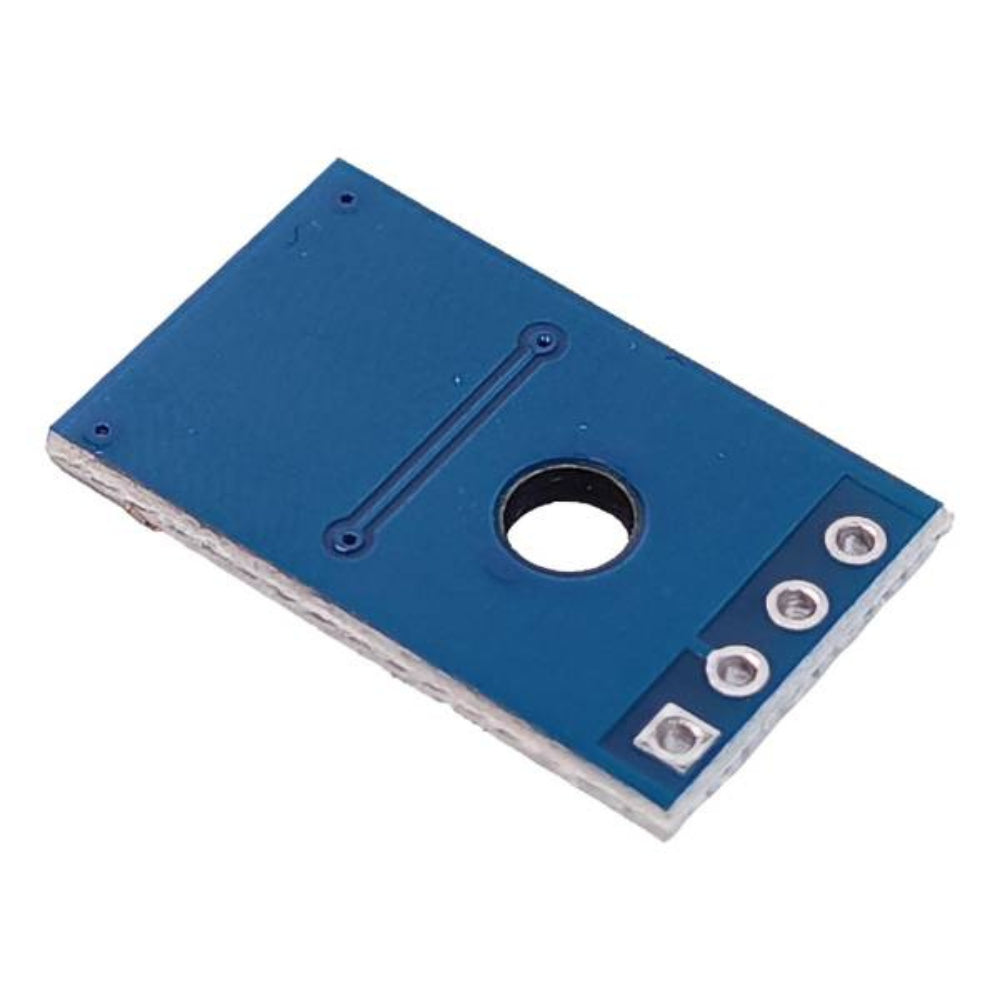

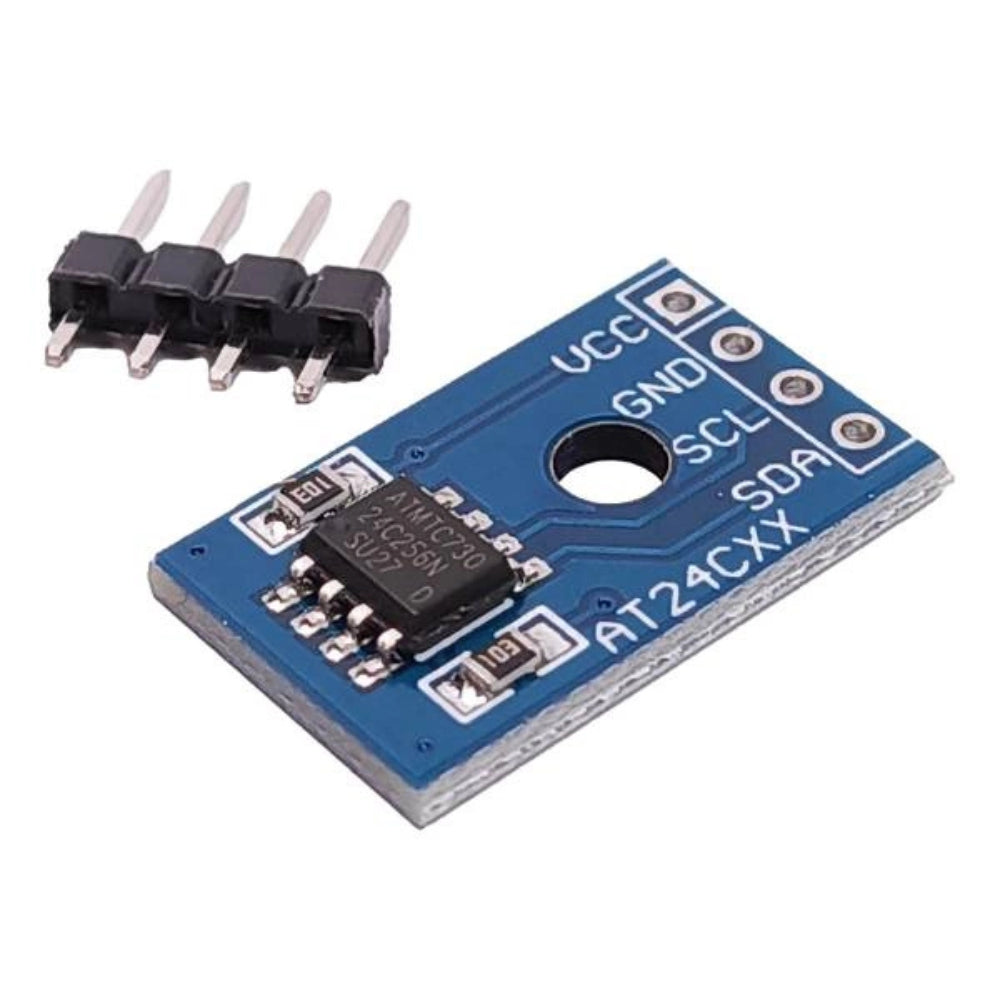

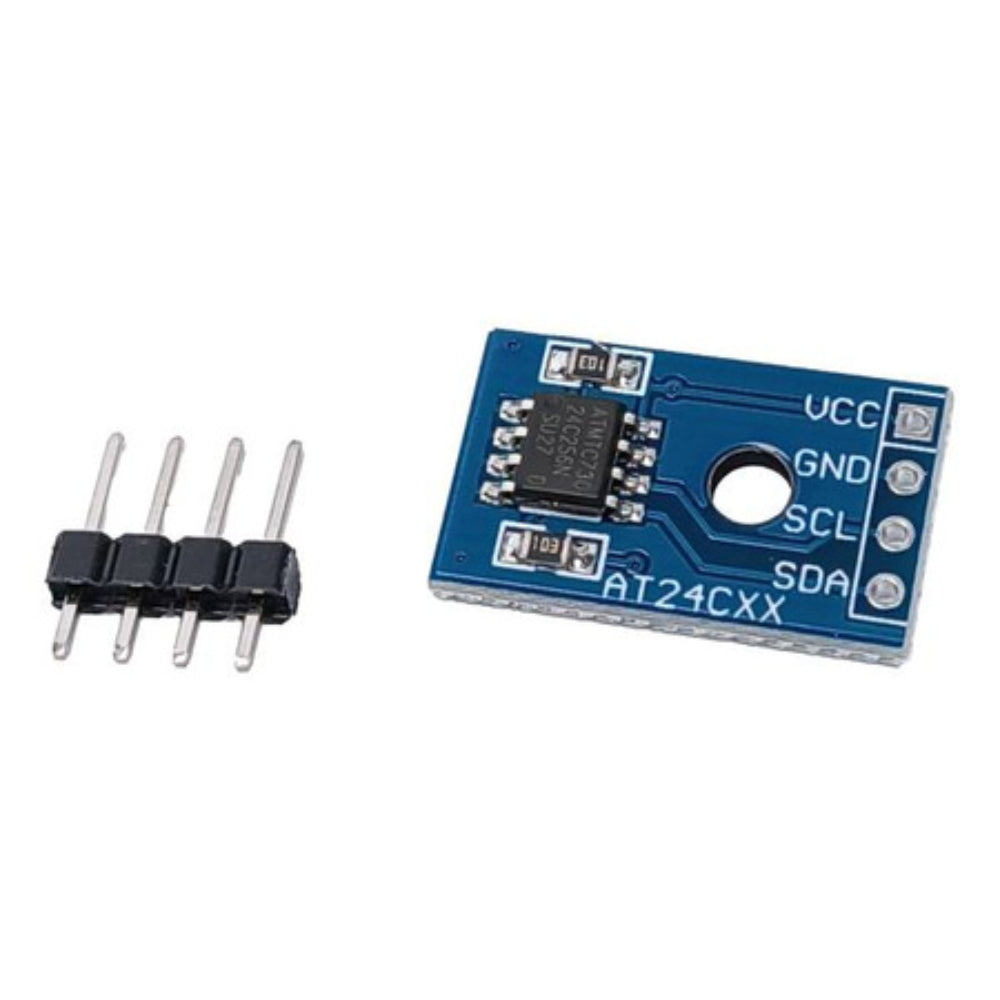

AT24C64 Module I2C IIC Interface EEPROM Memory Module
The AT24C64 Module I2C IIC Interface EEPROM Memory Module is a small external EEPROM storage board used for saving non-volatile data in microcontroller and embedded electronics projects. It is built around the AT24C64 EEPROM IC and provides 64K bit memory capacity, making it suitable for configuration settings, calibration records, device IDs, user parameters, and moderate small data storage needs.This I2C EEPROM module uses the I2C / IIC serial bus, which helps reduce microcontroller pin usage while providing reliable data read and write access. It can be connected with Arduino, STM32, ESP boards, Raspberry Pi, and other compatible controllers, making it a practical memory expansion module for DIY, learning, and embedded system applications.
Features
- Based on AT24C64 EEPROM IC
- 64K bit non-volatile memory
- I2C / IIC serial bus interface
- Stores data after power removal
- Useful for external data backup
- Supports byte write operation
- Supports page write operation
- Low power operation
- Compact memory breakout board
- Simple connection with controllers
- Suitable for repeated read/write use
Technical Details
- Item Type: EEPROM Memory Module
- Memory IC: AT24C64
- Memory Capacity: 64K bit
- Memory Organization: 8192 × 8 bit
- Memory Type: Non-volatile EEPROM
- Operating Voltage: 2.7V to 5.5V DC
- Interface Type: I2C / IIC
- Clock Frequency: Up to 400KHz
- Write Cycle Time: 5ms typical
- Data Retention: 100 years typical
- Endurance: 1 million write cycles typical
Interfaces
- VCC: Power supply input 2.7V to 5.5V
- GND: Ground connection
- SCL: I2C clock line
- SDA: I2C data line
- WP: Write protect control pin
- A0: Address select bit 0
- A1: Address select bit 1
- A2: Address select bit 2
Applications
- Microcontroller configuration storage
- Arduino EEPROM memory projects
- Sensor calibration storage
- Device setting backup
- Small data logging projects
- Serial number data storage
- Embedded memory expansion
- DIY electronics applications
Physical Attributes
- Board Type: EEPROM breakout module
- Connection Type: Pin header interface
- Mounting Style: PCB module
- PCB Board Size: 19 × 11 mm
- Design: Compact and lightweight
- Weight: 2g
Package Includes
- 1 × AT24C64 Module I2C IIC Interface EEPROM Memory Module
