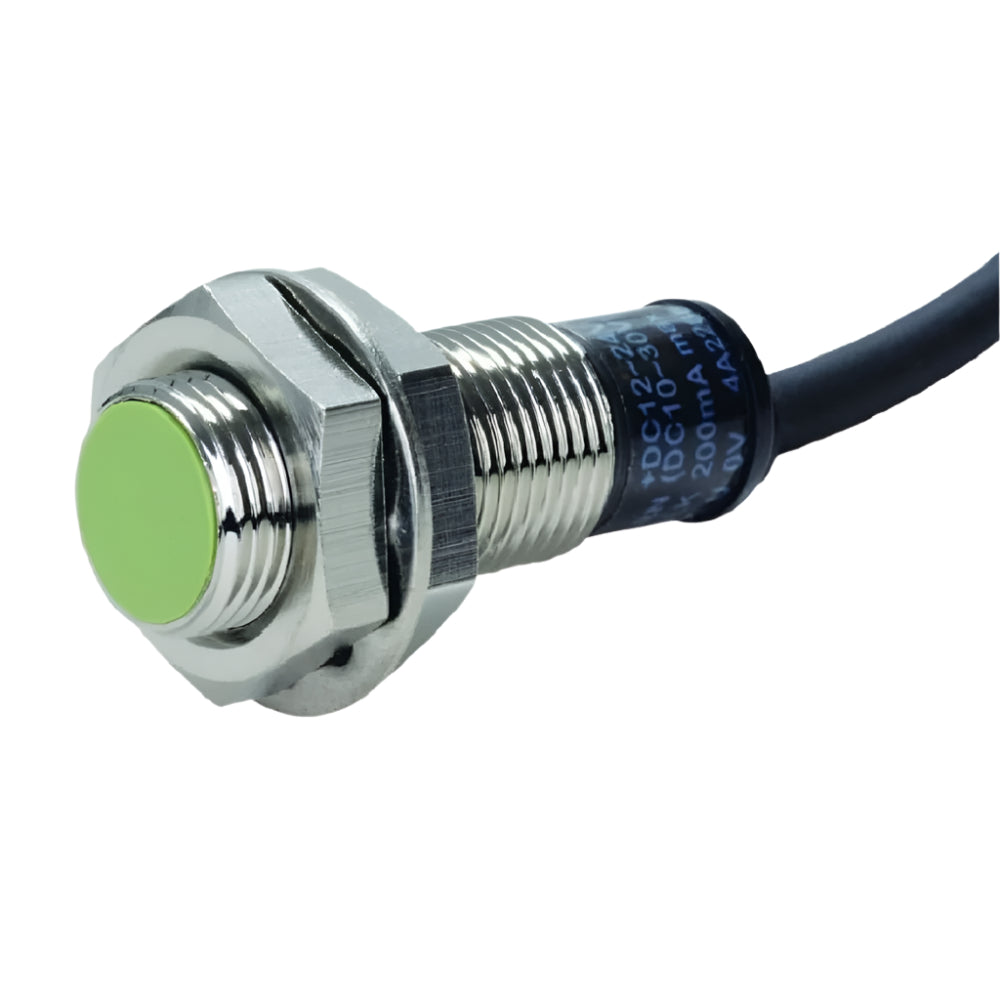

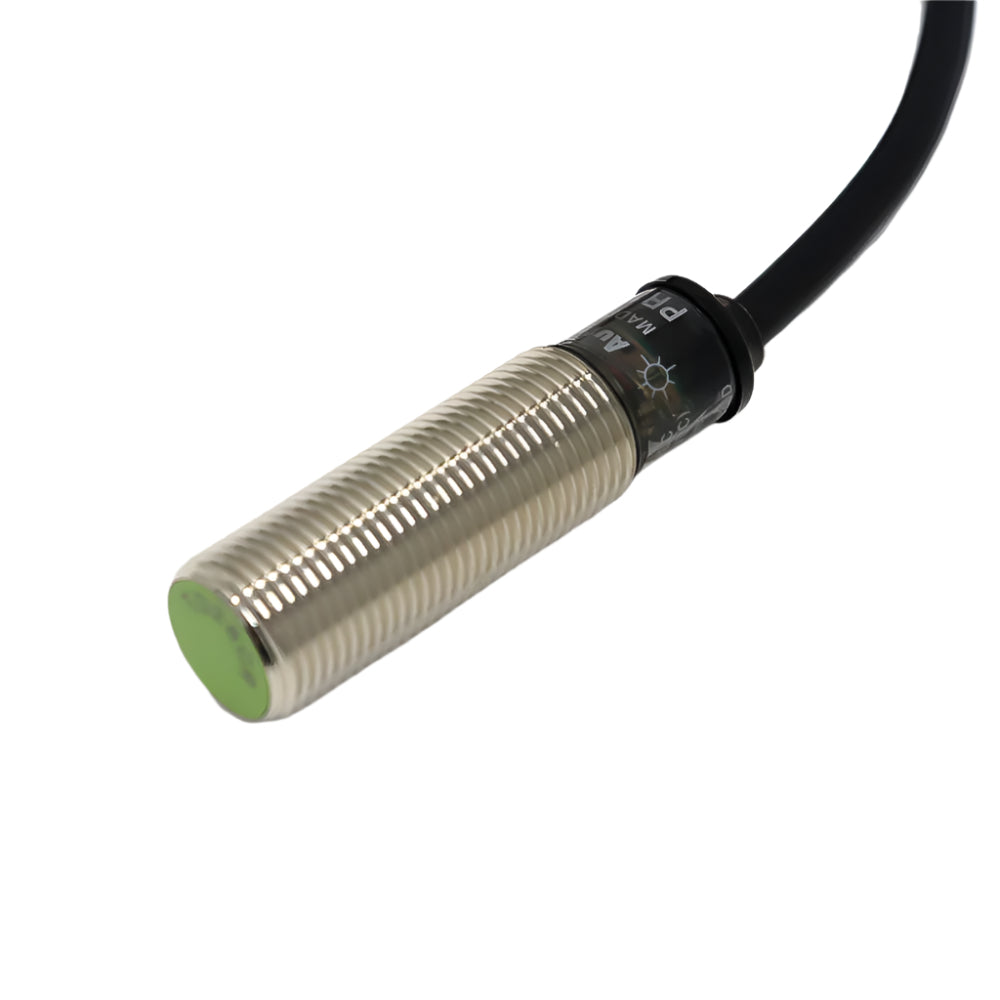

Autonics PR12-2DN DC10~30 2mm M12 Inductive Proximity Sensor NPN-NO (Shielded)
Sensing Distance: 2mm (This is the maximum distance at which the sensor can reliably detect a metallic object.)
Output Type: NPN (Negative-Positive-Negative) - This means that the sensor provides a negative voltage output when it detects a metallic object.
Output State: Normally Open (NO) - This means the sensor's output is normally in an open circuit state (no current flows) and closes (current flows) when a metallic object is detected.
Supply Voltage: DC 10~30V - This is the range of voltage the sensor requires to operate. It can be powered with a direct current (DC) source between 10V and 30V.
Thread Size: M12 - This indicates the thread size of the sensor, which is M12. This is a standard metric thread size.
Shielded: This sensor is shielded, which means it is designed for applications where the sensor may be surrounded by metal or other materials that could affect its detection capabilities. Shielded sensors are typically used in environments with metal surroundings.
Autonics PR12-2DN DC10~30 2mm M12 Inductive Proximity Sensor NPN-NO (Shielded)
Available:Out of Stock
- Product SKU: KG957
₹ 449
₹ 719
Specification
Description
The Autonics PR12-2DN is an inductive proximity sensor designed to detect the presence or absence of metallic objects without physical contact.The Autonics PR12-2DN Details:
Type: Inductive Proximity Sensor.Sensing Distance: 2mm (This is the maximum distance at which the sensor can reliably detect a metallic object.)
Output Type: NPN (Negative-Positive-Negative) - This means that the sensor provides a negative voltage output when it detects a metallic object.
Output State: Normally Open (NO) - This means the sensor's output is normally in an open circuit state (no current flows) and closes (current flows) when a metallic object is detected.
Supply Voltage: DC 10~30V - This is the range of voltage the sensor requires to operate. It can be powered with a direct current (DC) source between 10V and 30V.
Thread Size: M12 - This indicates the thread size of the sensor, which is M12. This is a standard metric thread size.
Shielded: This sensor is shielded, which means it is designed for applications where the sensor may be surrounded by metal or other materials that could affect its detection capabilities. Shielded sensors are typically used in environments with metal surroundings.
Application:
Inductive proximity sensors like the Autonics PR12-2DN are commonly used in automation, robotics, and manufacturing processes. They are utilized for tasks such as detecting the presence of metallic objects on a conveyor belt, position sensing in machinery, and other applications where non-contact detection of metal is required.Technical Details
- Model : Autonics M12 NPN-NO
- Operating Voltage (VDC): 10 ~ 30
- Detection Distance (mm): 2
- Outer Thread Size: M12
- Object Type: Inductive
- Output Type: NPN Normally Open Three-line
- Installation Type: Flush (Shielded)
- Max Output Current (mA): 200
- Setting Distance (mm) : 0 ~ 1.4
- Insulation Resistance (MΩ): 50
- Response Frequency: 1.5 kHz
- Operating Temperature (°C): -25 to 70
- Storage condition (℃): -30 to 80
Drawing (mm)
Physical Attributes

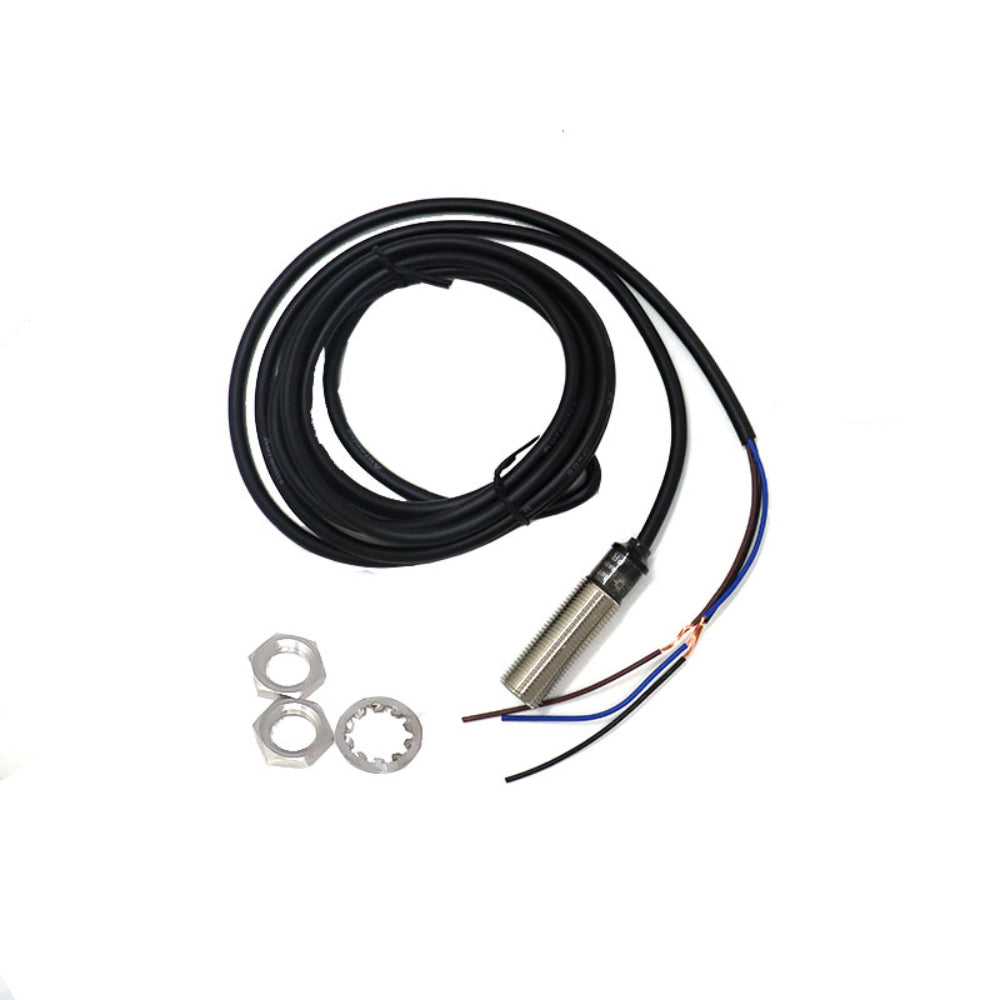

- Cable Dimensions : Ø4, 3-Wire, 2 Meter
- Weight (gm): 85
Features
- Improved the noise resistance with a dedicated IC.
- Built-in reverse polarity protection circuit (DC 3-wire type).
- The built-in surge protection circuit.
- Built-in overcurrent protection circuit (DC type).
- Long life cycle high reliability, and simple operation.
- IP67 protection structure (IEC standard).
- Replaceable for micro switches and limit switches.
Product Video
Package Includes
- 1 x Autonics PR12-2DN DC10~30 2mm M12 Inductive Proximity Sensor NPN-NO (Shielded).
