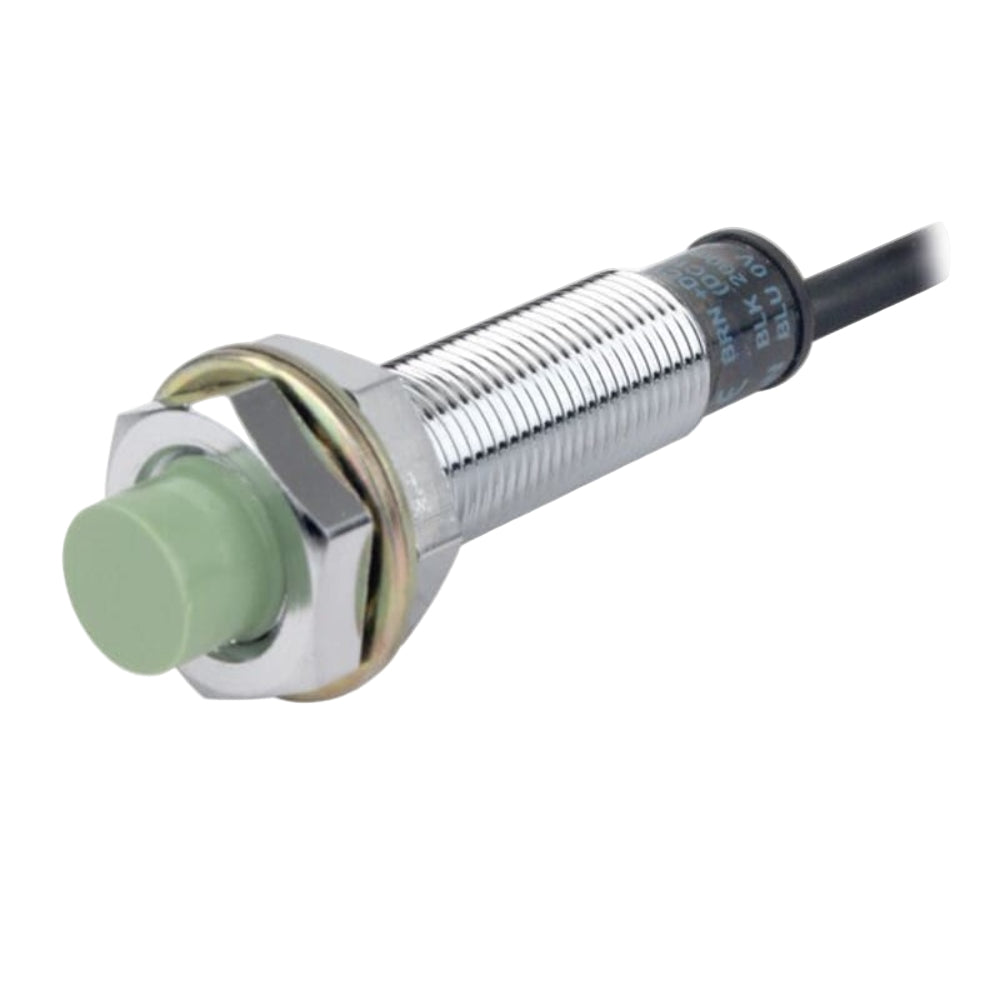

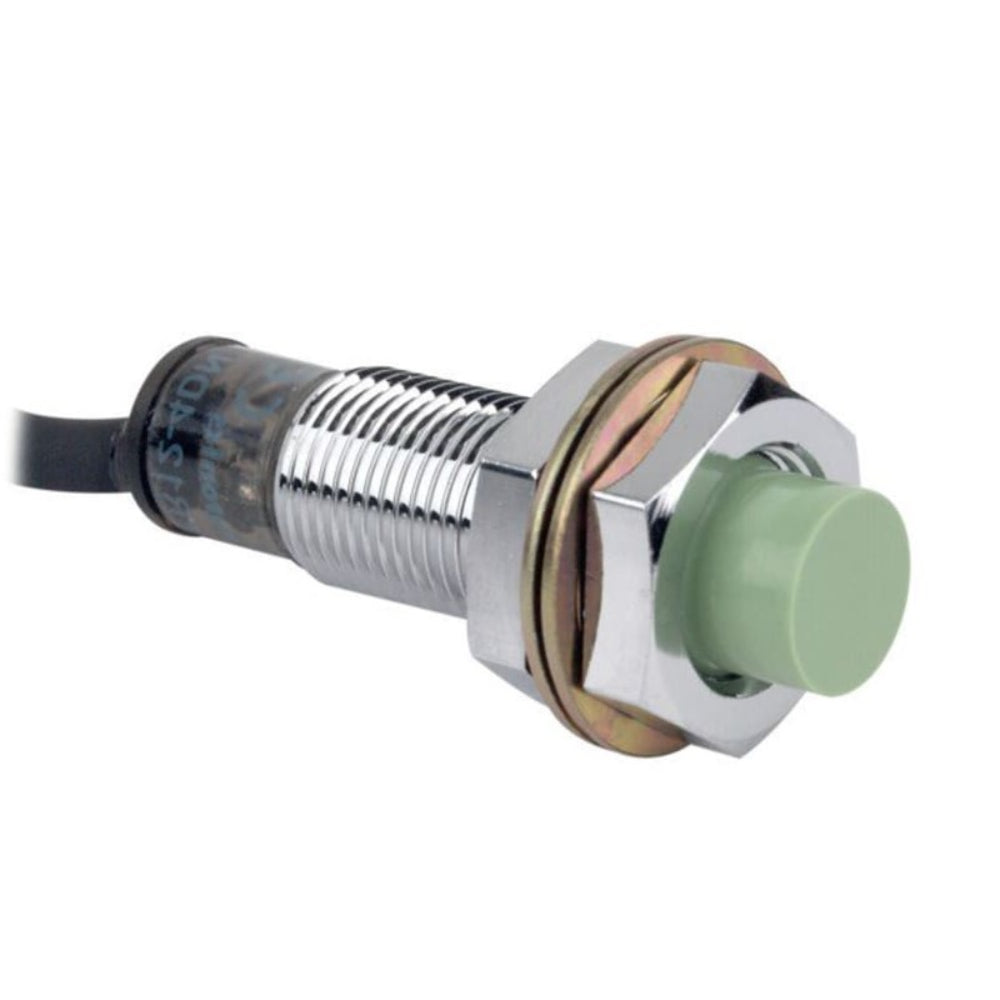

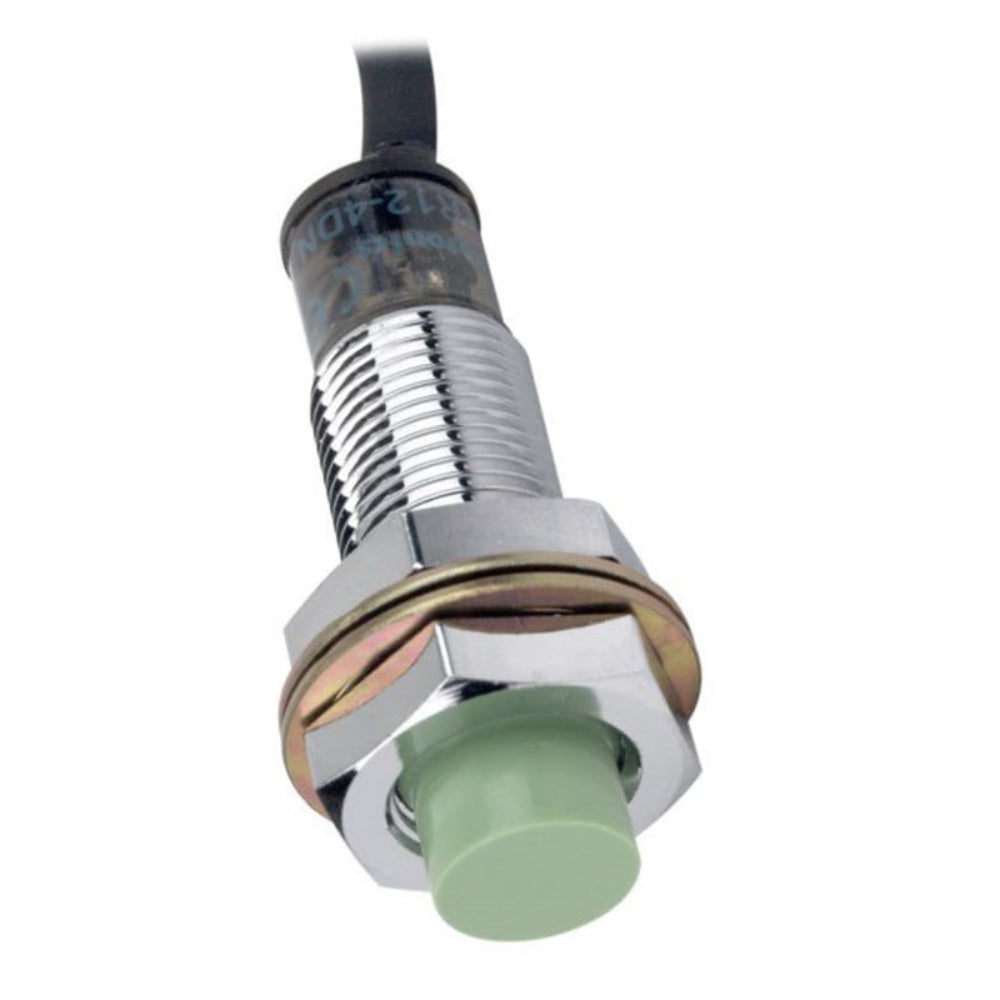

Autonics PR12-4DN DC10~30 4mm M12 Inductive Proximity Sensor NPN-NO (unshielded)
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great

Autonics PR12-4DN DC10~30 4mm M12 Inductive Proximity Sensor NPN-NO (unshielded)

Available:In Stock
  • Product SKU: KG959
Wishlist
₹ 461 ₹ 739
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Model: Autonics M12 PNP-NO
  • Operating Voltage (VDC): 10 ~ 30
  • Detection Distance (mm): 4
  • Outer Thread Size: M12
  • Object Type: Inductive
  • Output Type: NPN Normally Open Three-line
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   34D-121

Secure

Specification

Description

The Autonics PR12-4DN is an inductive proximity sensor designed to detect the presence or absence of metallic objects without physical contact.

The Autonics PR12-4DN Details:

Type: Inductive Proximity Sensor.

Sensing Distance: 4mm (This is the maximum distance at which the sensor can reliably detect a metallic object.)

Output Type: NPN (Negative-Positive-Negative) - This means that the sensor provides a negative voltage output when it detects a metallic object.

Output State: Normally Open (NO) - This means the sensor's output is normally in an open circuit state (no current flows) and closes (current flows) when a metallic object is detected.

Supply Voltage: DC 10~30V - This is the range of voltage the sensor requires to operate. It can be powered with a direct current (DC) source between 10V and 30V.

Thread Size: M12 - This indicates the thread size of the sensor, which is M12. This is a standard metric thread size.

Unshielded: This sensor is unshielded, which means it is designed for applications where the sensor is not surrounded by metal or other materials that could affect its detection capabilities. Unshielded sensors are suitable for general-purpose applications.

Application:

Inductive proximity sensors like the Autonics PR12-4DN are commonly used in automation, robotics, and manufacturing processes. They are utilized for tasks such as detecting the presence of metallic objects

Technical Details

  • Model: Autonics M12 PNP-NO
  • Operating Voltage (VDC): 10 ~ 30
  • Detection Distance (mm): 4
  • Outer Thread Size: M12
  • Object Type: Inductive
  • Output Type: NPN Normally Open Three-line
  • Installation Type: Non-Flush (Unshielded)
  • Max Output Current (mA): 200
  • Setting Distance (mm) : 0 to 2.8
  • Insulation Resistance (MΩ): 50
  • Response Frequency: 500Hz
  • Operating Temperature (°C): -25 to 70
  • Storage condition (℃): -30 to 80

Drawing (mm)

Physical Attributes

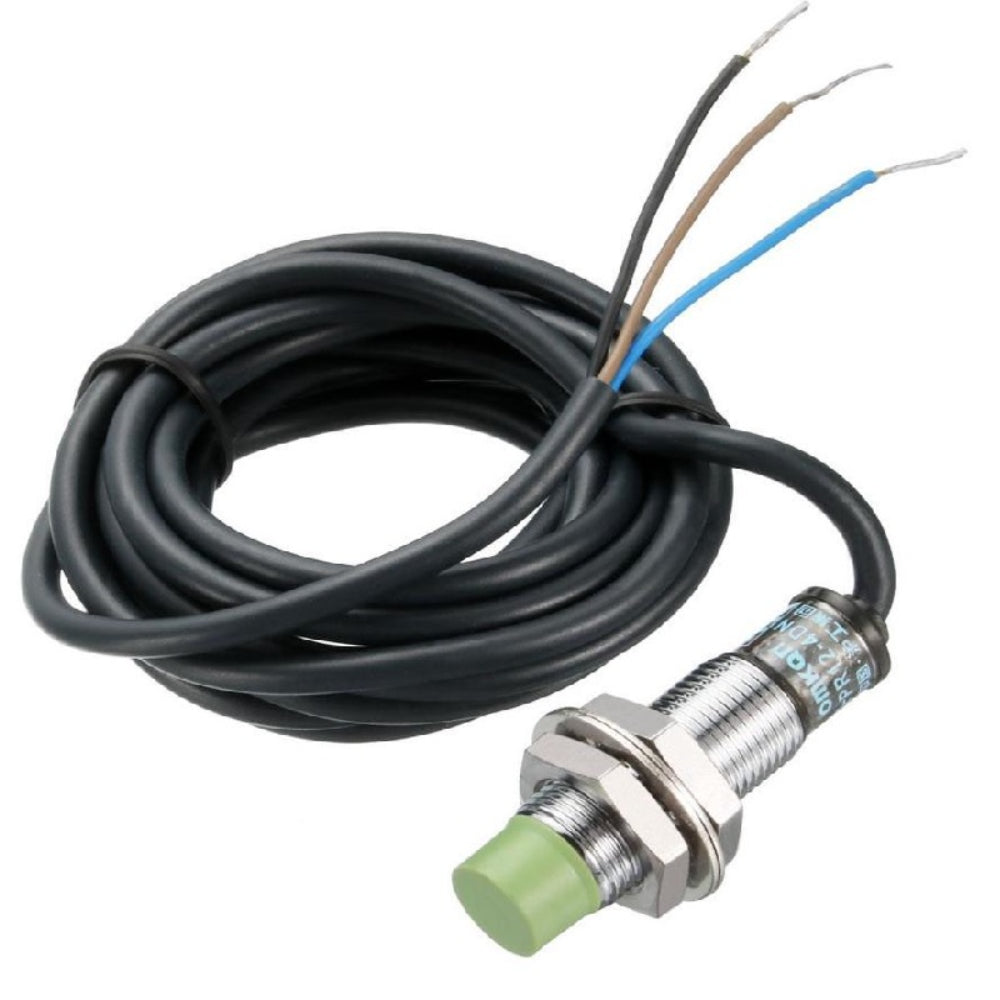

  • Cable Dimensions : Ø4, 3-Wire, 2 Meter
  • Weight (gm): 67

Features

  • Improved the noise resistance with a dedicated IC.
  • Built-in reverse polarity protection circuit (DC 3-wire type).
  • The built-in surge protection circuit.
  • Built-in overcurrent protection circuit (DC type).
  • Long life cycle high reliability, and simple operation.
  • IP67 protection structure (IEC standard).
  • Replaceable for micro switches and limit switches.

Product Video

Package Includes

  • 1 x Autonics PR12-4DN DC10~30 4mm M12 Inductive Proximity Sensor NPN-NO (unshielded)
