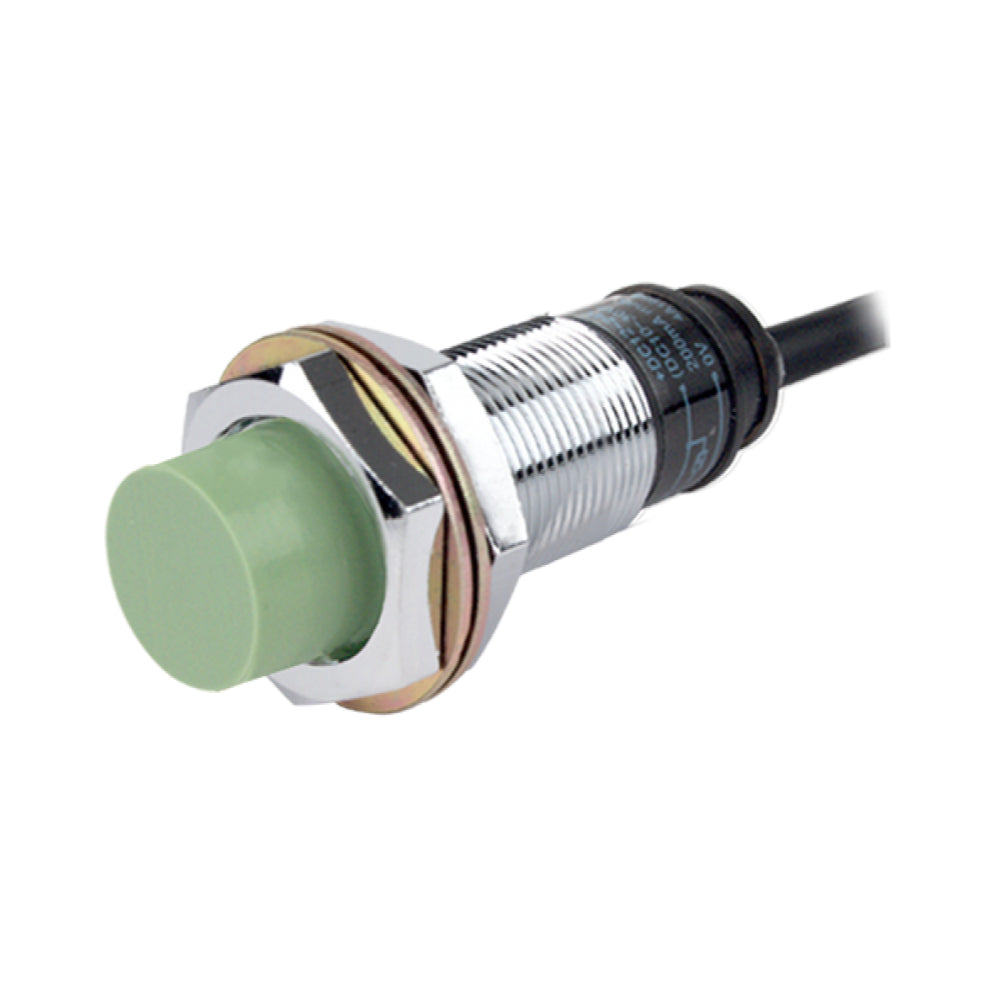

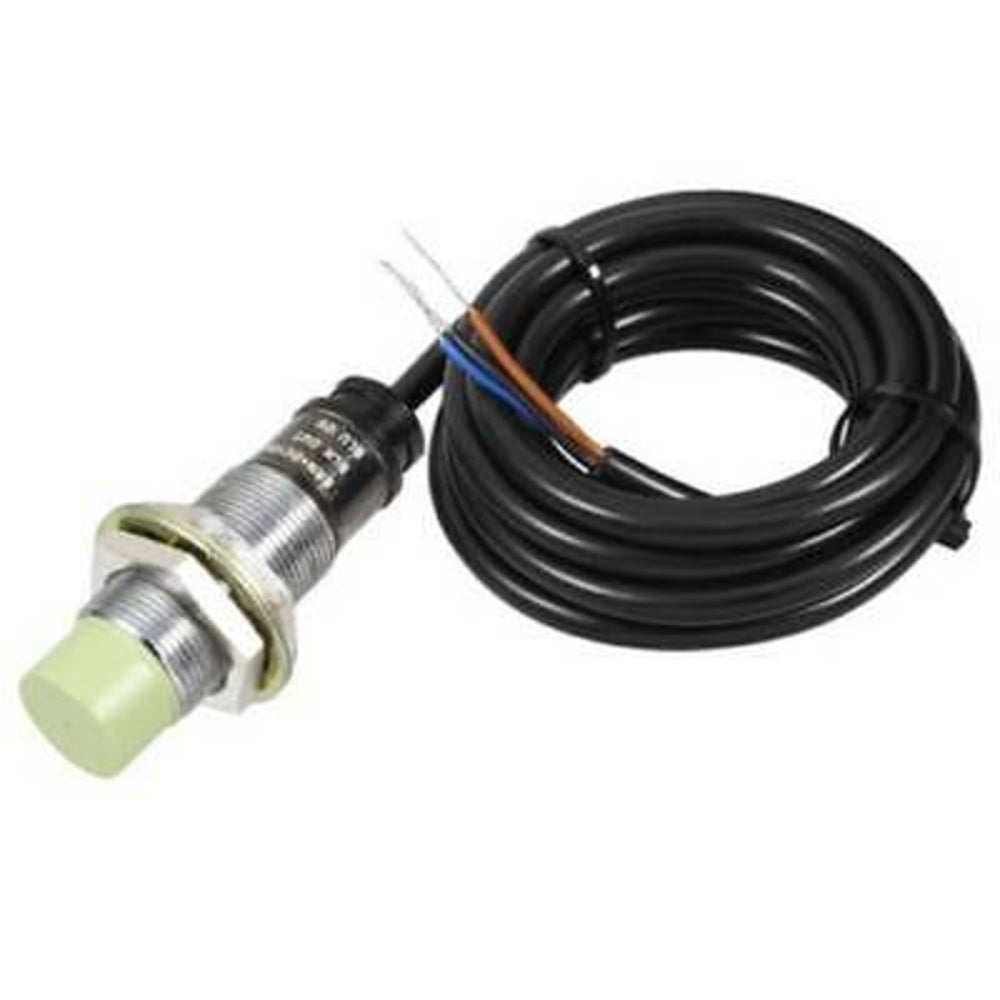

Autonics PR18-8DN DC10~30 8mm M18 Inductive Proximity Sensor NPN-NO (Unshielded)
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-37%
Autonics PR18-8DN DC10~30 8mm M18 Inductive Proximity Sensor NPN-NO (Unshielded)
Autonics PR18-8DN DC10~30 8mm M18 Inductive Proximity Sensor NPN-NO (Unshielded)_1

Autonics PR18-8DN DC10~30 8mm M18 Inductive Proximity Sensor NPN-NO (Unshielded)

Available:Out of Stock
  • Product SKU: KG963
Wishlist
₹ 547.05 ₹ 870.45
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

The Autonics PR18-8DN is an inductive proximity sensor designed to detect the presence or absence of metallic objects without physical contact.

The Autonics PR18-8DN Details:

Type: Inductive Proximity Sensor.

Model: PR18-8DN

Operating Voltage: DC 10~30V

Sensing Distance: 8mm (This is the maximum distance at which the sensor can detect an object.)

Housing Size: M18 (This refers to the diameter of the sensor's threaded housing, which is M18 in this case.)

Output Type: NPN-NO (This means that the sensor provides a Normally Open NPN output. This output configuration is typically used in applications where the sensor provides a signal when it detects an object.)

Shielding: Unshielded (This indicates that the sensor is unshielded, meaning it may be more susceptible to interference from external sources.)

This type of sensors commonly used :

In industrial automation applications for detecting the presence or absence of metallic objects. The sensing distance is the maximum distance at which the sensor can reliably detect a target. In this case, the PR18-8DN has a sensing distance of 8mm.

Technical Details

  • Model : Autonics M18 NPN-NO
  • Operating Voltage (VDC) : 10 ~ 30
  • Detection Distance (mm) : 8
  • Outer Thread Size : M18
  • Object Type : Inductive
  • Output Type: NPN Normally Open Three-line
  • Installation Type: Non-Flush (Unshielded)
  • Max Output Current (mA): 200
  • Setting Distance (mm) : 0 ~ 5.6
  • Insulation Resistance (MΩ) : 50
  • Response Frequency : 350 Hz
  • Operating Temperature (°C) : -25 to 70
  • Storage condition (℃) : -30 to 80

Drawing (mm)

Physical Attributes

  • Cable Diamensions : Ø5, 3-Wire, 2 Meter
  • Weight (gm) : 85

Features

  • Improved the noise resistance with a dedicated IC.
  • Built-in reverse polarity protection circuit (DC 3-wire type).
  • The built-in surge protection circuit.
  • Built-in overcurrent protection circuit (DC type).
  • Long life cycle high reliability, and simple operation.
  • IP67 protection structure (IEC standard).
  • Replaceable for micro switches and limit switches.

Product Video

Package Includes

  • 1 x Autonics PR18-8DN DC10~30 8mm M18 Inductive Proximity Sensor NPN-NO (Unshielded)
