Autonics Original PR30-15DP DC10~30 15mm M30 Inductive Proximity Sensor PNP-NO (Shielded)

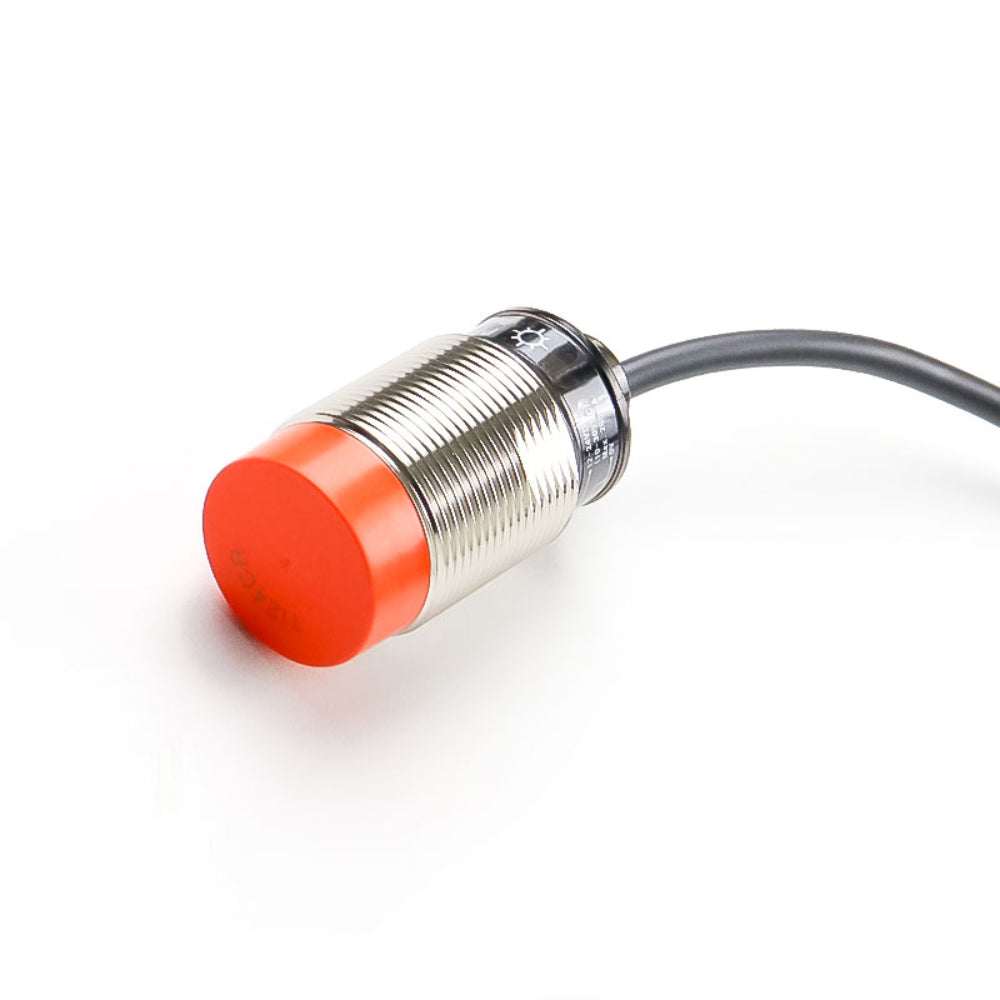

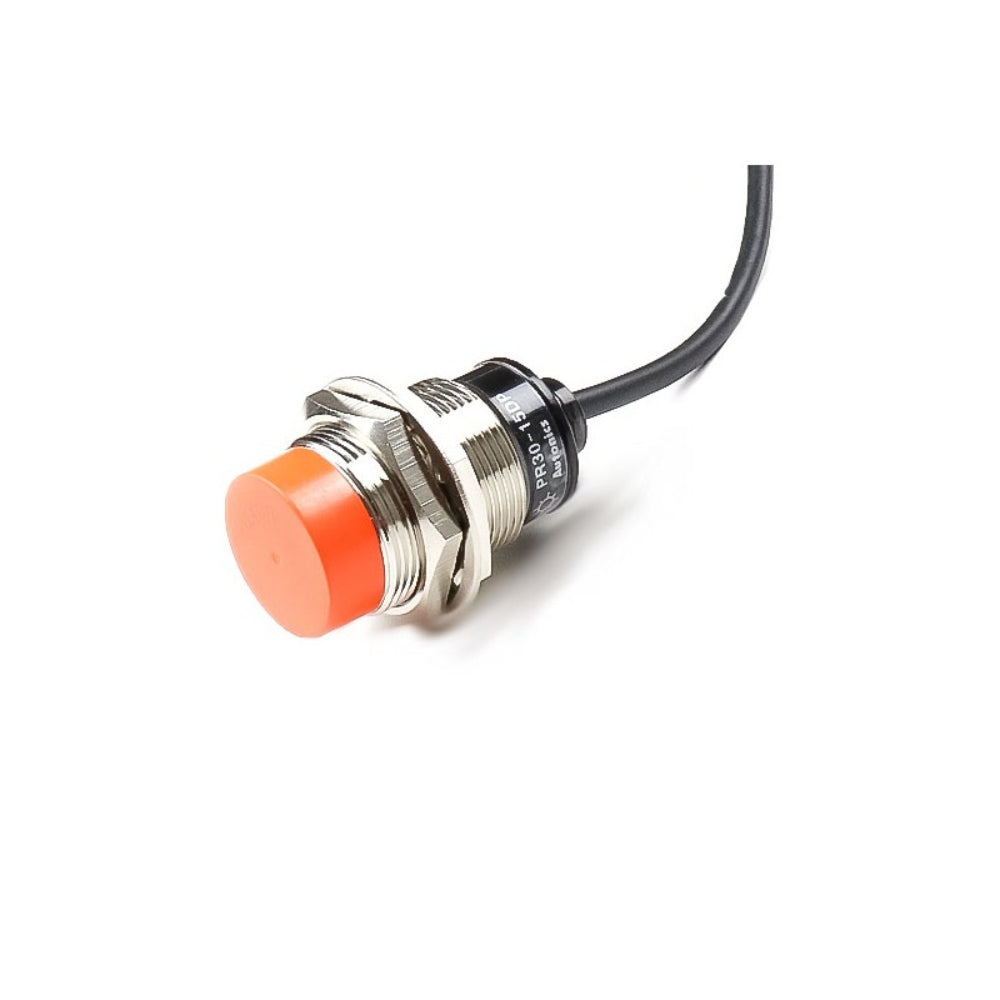

![Autonics PR30-15DP inductive type sensor front view]()

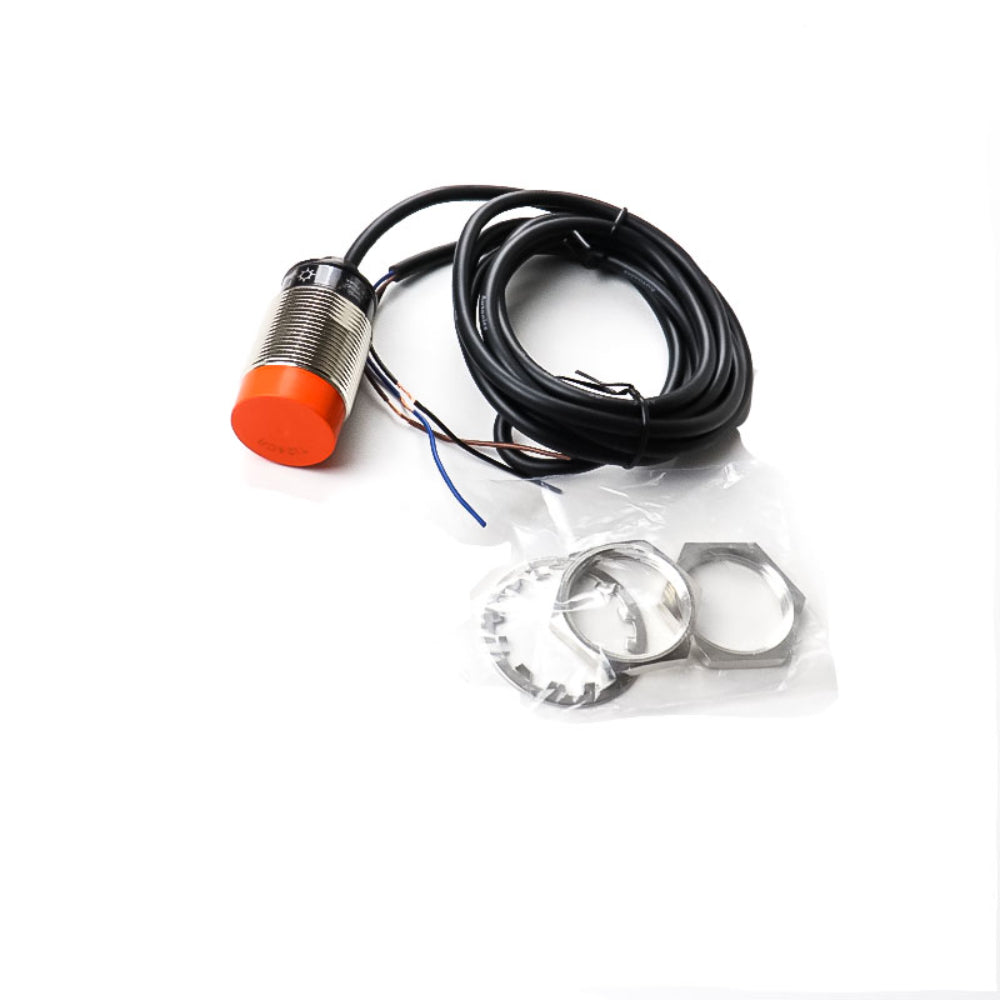

![Side profile of Autonics PR30-15DP inductive proximity sensor]()
![Wiring diagram of Autonics PR30-15DP proximity switch sensor]()
![Autonics PR30-15DP inductive type sensor front view]()
![Side profile of Autonics PR30-15DP inductive proximity sensor]()
![Wiring diagram of Autonics PR30-15DP proximity switch sensor]()
Its dedicated IC for noise resistance, this inductive type sensor ensures consistent performance even in noisy industrial environments. Moreover, with flush (shielded) design and PNP-NO output, it offers durability and ease of installation.
-23%
Autonics Original PR30-15DP DC10~30 15mm M30 Inductive Proximity Sensor PNP-NO (Shielded)
Available:In Stock
- Product SKU: KG966
₹ 999
₹ 1,299
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
Autonics Original PR30-15DP DC10~30 15mm M30 inductive type sensor PNP-NO (Shielded)
This Autonics PR30-15DP DC10~30 15 mm M30 sensor offers a robust inductive type sensor solution, perfect for detecting metal objects without contact. It provides reliable non-contact detection and works ideally in industrial setups where a precise proximity switch sensor is needed. Because it senses metal via an electromagnetic field, it behaves differently from a capacitive model and works only with conductive targets — an advantage for stable metal detection compared to many inductive position sensor alternatives.Its dedicated IC for noise resistance, this inductive type sensor ensures consistent performance even in noisy industrial environments. Moreover, with flush (shielded) design and PNP-NO output, it offers durability and ease of installation.
Technical Details of proximity switch sensor
- Model: Autonics M30 PNP-NO
- Sensor Type: inductive type sensor
- Operating Voltage: 10–30 VDC
- Detection Distance: 15 mm
- Outer Thread Size: M30
- Output Type: PNP Normally Open (3-Wire)
- Installation: Flush (Shielded)
- Max Output Current: 200 mA
- Setting Distance: 0 ~ 10.5 mm
- Insulation Resistance: 50 MΩ
- Frequency Response: 200 Hz
- Storage Temperature: –30 to 80 °C
- Cable: Ø5, 3-Wire, 2 m
- Weight: 206 g
Features
- Noise-resistant dedicated IC
- Reverse polarity protection (DC 3-wire)
- Surge protection circuit
- Overcurrent protection (DC type)
- Long life & high reliability
- IP67 protection (IEC standard)
- Simple operation — replaces mechanical switches
- Compact flush (shielded) design
Applications :
- Industrial Automation: Detect metal parts on conveyor systems with a dependable inductive type sensor.
- Metal Detection & Sorting: Efficiently sense ferrous and non-ferrous metals using a quality proximity switch sensor.
- Robotics & CNC Machines: Enable precise positioning and tool/workpiece detection, benefiting from a robust inductive position sensor design.
- Automotive Manufacturing: Use for part detection, alignment, and process automation in assembly lines.
- Security & Access Control: Employ for non-contact metal detection in gates, doors, and industrial entry systems.
- Warehousing & Heavy Machinery: Ensure reliable metal bin detection or position sensing in large-scale industrial operations.
- Construction Equipment: Use to prevent collisions by sensing metal components in heavy machinery.
Drawing (mm)
Physical Attributes
- Cable Dimensions: Ø5, 3-Wire, 2 Meter
- Weight (gm): 162
Package Includes
- 1 × Autonics PR30-15DP DC10–30 15 mm M30 inductive type sensor PNP-NO (Shielded)
