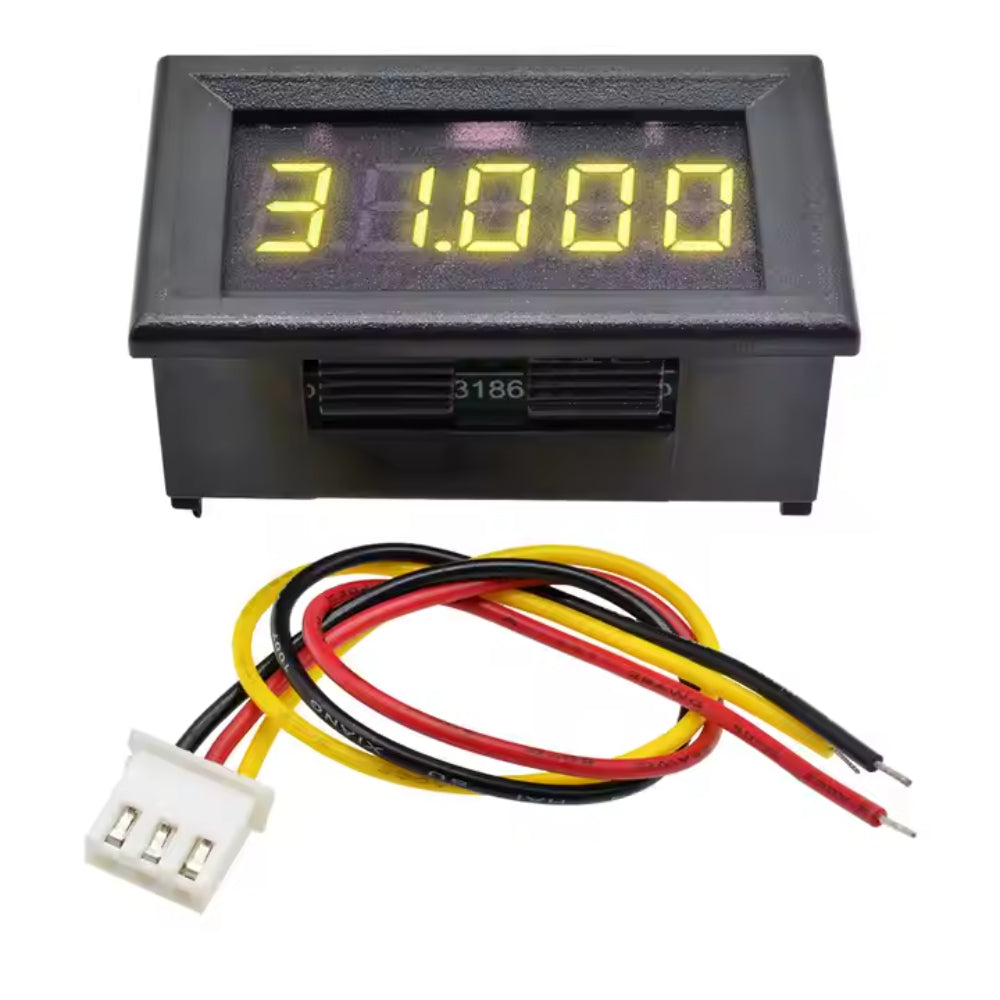

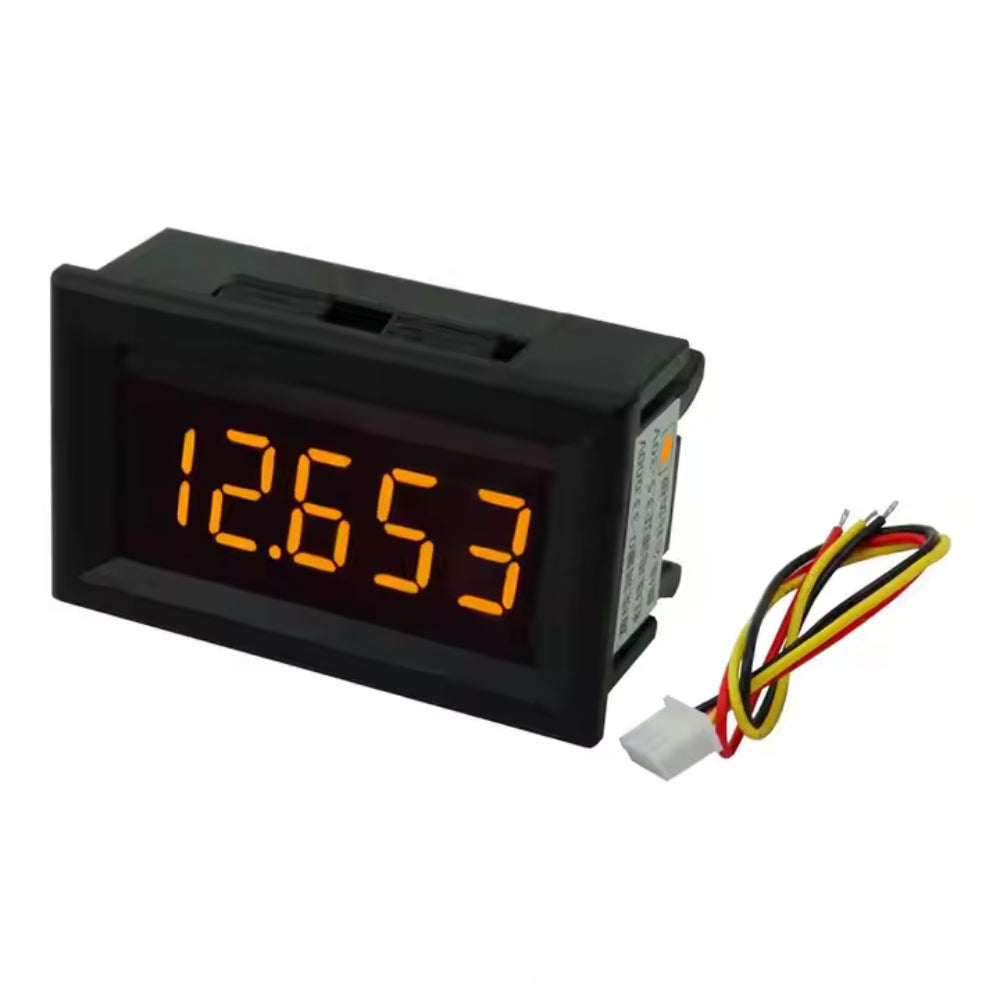

Yellow LED 5 Digit DC 0-4.3000-33.000V Digital Voltmeter Voltage Meter Car Panel

Blue-LED-5-Digit-DC-0-4.3000-33.000V-Digital-Voltmeter-Voltage-Meter-Car-Panel

LED 5 Digit DC 0-4.3000-33.000V Digital Voltmeter Voltage Meter Car Panel

Available:Out of Stock

Product SKU: KG616

Wishlist

₹ 513 ~~₹ 599~~

Pre-order

Specification

Description

High precision: the measurement range of 0-33.000V over the traditional 0-20.000V header. Flexible supply: There is no need to isolate the power supply, you can use the system common ground.(Note: If you need 0.1 mV resolution please use an isolated power supply. Otherwise, the accuracy drops an order of magnitude. Variable precision: Precision automatic change below 4.3 V, the highest resolution of 0.1 mV, Precision automatic 4.3 V above changes, the highest resolution of 1 mVConnection is simple, just need to pick up two lines, joint reverse protection, then do not burn.

Technical Details

Display mode: Five 0.36 LED digital tube
update rate: > 3s/time
Supply voltage: 3.5-30V
Measurement range: DC 0-4.3000-33.000V
Operation temperature: -10 degrees~65 degrees
Measurement accuracy: (0.3‰+ 2words)
Redline 1:Power Supply + Blackline 1:Power Supply - Redline 2:VIN + Black line2: VIN

NOTE: The header needs an independent power supply. The power supply range is 3.5-30 V dc. when black wire and red wire are switched to with the power supply, the header will display 0.0000 (when the measuring line is dangling, the header will display one or two bases) . Red VIN + and black line VIN - will be switched to the measurement circuit. the measured voltage range is 0-33.000 V dc.
