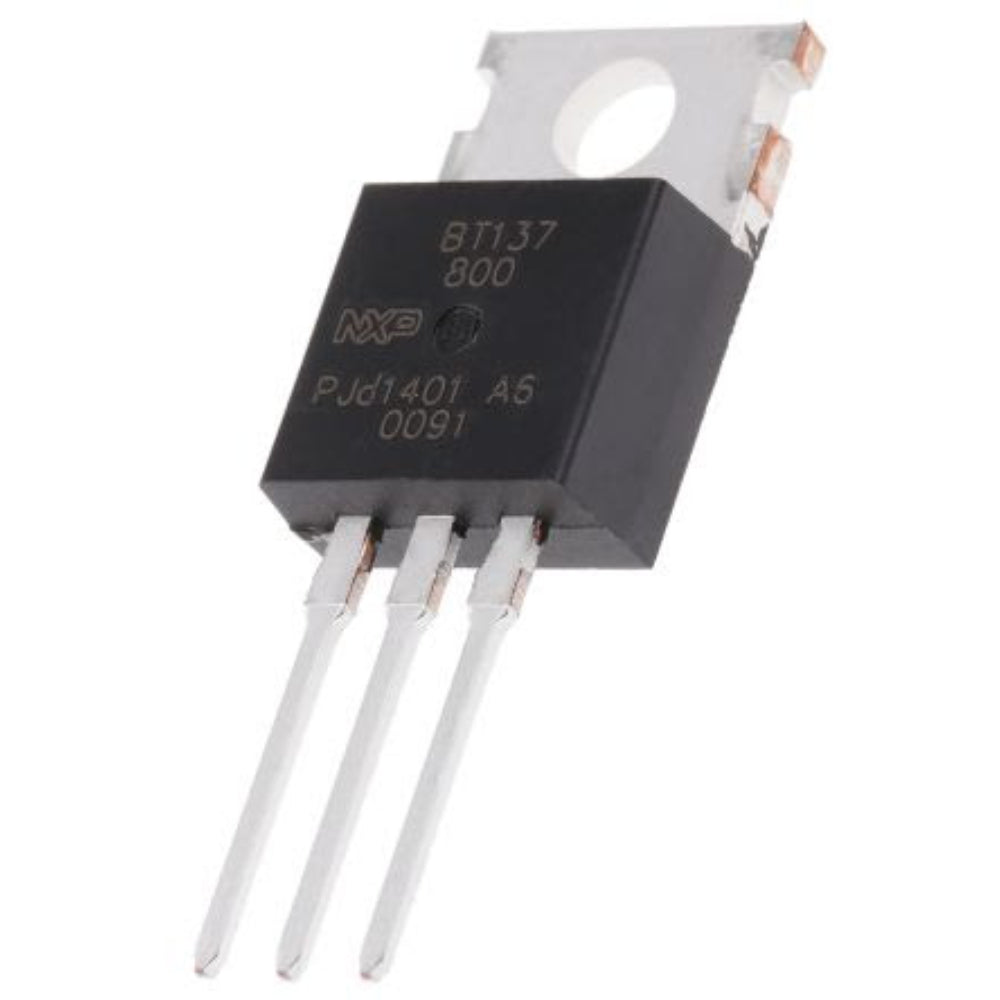

BT137-800E 800V 12A TRIAC TO-220 Package

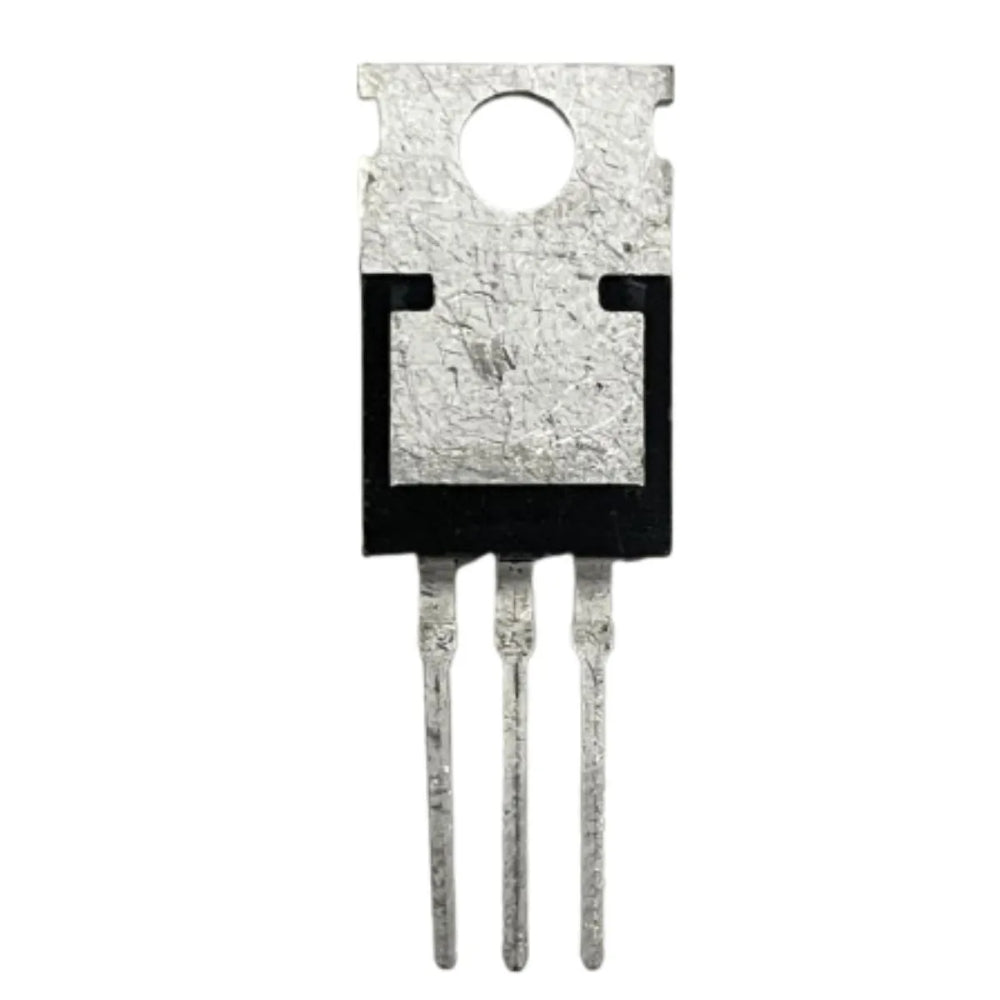

BT137-800E 800V 12A TRIAC TO-220 Package_2

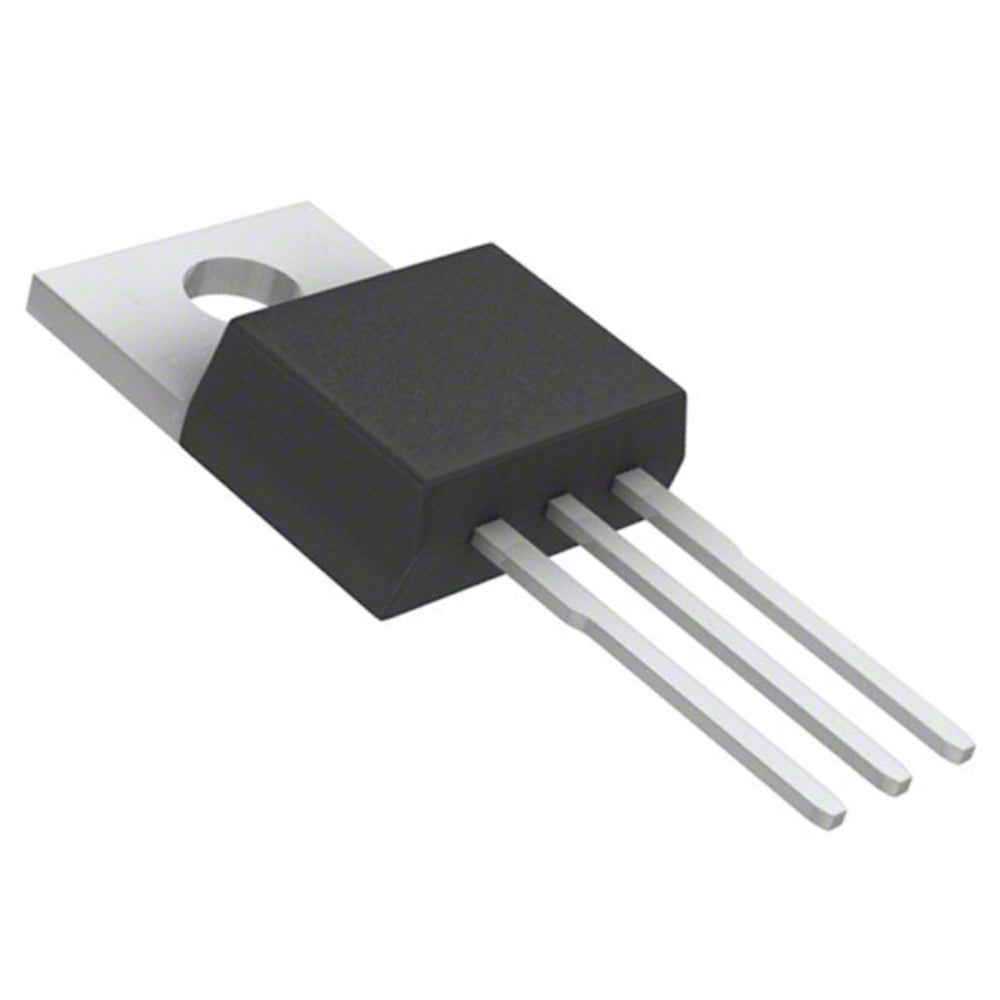

BT137-800E 800V 12A TRIAC TO-220 Package
BT137-800E 800V 12A TRIAC TO-220 Package
BT137-800E 800V 12A TRIAC TO-220 Package_2
BT137-800E 800V 12A TRIAC TO-220 Package

BT139-600E 600V 16A TRIAC TO-220 Package

Available:In Stock
  • Product SKU: INTEG254
Wishlist
₹ 27 ₹ 49
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • BT139-600E TRIAC
  • 600V, 16A Rating
  • Bidirectional AC Control
  • High Surge Withstand
  • TO-220 Package
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36H-165J

Secure

Specification

Description

BT139-600E 600V 16A TRIAC – TO-220 Package

The BT139-600E is a robust 16A TRIAC ideal for general-purpose AC switching and phase control applications. Designed to handle loads such as lamps, fans, heaters, and small motors, it offers a maximum repetitive off-state voltage of 600V. Its TO-220 package ensures efficient heat dissipation and simple through-hole mounting for reliable circuit integration.

Technical Details

  • Part Number: BT139-600E
  • Device Type: TRIAC
  • Peak Repetitive Off-State Voltage (VDRM): 600V
  • RMS On-State Current (IT(RMS)): 16A
  • Non-Repetitive Peak Surge Current (ITSM): 150A (t = 20ms)
  • Holding Current (IH): 15mA
  • Gate Trigger Voltage (VGT): 1.3V (max)
  • Gate Trigger Current (IGT): 35mA (max)
  • Package: TO-220
  • Mounting Type: Through-Hole

Features

  • High surge current capability up to 150A
  • Low gate trigger voltage and current
  • Isolated mounting tab for easy heatsink connection
  • Reliable operation in AC switching circuits
  • TO-220 package with enhanced thermal performance

Applications

  • AC Load Switching
  • Light Dimmers
  • Fan Speed Regulators
  • Heater Controls
  • Phase Control Applications

Physical Attributes

  • Package: TO-220
  • Leads: 3 (Gate, MT1, MT2)
  • Dimensions: Approx. 10mm × 15mm × 4.5mm (Body)
  • Mounting Type: Through-Hole
  • Weight: ~1g

Package Includes

  • 1 x BT139-600E 600V 16A TRIAC – TO-220 Package
