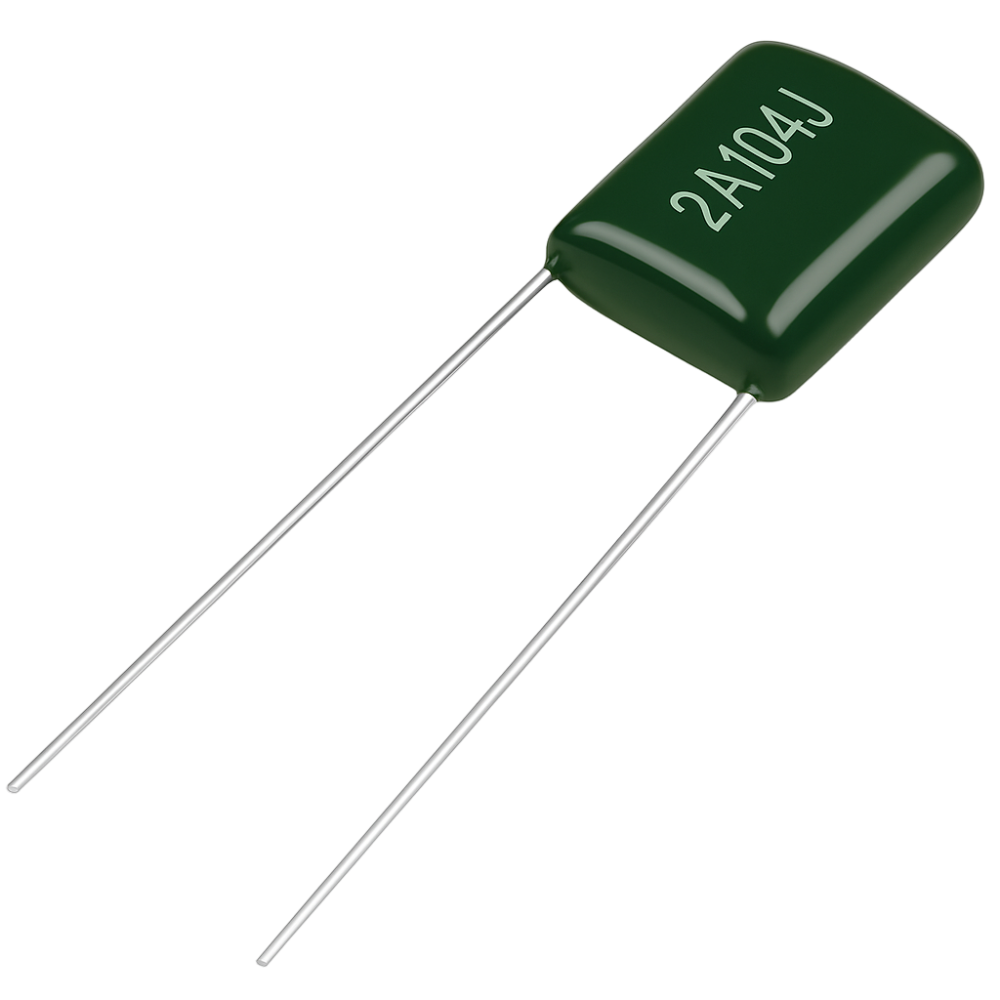

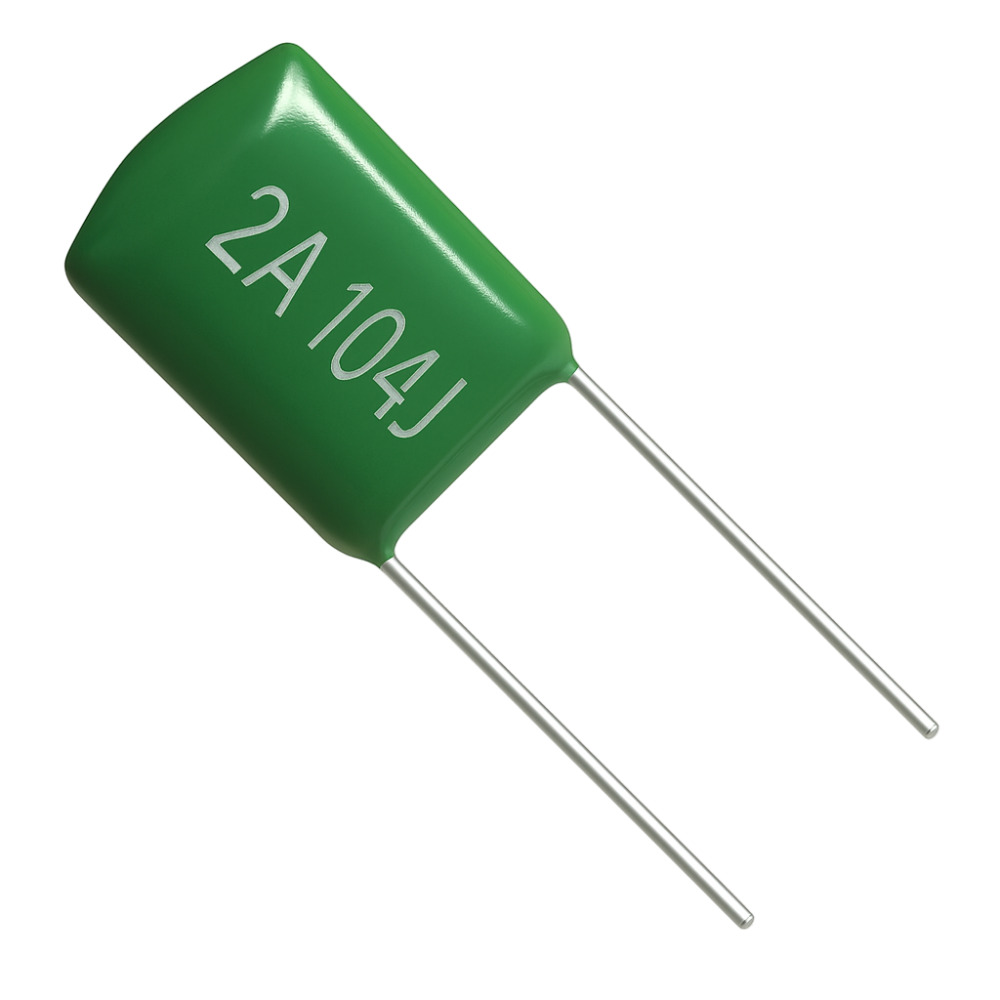

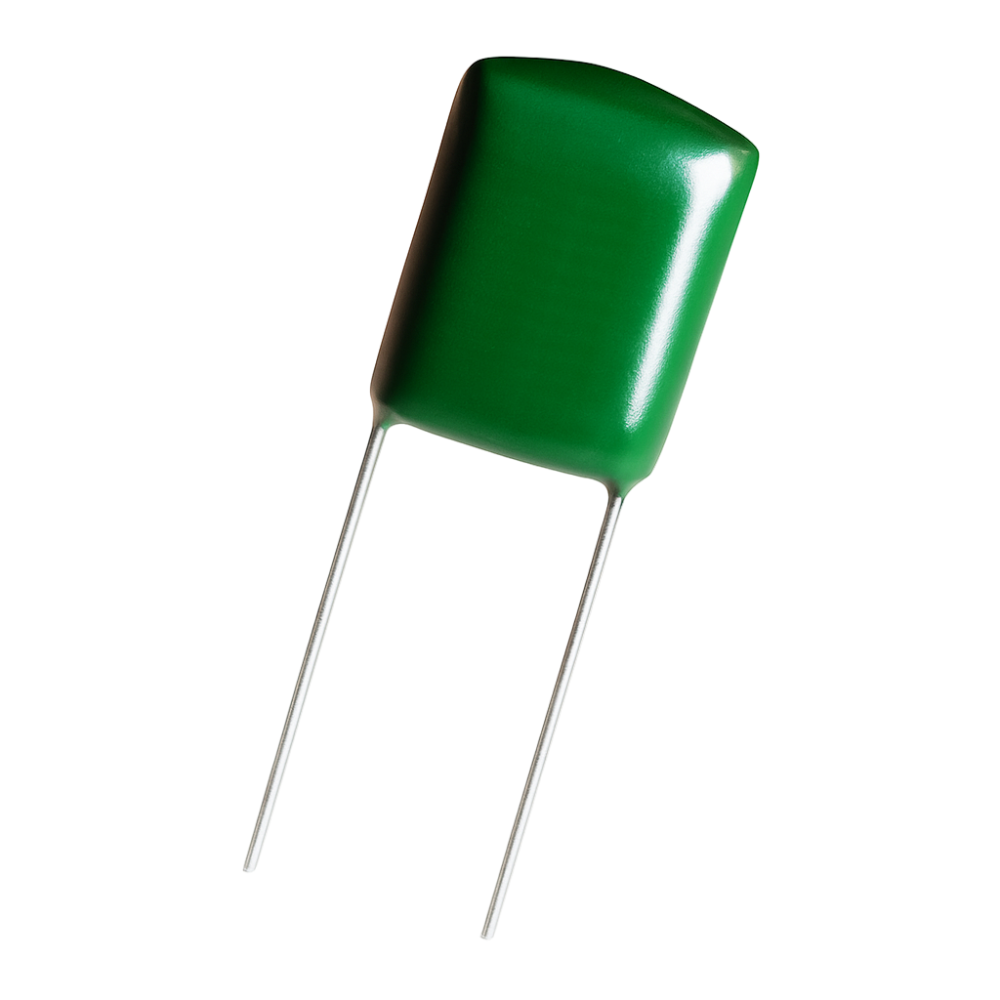

CL11 Polyester Film Capacitor 2A104J 0.1ยตF 100nF 100V Accuracy ยฑ5%
![CL11 Polyester Film Capacitor 2A104J 0.1ยตF 100nF 100V-1]()
![CL11 Polyester Film Capacitor 2A104J 0.1ยตF 100nF 100V-2]()
![CL11 Polyester Film Capacitor 2A104J 0.1ยตF 100nF 100V-3]()
![CL11 Polyester Film Capacitor 2A104J 0.1ยตF 100nF 100V-1]()
![CL11 Polyester Film Capacitor 2A104J 0.1ยตF 100nF 100V-2]()
![CL11 Polyester Film Capacitor 2A104J 0.1ยตF 100nF 100V-3]()
It is widely used in signal coupling, decoupling, filtering, and timing circuits requiring a low to medium voltage rating. With its ยฑ5% tolerance, stable capacitance, low dielectric loss, and high insulation resistance, it is a perfect choice for both professional and hobby electronic applications.
-33%
CL11 Polyester Film Capacitor 2A104J 0.1ยตF 100nF 100V Accuracy ยฑ5%
Available:In Stock
- Product SKU: CAPAC099
โน 6
โน 9
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
๐
Warehouse Details:
Specification
Description
CL11 Polyester Film Capacitor 100V 2A104J โ 0.1ยตF 100nF ยฑ5%
The CL11 Polyester Film Capacitor 100V 2A104J is a high-quality metallized polyester film capacitor with a capacitance of 0.1ยตF (100nF) and a rated voltage of 100V.It is widely used in signal coupling, decoupling, filtering, and timing circuits requiring a low to medium voltage rating. With its ยฑ5% tolerance, stable capacitance, low dielectric loss, and high insulation resistance, it is a perfect choice for both professional and hobby electronic applications.
Features
- High-quality metallized polyester film construction
- Stable capacitance with ยฑ5% accuracy
- Low dielectric absorption and high insulation resistance
- Rated for 100V DC applications
- Compact, lightweight, through-hole package
Technical Details
- Capacitance: 0.1ยตF (100nF)
- Rated Voltage: 100V DC
- Tolerance: ยฑ5% (J)
- Dielectric: Metallized Polyester Film
- Lead Pitch: 5 mm (typical)
- Operating Temperature: โ40ยฐC to +85ยฐC
Physical Attributes
- Body Shape: Rectangular, radial leads
- Body Length: ~7โ10 mm
- Body Height: ~6โ7 mm
- Body Thickness: ~3โ4 mm
- Lead Diameter: 0.5 mm (approx.)
- Lead Length: 22 mm
- Mounting Type: Through-hole
- Weight: < 1 g
Applications
- Signal coupling and decoupling circuits
- Filtering in low-voltage power supplies
- RC timing and oscillator circuits
- Pulse and energy storage applications
- General-purpose electronic circuits
Package Includes
- 1 ร CL11 Polyester Film Capacitor 100V 2A104J โ 0.1ยตF ยฑ5%
