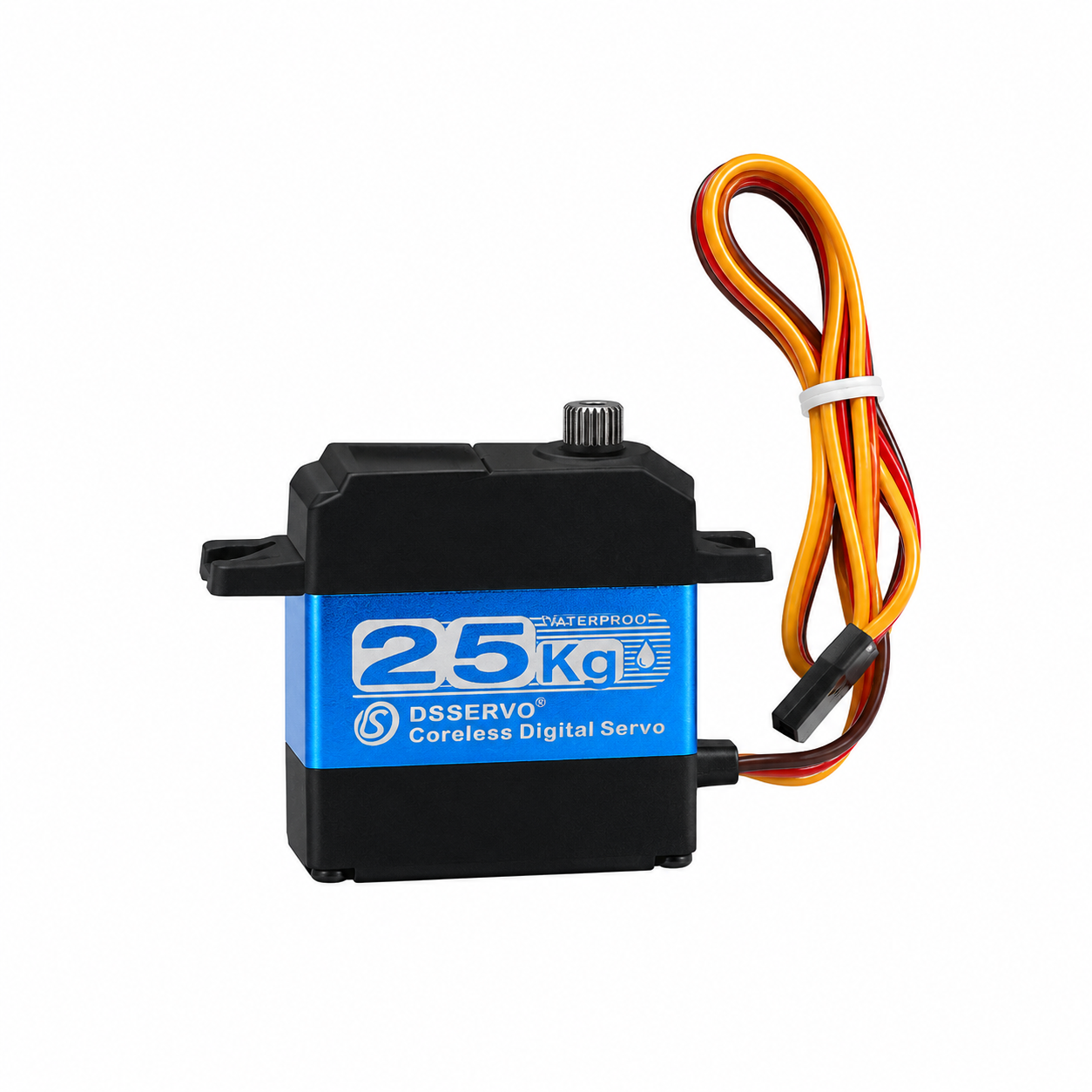

DS3225 PRO 25kg Coreless Digital Servo - 180 Degree

The DS3225 PRO is a high-speed coreless digital servo designed for precise angular positioning in robotics, RC systems, and mechanical motion-control applications. It operates from 5V to 8.4V and delivers up to 39 kg-cm stall torque at 8.4V. Its 195 gear ratio, double-bearing construction, and coreless motor support responsive and dependable servo movement.

At 5V, the servo provides a no-load speed of 0.11 sec/60° with 26 kg-cm stall torque; at 6V it reaches 0.09 sec/60° with 30 kg-cm stall torque; at 7.4V it reaches 0.075 sec/60° with 35 kg-cm stall torque; and at 8.4V it reaches 0.065 sec/60° with 39 kg-cm stall torque. Position control uses a PWM interface with a 500-2500 µsec pulse-width range, 1500 µsec neutral position, 2 µsec dead-band width, and 50-330 Hz operating-frequency range.

Technical Details

  • Model: DS3225 PRO
  • Product Type: 7.4V 25kg Coreless Digital Servo
  • Variant: Blue
  • Angle Variant: 180 Degree
  • Operating Voltage Range: 5-8.4V
  • Gear Ratio: 195
  • Bearing: Double Bearing
  • Motor: Coreless Motor
  • Connector Wire: 300 ± 5 mm
  • Waterproof Performance: IP66
  • Control System: PWM (Pulse width modification)
  • Pulse-Width Range: 500-2500 µsec
  • Neutral Position: 1500 µsec
  • Running Degree: 180°
  • Dead-Band Width: 2 µsec
  • Operating Frequency: 50-330 Hz
  • Rotating Direction: Counterclockwise when pulse width increases from 500 to 2500 µsec

Features

  • Up to 39 kg-cm stall torque at 8.4V
  • 0.065 sec/60° no-load speed at 8.4V
  • 5-8.4V operating-voltage range
  • Coreless motor construction
  • Digital PWM position control
  • 500-2500 µsec control pulse range
  • 180° running-angle variant
  • Double-bearing mechanical construction
  • 195 gear-ratio specification
  • 2 µsec dead-band width
  • 50-330 Hz operating-frequency range
  • IP66 waterproof performance
  • 300 ± 5 mm three-wire connection lead

Dimension Drawing

Environmental Conditions

  • Storage Temperature Range: -30°C to 80°C
  • Operating Temperature Range: -15°C to 70°C
  • Operating Voltage Range: 5-8.4V

Electrical Specifications

  • At 5V - Idle Current (at stopped): 5 mA
  • At 5V - Operating Speed (at no load): 0.11 sec/60°
  • At 5V - Stall Torque (at locked): 26 kg-cm
  • At 5V - Stall Current (at locked): 3.5 A
  • At 6V - Idle Current (at stopped): 5 mA
  • At 6V - Operating Speed (at no load): 0.09 sec/60°
  • At 6V - Stall Torque (at locked): 30 kg-cm
  • At 6V - Stall Current (at locked): 4.2 A
  • At 7.4V - Idle Current (at stopped): 5 mA
  • At 7.4V - Operating Speed (at no load): 0.075 sec/60°
  • At 7.4V - Stall Torque (at locked): 35 kg-cm
  • At 7.4V - Stall Current (at locked): 5.2 A
  • At 8.4V - Idle Current (at stopped): 5 mA
  • At 8.4V - Operating Speed (at no load): 0.065 sec/60°
  • At 8.4V - Stall Torque (at locked): 39 kg-cm
  • At 8.4V - Stall Current (at locked): 5.8 A

Control Specifications

  • Control System: PWM (Pulse width modification)
  • Pulse-Width Range: 500-2500 µsec
  • Neutral Position: 1500 µsec
  • Running Degree: 180°
  • Dead-Band Width: 2 µsec
  • Operating Frequency: 50-330 Hz
  • Rotating Direction: Counterclockwise when pulse width increases from 500 to 2500 µsec

Connector and PWM Wiring

  • Connector Type Shown: JR 3-Pin, 2.54 mm Pitch
  • Wire-Color Option 1: Brown = Negative (-), Red = Positive (+), Orange = Signal (S)
  • Wire-Color Option 2: Black = Negative (-), Red = Positive (+), White = Signal (S)
  • Control Interface: PWM
  • Control-Signal Level in Illustration: 3.3-5V
  • PWM Period Illustration: 3.0-30 ms, Default 20 ms

Connector and PWM Wiring

PWM Position Reference

  • Pulse-Width Control Range: 0.5-2.5 ms (500-2500 µsec)
  • Neutral Pulse: 1.5 ms (1500 µsec)
  • 180° Control Reference: 0.5 ms = 0°, 1.5 ms = 90°, 2.5 ms = 180°

Applications :

  • RC servo control systems
  • 180° angular positioning mechanisms
  • Robotics and automation projects
  • Fast-response mechanical positioning
  • Servo-driven linkage systems
  • Educational motion-control projects

Physical Attributes

  • Size: 40 x 20 x 38.5 mm
  • Weight: 88 g
  • Gear Ratio: 195
  • Bearing: Double Bearing
  • Connector Wire Length: 300 ± 5 mm
  • Motor: Coreless Motor
  • Waterproof Performance: IP66

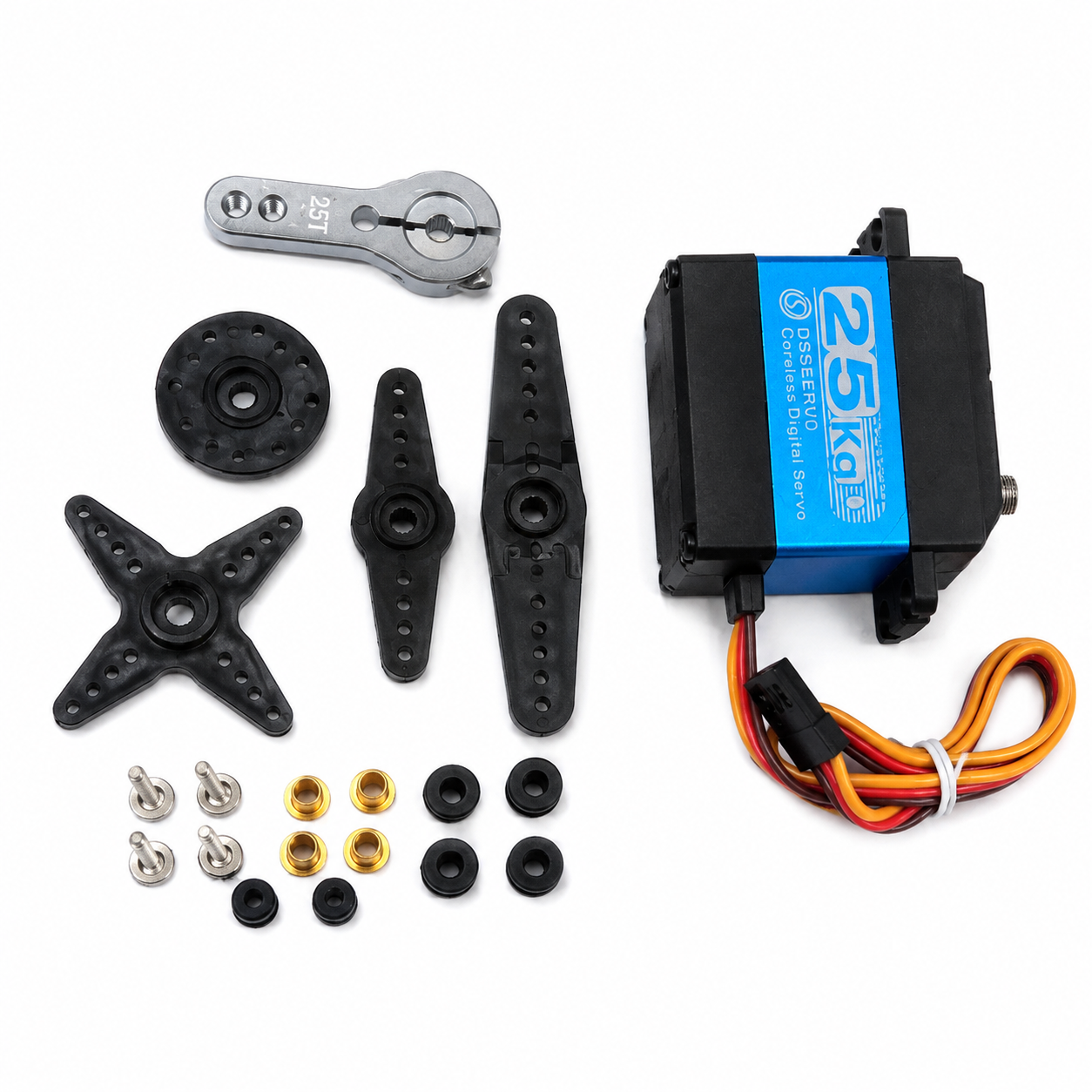

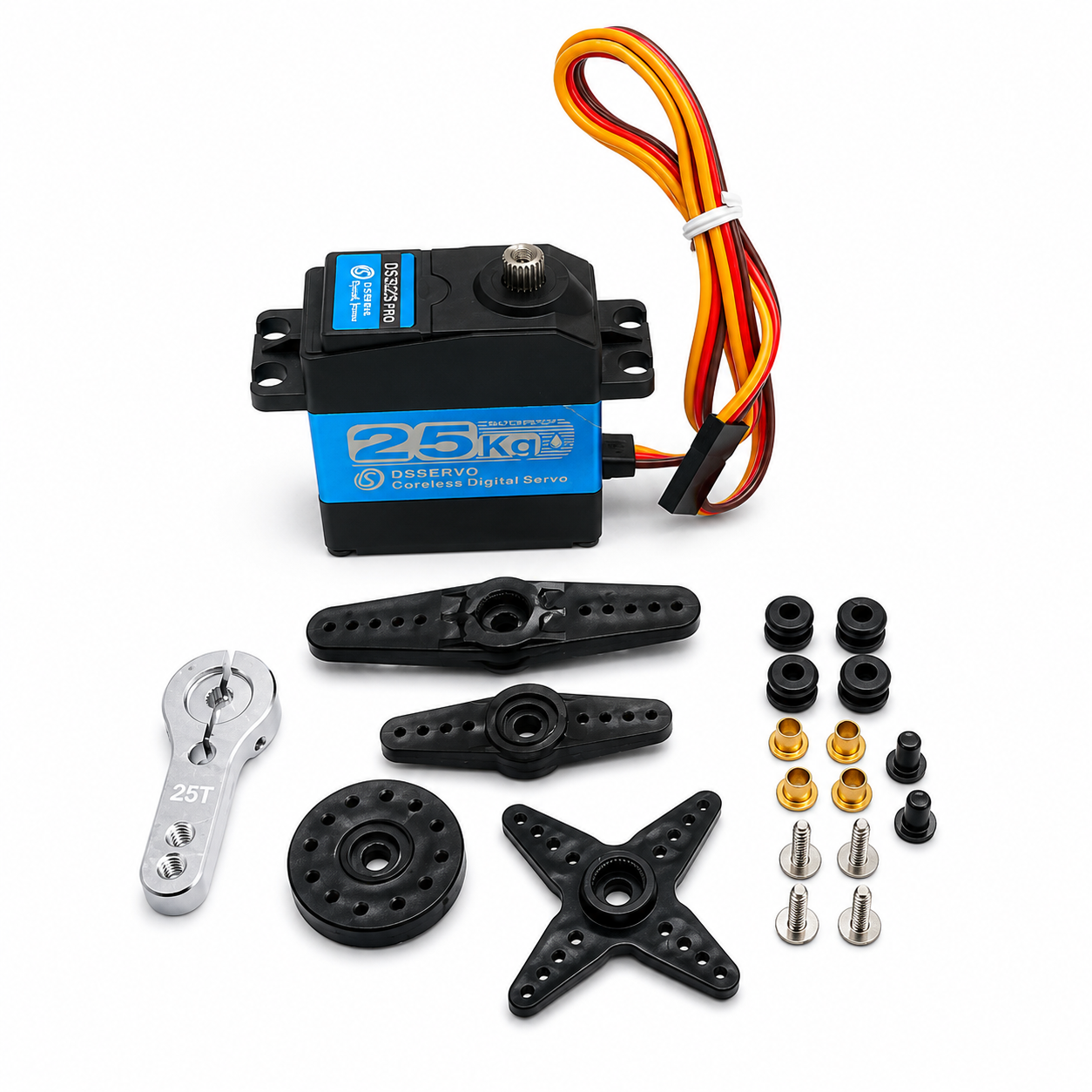

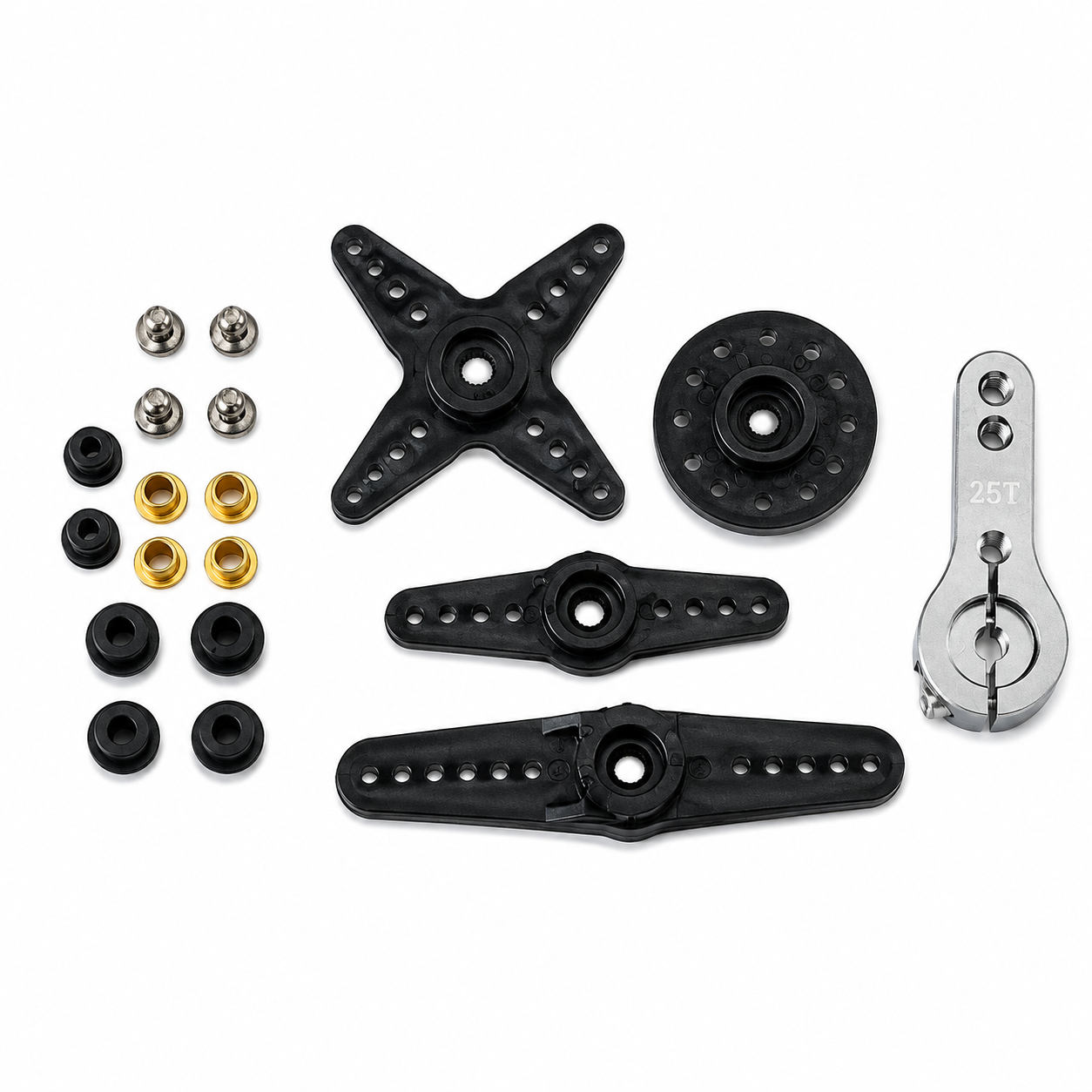

Package Includes

  • 1 x Servo Motor
  • 1 x 25T Aluminum Servo Horn
  • 1 x Round Plastic Servo Horn
  • 1 x Cross Plastic Servo Horn
  • 1 x Short Double-Arm Plastic Horn
  • 1 x Long Double-Arm Plastic Horn
  • 4 x Mounting Screws
  • 4 x Brass Eyelets/Bushings
  • 4 x Rubber Grommets
  • 2 x Horn/Retaining Screws
