Correlation Photoelectric Sensor Module is made of high-quality material. Correlation photoelectric Infrared count slot sensor module is a high-quality infrared Counter module at a very cheap price which comes with tiny size and integrated LM 393 chip.

Infrared Count Slot Sensor is the use of imported groove coupler sensor, slot width 5mm. This output status indicator lamp output high, output low lights. The comparator output signal clean, good waveform, driving ability,

It works as,

  • The OUT pin is a low level when there is no object between the photoelectric sensor, and the red LED is lit.
  • The OUT pin is a high level when there is an object between the photoelectric sensor, and the green LED is not bright.
  • The OUT port can be connected to MCU directly, MCU can calculate how many circles the smaller car has run per unit.

Technical Details

  • Operating Voltage (VDC) : 3.6 ~ 5
  • Average Current Consumption (mA) : 33

Physical Attributes

  • Dimensions (mm) L x W x H : 27.6 x 20 x 17
  • Weight (gm): 4
  • The width of the optical coupling slot: 10 mm

Additional Details

  • The width of the optical coupling slot: 10mm
  • Single signal output.
  • The circuit board output switch!
  • The output valid signal is low.
  • Can be used for workpiece counts.
  • It can also be used for industry counting, motor speed testing.

Product Video

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
v
versha
Connector issues in my application

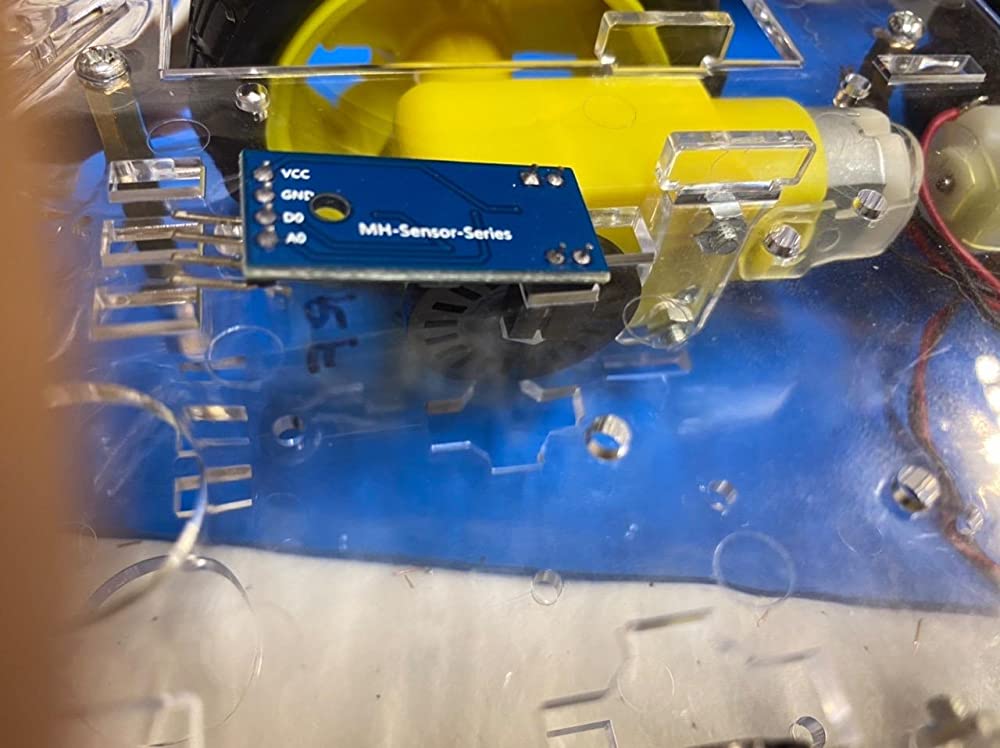

In order to get the encoder to straddle the encoder wheel in the chassis I am using, I had to situate the encoder with the connect against the plastic case which tilted the encoder substantially. So I have concerns that slots in the encoder wheel and the optical sensor may not be properly aligned. This isn’t necessarily a fault of the product, but more of an issue with my application. To make this better, I would have to unsolder the connector, move it to the opposite side of the printed circuit board and solder it in place again, plus closely trim the lead protrusions.
