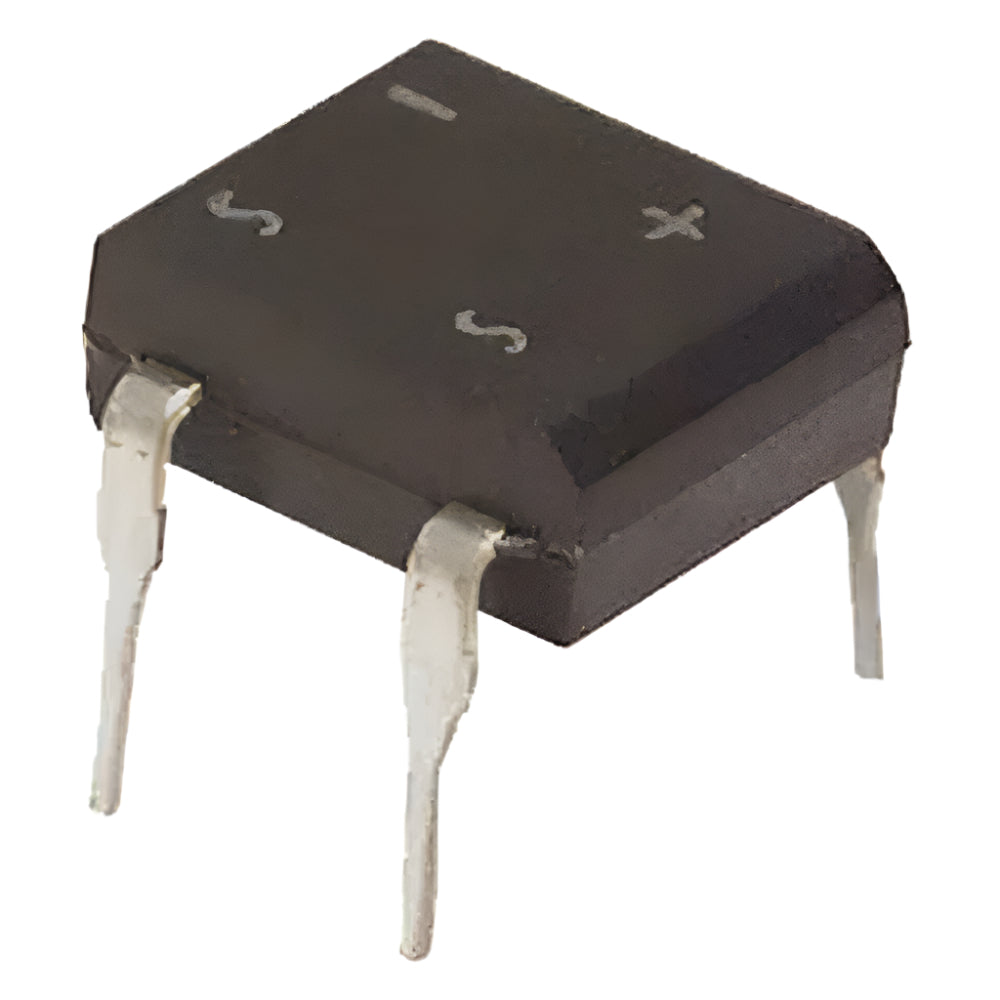

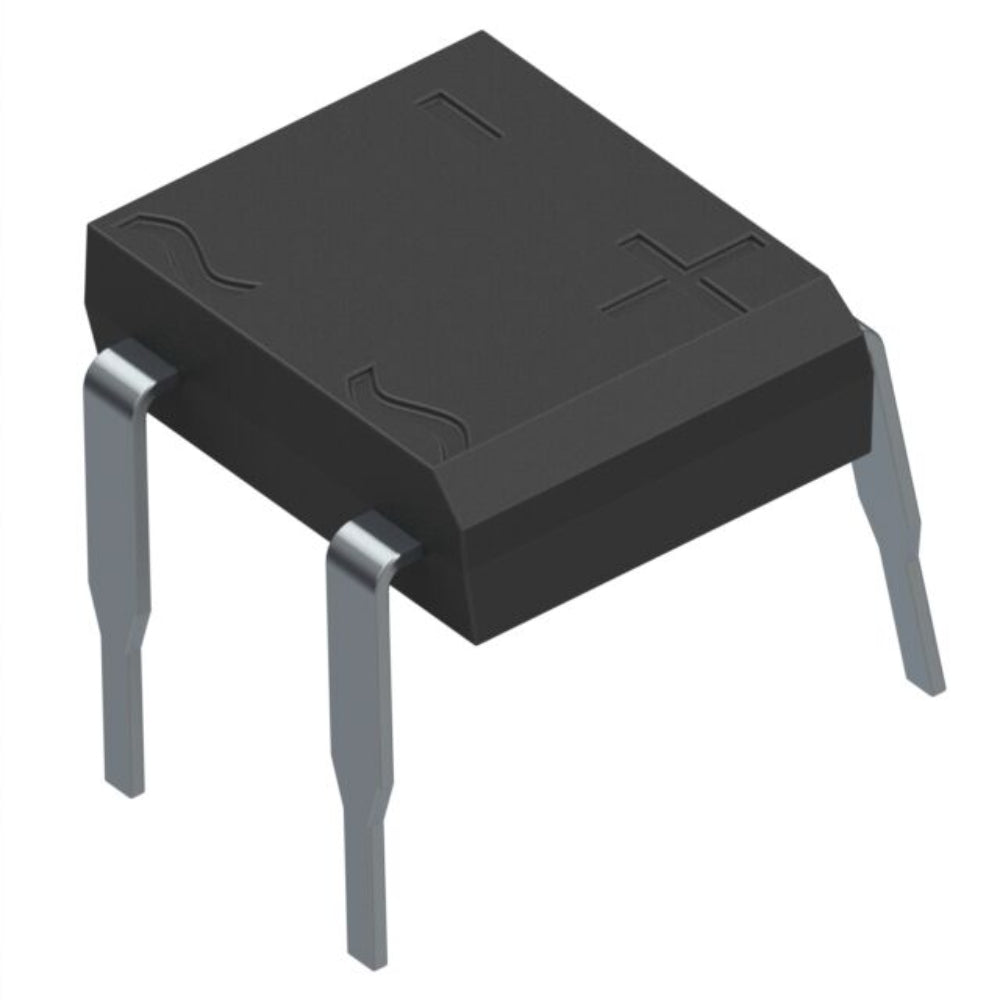

DB104 1A 1000V Single-Phase Bridge Rectifier Diode – DO-41 Package

The DB104 is a compact and efficient single-phase bridge rectifier diode designed to convert AC to DC in low-power applications. Rated for 1A average forward current and up to 1000V reverse voltage, it is well-suited for power supply circuits, battery chargers, and general-purpose AC-DC conversion.

It integrates four diodes in a single bridge configuration within a small DO-41 molded package, making it easy to use and space-saving in through-hole designs.

Technical Details

  • Part Number: DB104
  • Type: Single-Phase Bridge Rectifier
  • Average Forward Current (IF(AV)): 1A
  • Peak Repetitive Reverse Voltage (VRRM): 1000V
  • Maximum RMS Voltage: 700V
  • Maximum Forward Voltage Drop (VF): ~1.0V per diode
  • Peak Forward Surge Current (IFSM): 30A
  • Reverse Recovery Time: Fast
  • Operating Temperature Range: -55°C to +150°C
  • Package: DO-41 (Molded Epoxy)
  • Mounting Type: Through-hole

Features

  • Single-phase full-wave bridge rectifier
  • High surge current capability
  • Low forward voltage drop
  • Glass-passivated junction for reliability
  • Compact and lightweight DO-41 package
  • Suitable for AC-DC conversion in low-power devices

Applications

  • Power adapters and battery chargers
  • DC power supply rectification
  • LED drivers and lighting circuits
  • Small appliances and consumer electronics
  • General-purpose AC-DC conversion

Physical Attributes

  • Package Type: DO-41
  • Mounting: Through-hole
  • Lead Diameter: ~0.86mm
  • Body Diameter: ~2.4mm
  • Body Length: ~5.2mm
  • Lead Length: ~25mm (each side, approx.)
  • Weight: ~0.35g

Package Includes

  • 1 x DB104 1A 1000V Bridge Rectifier Diode – DO-41 Package
