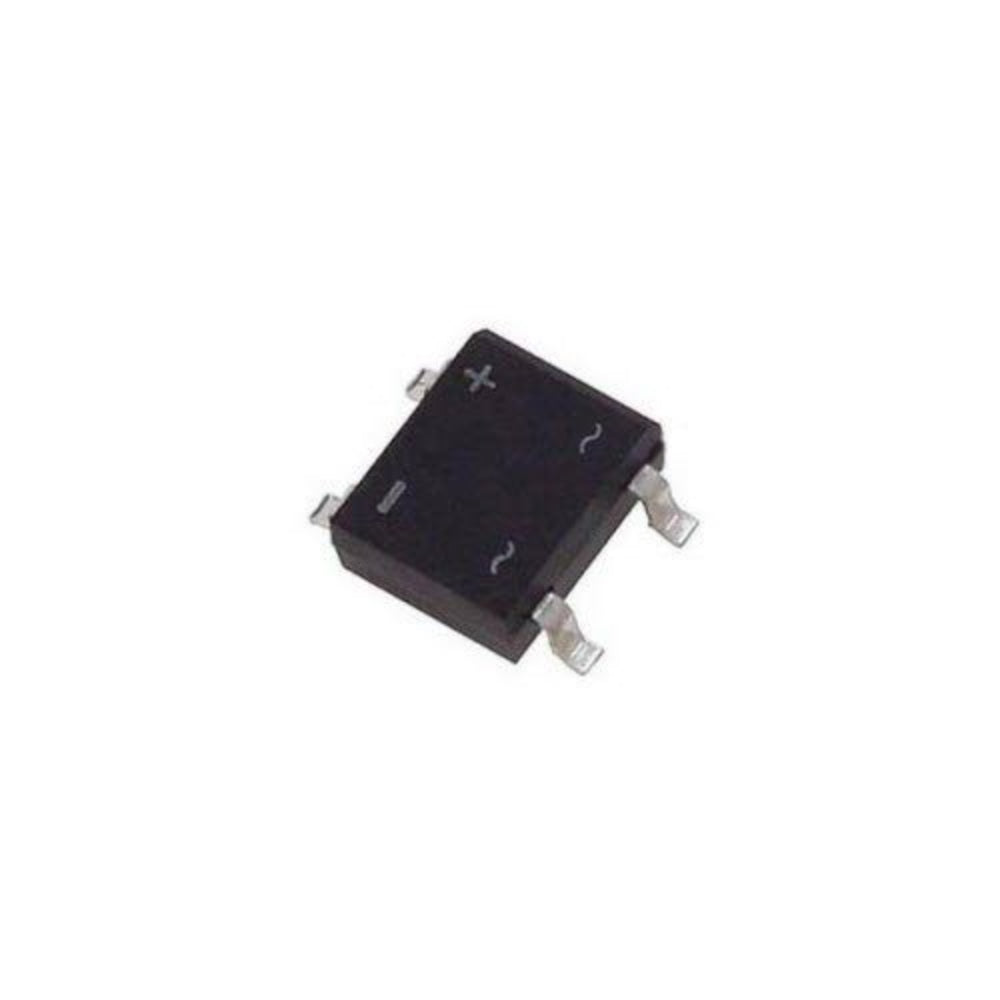

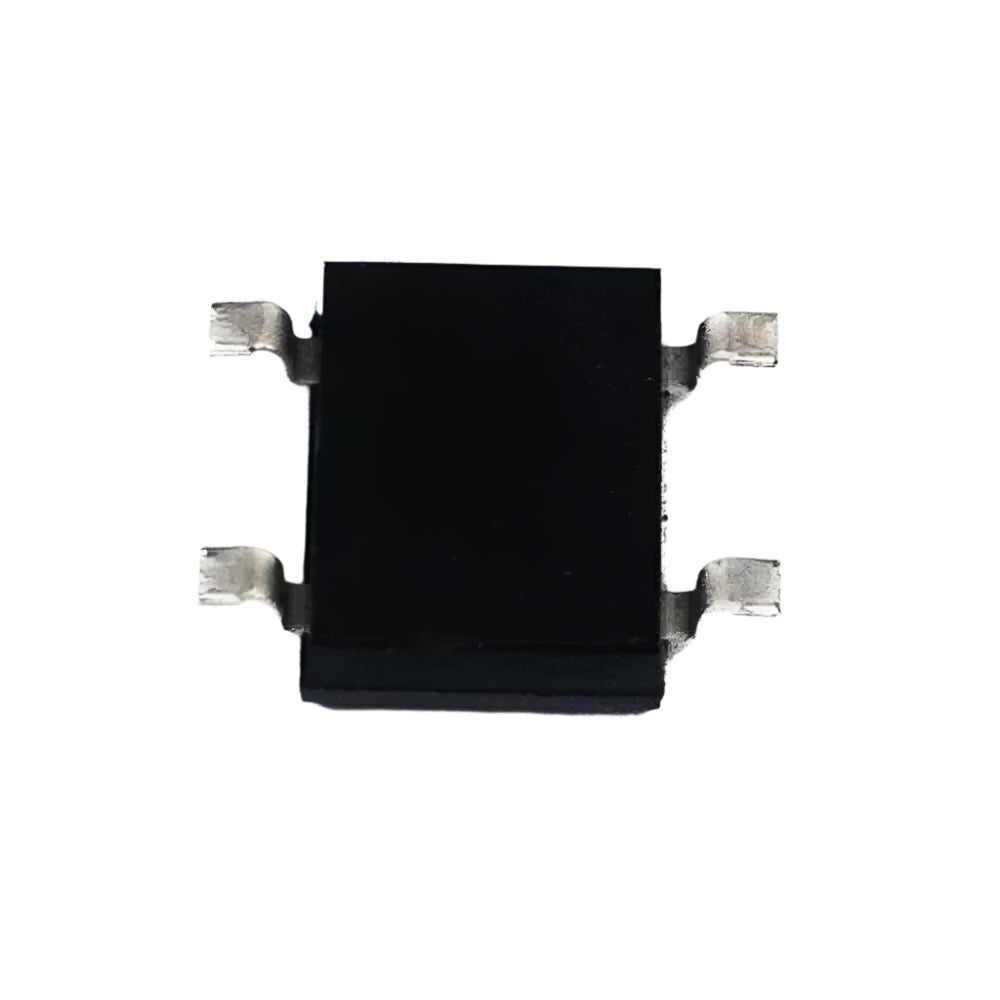

DB104S 1A 1000V Single-Phase Bridge Rectifier Diode – SMD Package

The DB104S is a surface-mount, single-phase full-wave bridge rectifier diode designed for compact, low-power AC to DC conversion applications. It provides 1A average forward current handling capability with a maximum reverse voltage of 1000V, making it suitable for LED drivers, power adapters, and other consumer electronics.

Housed in a space-saving SMD (Surface-Mount Device) package, the DB104S is ideal for modern automated assembly processes and high-density PCB layouts.

Technical Details

  • Part Number: DB104S
  • Type: Single-Phase Bridge Rectifier
  • Average Forward Current (IF(AV)): 1A
  • Peak Repetitive Reverse Voltage (VRRM): 1000V
  • Maximum RMS Voltage: 700V
  • Maximum Forward Voltage Drop (VF): ~1.0V per diode
  • Peak Forward Surge Current (IFSM): 30A
  • Reverse Recovery Time: Fast
  • Operating Temperature Range: -55°C to +150°C
  • Package: SMD (typically DB-MBLS or DB-S configuration)
  • Mounting Type: Surface-mount

Features

  • Single-phase full-wave bridge rectifier
  • High reverse voltage (up to 1000V)
  • Low forward voltage drop
  • High surge current capability
  • Compact surface-mount SMD package
  • Ideal for high-density PCBs and automated soldering

Applications

  • AC to DC power supplies
  • LED lighting and drivers
  • Adapters and chargers
  • Consumer electronics
  • Compact power modules
  • Surface-mount AC-DC conversion circuits

Physical Attributes

  • Package Type: SMD (typically DB-MBLS or DB-MBLS-type form)

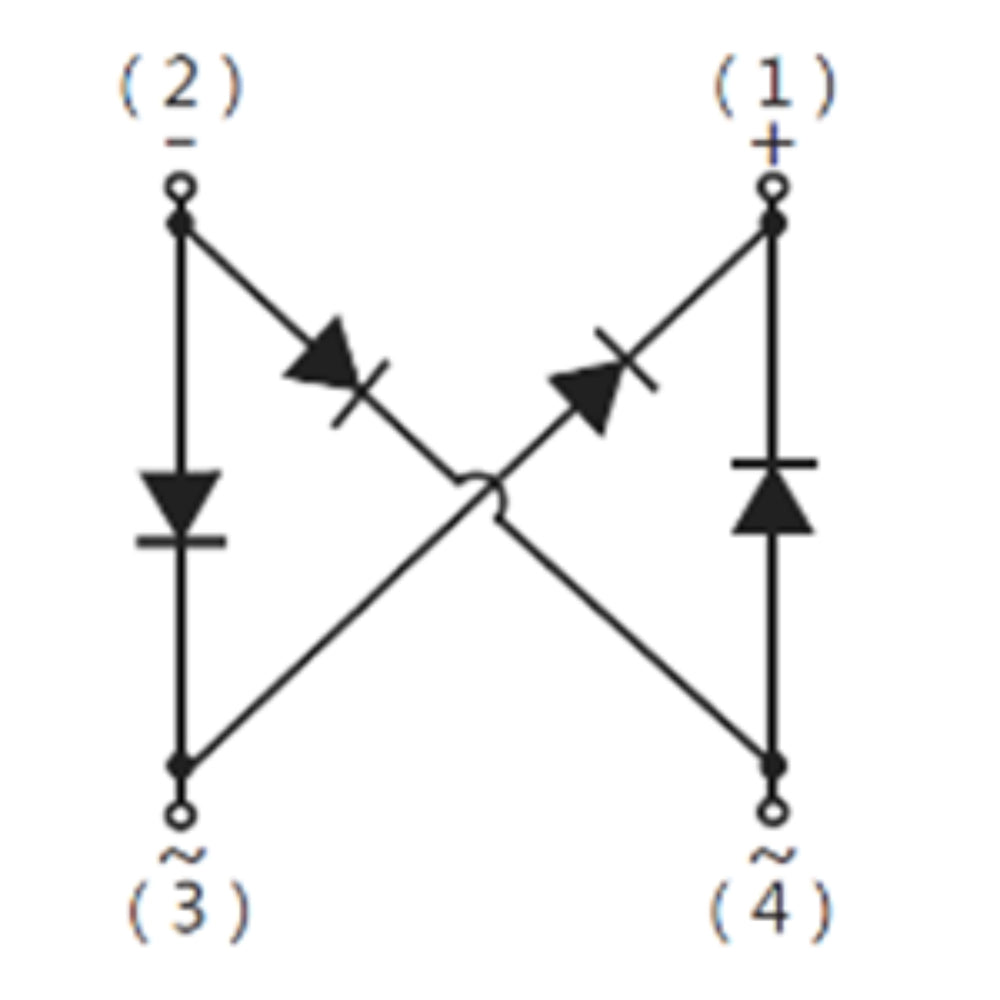

  • Pin Configuration: 4-pin bridge layout
  • Approx. Dimensions: ~5.0mm x 4.2mm x 1.7mm (L x W x H)
  • Weight: ~0.3g
  • Mounting: Surface-mount (reflow soldering compatible)

Package Includes

  • 1 x DB104S 1A 1000V Bridge Rectifier Diode – SMD Package
