DC 12V 5A IR Pyroelectric Infrared PIR Motion Sensor Detector Module

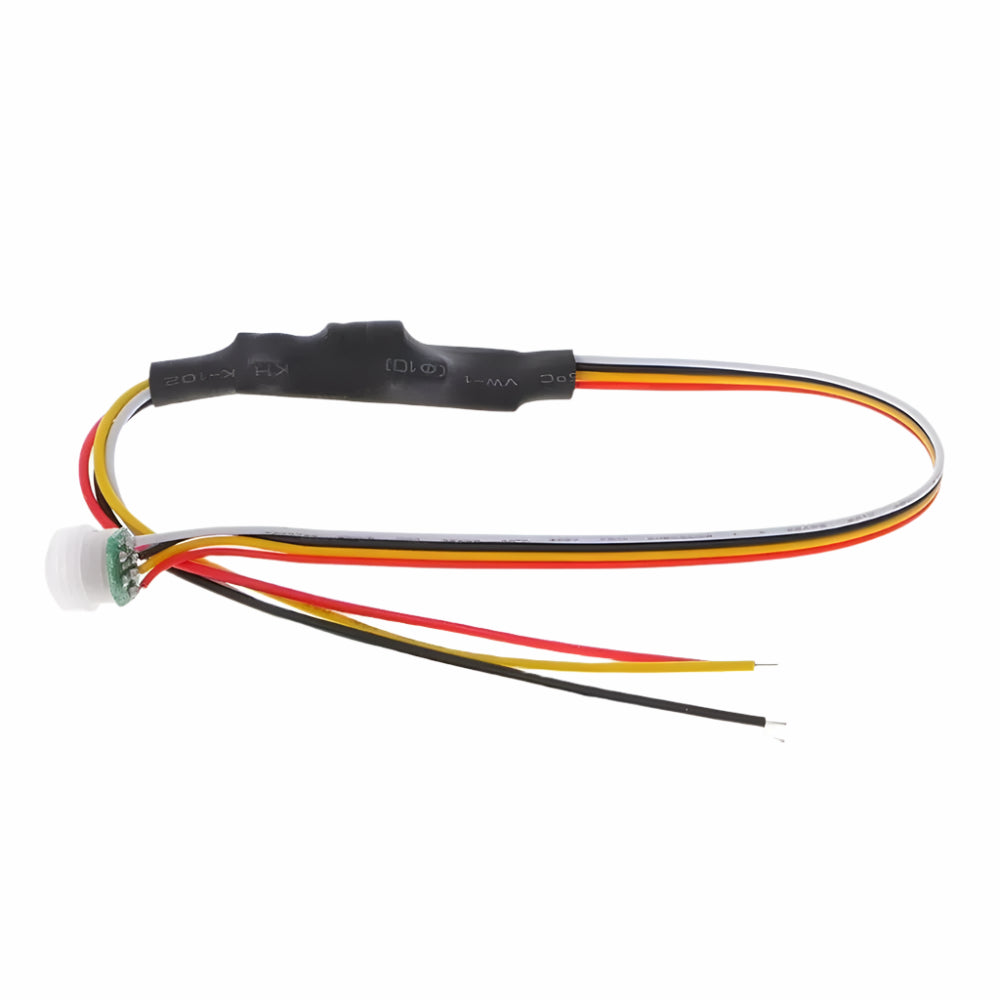

![DC 12V 5A PIR motion sensor module – front view]()

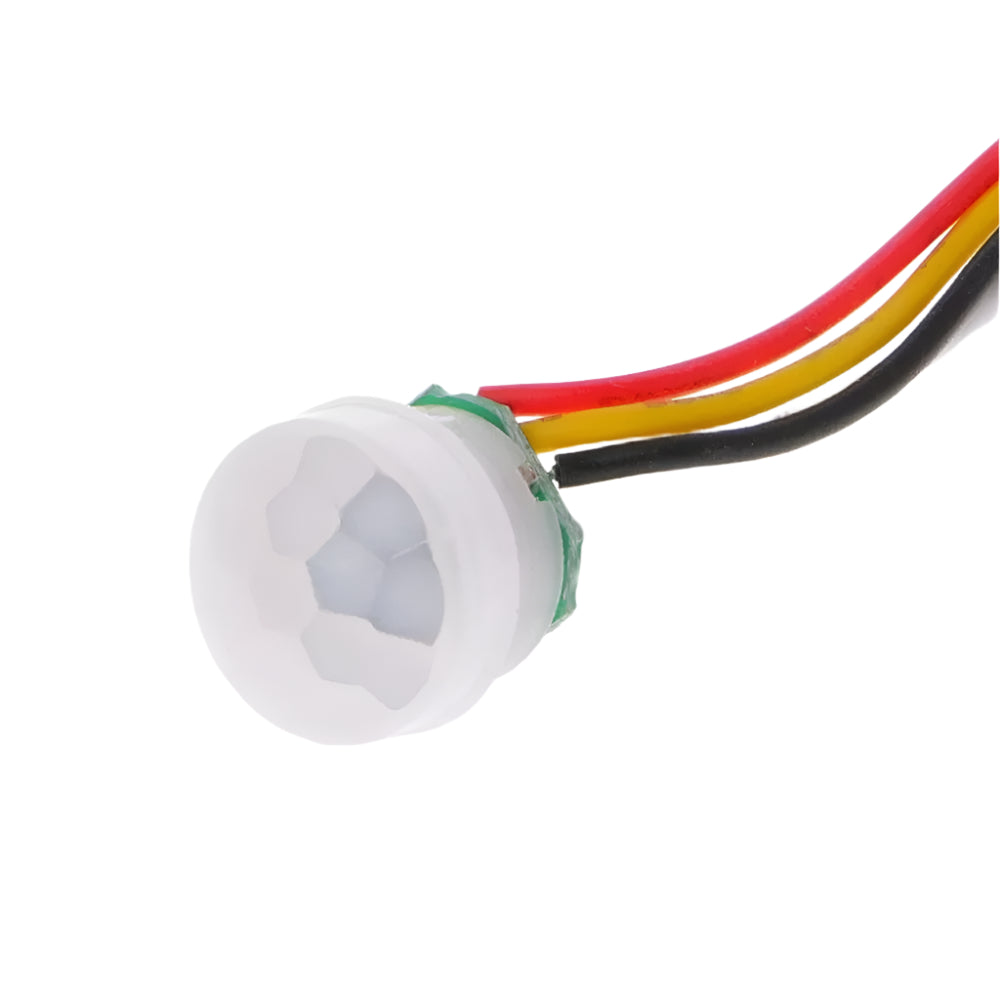

![Wiring diagram of DC 12V PIR motion sensor module]()
![DC 12V 5A PIR motion sensor module – PCB backside]()
![DC 12V 5A PIR motion sensor module – front view]()
![Wiring diagram of DC 12V PIR motion sensor module]()
![DC 12V 5A PIR motion sensor module – PCB backside]()
Unlike mechanical relays, the solid-state relay portion uses an IR LED and a photo-triac for silent, long-lasting switching. This makes the module sturdier and more durable over time, especially in pir and motion control use cases. When the input coil receives the logic signal, the module switches the connected load on or off — enabling a passive infrared detector to automate lights, alarms, security cameras and more. With simple wiring and compact design, it is also suitable for DIY upgrades using arduino movement sensor setups where a passive infrared detector provides reliable automation.
-17%
DC 12V 5A IR Pyroelectric Infrared PIR Motion Sensor Detector Module
Available:In Stock
- Product SKU: KG613
₹ 329
₹ 399
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
DC 12V 5A IR Pyroelectric Infrared PIR Motion Sensor Detector Module
This compact PIR module serves as a reliable passive infrared detector that senses motion and triggers a relay switch. Whether you’re building an arduino movement sensor project or working with pir and motion automation, it delivers consistent performance. It detects infrared from moving bodies and activates load switching automatically. Its wide 5V–24V operating range and low quiescent current make it ideal for passive infrared detector-based smart systems.Unlike mechanical relays, the solid-state relay portion uses an IR LED and a photo-triac for silent, long-lasting switching. This makes the module sturdier and more durable over time, especially in pir and motion control use cases. When the input coil receives the logic signal, the module switches the connected load on or off — enabling a passive infrared detector to automate lights, alarms, security cameras and more. With simple wiring and compact design, it is also suitable for DIY upgrades using arduino movement sensor setups where a passive infrared detector provides reliable automation.
Technical Details
- Human infrared sensor module
- Wide voltage: 5V–24V
- Output voltage = Input voltage
- Operating temp: –20℃ to +50℃
- Static current: ＜30 µA
- Output current: 1A
- Time delay: 15 s
- Passive induction
- Detection angle: 120° cone
- Detection range: 3–4 m
- Lens size: 13×9.5 mm
- PCB size: 40×9×8 mm
Wiring
- Red: Positive Input
- Black: Negative Input
- Yellow: Negative Output
- White: Positive Output
- Output Mode: Sensor Output
Features
- DC 12V, 5A motion sensor module
- IR pyroelectric infrared detection
- Passive induction for motion sensing
- Wide detection angle and range
- Automatic motion-activated switching
- Low power consumption
- Compact and easy to install
Applications :
- Automatic lighting control
- Security alarm systems
- Motion-activated cameras
- Energy-saving smart home automation
- Arduino movement sensor projects
- Intruder detection systems
- Industrial motion detection
Physical Attributes
- Lens size: 13×9.5 mm
- PCB size: 40×9×8 mm
Package Includes
- 1 x DC 12V 5A IR Pyroelectric Infrared PIR Motion Sensor Detector Module
