DC 5V, Force 4.5N - 50N Solenoid Pull Push long stroke Electromagnet Industrial Grade

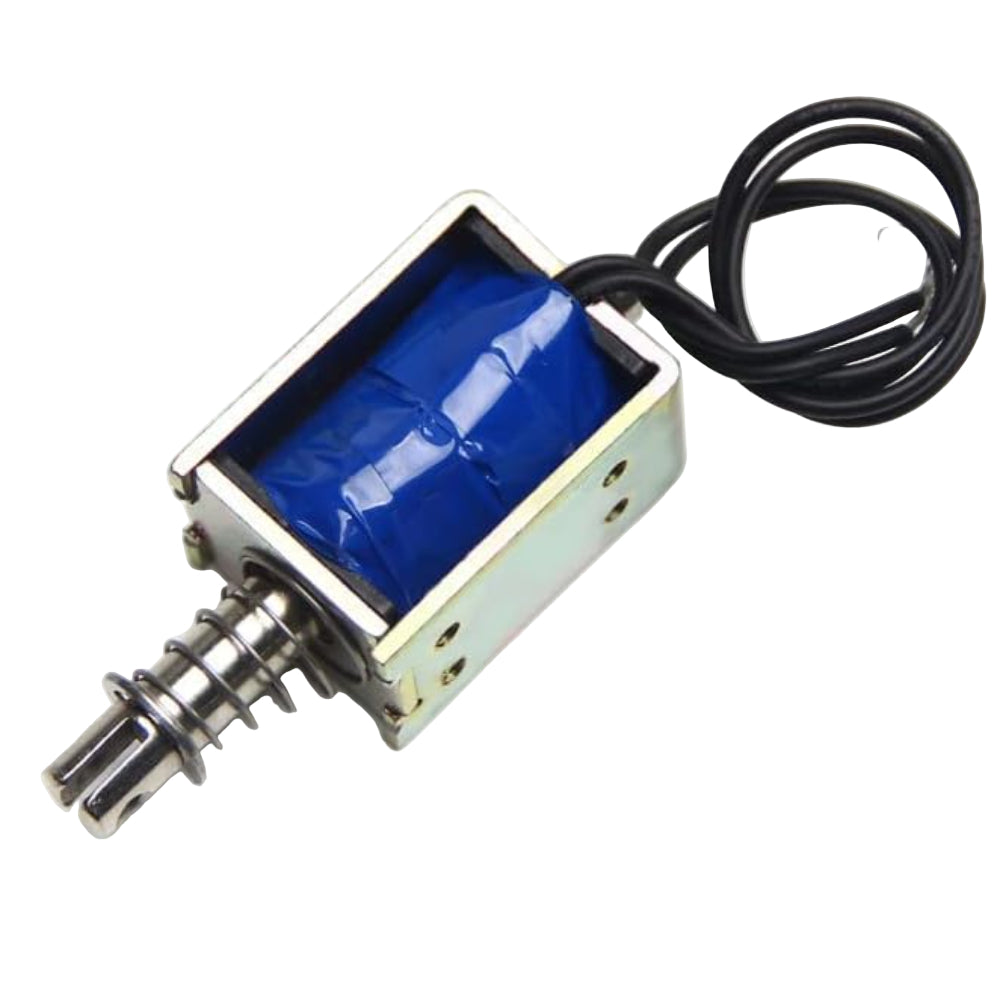

![Front view of 12V solenoid lock long stroke actuator]()

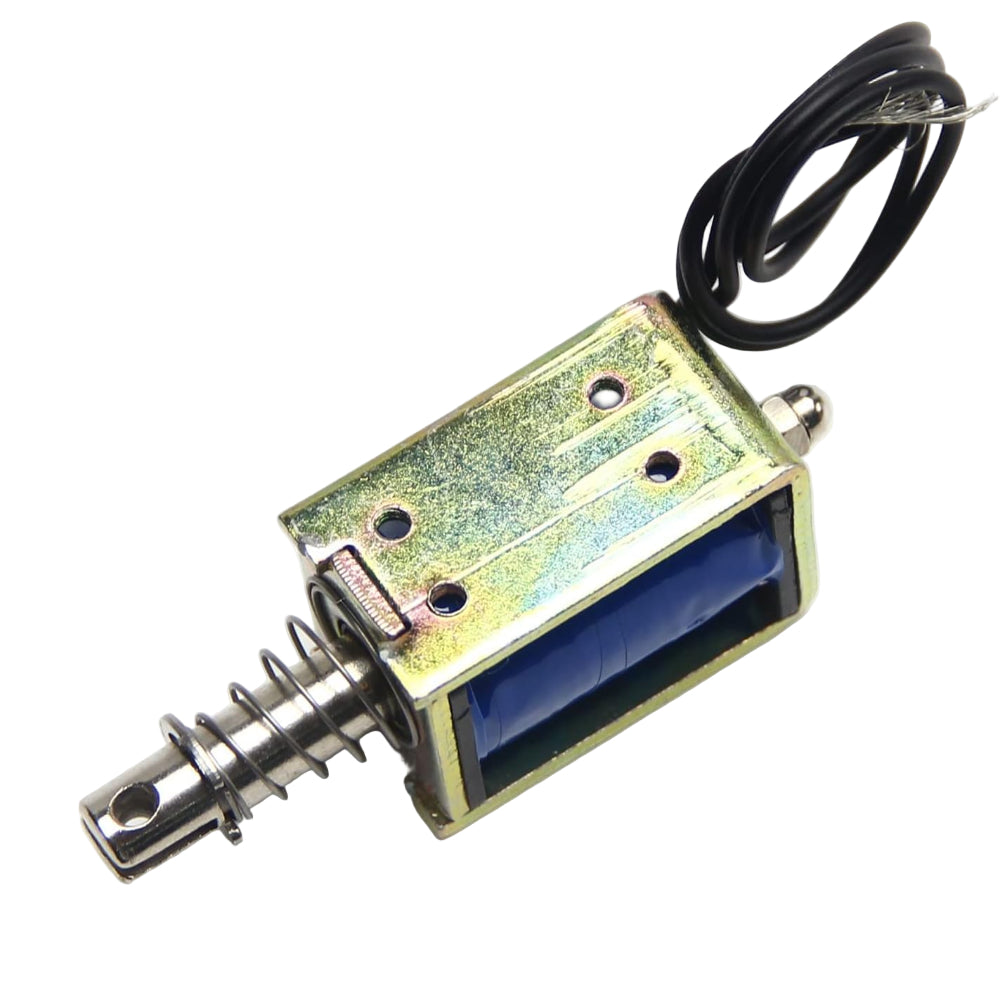

![Side profile of 12V door solenoid high-force actuator]()

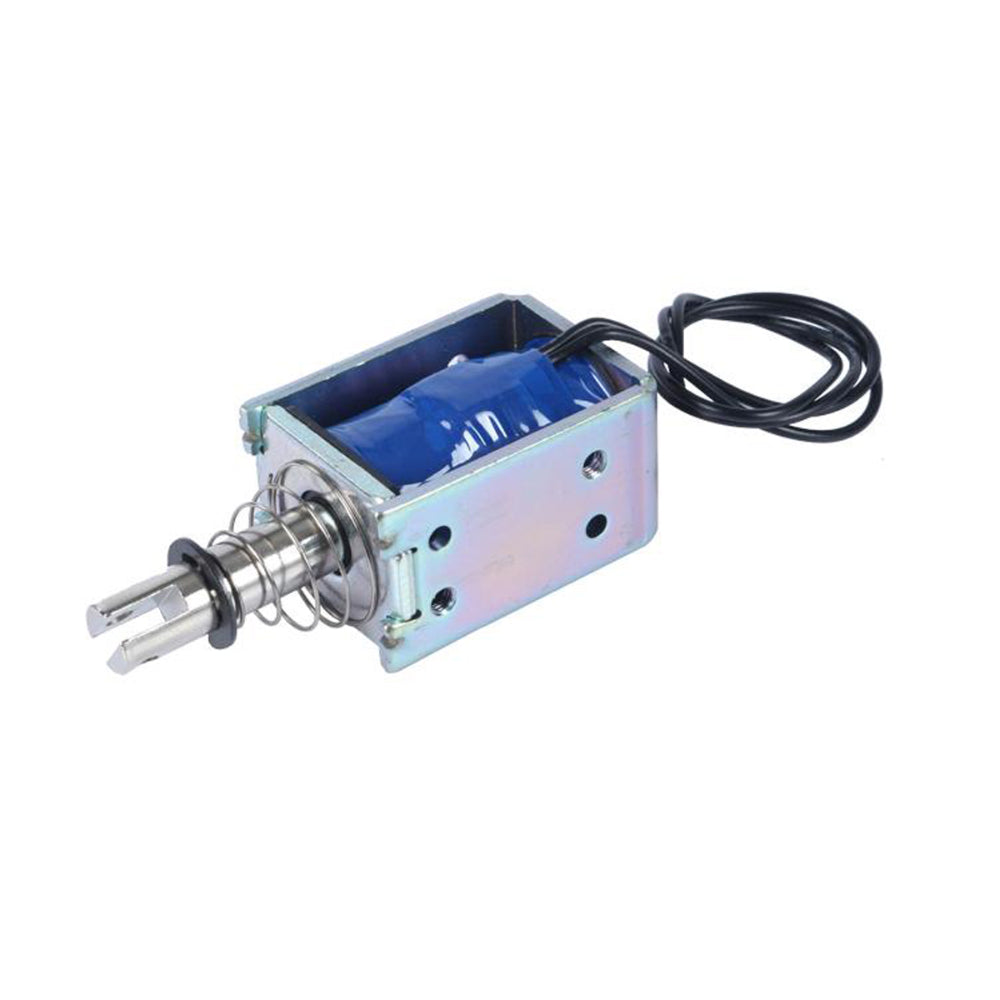

![Dimensions of 12V solenoid lock 15mm stroke length]()
![Front view of 12V solenoid lock long stroke actuator]()
![Side profile of 12V door solenoid high-force actuator]()
![Dimensions of 12V solenoid lock 15mm stroke length]()
With a robust holding force range of 4.5N to 50N and an extended 15mm stroke length, this solenoid lock offers powerful and consistent motion. It also supports heavy mechanical loads in both industrial and compact environments, making it ideal for projects that benefit from the responsiveness of a door solenoid or the versatility of an arduino controlled solenoid.
DC 5V, Force 4.5N - 50N Solenoid Pull Push long stroke Electromagnet Industrial Grade
Available:In Stock
- Product SKU: LGSO015
₹ 1,199
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
DC 5V Push Pull Long Stroke High-Force Electromagnet Solenoid
This heavy-duty actuator is engineered for demanding systems and performs reliably as a durable solenoid lock in high-force mechanical setups. Because many controlled-access applications require the stability of a strong door solenoid, this unit ensures dependable linear travel right from activation. Additionally, it integrates smoothly into smart systems where an arduino controlled solenoid setup is required for automated trigger response.With a robust holding force range of 4.5N to 50N and an extended 15mm stroke length, this solenoid lock offers powerful and consistent motion. It also supports heavy mechanical loads in both industrial and compact environments, making it ideal for projects that benefit from the responsiveness of a door solenoid or the versatility of an arduino controlled solenoid.
Key Features
- Industrial-grade construction for harsh working conditions
- Long 15mm stroke providing extended linear travel
- Push-pull operation with a normally closed configuration
- High holding force range from 4.5N to 50N
- Robust body size of 93.5mm × 41mm × 37mm with 4 × M3 mounting holes
- Efficient low-voltage operation at 5V DC
Applications
- Automated systems requiring the reliability of a strong solenoid lock
- Robotic assemblies and mechanical arms powered by a responsive door solenoid
- Security devices and controlled-access installations
- Industrial automation mechanisms needing strong linear force
- Arduino projects utilizing an arduino controlled solenoid for smart actuation
- Vending systems requiring dependable heavy-duty release mechanisms
Technical Details
- Rated Operating Voltage: 5V DC
- Operation Mode: Push-Pull (Normally Closed)
- Holding Force: 4.5N to 50N
- Stroke (mm): 15
- Current: 2.5A
- Body Dimensions (mm): 93.5 × 41 × 37
- Mounting: 4 × M3 threaded holes
Dimensions
Package Includes
- 1 x DC 5V, Force 4.5N - 50N Solenoid Pull Push Long Stroke Electromagnet Industrial Grade
