DC-DC constant voltage constant current DC step-up + step-down module

DC-DC constant voltage constant current DC step-up/step-down module 150W-1

150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply

Available:In Stock

Product SKU: KG858

Wishlist

₹ 148 ~~₹ 249~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Input Voltage: 10V - 32V
Output Voltage: 12V - 35V (Adjustable)
Max Output Current: 6A
Output Power: 100W (Typical), Peak 150W
Efficiency: Up to 94%
No-Load Current: 25mA
Operating Temperature: -40°C to 90°C

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

Warehouse Details 17H-168

Specification

Description

150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply

This versatile DC-DC boost power supply/converter module steps up any input voltage from 10V to 32V to any output voltage from 12V to 35V at up to 150W output power and 6A current.

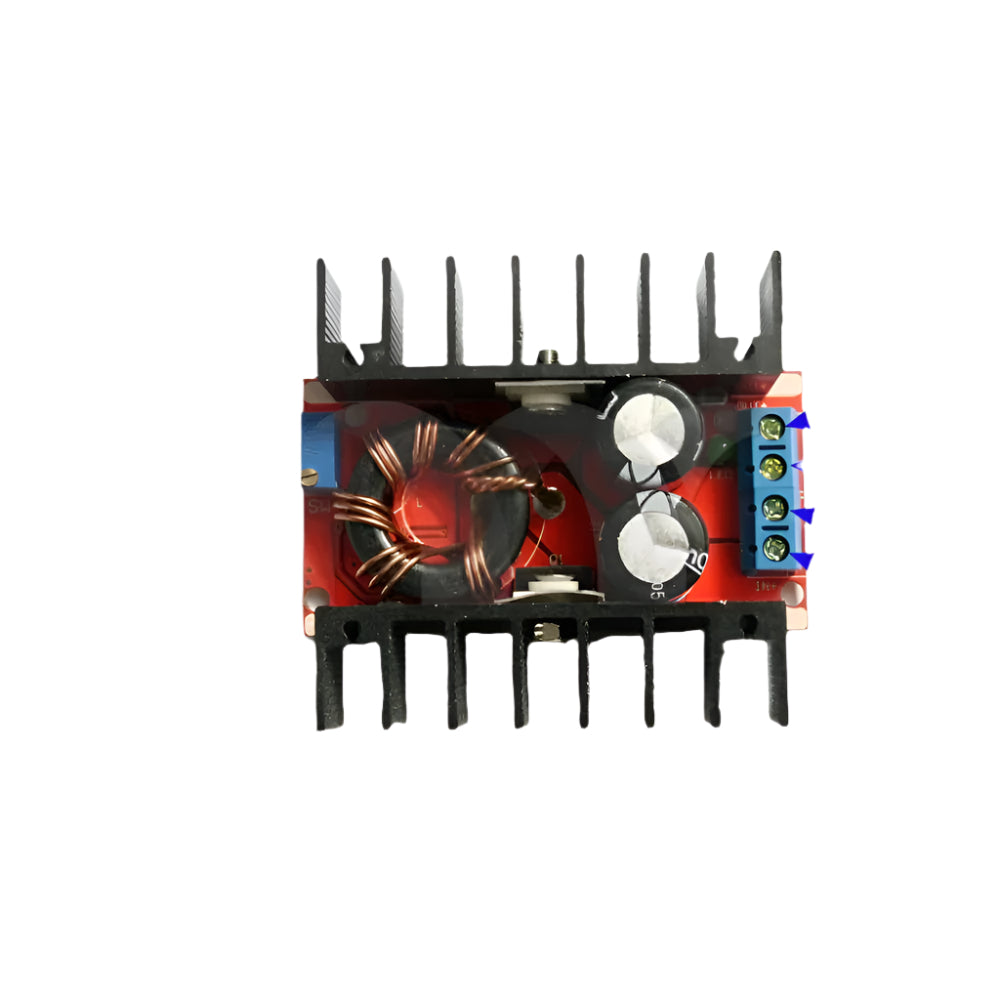

This 150W DC-DC Boost Converter 10-32V to 12-35V 6A Step-Up Adjustable Power Supply is well into the heavy-duty end of the spectrum @ 150W; as you can tell by the huge toroidal inductor and dual heatsinks.

It is especially useful for automotive 12V applications, where standard 12V battery power can be boosted to 19V for use as a laptop computer power supply, or to 18V or 24V for other applications requiring higher voltages.

Note:Please note there is no reverse polarity protection. A series diode is recommended. For high loads this might not be an option; so be cautious of the input polarity or you might fry the module!

Note: Set the output voltage to the desired level using a voltmeter before connecting it to your equipment or load.
Short circuit protection: None, please use caution to protect the module from overcurrent
Input reverse polarity protection: None, please use a diode in series with the input to protect against input reverse polarity

Technical Details

Input Current (A): 10
Output Voltage (V): 12 to 35
Max. Output Current (A): 6
Output Power (W): 100
Conversion Efficiency (%): 94
Operating Temperature (°C): -40 to 90
No-Load Current (mA): 25
Length (mm): 65
Width (mm): 47
Height (mm): 23
Weight (g): 54

Features

The non-isolated step-up power conversion module
Onboard LED illuminates when the voltage is applied to the module
Equips Multi-turn Potentiometer
Easy to drive 65W 90W dual-core notebook
The output voltage is continuously adjustable on OUT+ and OUT- screw terminals (Output voltage must be greater than input voltage)

Applications :

Solar Power Systems: Boosts voltage from solar panels to charge batteries or power DC loads.
Battery-Powered Devices: Converts 12V battery to 19V for laptops or higher voltage for DC circuits.
Automotive Applications: Steps up 12V car battery to 24V or 35V for laptops, LED lights, or industrial use.
DIY Electronics & Prototyping: Provides adjustable voltage for Arduino, Raspberry Pi, and other microcontrollers.
LED Lighting & Motors: Powers high-power LED arrays and 24V/35V DC motors from a lower-voltage source.
