DC3-26 Pin 2.54mm Pitch JTAG ISP Male Socket Right Angle IDC Box headers PCB Connector
![Right‑angle 26‑pin 2.54 mm IDC JTAG ISP Male header]()
![Close‑up of 2×13 right-angle IDC Socket Box header]()
![Right‑angle 26‑pin 2.54 mm IDC JTAG ISP Male header]()
![Close‑up of 2×13 right-angle IDC Socket Box header]()
2.54mm Pitch: Standard pin pitch provides broad compatibility with most ICs, development boards, and electronic modules.
Right Angle IDC (Insulation Displacement Connector): Enables perpendicular PCB connections, ideal for space-constrained environments and compact device layouts.
Male Socket Design: Designed to fit securely into a matching female connector, ensuring stable electrical contact and mechanical alignment.
IDC (Insulation Displacement Connector): The IDC termination method ensures a dependable and clean electrical connection during cable insertion, improving overall performance and reliability.
-28%
DC3-26 Pin 2.54mm Pitch JTAG ISP Male Socket Right Angle IDC Box headers PCB Connector
Available:In Stock
- Product SKU: BASE022
₹ 18
₹ 25
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description

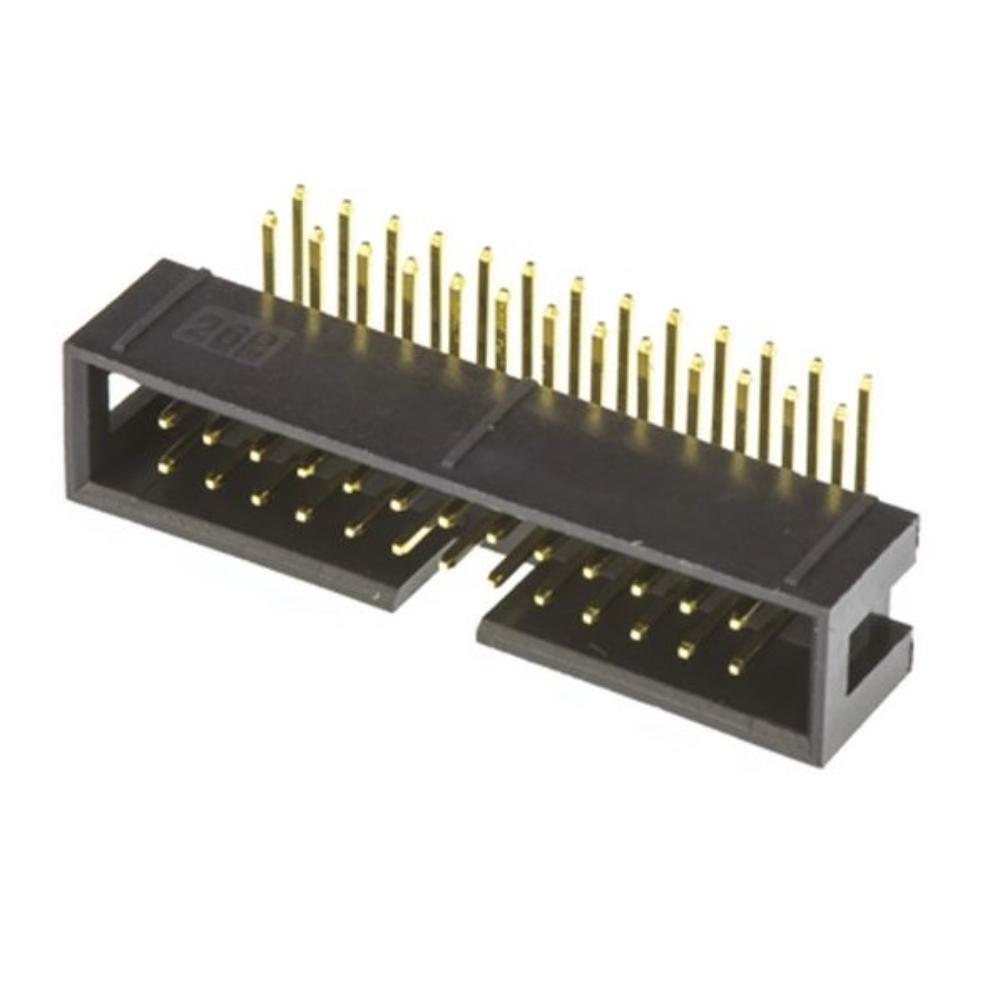

The CONN HEADER R/A 26POS 2.54MM, also known as a JTAG ISP Male right-angle IDC box header, is a reliable connector used in electronics for programming, interfacing, and debugging microcontrollers, FPGAs, CPLDs, and more. It offers secure connectivity and is designed for space-efficient PCB integration.Key Features:
26-Pin Configuration: Offers twenty-six connection points to support more complex and high-density interfacing needs.2.54mm Pitch: Standard pin pitch provides broad compatibility with most ICs, development boards, and electronic modules.
Right Angle IDC (Insulation Displacement Connector): Enables perpendicular PCB connections, ideal for space-constrained environments and compact device layouts.
Male Socket Design: Designed to fit securely into a matching female connector, ensuring stable electrical contact and mechanical alignment.
Applications:
This CONN HEADER R/A 26POS 2.54MM is commonly used in embedded systems for programming and real-time debugging through JTAG ISP Male connections.IDC (Insulation Displacement Connector): The IDC termination method ensures a dependable and clean electrical connection during cable insertion, improving overall performance and reliability.
Features
- Pitch: 2.54mm
- Gender: Male
- Pin: 26 Pin
- Body Orientation: Right Angle
- Type of Row: Double Row
Specifications
- Current Rate: 3 Amps
- Insulator Resistance: 1000 Megohms Min
- Contact Resistance: 20 Megohms Max
- Withstanding Voltage: AC 1000V
- Operation Temperature: -40°C to +105°C
Package Includes
- 1 x CONN HEADER R/A 26POS 2.54MM JTAG ISP Male Right Angle IDC Box Header PCB Connector
