DS18B20 Digital Temperature Sensor Module
- Product SKU: KG018
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Specification
Description

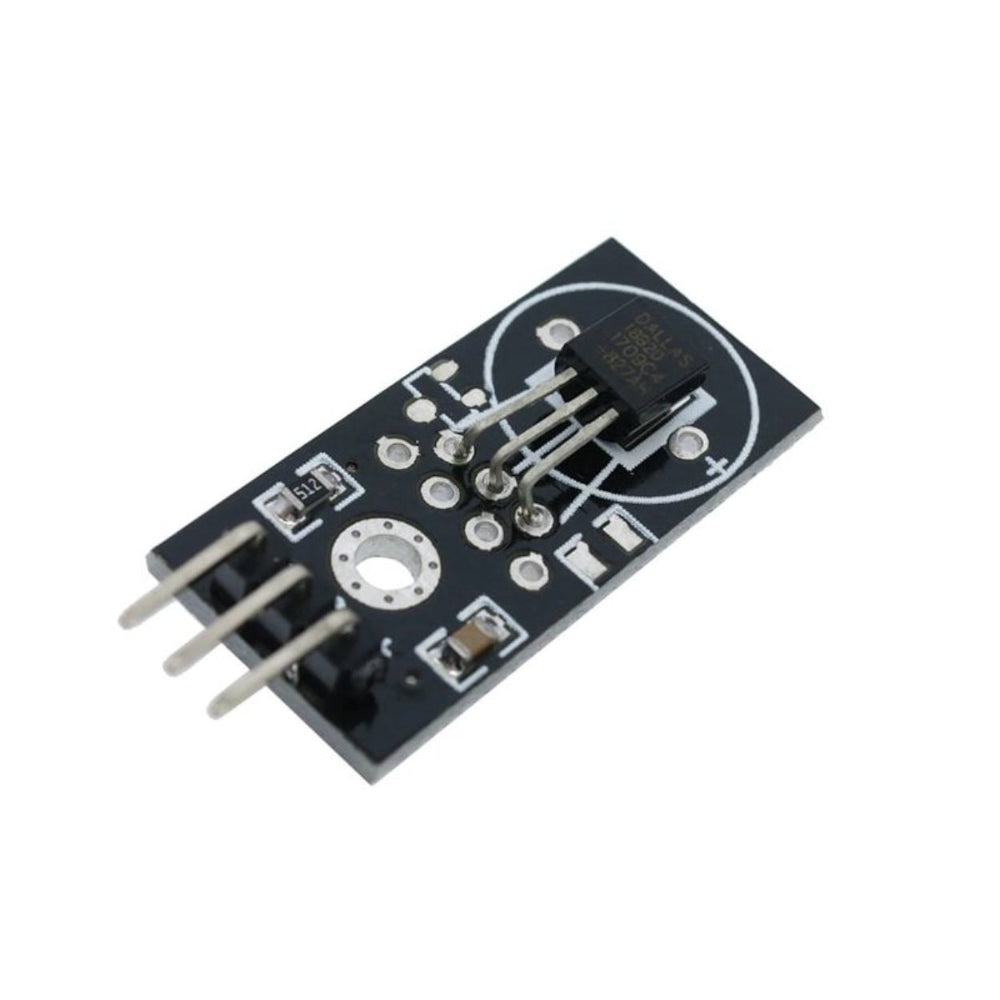

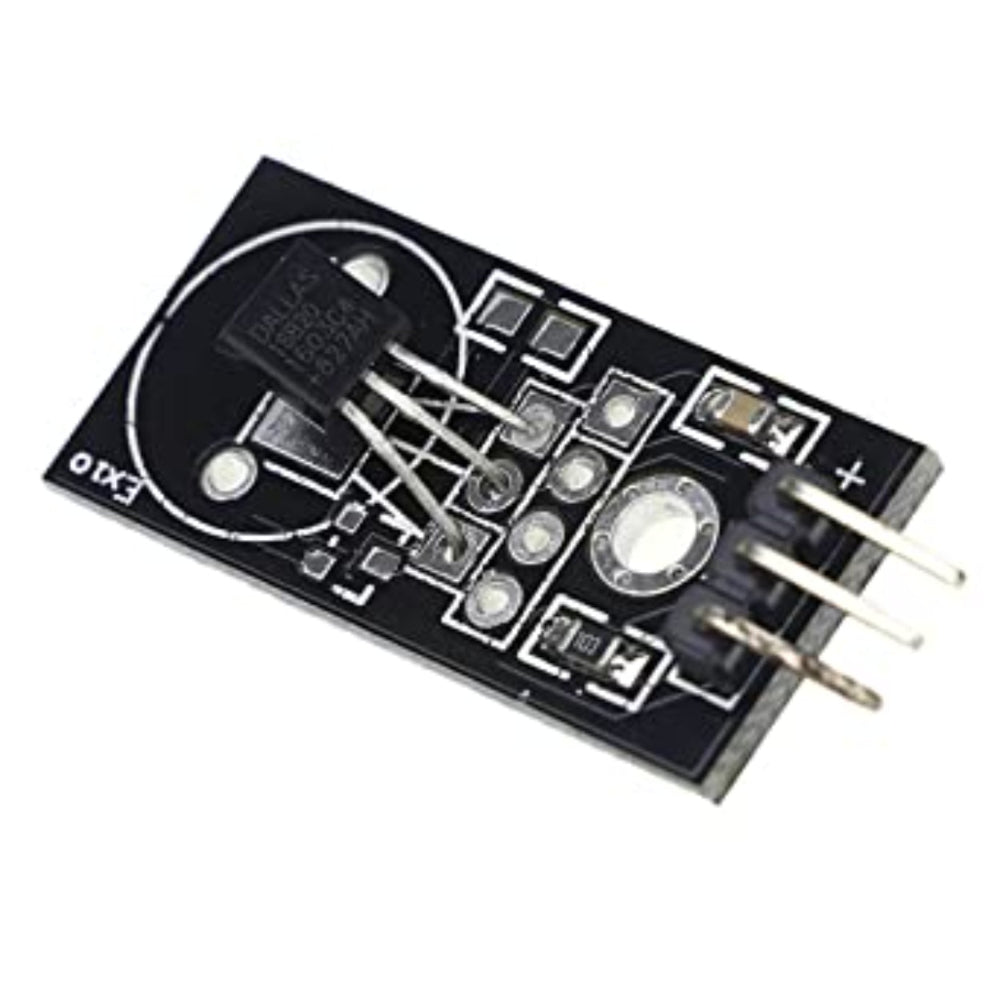

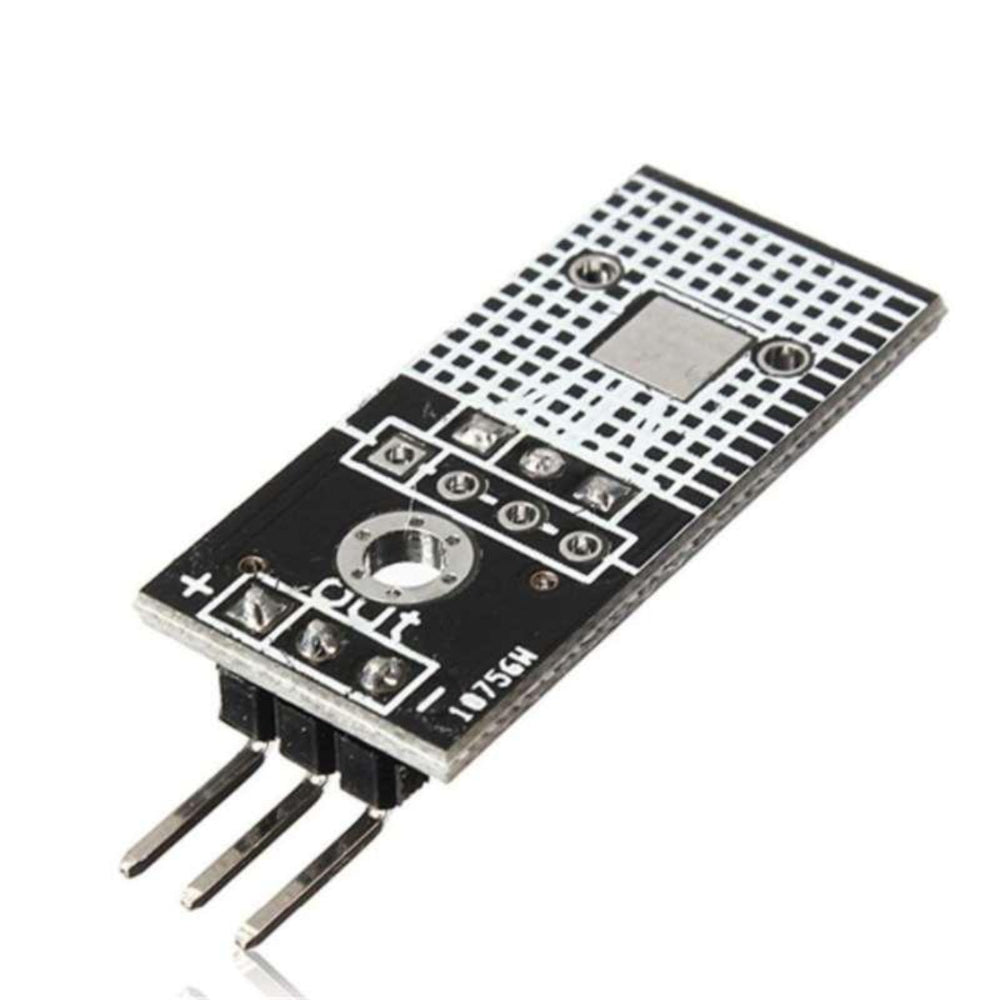

DS18B20 sensor Digital Temperature Sensor Module
The ds18b20 sensor module is a digital 1-Wire device designed for accurate temperature monitoring with Arduino and other microcontrollers. This compact temp sensor ds18b20 works with a simple 4.7k pull-up resistor on the data pin, so wiring stays reliable and noise-free. Because the ds18b20 temperature sensor price is low while performance is high, it is widely used in hobby, industrial, and IoT temperature projects.The module connects easily: pin 1 goes to ground, pin 2 is used as the data output, and pin 3 is tied to the positive supply, with the 4.7k resistor placed between the data line and VDD. Using the 1-Wire protocol, several devices can share a single common data wire to the Arduino. The digital output provides 9 to 12-bit resolution, so the temperature can be measured with a precision of 0.0625°C.
Technical Details
These specifications ensure that the temp sensor ds18b20 delivers accurate digital readings over a wide temperature span.
- Item Type: Sensor Module
- Rated Voltage (V): 3 to 5.5
- Digital Output
- Resolution: 9 to 12 bits
- Temp. Measuring Range (°C): -55°C to +125°C, accuracy: ±0.5°C
- Response Time (ms): 750
- Length (mm): 35
- Width (mm): 14
- Height (mm): 8
- Weight (g): 9
Features
As a compact board, this ds18b20 sensor module offers simple integration and consistent digital output for many control systems.
- Digital signal output
- 18B20 Temperature Sensor Chip
- Resolution: 9-12 bits
- Data sent via a pin
- Temperature range: -55°C to +125°C, accuracy: ±0.5°C
Pin Out
- VDD: Power supply (3V to 5.5V)
- GND: Ground
- DQ: Data pin (digital output for temperature data)
Application:
Thanks to the balanced ds18b20 temperature sensor price and digital precision, this module suits both small DIY builds and professional systems.
- Cold Storage Monitoring: Measures temperature in cold storage and refrigeration.
- Granaries and Storage Tanks: Monitors temperature in grain storage and tanks.
- Telecommunications Rooms: Tracks temperature in server rooms.
- Industrial Equipment: Used for temperature control in machinery and air conditioning.
- Refrigerators and Freezers: Ensures optimal temperature in cooling appliances.
- Heating/Cooling Pipe Calorie Measurement: Monitors temperature in heating and cooling systems.
Integration with Arduino
This diagram shows how to connect the temp sensor ds18b20 to an Arduino digital pin using a single data line and pull-up resistor.
Sample Code
Physical Attributes
These compact dimensions help keep the overall ds18b20 temperature sensor price attractive for embedded and volume applications.
- Length (mm): 35
- Width (mm): 14
- Height (mm): 8
- Weight (g): 9
Package Includes
- 1 x DS18B20 Temperature Sensor Module
