Hardware & ToolsThe DT830B is a basic digital multimeter (DMM) commonly used for measuring electrical parameters in various applications.

Here's an overview:

Features:

Display: The DT830B features a digital LCD (Liquid Crystal Display) screen that shows the measured values clearly.

Measurement Functions: It typically offers various measurement functions, including voltage (AC and DC), current (AC and DC), resistance, and sometimes continuity and diode testing.

Range Selection: It allows manual selection of measurement ranges to ensure accurate readings for different magnitudes of electrical parameters.

Function Selection: The multimeter typically has a rotary switch or buttons to select the desired measurement function (e.g., voltage, current, resistance).

Input Jacks: There are input jacks or sockets for connecting the test leads. These jacks are usually color-coded (red for positive, black for negative) and marked with the corresponding measurement function.

Hold Function: Some models may include a data hold function that freezes the display to capture and record the measured value.

Battery: The multimeter is powered by batteries, often a standard 9V battery, which needs to be replaced periodically.

Safety: Basic safety features such as overload protection and fused current input are often incorporated to protect both the multimeter and the user.

Typical Measurements:

Voltage: The DT830B can measure both AC and DC voltage. It is commonly used to measure voltages in circuits and electrical systems.

Current: It can measure both AC and DC currents within its specified range. This feature is useful for checking current flow in circuits and troubleshooting electrical problems.

Resistance: The multimeter can measure the resistance of resistors, components, and circuits. It helps in identifying faulty or damaged components.

Continuity: Some models may include a continuity test function that checks for continuity in wires and connections. Diode Test: It can test diodes for functionality and polarity.

Applications:

The DT830B multimeter is widely used by hobbyists, students, technicians, and professionals for various electrical and electronics-related tasks. It finds applications in troubleshooting circuits, testing components, checking battery voltages, and verifying electrical parameters in both household and industrial settings.

Features

  • This multimeter measures DC voltage in the ranges of 200 mV 2000 mV, 20V, 200V, and 1000V.
  • It measures DC in the ranges of 200µA, 2000µA, 20ma, 200ma, and 10A.
  • It measures AC voltage in the ranges of 200 V and 750 V.
  • This meter also measures resistance in these ranges of 200, 2000 ohms, 20, 200, and 2000 ohms.
  • Transistor Hfe Measurement.
  • Continuity Tester with Buzzer.

Technical Details

  • LCD: 3 1/2
  • Digit Maximum Reading: 1999
  • DC Voltage: 200mV / 2000mV / 20V / 200V / 1000V
  • AC Voltage: 200V / 750V
  • DC Current: 200uA / 2000uA / 20mA / 200mA / 10A
  • Resistance: 200Ω/ 2kΩ / 20kΩ / 200kΩ / 2000kΩ
  • Transistor: NPN, PNP
  • Battery: 9 V 6F22 ( battery not included )

Physical Attributes

  • Length × Width × Height(mm) : 125 × 70 × 25
  • Weight (gm) : 130

Package Includes

  •  1 x DT-830B Multimeter (Battery not included)
  • 1 x Test Cable

Customer Reviews

Based on 29 reviews
83%
(24)
14%
(4)
3%
(1)
0%
(0)
0%
(0)
a
amit kumar
Just what we needed

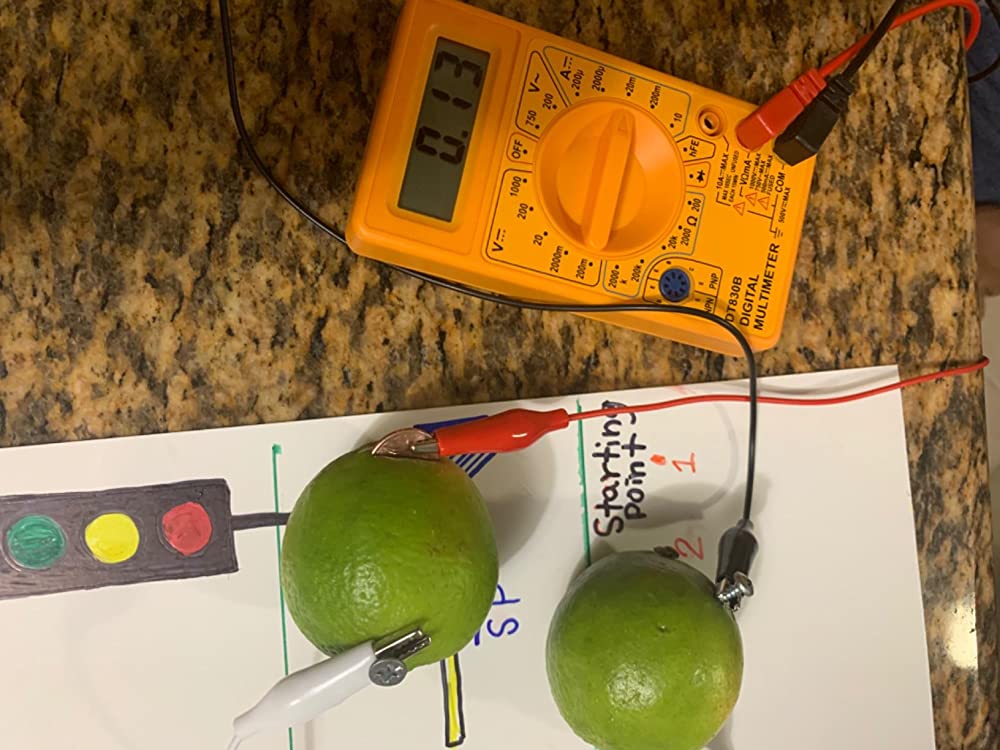

Perfect for my son’s science project
