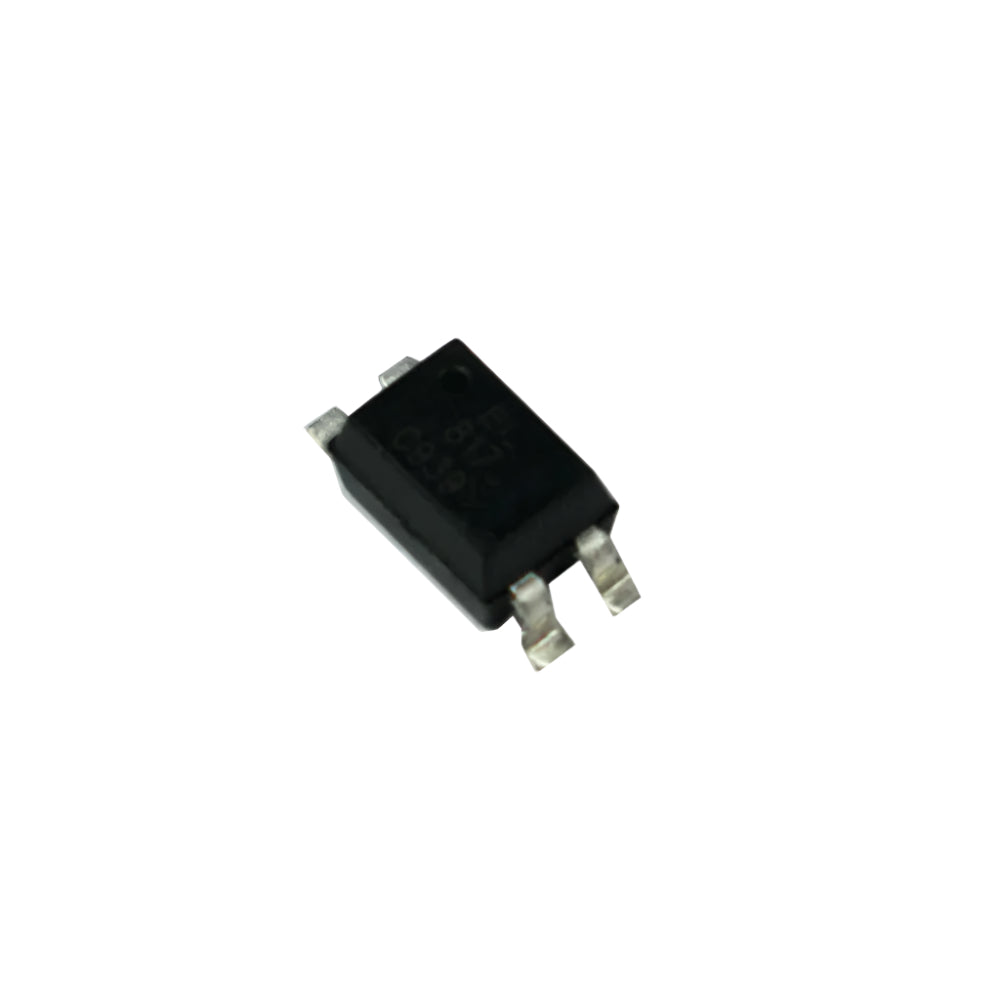

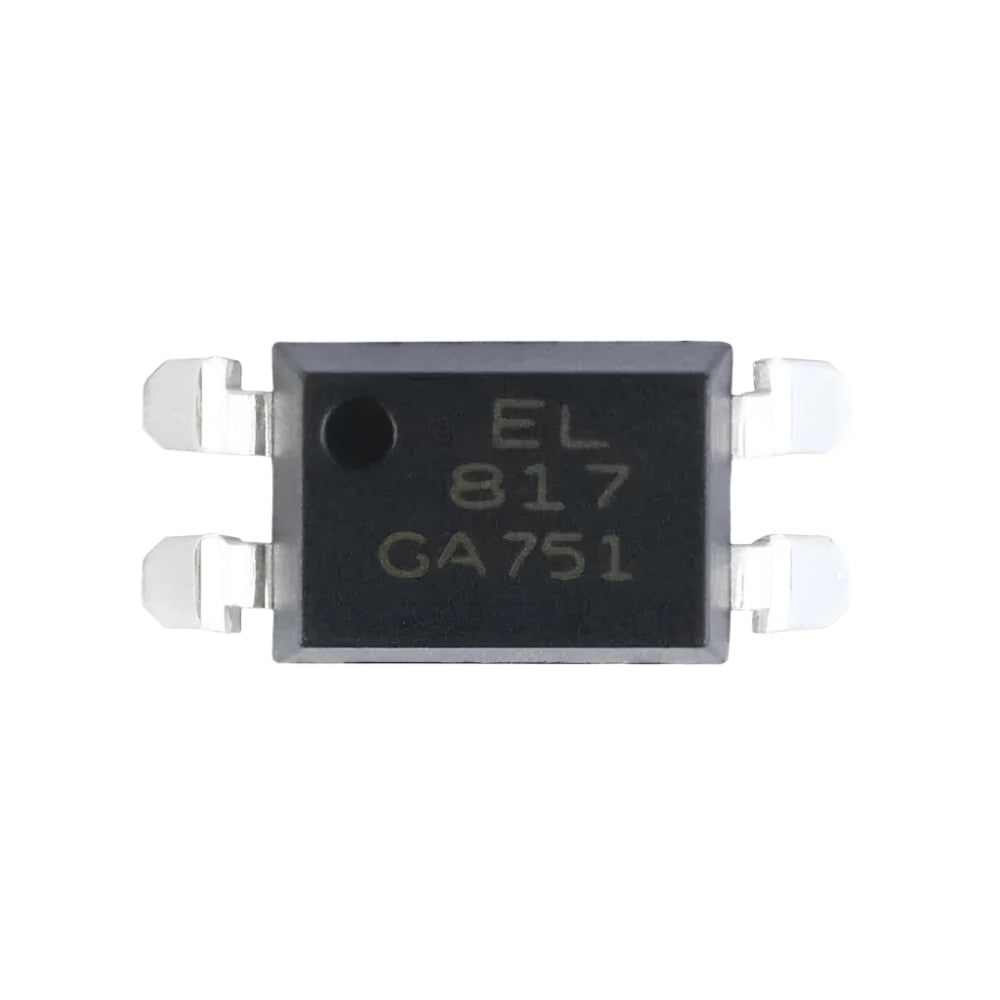

EL817C SOP-4 SMD Optocoupler | Brand New Original

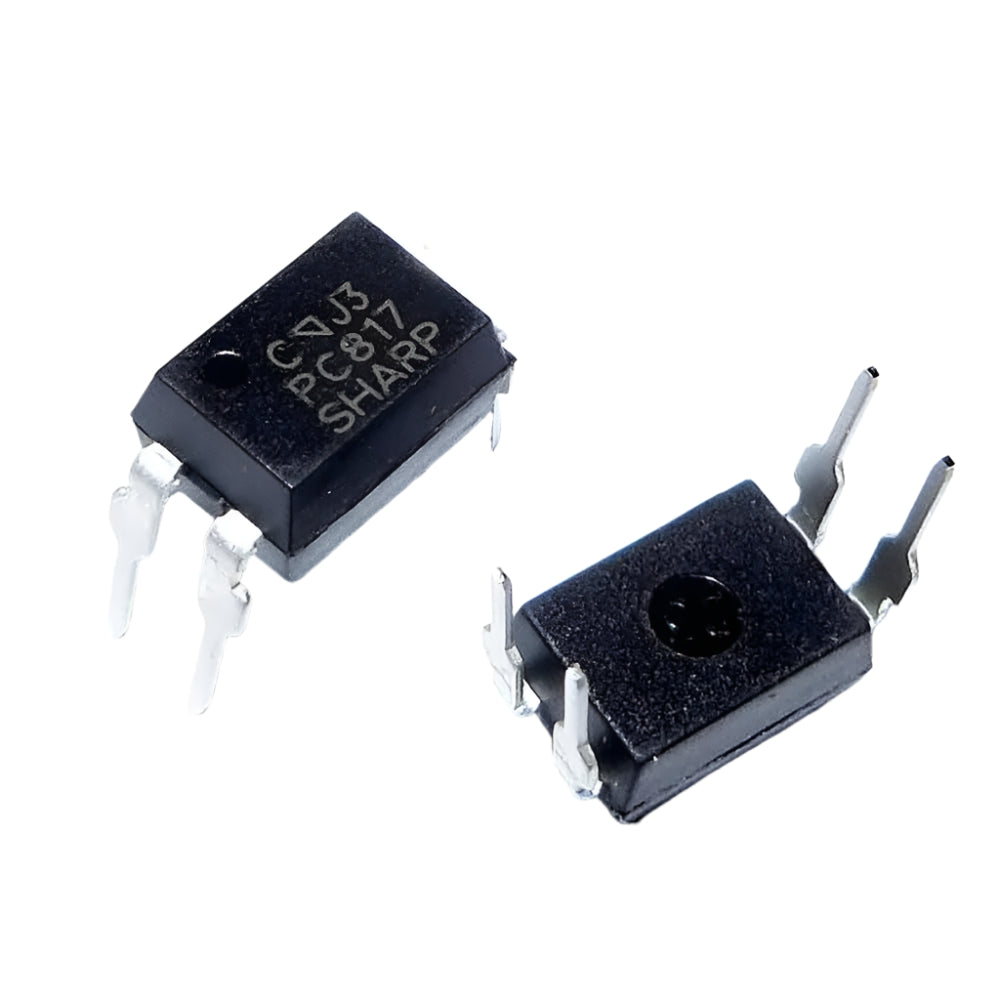

The EL817 series of devices each consist of an infrared emitting diode, optically coupled to a phototransistor detector. They are packaged in a 4-pin SMD package and Also available in DIP Package option.

Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

  • Part Number: EL817C
  • Package Type: SOP-4 (Surface Mount Device)
  • Type: Phototransistor Output Optocoupler
  • Input: Infrared LED
  • Output: Phototransistor
  • Isolation Voltage: 5,000 Vrms
  • Current Transfer Ratio (CTR): 50% to 600% (IF = 5 mA, VCE = 5V)
  • Input Forward Voltage (VF): 1.2V (typical)
  • Collector-Emitter Voltage (VCEO): 80V
  • Emitter-Collector Voltage (VECO): 6V
  • Collector Current (IC): 50 mA max
  • Operating Temperature: -55°C to +110°C
  • Response Time: ~3 µs (typical rise/fall time)
  • RoHS Compliant

Features

  • Collector Current: 10 to 20 mA
  • Forward Current: 50 mA
  • Reverse Voltage: 6V
  • Total Power Dissipation: 200 mW

Applications :

  • SMPS and power supply isolation
  • Microcontroller signal protection
  • Industrial automation systems
  • PLC input/output modules
  • Communication and networking devices
  • Test and measurement equipment

Physical Attributes

  • Weight (g): 2
  • Length: 2.92mm
  • Width: 1.3mm
  • Height: 1.1mm

Package Includes

  • 1 x EL817C SOP-4 SMD Optocoupler | Brand New Original
