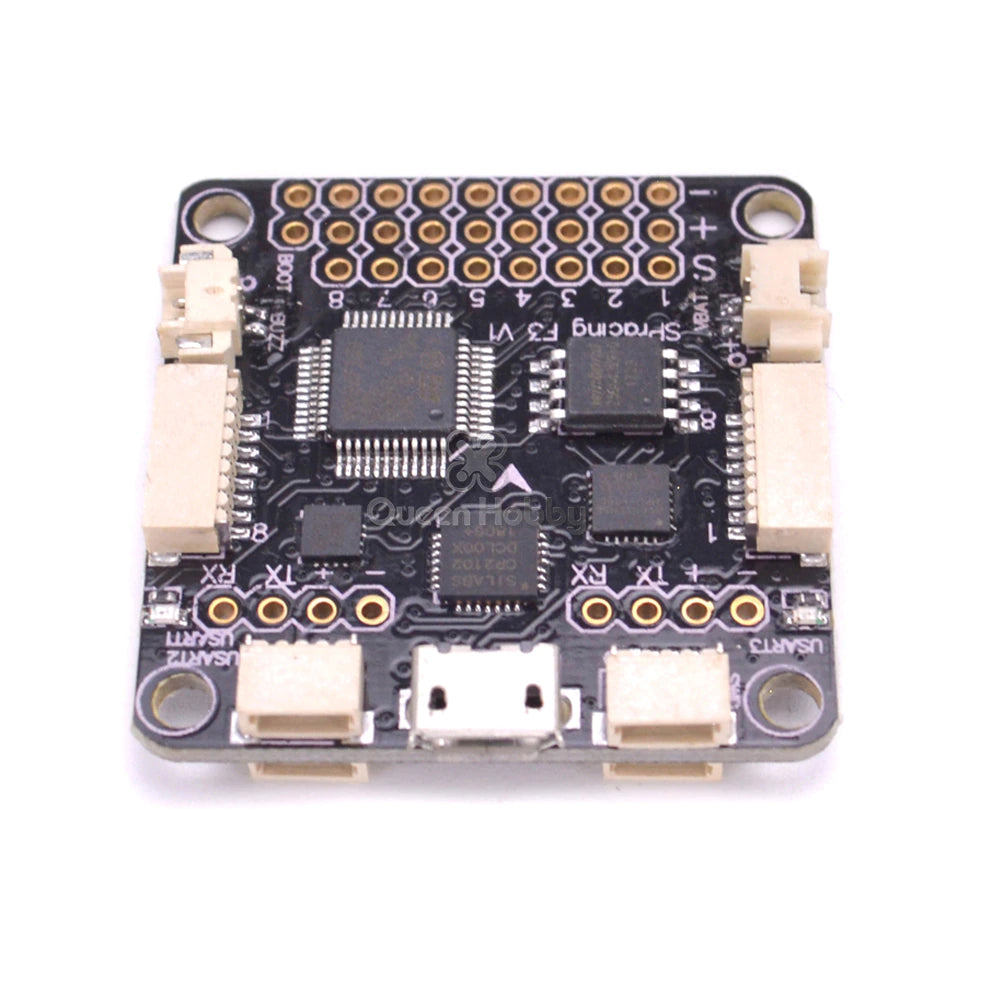

F01A SP Pro Racing F3 Flight Controller Board Cleaflight 6DOF Brano Compass 250
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
-17%
F01A SP Pro Racing F3 Flight Controller Board Cleaflight 6DOF Brano Compass 250
F01A SP Pro Racing F3 Flight Controller Board Cleaflight 6DOF Brano Compass 250
F01A SP Pro Racing F3 Flight Controller Board Cleaflight 6DOF Brano Compass 250
F01A SP Pro Racing F3 Flight Controller Board Cleaflight 6DOF Brano Compass 250

F01A SP Pro Racing F3 Flight Controller Board Cleaflight 6DOF Brano Compass 250

Available:Out of Stock
  • Product SKU: KG662
Wishlist
₹ 2,299 ₹ 2,799
Successful pre-order.Thanks for contacting us!
Secure

Specification

Description

The SP Racing F3 gives you all the features you need for the heart of your aircraft, whether you're into FPV racing, acrobatic flying or aerial photography it's perfect. Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, planes and more.

The SP Racing F3 runs the open-source BetaFlight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system.

Cleanflight comes with a detailed manual that is reviewed and maintained by the Cleanflight developers and community. No more out-of-date wiki pages and second-hand information.

Flight Performance

  • The SPRacingF3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it's on rails.


No-Compromise I/O

  • Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - all at the same time!


Configurable

  • The SPRacingF3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).


Tiny and lightweight

  • The SPRacingF3 has a standard 36x36mm form-factor with 30.5mm mounting holes and weighs just 6 grams.


Flight Logging

  • On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork.


Next-Generation CPU

  • The SPRacingF3 has an ARM Cortex-M4 72Mhz CPU with Math coprocessor (FPU) for efficient flight calculations that gets more done in less time.
  • Loop times up to ~2x as fast as previous-generation STM32F1 based boards.


Developer Friendly

  • Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.


OneShot ESC

  • Full support for OneShot ESCs for easy PID tuning and a sharper response.


Broad RC receiver Support

  • Supports SBus, SumH, SumD, Spektrum 1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).


Programmable LED

  • Dedicated output for programmable LEDs - great for orientation, racing and night flying.


Battery Monitoring

  • Battery monitoring ports for voltage and current.


Sonar

  • Sonar support for precision low-altitude hold.


I2C Port

  • I2C port always powered, perfect for external sensors or always-on OLED Screen.


Buzzer

  • Buzzer port for audible warnings and notifications

Technical Details

  • Input Voltage (V) : 5 VDC
  • Sensors : 3-Axis Gyrometer, Accelerometer

Features

  • Practical - Easy to access connectors and solder pads
  • Configurable - Choose to use connectors, solder pads or pins
  • Stackable - Mount to your PDB or OSD
  • Standard 36 x 36mm
  • Professional - Symmetrical, Neat and Tidy
  • 8 Dedicated PWM outputs
  • 8 PWM Inputs
  • 36 I/O Connections
  • 72Mhz Clock Speed
  • 3 Hardware Serial Ports
  • 64Mb Flash Storage

Physical Attributes

  • L x W x H (mm): 36 x 36 x 7
  • Weight (gm) : 23
