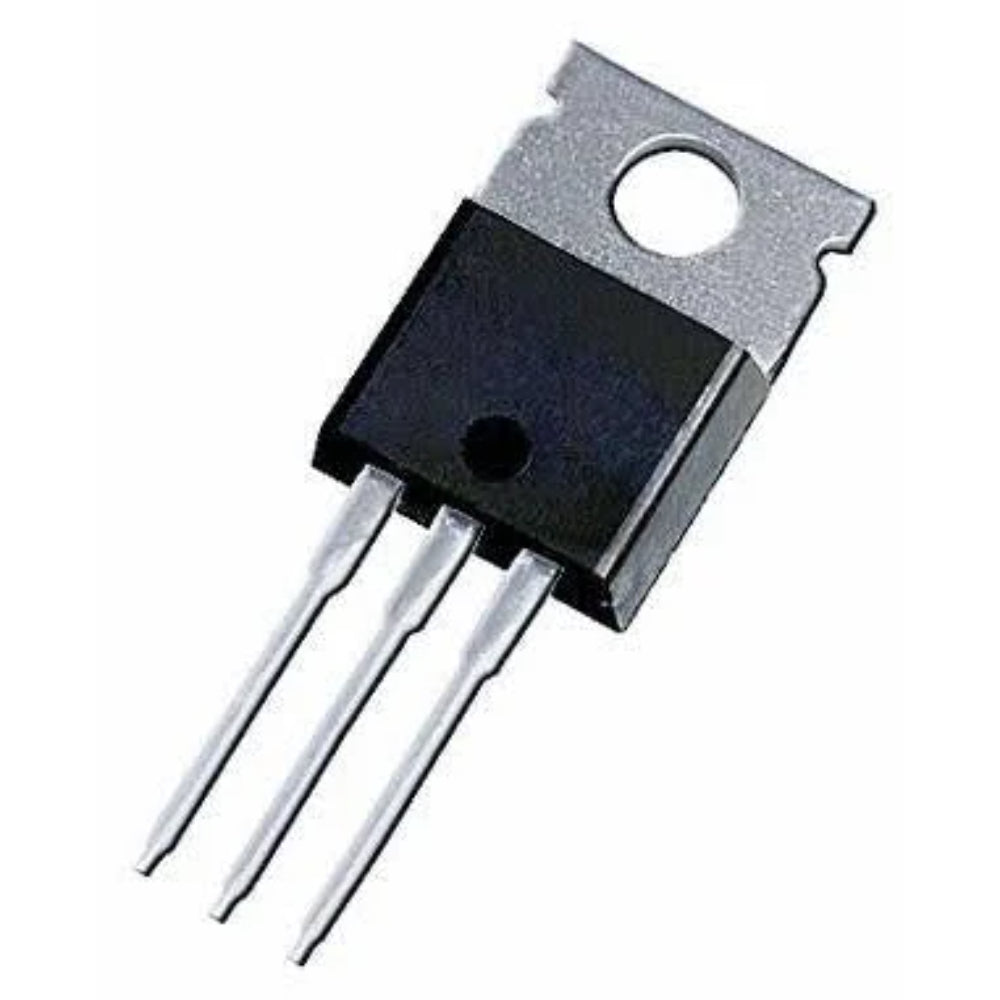

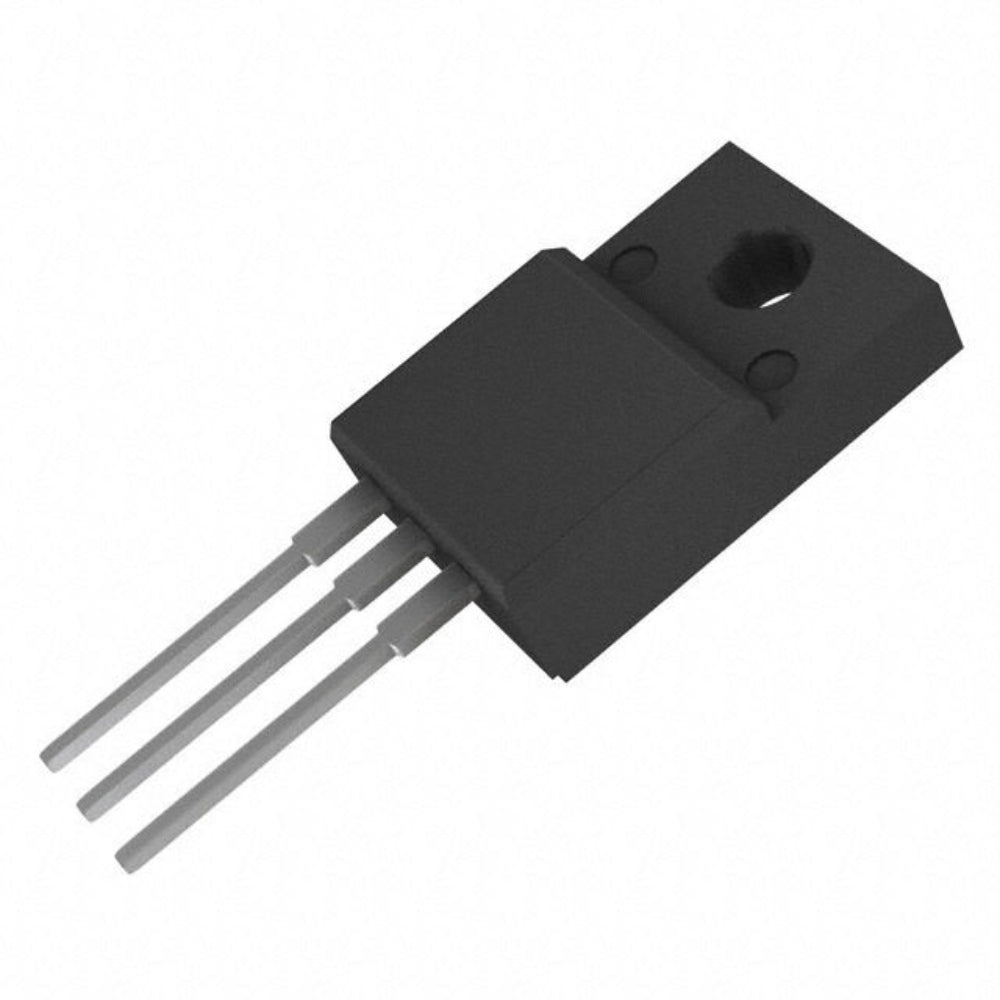

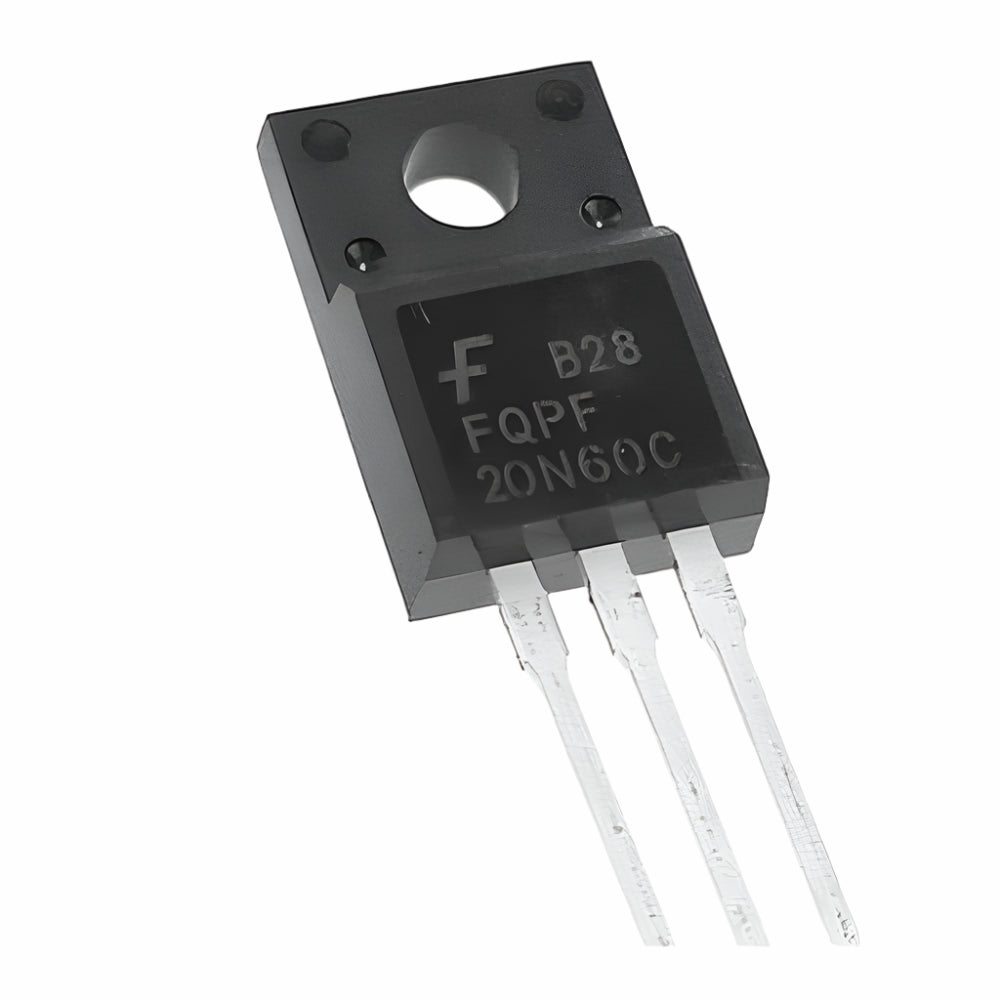

FQD20N60 N-Channel MOSFET 600V 20A – TO-220 Package

The FQD20N60 is a high-voltage N-Channel Power MOSFET capable of handling up to 600V and 20A of continuous drain current. It is optimized for high-speed switching applications, offering low gate charge and excellent thermal performance. The TO-220 package is ideal for power supply, motor driver, and high-voltage switching circuits.

Technical Details

  • Part Number: FQD20N60
  • Type: N-Channel Power MOSFET
  • Drain-Source Voltage (VDS): 600V
  • Continuous Drain Current (ID): 20A
  • Gate Threshold Voltage (VGS(th)): 2V – 4V
  • Maximum Gate-Source Voltage (VGS): ±30V
  • Drain-Source On Resistance (RDS(on)): ~0.26Ω
  • Total Gate Charge (Qg): ~110nC (typical)
  • Power Dissipation: ~200W
  • Package: TO-220
  • Mounting Type: Through-Hole

Features

  • High voltage and current handling capability
  • Low gate drive requirements
  • Fast switching speed
  • Low RDS(on) for higher efficiency
  • Robust TO-220 package with efficient heat dissipation

Applications

  • Switched Mode Power Supplies (SMPS)
  • Motor Control Circuits
  • High-Voltage Converters
  • Uninterruptible Power Supplies (UPS)
  • General Purpose Switching

Physical Attributes

  • Package: TO-220
  • Leads: 3 (Gate, Drain, Source)
  • Dimensions: Approx. 10mm × 15mm × 4.5mm (Body)
  • Mounting Type: Through-Hole
  • Weight: ~1g

Package Includes

  • 1 x FQD20N60 N-Channel MOSFET 600V 20A – TO-220 Package
