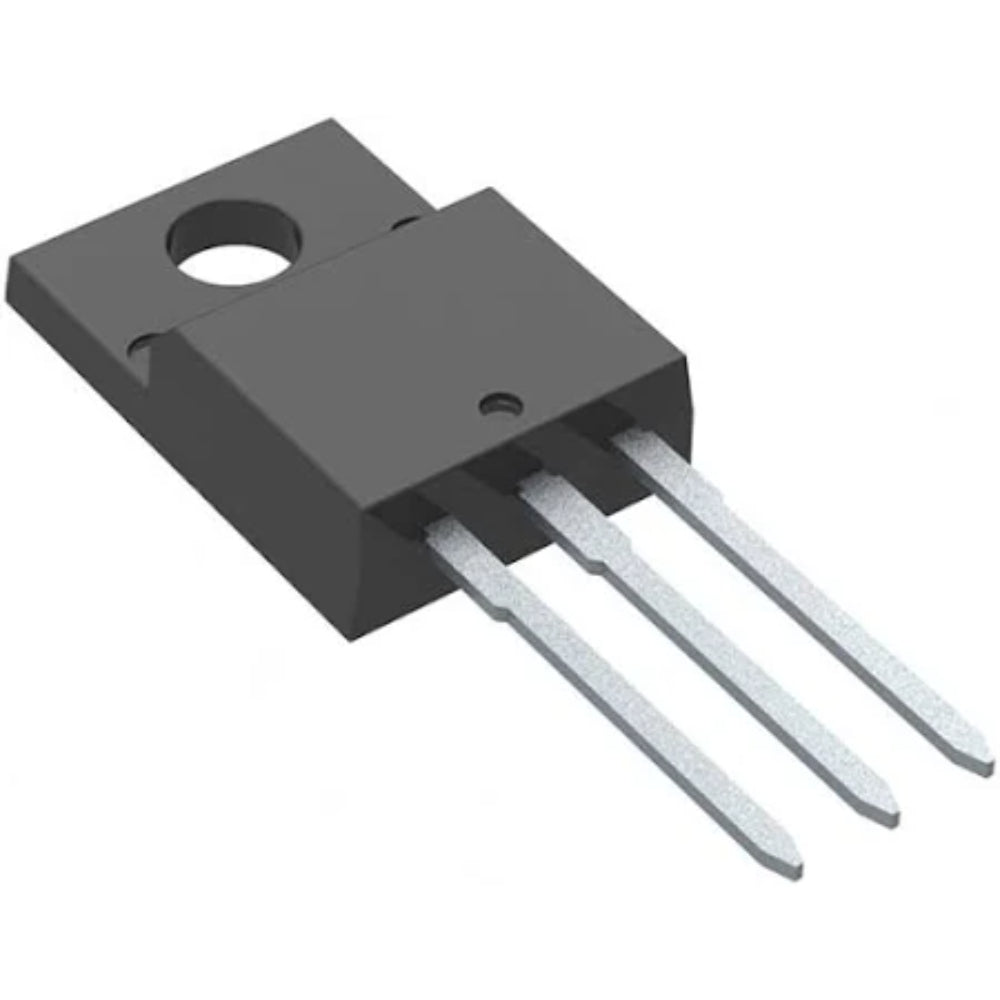

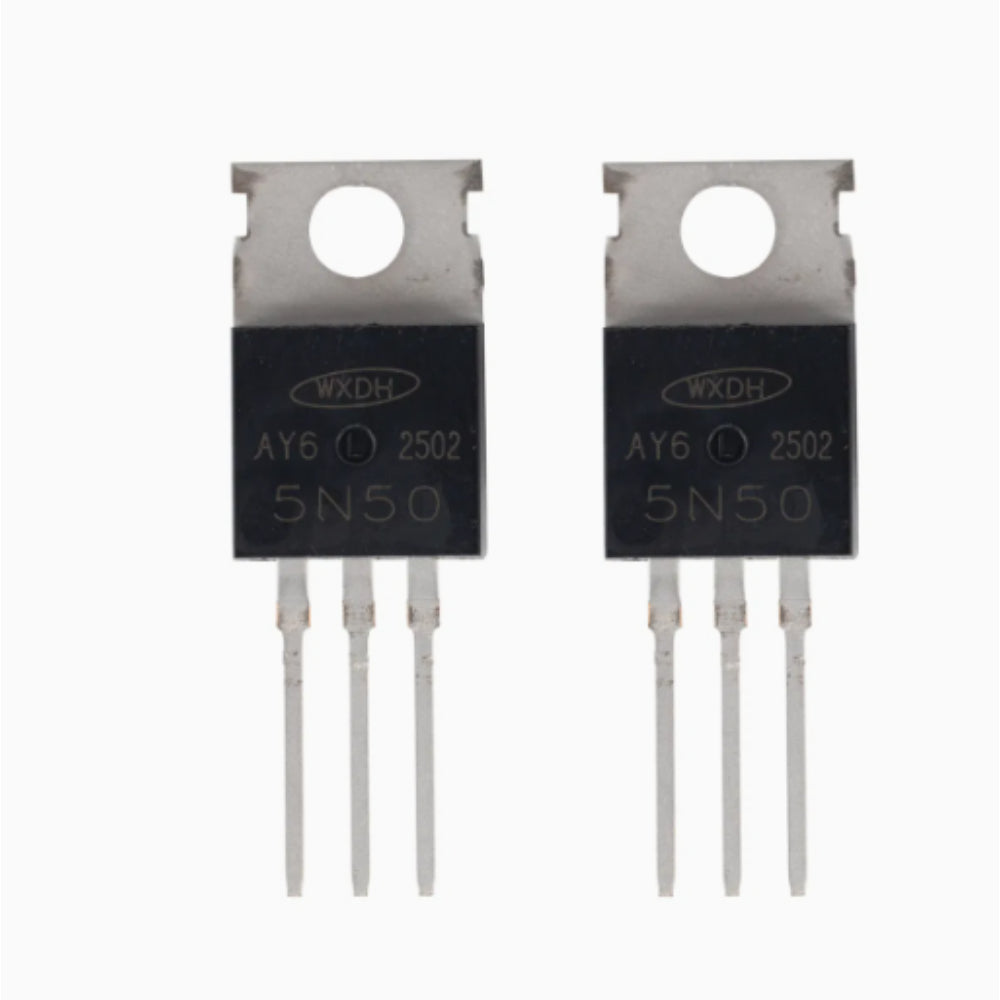

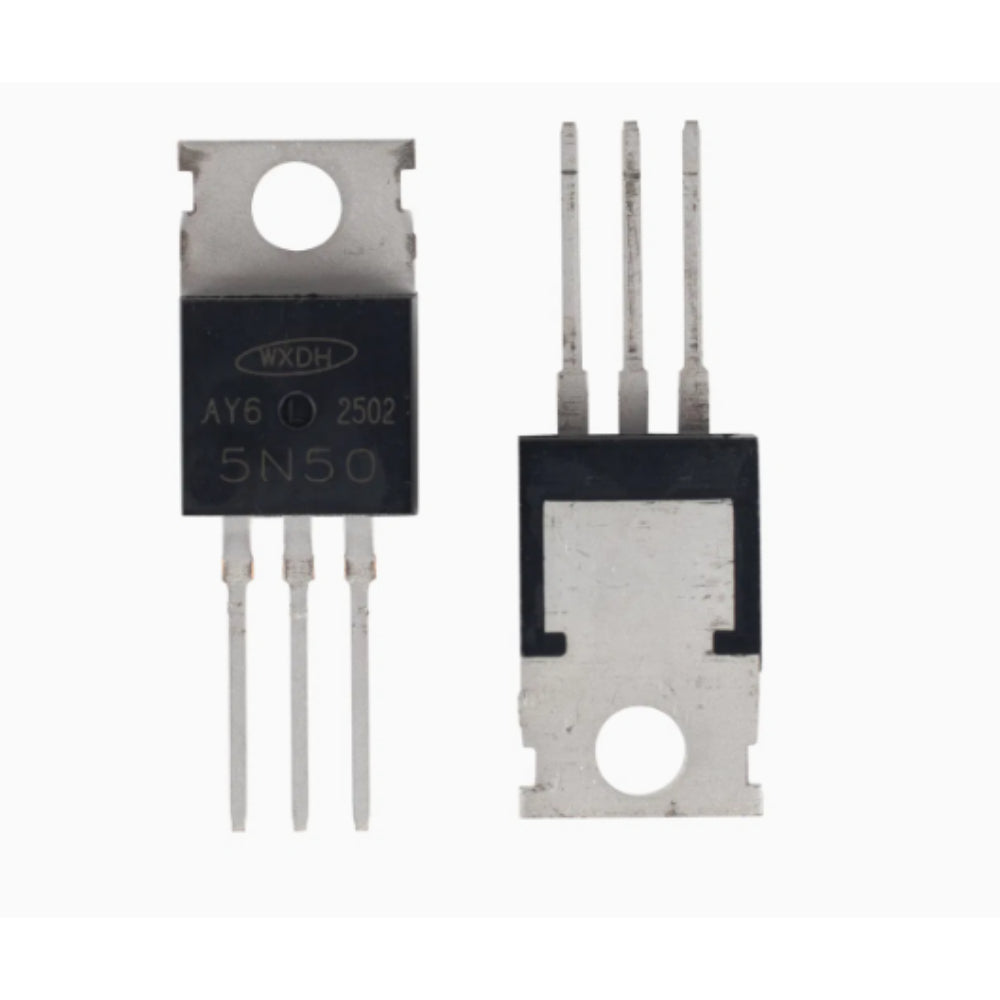

FQD5N50 N-Channel MOSFET 500V 5A – TO-220 Package

The FQD5N50 is a high-voltage N-Channel Power MOSFET designed for efficient and reliable switching in high-voltage circuits. It supports a drain-source voltage of up to 500V and can handle a continuous drain current of 5A, making it suitable for power converters, SMPS, motor drivers, and high-voltage switching applications. The TO-220 package ensures excellent heat dissipation for through-hole mounting.

Technical Details

  • Part Number: FQD5N50
  • Type: N-Channel MOSFET
  • Drain-Source Voltage (VDS): 500V
  • Continuous Drain Current (ID): 5A
  • Gate Threshold Voltage (VGS(th)): 2V – 4V
  • Maximum Gate-Source Voltage (VGS): ±30V
  • Drain-Source On-Resistance (RDS(on)): ≤ 1.5Ω
  • Power Dissipation: 60W (max)
  • Package: TO-220
  • Mounting Type: Through-Hole

Features

  • High-voltage capability up to 500V
  • Low gate drive requirements
  • Fast switching speed
  • Low on-resistance for efficient operation
  • Rugged TO-220 package for high thermal performance

Applications

  • Switched-Mode Power Supplies (SMPS)
  • Battery Chargers
  • Motor Drivers
  • High-Voltage Switching
  • LED Drivers

Physical Attributes

  • Package: TO-220
  • Leads: 3 (Gate, Drain, Source)
  • Dimensions: Approx. 10mm × 15mm × 4.5mm (Body)
  • Mounting Type: Through-Hole
  • Weight: ~1g

Package Includes

  • 1 x FQD5N50 N-Channel MOSFET 500V 5A – TO-220 Package
