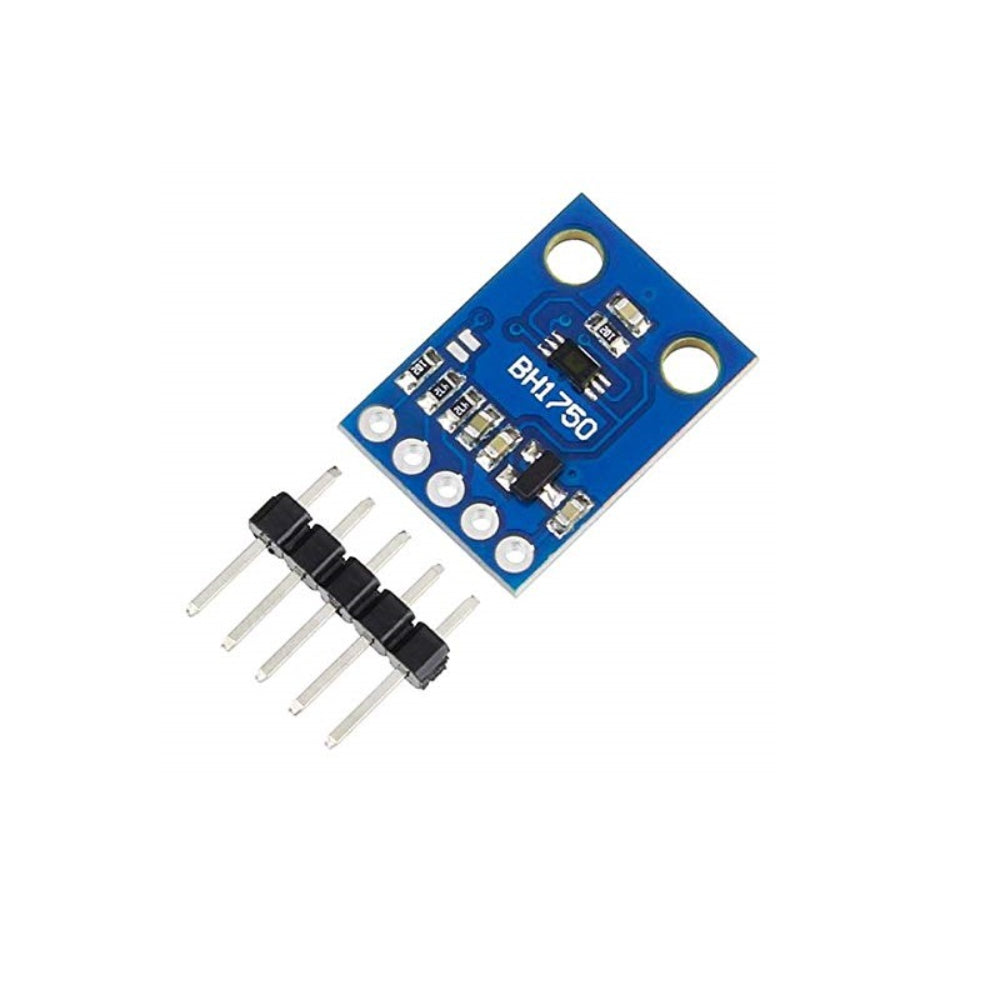

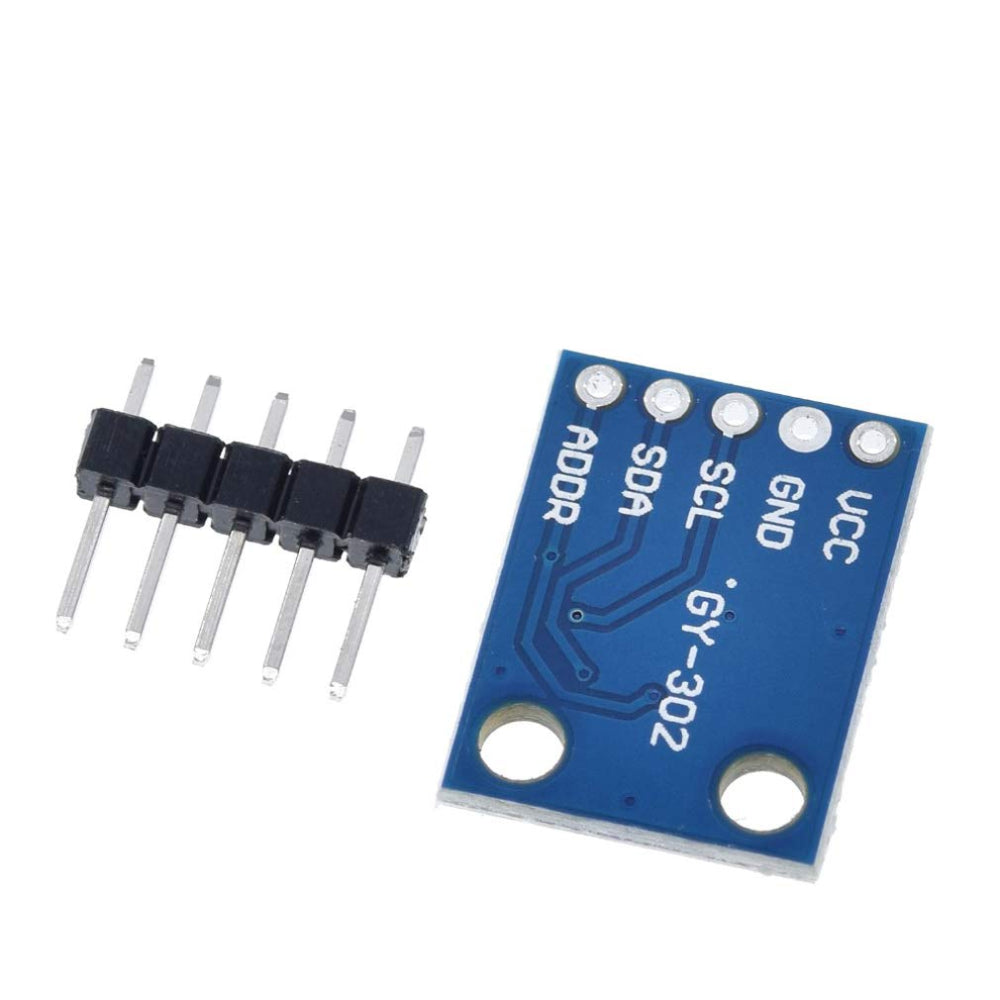

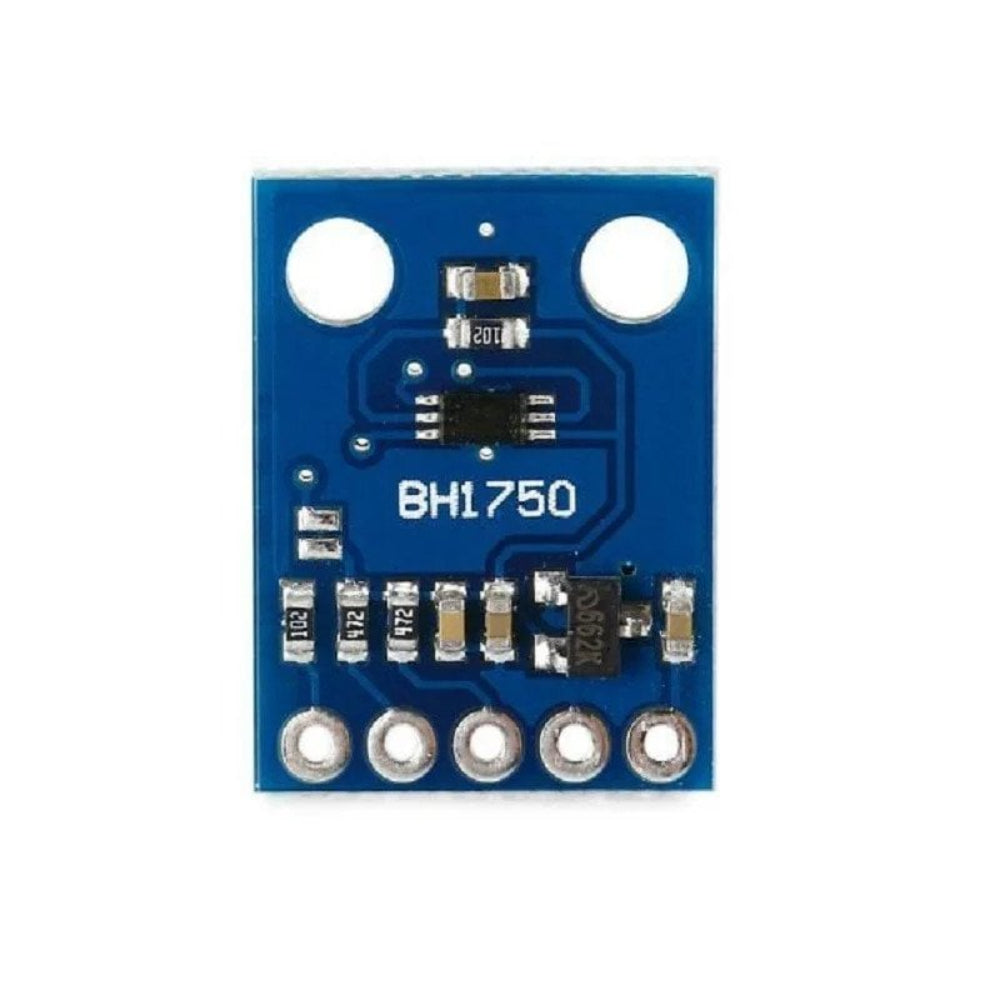

GY-302 BH1750 Light Intensity Detection Module

The GY-302 BH1750 Light Intensity Detection Module is based on the BH1750FVI digital ambient light sensor IC. This module communicates via the I2C interface and is ideal for measuring ambient light levels in various applications. It is highly suitable for adjusting LCD and keypad backlight power in mobile devices and other electronics, providing precise light intensity readings over a wide range.

Features

  • High-precision light detection accurate to 1 lux
  • No distinction required between different ambient light types
  • ROHM original BH1750FVI chip for reliable performance
  • Digital output via I2C interface
  • Compact and easy-to-integrate module

Technical Details

  • Model Type: Light Sensor
  • Operating Voltage: 3 – 5 V DC
  • Interface: I2C
  • Dimensions (L x W x H): 18 × 13 × 3 mm
  • Weight: 1 g

Applications

  • Ambient light monitoring
  • Automatic LCD or keypad backlight adjustment
  • Robotics and IoT light sensing projects
  • Weather stations and environmental monitoring
  • DIY electronics requiring accurate light measurement

Package Includes

  • 1 × GY-302 BH1750 Light Intensity Detection Module
