HC-SR04 Ultrasonic range finder with cartoon Ultrasonic Sensor mounting Bracket
Mounting Holes: The bracket base and the adjustable arm often have holes that allow you to attach them to surfaces using screws, bolts, or other types of fasteners.
Secure Fasteners: Depending on the design, the bracket might come with screws, nuts, or other hardware to help you secure the sensor and bracket to the desired location.
Secure the Sensor: Use the provided fasteners or appropriate screws/nuts to secure the sensor onto the bracket base. Make sure the sensor is snugly held in place.
Adjust Position: If the bracket includes an adjustable arm, you can manipulate it to adjust the sensor's position and orientation. This is particularly useful when you need to direct the sensor's ultrasonic waves toward a specific area.
Mounting: Attach the bracket (with the sensor) to the desired surface or object using screws or other mounting hardware. Ensure that the sensor has an unobstructed line of sight to the area you want to measure or detect. Using a mounting bracket can help ensure consistent and stable sensor readings, especially in applications where the sensor needs to maintain a specific angle or alignment. Keep in mind that different mounting brackets may have variations in their design and features, so it's a good idea to refer to any accompanying documentation to ensure proper installation and usage.
HC-SR04 Ultrasonic range finder with cartoon Ultrasonic Sensor mounting Bracket
Available:In Stock
- Product SKU: KG043
₹ 100
₹ 149
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description

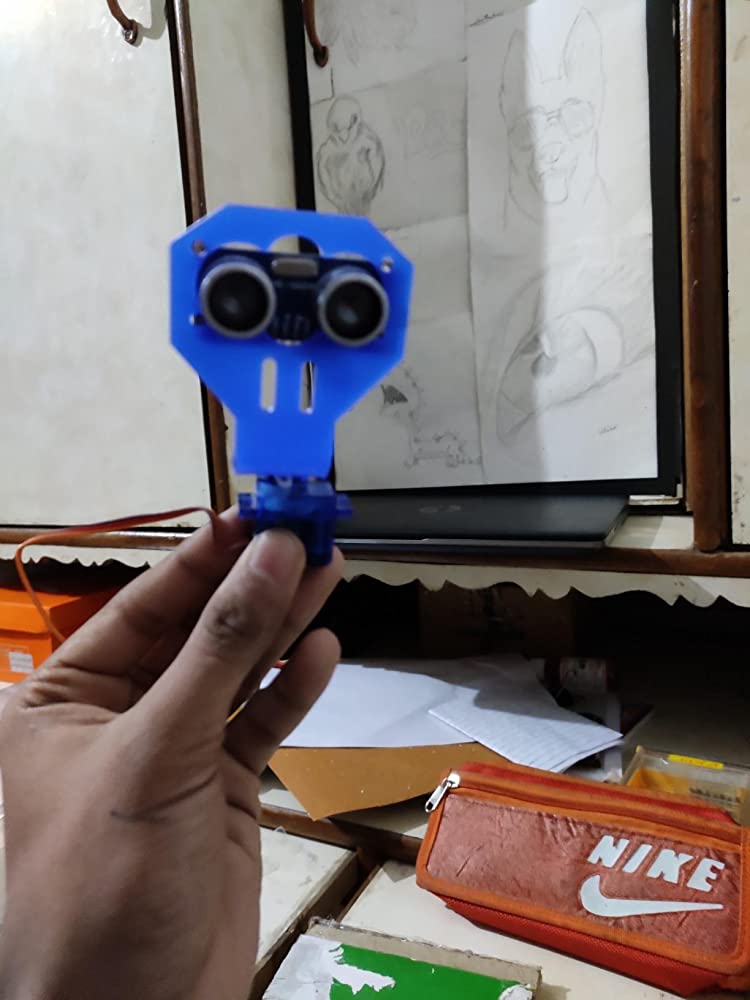

The HC-SR04 ultrasonic distance sensor is often available with a mounting bracket, which is designed to make it easier to attach the sensor to various surfaces and objects. The mounting bracket adds versatility and convenience to the sensor's application in projects, particularly in scenarios where you need to secure the sensor in a specific position.The mounting bracket typically comes with the following components:
Bracket Base: This is the main component that holds the sensor and provides attachment points for mounting screws or other fastening mechanisms. The bracket base usually has holes that align with the sensor's mounting holes.Mounting Holes: The bracket base and the adjustable arm often have holes that allow you to attach them to surfaces using screws, bolts, or other types of fasteners.
Secure Fasteners: Depending on the design, the bracket might come with screws, nuts, or other hardware to help you secure the sensor and bracket to the desired location.
Using the HC-SR04 ultrasonic distance sensor with a mounting bracket involves a few steps:
Attach the Sensor: Place the HC-SR04 sensor onto the bracket base in a way that aligns with the mounting holes on both the sensor and the bracket.Secure the Sensor: Use the provided fasteners or appropriate screws/nuts to secure the sensor onto the bracket base. Make sure the sensor is snugly held in place.
Adjust Position: If the bracket includes an adjustable arm, you can manipulate it to adjust the sensor's position and orientation. This is particularly useful when you need to direct the sensor's ultrasonic waves toward a specific area.
Mounting: Attach the bracket (with the sensor) to the desired surface or object using screws or other mounting hardware. Ensure that the sensor has an unobstructed line of sight to the area you want to measure or detect. Using a mounting bracket can help ensure consistent and stable sensor readings, especially in applications where the sensor needs to maintain a specific angle or alignment. Keep in mind that different mounting brackets may have variations in their design and features, so it's a good idea to refer to any accompanying documentation to ensure proper installation and usage.
Specification of HC SR04 Bracket :
- Accuracy: about 0.3cm
- PCB Dimension:4.5*2.0CM
- Connection: VCC, trig(Control), echo(Receive), Out, GND
- Usage: fixed ultrasonic sensor modules and other products
- Color: red or blue(sent randomly)
Technical Details of HC SR04 Bracket
- HC-SR04 Ultrasonic sensor : =
- Input Supply voltage (VDC): 5
- Operating Current (mA): <2
- Sensing angle (Degree): < 15°
- Sensing distance (cm): 2 ~ 450
- Accuracy (cm): 0.3
- Cartoon Ultrasonic Sensor Mounting Bracket
Physical Attributes of HC SR04 Bracket
- Diameter of the mounting hole (mm): 3.8
- Material: Acrylic
- Thickness (mm): 2.8 ~ 3.1
- Inner diameter (mm) : 16
Additional Details
- Measures the distance within a wide range of 2cm to 400cm
- Stable performance
- Accurate distance measurement
- Good quality Acrylic Mounting Bracket.
- High-density
- Small blind distance
Product Video
Documentation
- a- Datasheet
Package Includes
- 1 x HC-SR04 Ultrasonic range finder with cartoon Ultrasonic Sensor Mounting Bracket
