HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module

Available:In Stock

Product SKU: KG500

Wishlist

₹ 79 ~~₹ 119~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Automatic induction
Ultra-small size
Repeatable trigger
Wide voltage range
Micropower: <50 current
Easy circuit docking

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

15 B - 110

Specification

Description

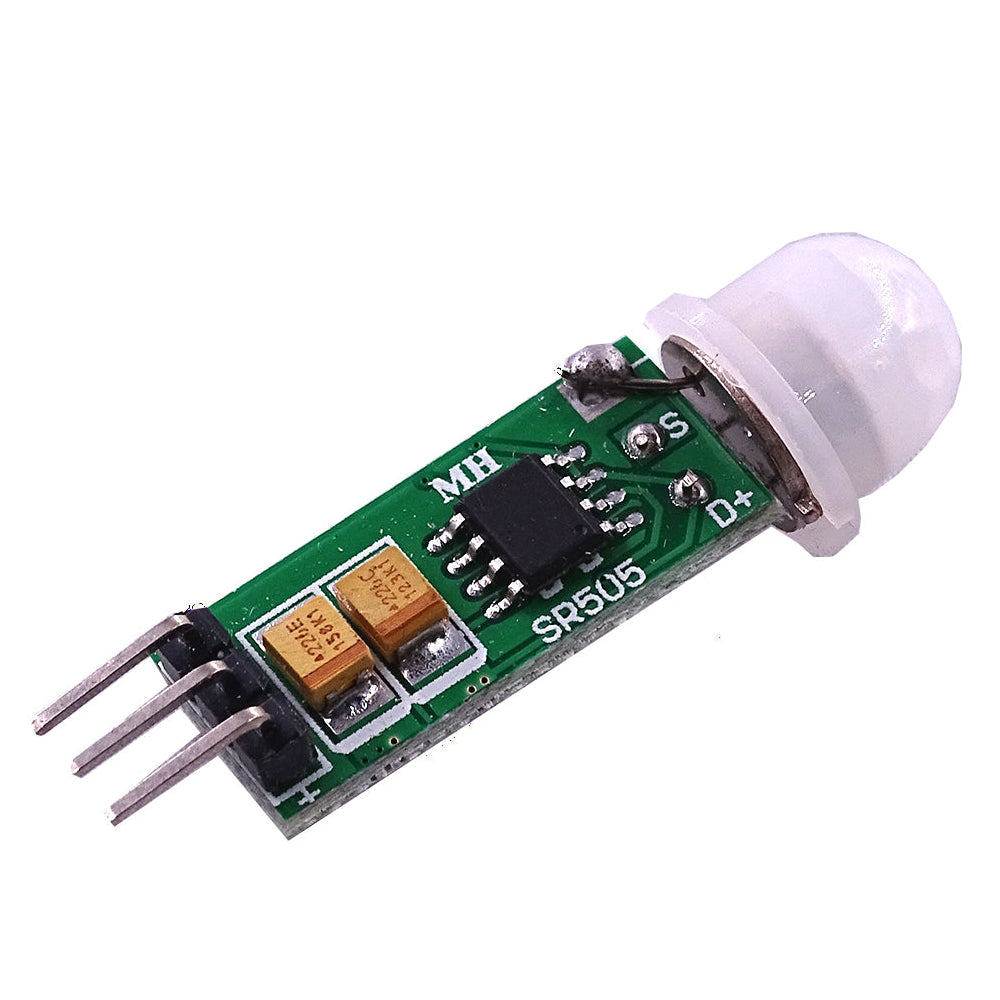

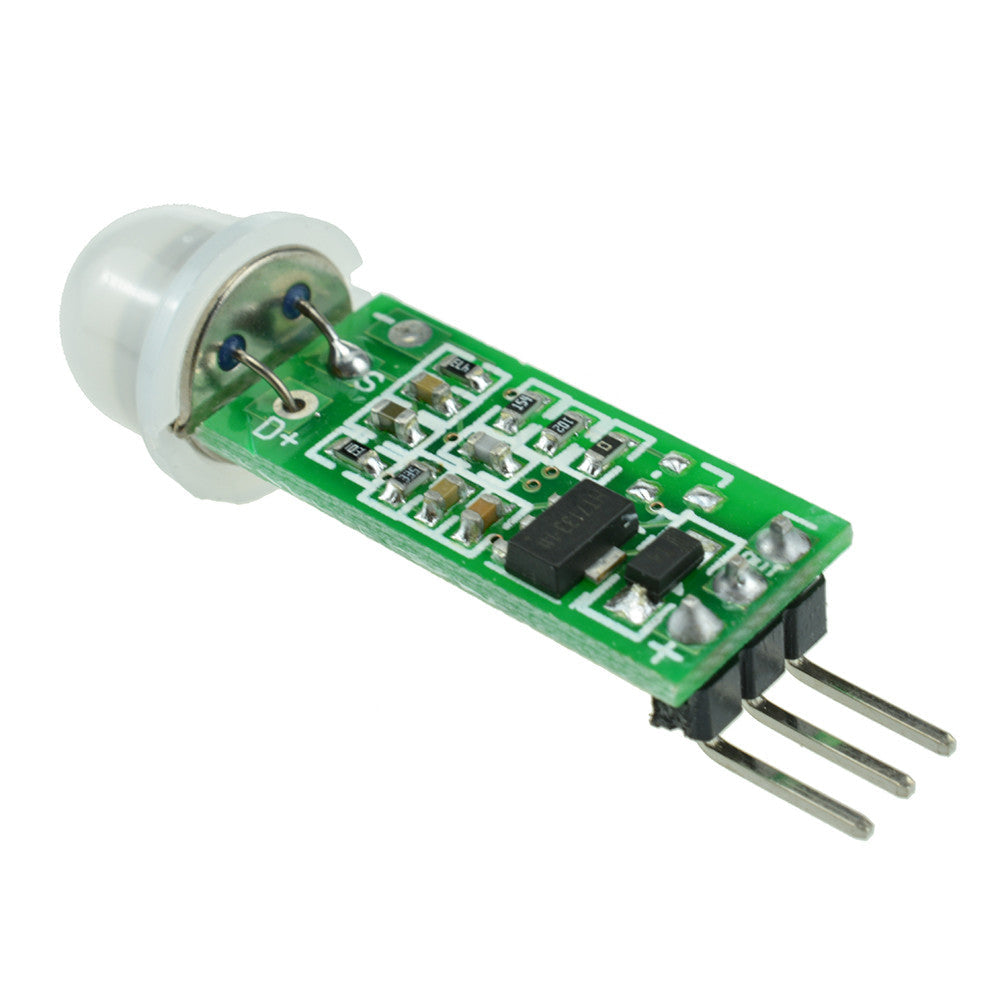

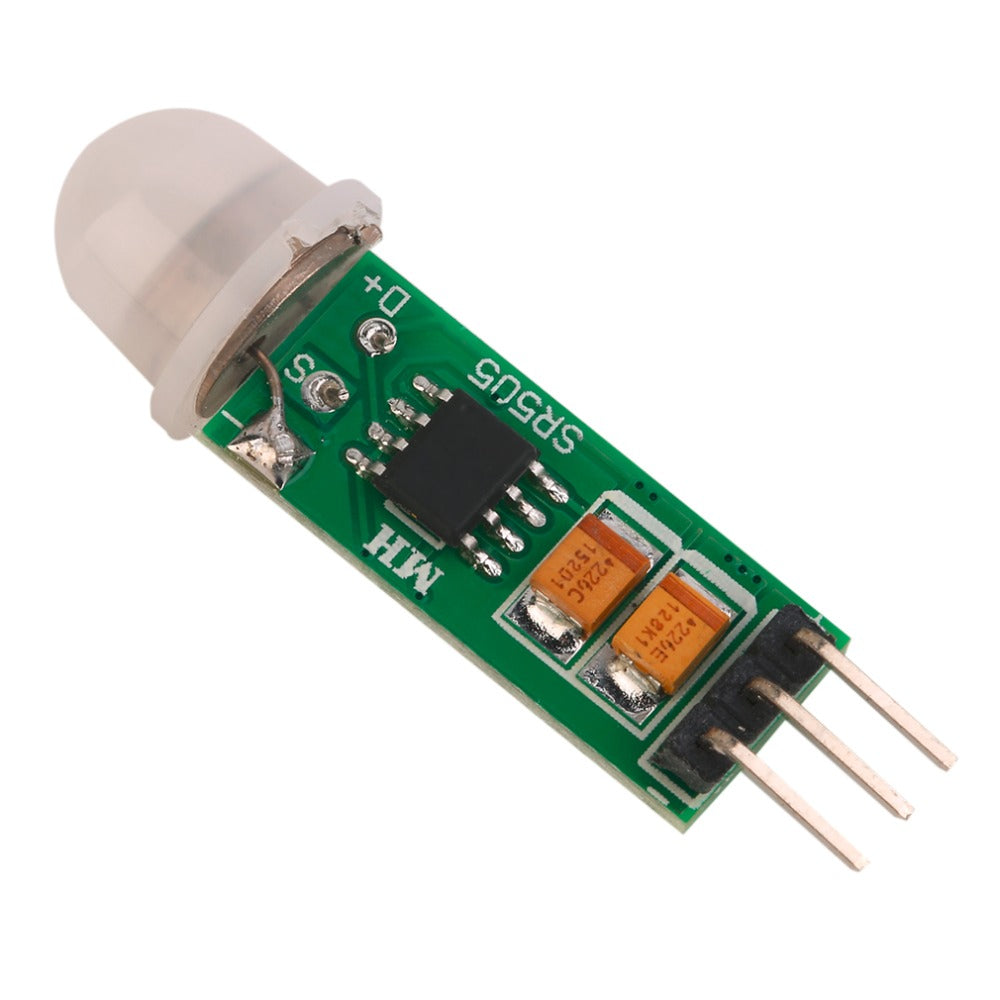

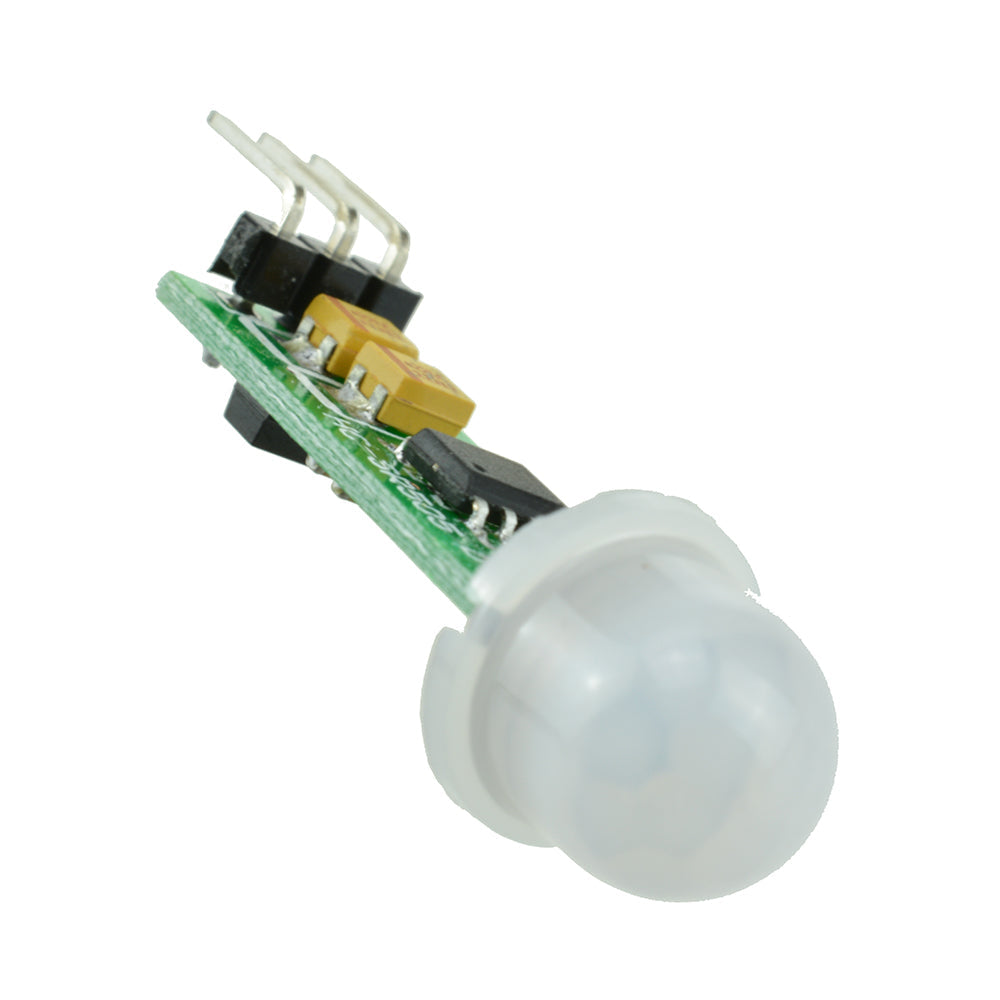

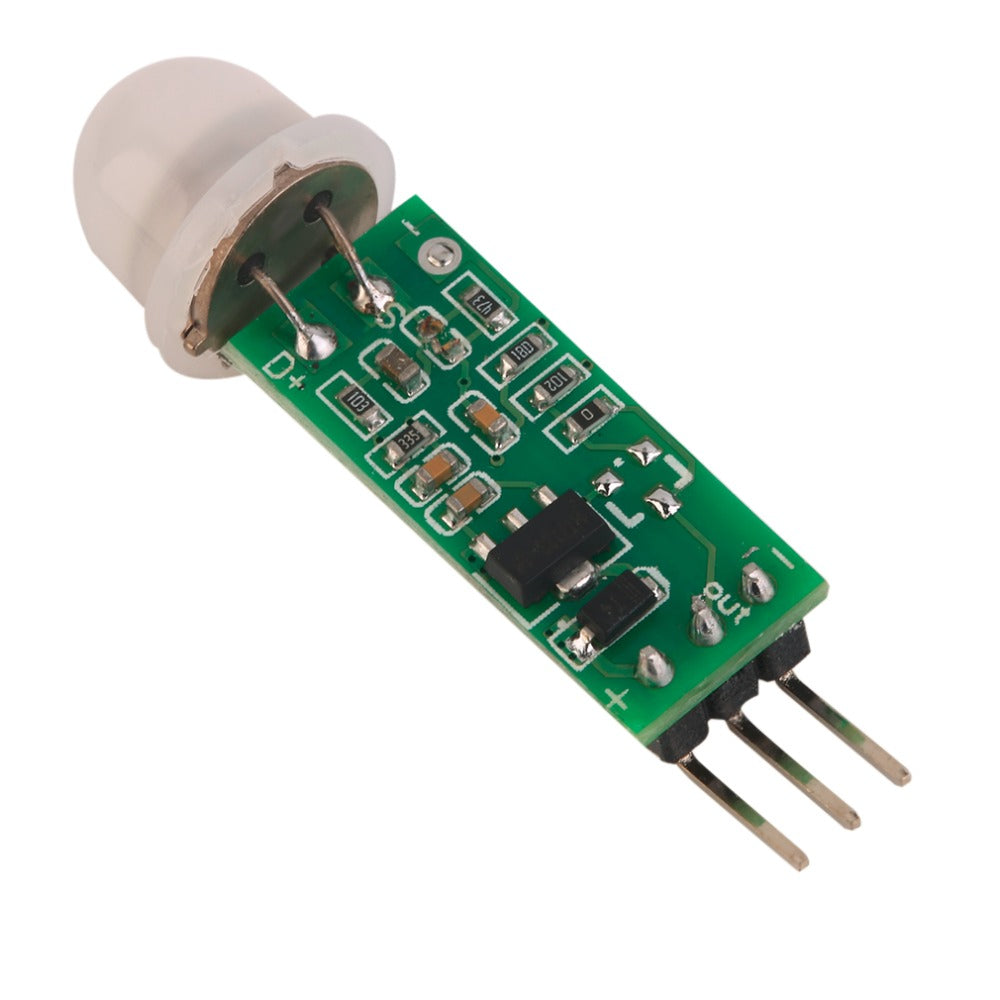

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module

HC-SR505 Mini Infrared PIR Motion Sensor Infrared Detector Module is based on infrared technology, It automatically controls the products with high sensitivity, high reliability, ultra-small size, and ultra-low-voltage operation mode. It is widely used in various auto-sensing of electrical equipment, especially battery-powered automatic control products.

Technical Details

Item Type: Sensor
Model Type: Motion Sensor Module
Model No.: HC SR505
Operating Voltage (V): 4.5 to 20
Avg. Current Used (mA): 0.06
Distance Measure (cm): 10 ~ 300
Dimensions (L x W x H) mm: 40 x 12 x 12
Weight (g): 2
Delay Time: Default 8S ±30% (can be customized)
Operating Temperature (°C): -20 to 80
Sensor Lens Diameter: 10mm
Induction angle: <100-degree cone angle

Features

Low-power consumption
Output level: High 3.3V / Low 0V
Trigger: repeatable trigger (default)
Automatic induction: enters the sensing range with a high output, and when people leave the sensor range, it automatically delays off the high output, then outputs low. Ultra-small size.
Repeatable trigger: the sensor output high during the delay period. If human activity is detected in its sensing range, the output will remain high until the person leaves, after which it will delay low. The delay time is extended with each new detection.
Wide operating voltage range: the default operating voltage is DC4.5V-20V.
Micropower: quiescent current <50 microamps, especially suitable for battery-powered automatic control products.
Output high signal: easy docking with all kinds of circuits.

Applications :

Body Induction Lamps: Automatic lighting systems that turn on/off when motion is detected.
Body Sensor Toys: Interactive toys that respond to motion for engaging play experiences.
Security Products: Motion detection systems for surveillance and intruder alerts.
Industrial Automation and Control: Body sensors used in manufacturing and robotic systems to monitor processes and detect presence.
Auto-Sensing of Electrical Equipment: Devices that automatically turn on/off based on motion detection, enhancing energy efficiency.
Battery-Powered Automatic Control: Energy-efficient sensors in battery-operated devices that activate only when needed.
