Specification

Description

Heart Beat Pulse Sensor is a low-cost, very small-size plug-and-play heart rate sensor for Arduino and Arduino compatible boards. It can be used by students, artists, athletes, makers, and game & mobile developers who want to easily incorporate live heart-rate data into their projects. This Pulse Sensor Amped adds amplification and noise cancellation circuitry to the hardware. It's noticeably faster and easier to get reliable pulse readings. Pulse Sensor works with either a 3V or 5V Arduino.

Heart Beat Pulse Sensor Kit amped adds amplification and noise cancellation circuitry to the hardware. It's noticeably faster and easier to get reliable pulse readings. Pulse Sensor works with either a 3V or 5V Arduino.

The Pulse Sensor Kit is a low-cost, very small-size plug-and-play heart rate sensor for Arduino and Arduino compatible boards. A Color-Coded Cable, with standard male header connectors. Plug it straight into an Arduino or a Breadboard. It can be used by students, artists, athletes, makers, and game & mobile developers who want to easily incorporate live heart-rate data into their projects.

Features

  • A Color-Coded Cable, with standard male header connectors. Plug it straight into an Arduino or a Breadboard. No soldering is required.
  • The Pulse Sensor has 3 holes around the outside edge which makes it easy to sew it into almost anything.
  • Visualization software (made in Processing) to instantly see the output of the sensor and for troubleshooting.

Pinout Diagram

Pin Configuration

  • Ground  (Black): Connected to the ground of the system
  • Vcc (Red) : Connect to +5V or +3.3V supply voltage
  • Signal (Purple): Pulsating output signal.

Technical Details

  • Biometric Pulse Rate or Heart Rate detecting sensor
  • Plug and Play type sensor
  • Operating Voltage: +5V or +3.3V
  • Current Consumption: 4mA
  • Inbuilt Amplification and Noise cancellation circuit.

Warning: This sensor is not medical or FDA-approved. It is purely intended for hobby projects/demos and should not be used for health-critical applications.

Physical Attribute

  • Diameter(mm): 15
  • Thickness(mm): 2.5
  • Weight (gm) : 5

    Applications

    • Sleep Tracking
    • Anxiety monitoring
    • Remote patient monitoring/alarm system
    • Health bands
    • Advanced gaming consoles

    Integration with Arduino


    Sample Code


    Integration with Raspberry Pi


    Product Video

    Documentation

    Customer Reviews

    Based on 10 reviews
    70%
    (7)
    30%
    (3)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    h
    haseen ahmed
    Product quality

    Good packaging

    r
    raman ralhan
    nice

    nice

    p
    pintu thakur
    Best One Yet!!!

    Highly Accurate Sensor....Perfect for my work...

    S
    Suresh Joshi
    Good👍

    Good

    T
    ThomasBlue ❤
    very good

    The product is good...

    s
    sanjay
    Good product

    Sensor is good. Accurate

    s
    salman
    Nice

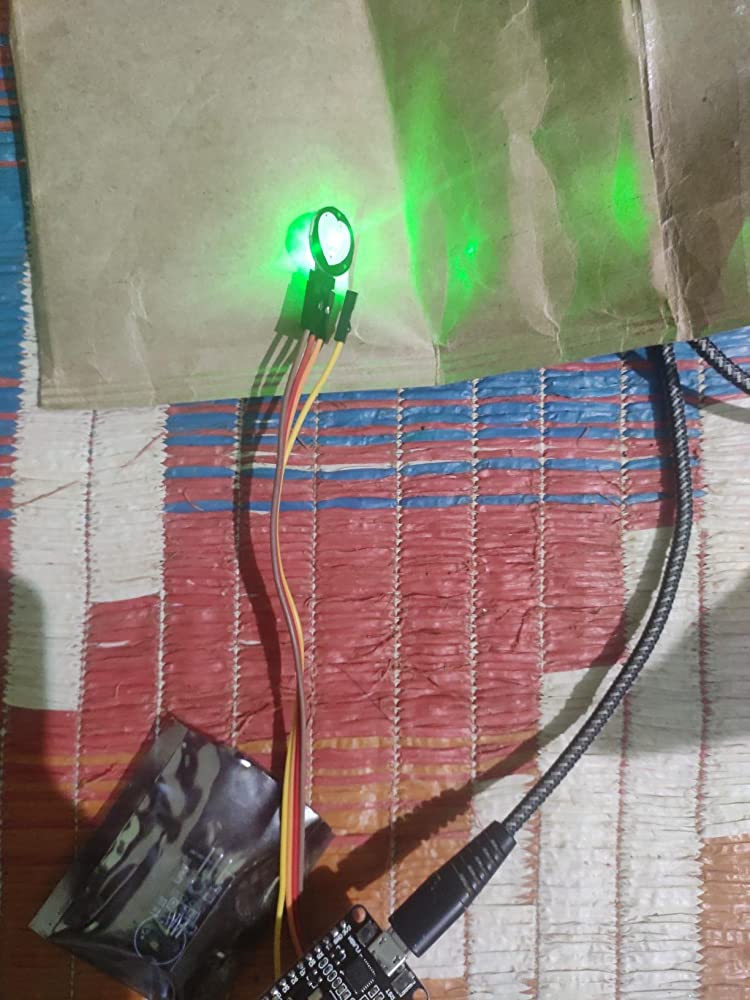

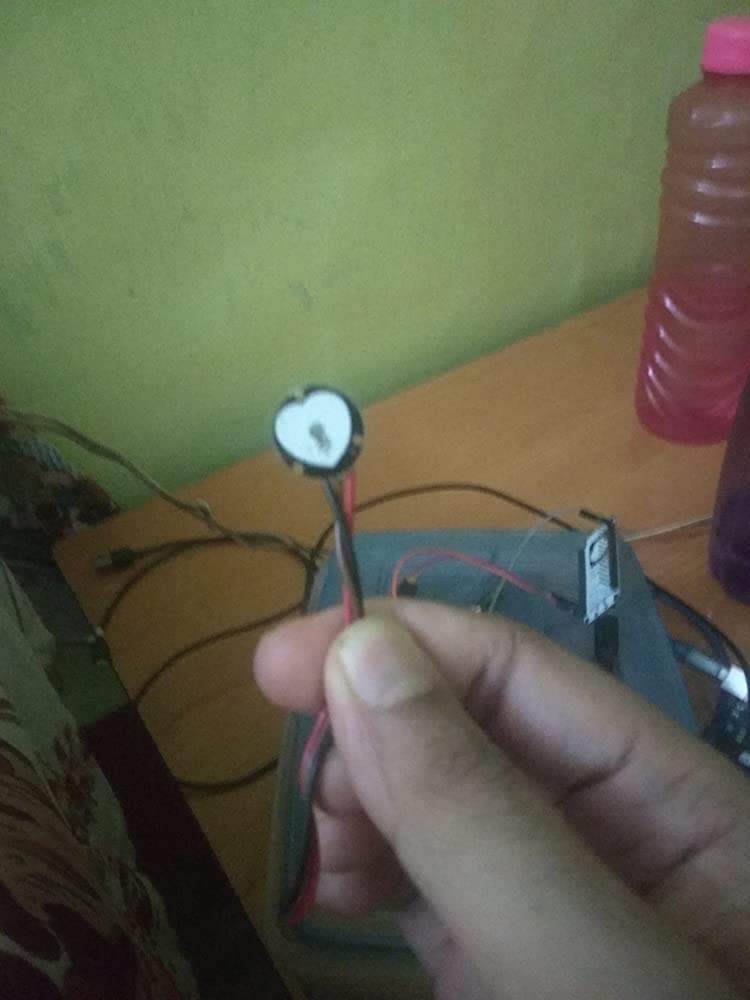

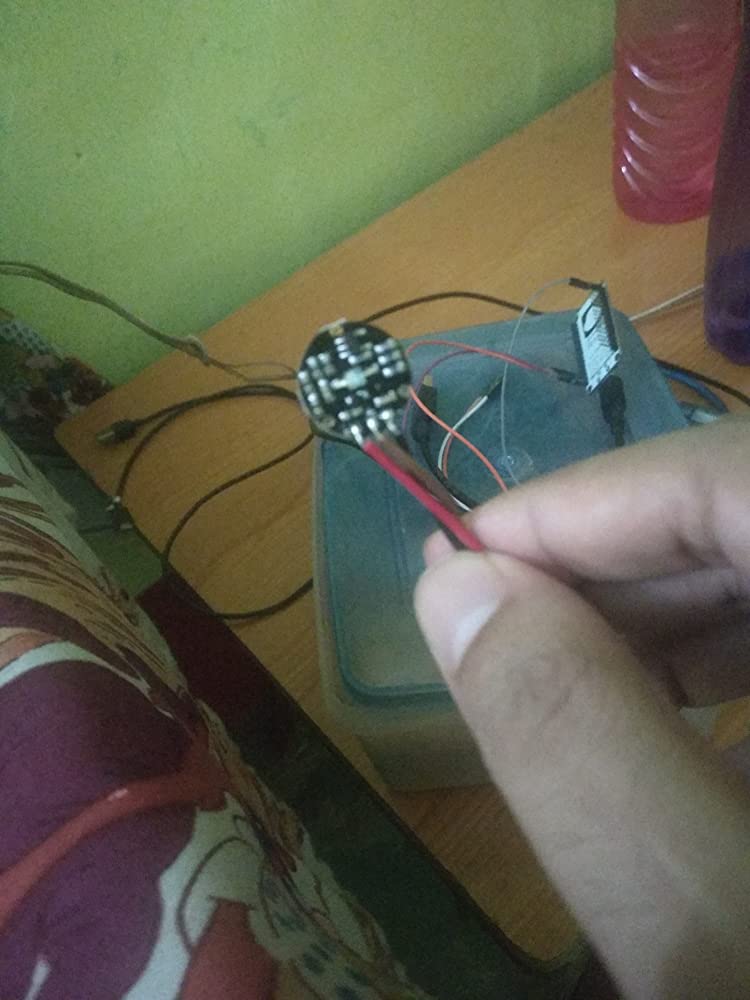

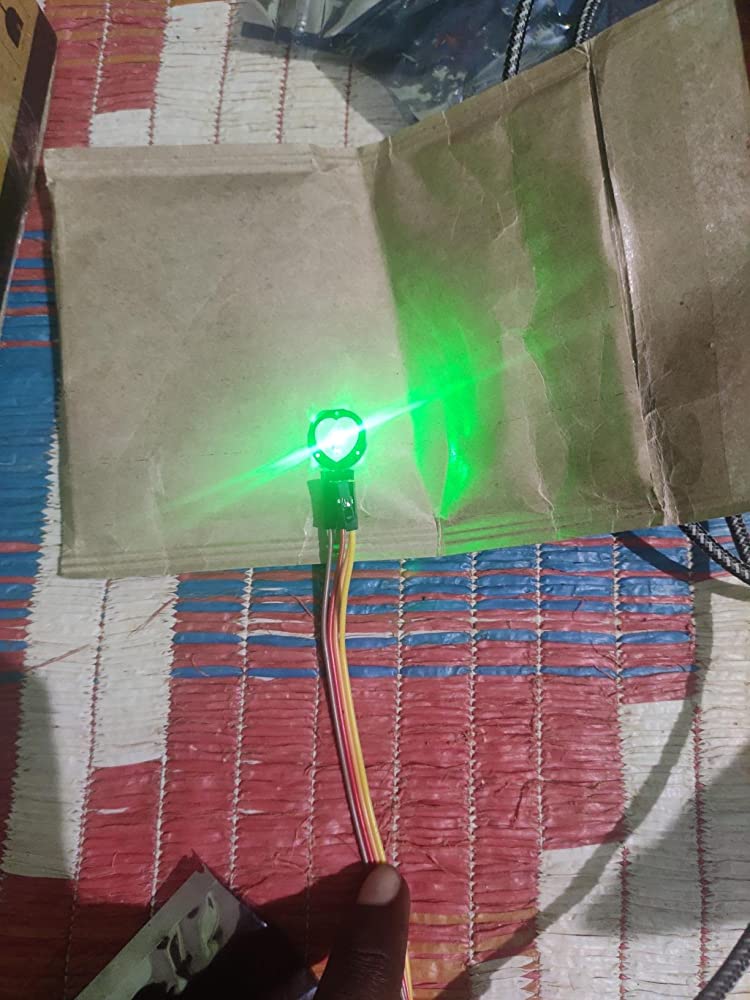

    The PulseSensors arrived in time and there were no damages.
