The HY-SRF05 Ultrasonic Ranging Module Sensor is a five-pin device designed for precise and efficient distance measurement using ultrasonic technology. This module is widely used in various applications, including robotics, proximity sensing, and object detection.

An ultrasonic ranging sensor with slightly better accuracy.

Ultrasonic sensors overcome many of the weaknesses of IR sensors - they provide distance measurement regardless of the color and lighting of obstacles.

They also provide lower minimum distances and wider angles of detection to guarantee that obstacles are not missed by a narrow sensor beam.

This particular model is an upgrade from the lower precision HC-SRO4. This has 5 pins and can be used in 1-pin trigger/echo or 2-pin.

The SRF05 UltraSonic range finder lets you find the distance of the objects in front of it. It does that by sending ultrasonic pulses and measuring the time it takes for the pulses to travel to the obstacle and back.

Ultrasonic ranging module HY-SRF05 provides a 2cm - 450cm non-contact measurement function, the ranging accuracy can reach 3mm. The module includes transmitters, receivers, and control circuits.

The SRF05 is an evolutionary step from the SRF04 and has been designed to increase flexibility, increase range, and reduce costs still further. As such, the SRF05 is fully compatible with the SRF04. The range is increased from 3 meters to 4 meters. A new operating mode (tying the mode pin to the ground) allows the SRF05 to use a single pin for both trigger and echo, thereby saving valuable pins on your controller. When the mode pin is left unconnected, the SRF05 operates with separate trigger and echo pins, like the SRF04. The SRF05 includes a small delay before the echo pulse to give slower controllers such as the Basic Stamp and Picaxe time to execute their pulse in commands.

The module performance is stable, and measures the distance accurately:

Can and SRF05, SRF02 ultrasonic distance measuring module, and other comparable. Module precision, blind spots (2cm) super close, stable-ranging success of this product to market under the strong!

Accurate Distance Measurement - HY-SRF05

Ultrasonic Ranging Module Experience accurate distance measurement with the HY-SRF05 Ultrasonic Ranging Module Sensor. This module utilizes ultrasonic waves to calculate distances with high precision, providing reliable and consistent measurements. Its advanced range technology makes it suitable for a wide range of distance-sensing applications.

Five-Pin Design - Easy Integration and Connectivity

The HY-SRF05 module features a user-friendly five-pin design, making it easy to integrate and connect with other electronic components. The five-pin interface allows for straightforward interfacing with microcontrollers and development boards, streamlining the integration process in various projects.

Applications in Robotics and Object Detection

The HY-SRF05 Ultrasonic Ranging Module Sensor finds extensive applications in robotics and object detection systems. Its ability to accurately measure distances enables obstacle avoidance, navigation in autonomous robots, and detection of objects in proximity sensing applications.

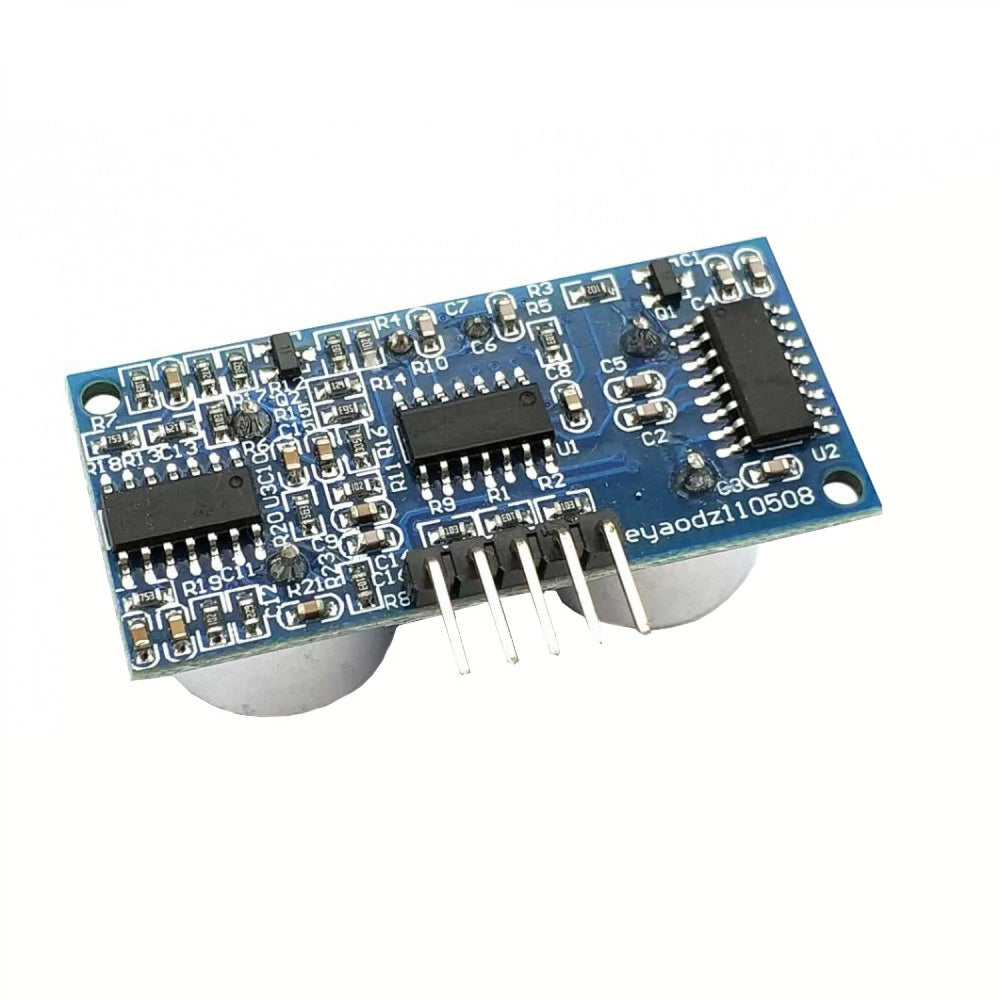

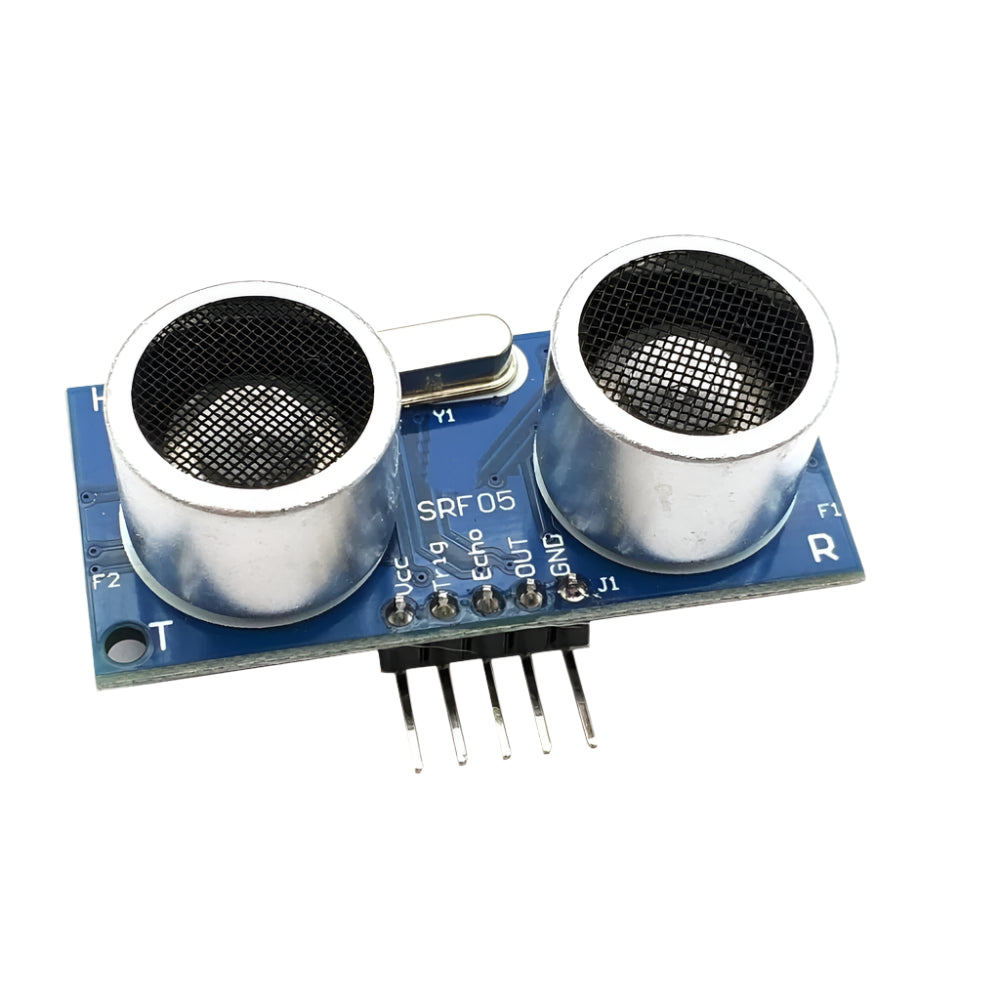

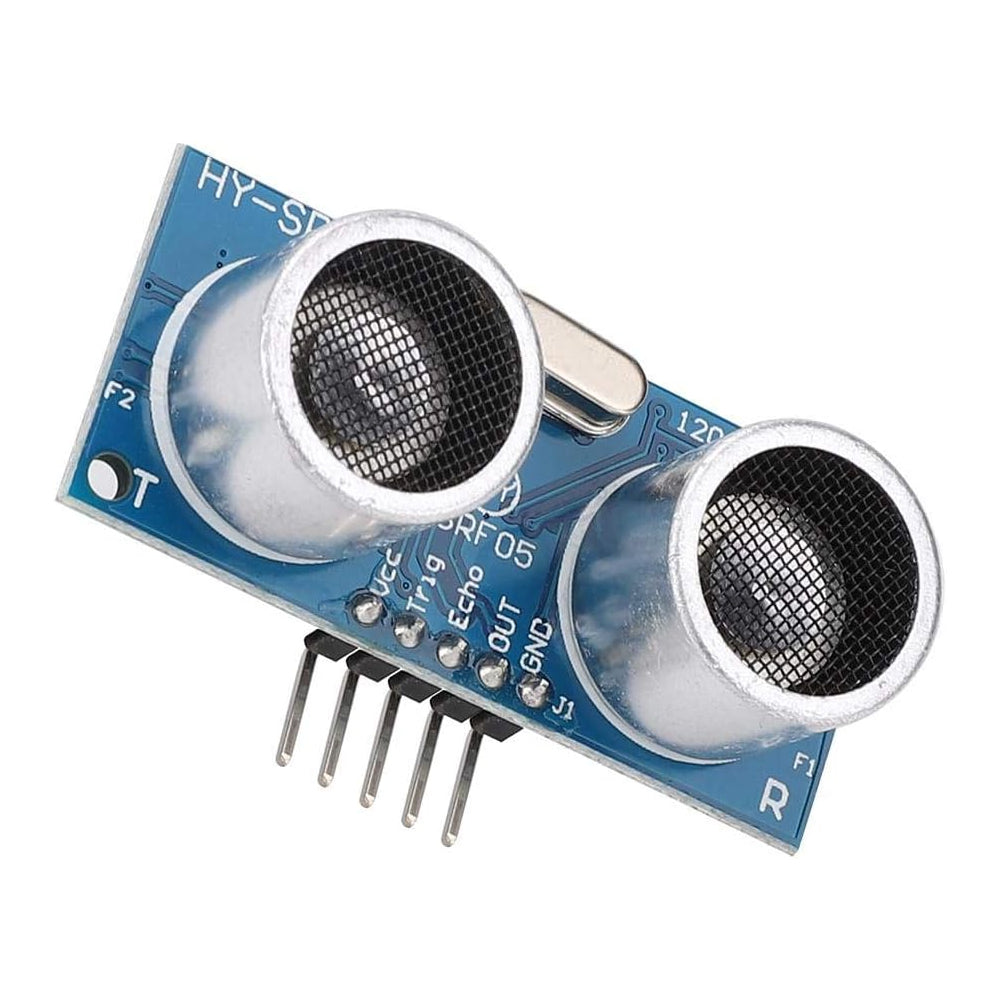

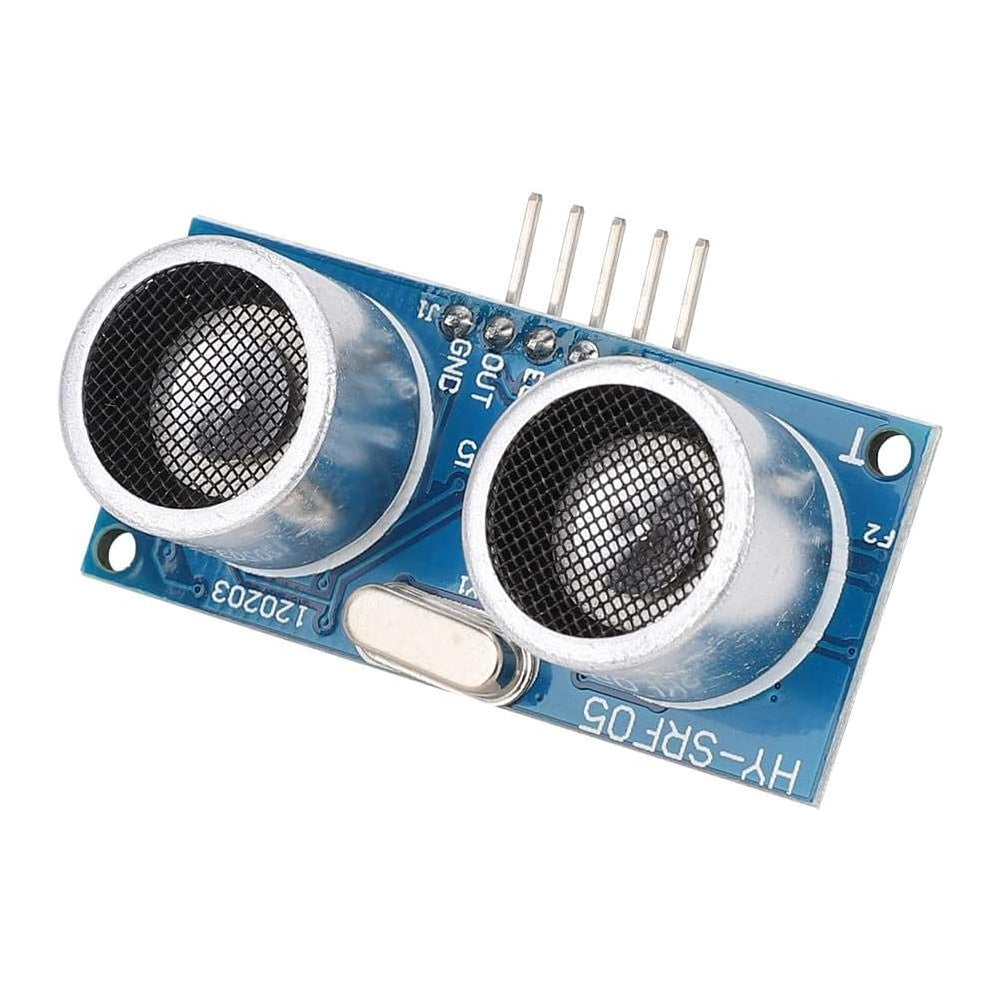

Connections

  • Vcc: 5V
  • Trig: Control Side
  • Echo: Receiving End
  • OUT: Output
  • GND: Ground

Technical Details

  • Operating Voltage: 5V
  • Sensor Angle: Not less than 15 Degree
  • Detection Distance: 2cm to 450cm
  • High Precision: up to 0.3 cm
  • Input Trigger Signal: 10uS TTL Pulse
  • Echo Signal: TTL PWL Signal

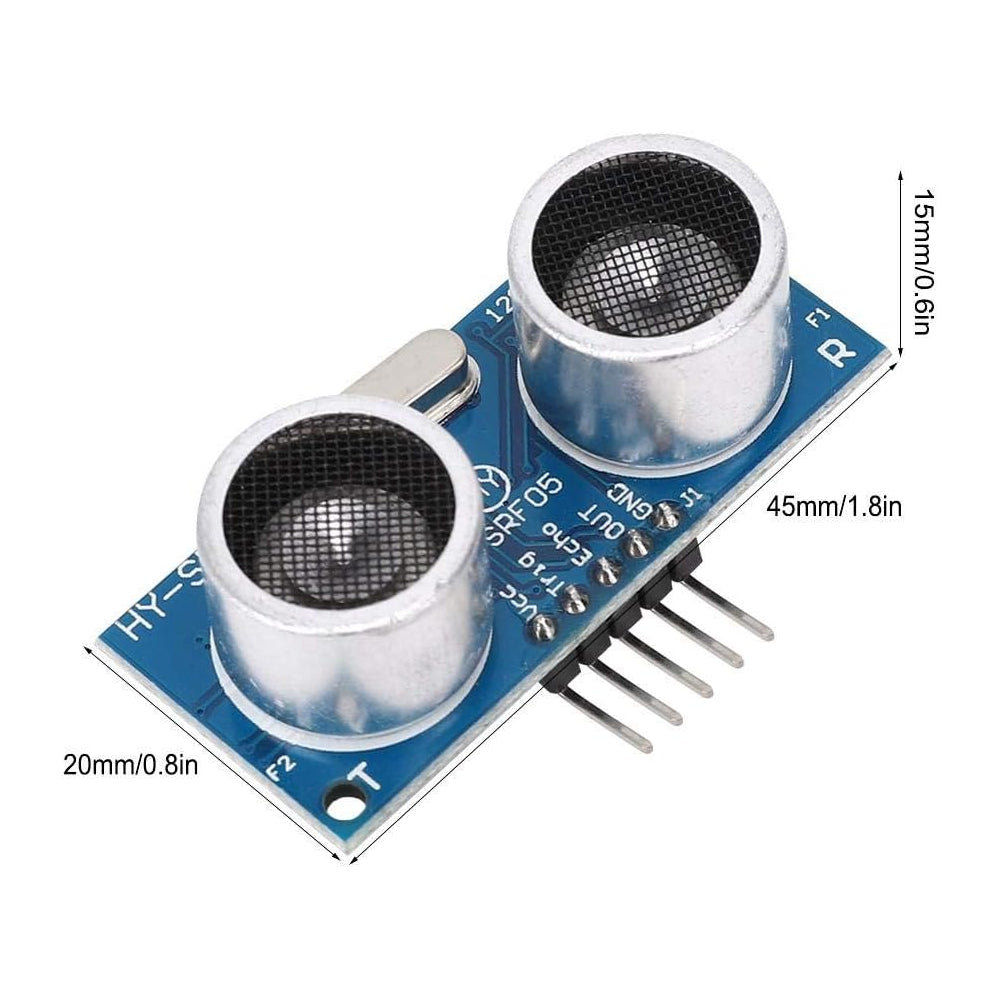

Physical Attributes

  • Sensor Cover Dia. (mm) : 16
  • PCB Size ( L x W ) mm : 45 x 20
  • Weight (gm): 9

Features

  • Stable performance
  • Accurate distance measurement
  • High-density
  • Small blind distance

Product Video

Documentation

Package Includes

  • 1 x HY-SRF05 Ultrasonic Range Finder Module
