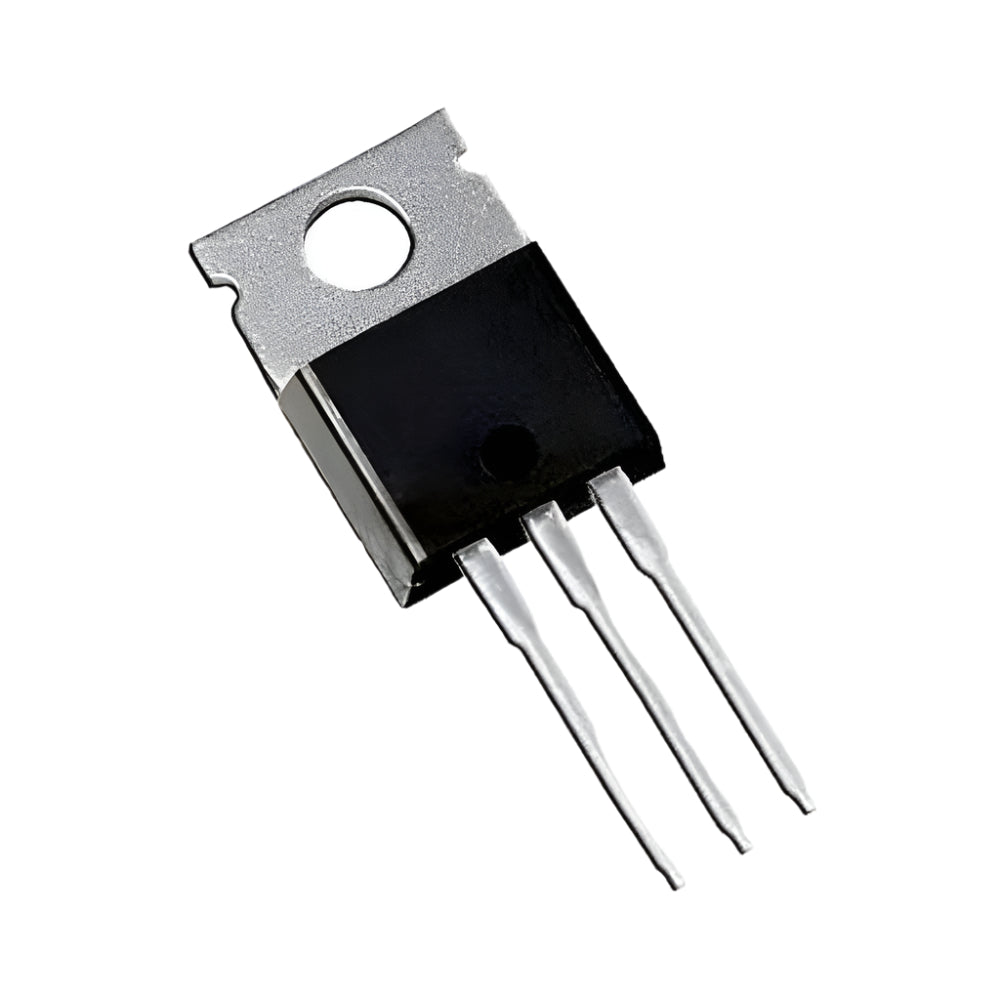

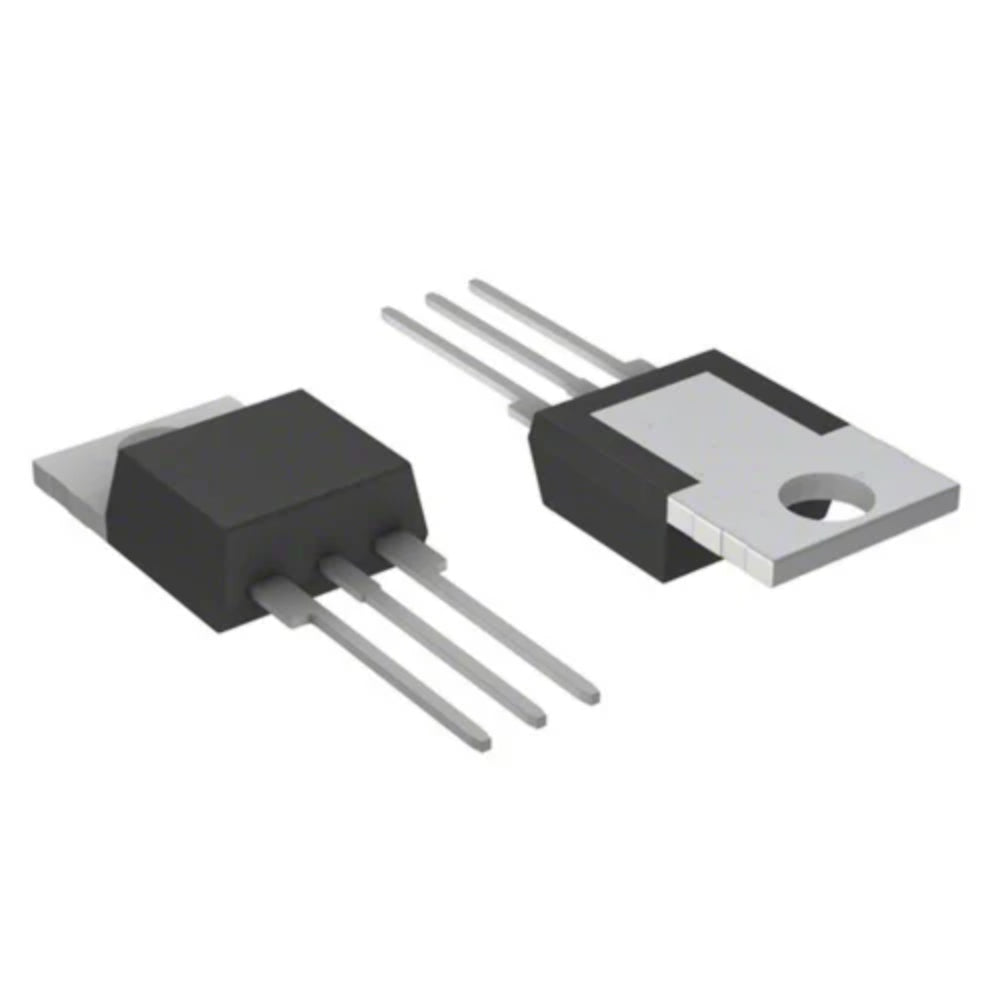

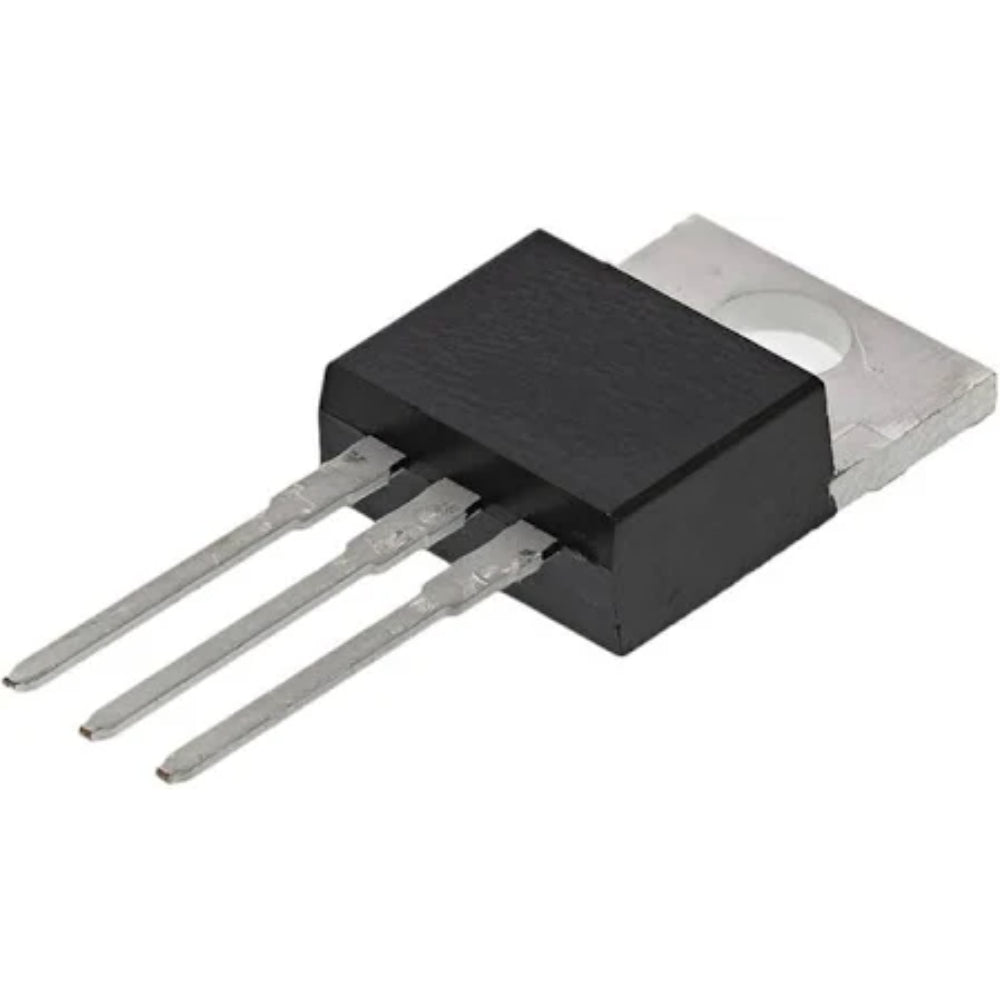

IP2325 Power MOSFET – New Original, TO-220, High Efficiency

Upgrade your power electronics with the IP2325 Power MOSFET, a high-efficiency N-Channel MOSFET in a standard TO-220 package. Designed for fast switching and low power loss, this new original component is ideal for applications such as power supplies, DC-DC converters, motor controllers, and other high-current systems.

Technical Details

  • Model: IP2325
  • Type: N-Channel Power MOSFET
  • Package: TO-220
  • Drain-Source Voltage (VDS): 55V
  • Continuous Drain Current (ID): 80A
  • Gate Threshold Voltage (VGS(th)): 2.0V – 4.0V
  • RDS(on) (Max): 8.0mΩ @ VGS = 10V
  • Total Gate Charge (Qg): 160nC (typ.)
  • Power Dissipation (PD): 150W
  • Operating Temperature Range: -55°C to +175°C
  • Mounting Type: Through smd
  • Polarity: N-Channel

Features

  • Type: N-Channel Power MOSFET
  • Package: TO-220
  • Condition: 100% New Original
  • High-speed switching and low conduction loss
  • Suitable for power management, load switching, and motor control

Applications

Power Supply Circuits: Used in DC-DC converters, switching regulators, and power management systems.

Motor Control: Ideal for driving DC motors and motor driver circuits in robotics and automation.

Battery Management: Suitable for battery-powered equipment and power switching in portable electronics.

Inverters and UPS: Applied in power inverters, uninterruptible power supplies, and energy backup systems.

Automotive Electronics: Employed in automotive control systems for high-efficiency switching.

Physical Attributes

  • Dimensions: Approx. 10.1 mm × 4.6mm × 15.9mm (L×W×H)
  • Weight: ~2g

Package Includes

  • 1 x IP2325 Power MOSFET – New Original, TO-220, High Efficiency
