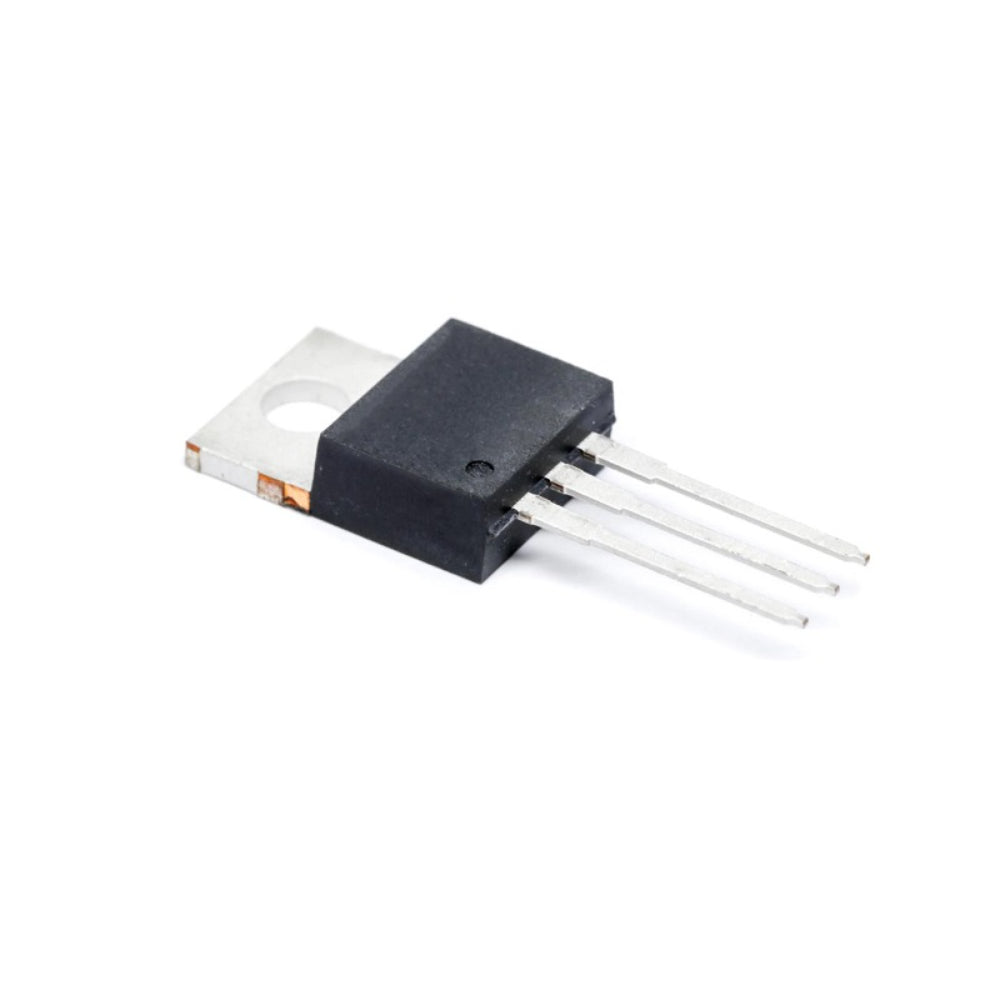

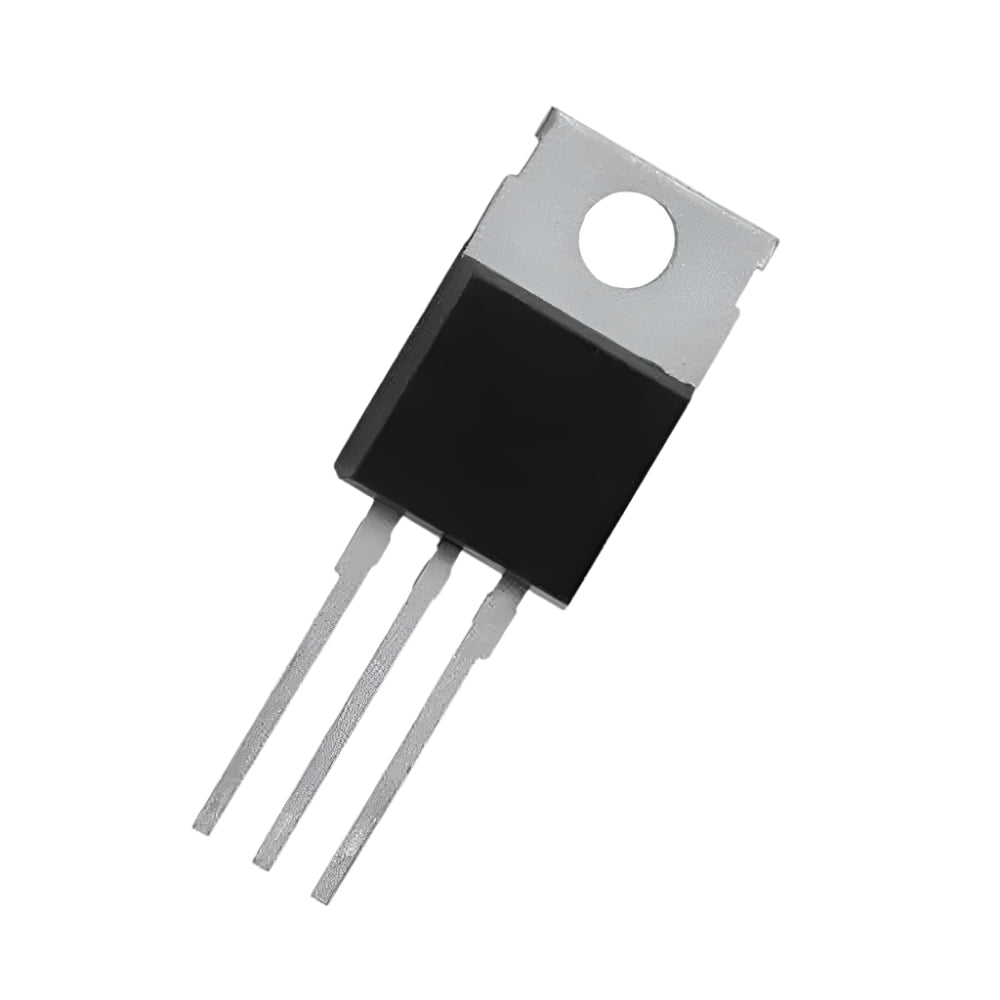

IRF3607 N-Channel MOSFET-1
IRF3607 N-Channel MOSFET-2
IRF3607 N-Channel MOSFET-3
IRF3607 N-Channel MOSFET-1
IRF3607 N-Channel MOSFET-2
IRF3607 N-Channel MOSFET-3

IRF3607 N-Channel MOSFET – 60V, 30A, TO-220 Package, High-Speed Switching

Available:In Stock
  • Product SKU: INTEG340
Wishlist
₹ 64 ₹ 129
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 60V, 30A N-Channel MOSFET
  • Ultra-low RDS(on): ~0.0045Ω
  • High-speed switching
  • TO-220 package
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36H-170F

Secure

Specification

Description

IRF3607 N-Channel MOSFET – 60V, 30A, TO-220 Package, High-Speed Switching

An N-Channel MOSFET creates a current channel by using electrons. Electrons can move fast and readily via the current when the MOSFET is active and switched on. Because of the unique features of N-Channel MOSFETs, carrier mobility is approximately 2 to 3 times that of a P-channel for the same RDS(on) value, hence the P-Channel chip must be 2 to 3 times the size of the N-Channel. As a result, adopting MOSFET transistors N-Channels for high current applications is frequently the favored option. :

Technical Details

  • Product Type: MOSFET
  • Model No.: IRFB3607
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C to +150°C
  • Drain-Source Voltage (VDSS): 75V
  • Continuous Drain Current (ID): 30A

Features

  • N-Channel Power MOSFET
  • Drain-Source Voltage (VDSS): 60V
  • Continuous Drain Current (ID): 30A
  • Very low RDS(on): ~0.0045Ω
  • High-speed switching performance
  • Gate Charge (typical): 67nC
  • Fast rise and fall times
  • Standard TO-220 package
  • Suitable for low-voltage, high-efficiency applications

Applications

DC-DC Converters – Ideal for high-efficiency, low-voltage power conversion

Motor Control Systems – Used in brushed and brushless DC motor drivers

Power Supplies – Suitable for synchronous rectification in SMPS

Battery Management Systems – Ensures efficient switching in charging and protection circuits.

Physical Attributes

  • Dimensions: ~10.16mm × 4.57mm × 15.75mm (L x W x H)
  • Weight: ~2g

Package Includes

  • 1 x IRF3607 N-Channel MOSFET – 60V, 30A, TO-220 Package, High-Speed Switching
