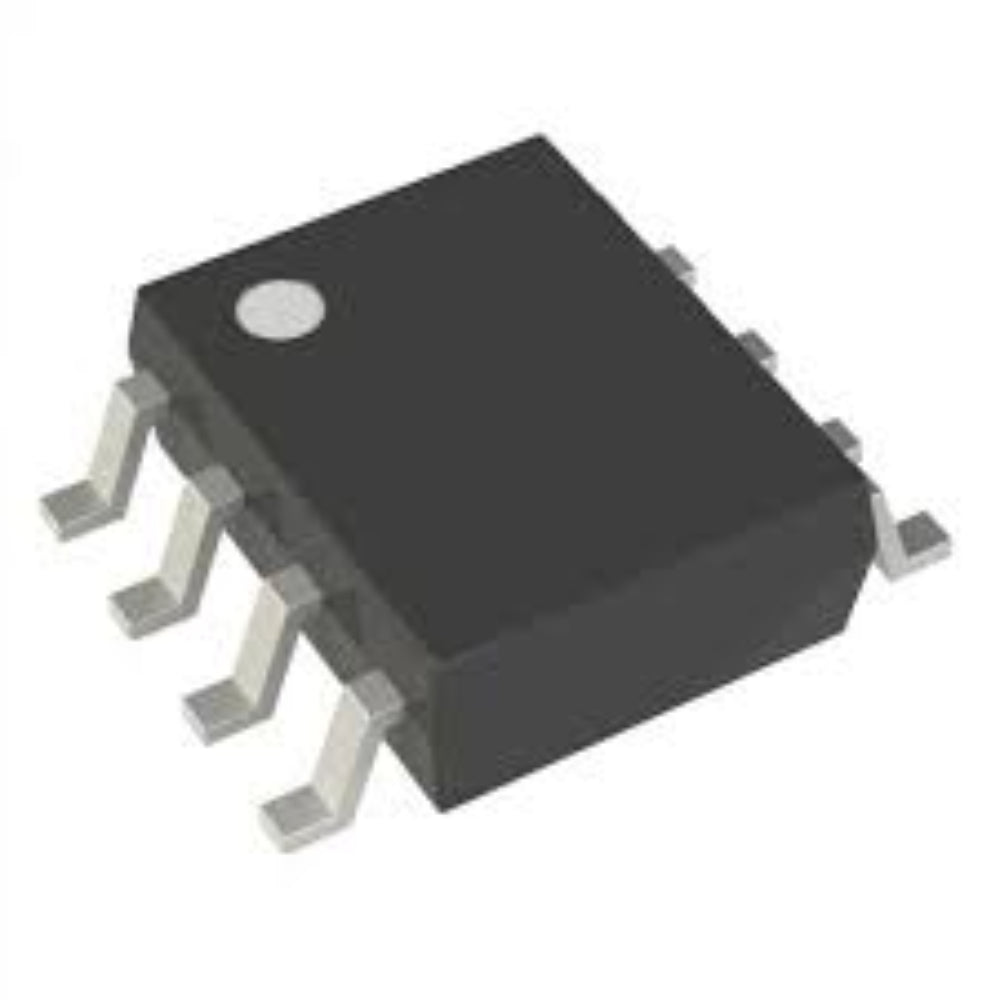

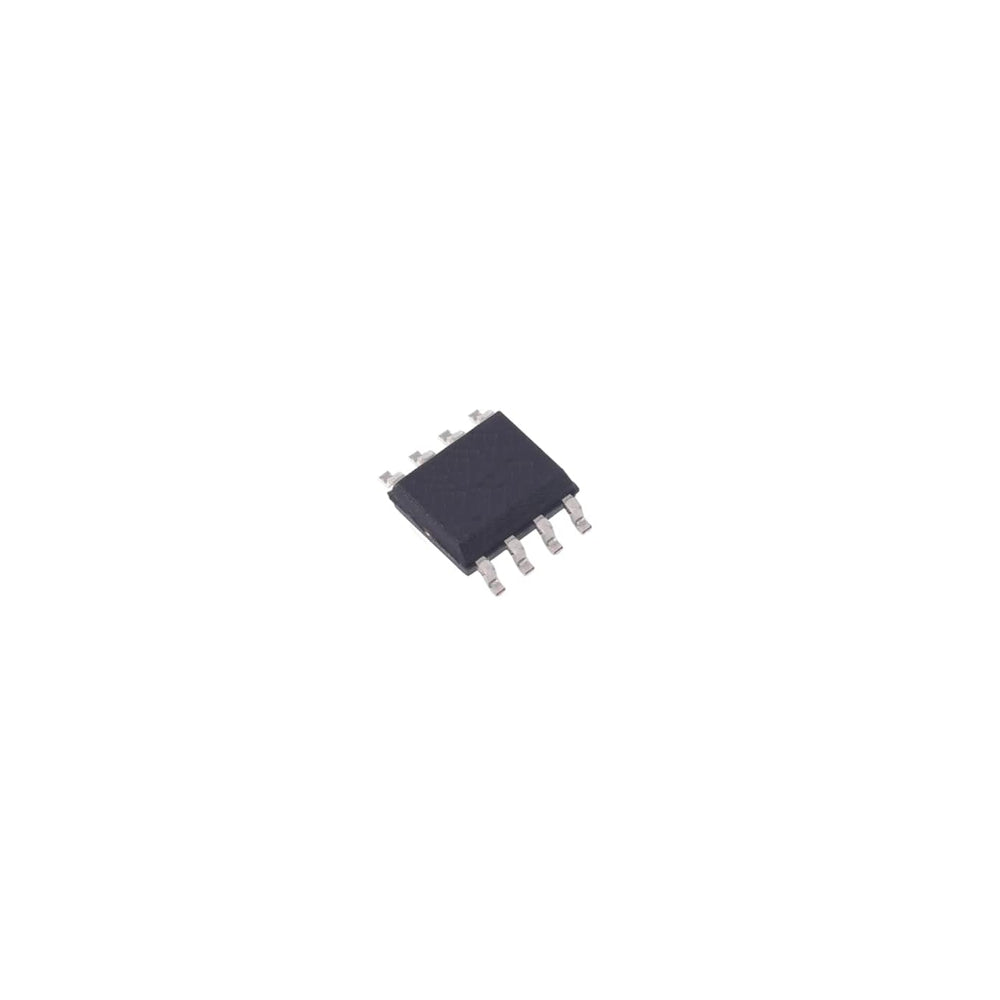

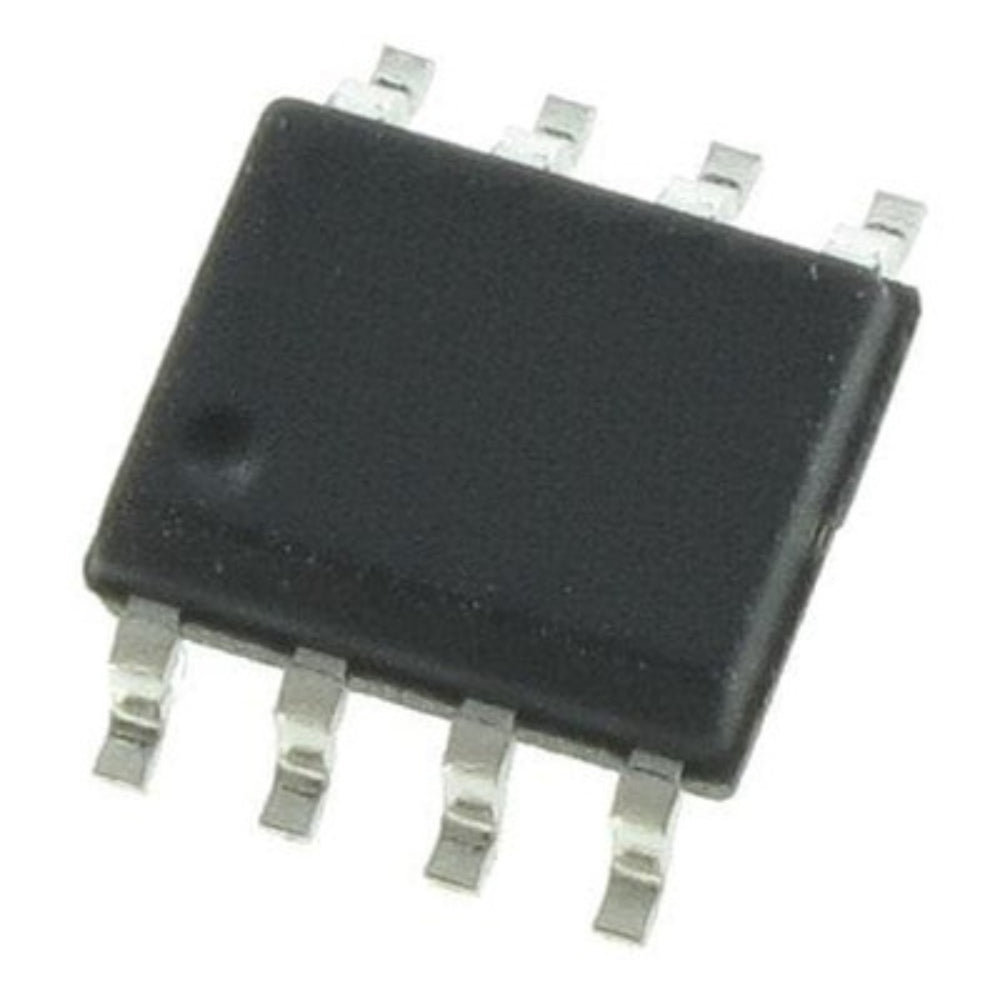

IRF7338 SO-8 SMD Dual N-Channel MOSFET 30V

IRF7338 SO‑8 SMD Dual N‑Channel MOSFET – 30V

Technical Details

• Part Number: IRF7338
• Polarity: N‑Channel
• Configuration: Dual MOSFET
• Drain‑Source Voltage (V_DSS): 30 V
• Continuous Drain Current (I_D): ~4.3 A (per MOSFET @ 25 °C)
• R_DS(on): ~0.041 Ω @ V_GS= 10 V
• Gate Threshold Voltage (V_GS(th)): 1.0 V – 2.5 V
• Gate Charge (Q_g): ~7.5 nC
• Input Capacitance (C_iss): ~700 pF
• Power Dissipation: ~2.5 W
• Package: SO‑8 (Surface Mount)

Features

• Dual N‑channel MOSFET in SO‑8 SMD package
• Low on‑resistance for efficient switching
• Fast switching with low gate charge
• Logic-level drive compatible
• Suitable for compact power management solutions

Applications

• DC–DC converters
• Load switches and battery circuits
• Notebook and mobile electronics
• High-side/low-side switching
• General-purpose switching

Physical Attributes

• Package: SO‑8
• Pins: 8
• Dimensions: ~5.0 mm × 6.0 mm × 1.5 mm
• Mounting Type: Surface Mount (SMD)
• Weight: ~0.02 g

Package Includes

• 1 × IRF7338 Dual N‑Channel MOSFET – SO‑8 SMD Package
