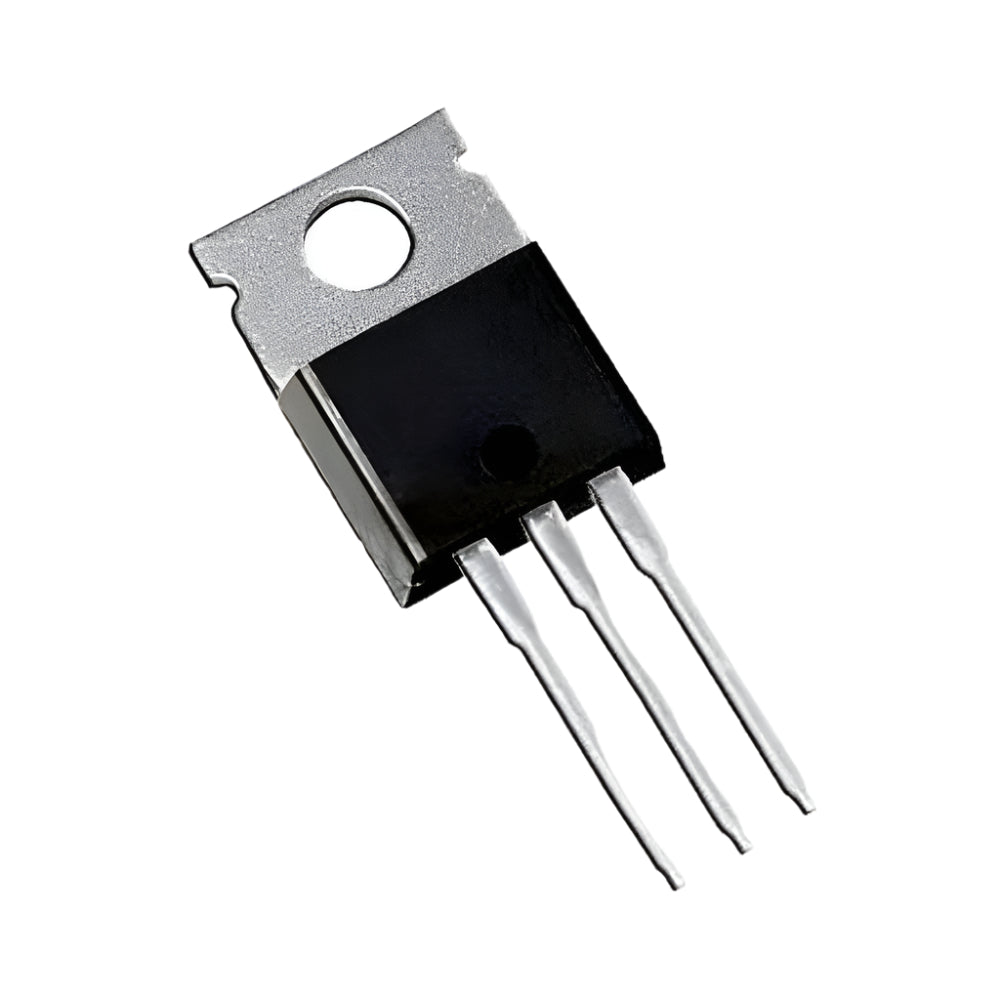

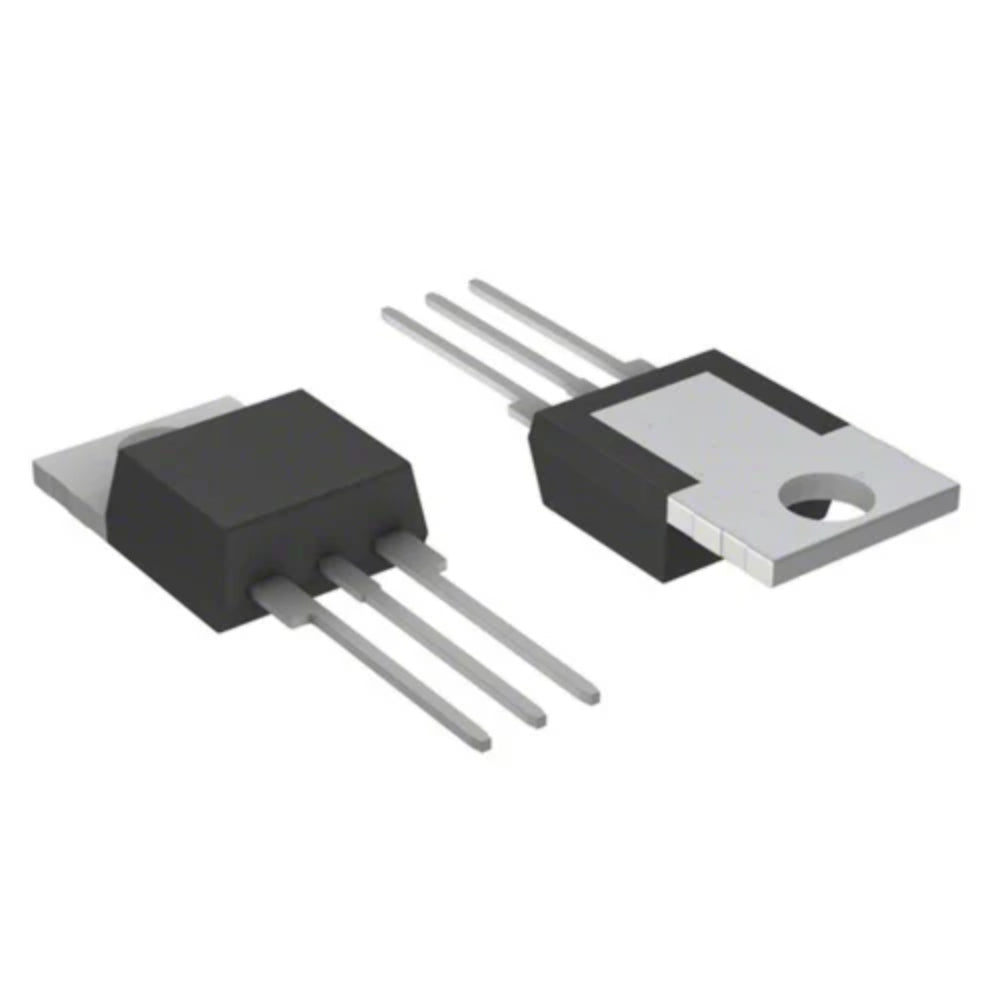

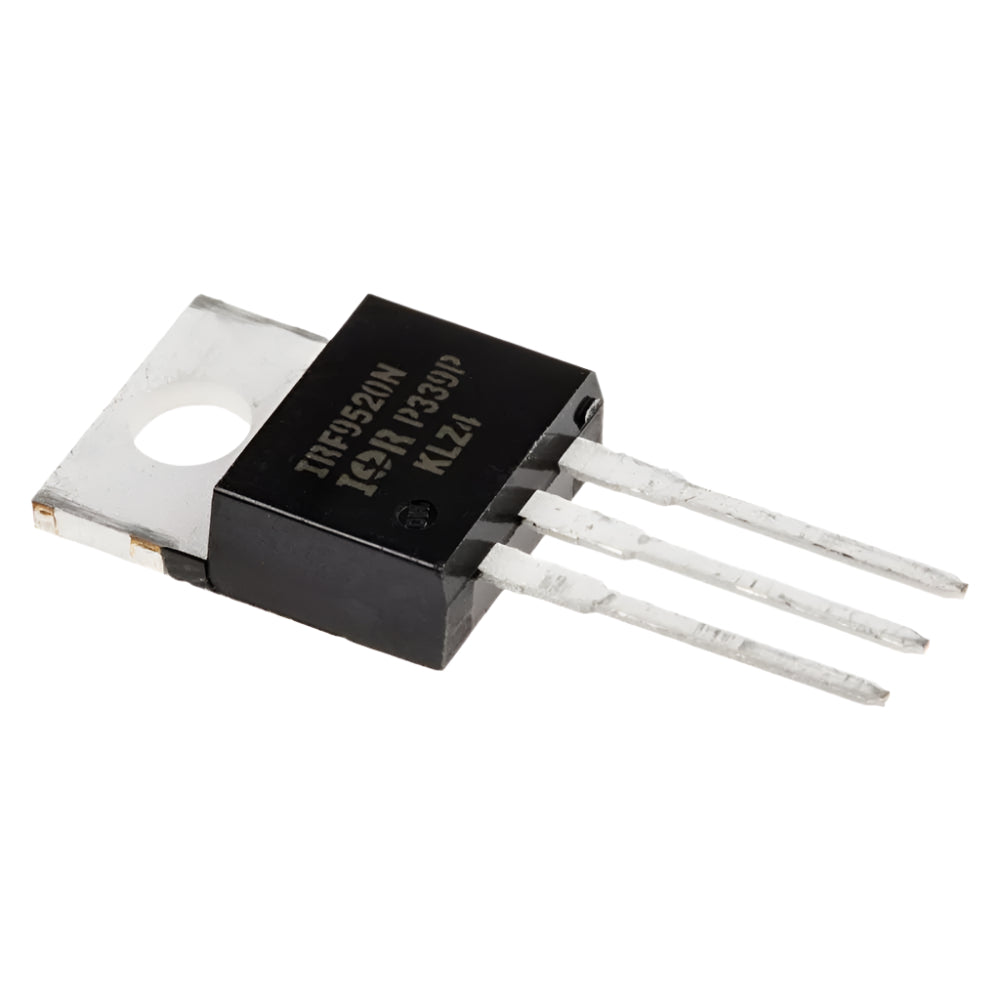

IRF9520 – P-Channel MOSFET TO‑220, 100V 20A

The IRF9520 is a high-performance P-Channel power MOSFET designed for high-efficiency switching applications. It is capable of handling high current and voltage, making it ideal for power management in various electronic systems.

Technical Details

Part Number: IRF9520
Type: P-Channel Power MOSFET
Drain-Source Voltage (V_DS): -100 V
Continuous Drain Current (I_D): -6.8 A @ 25°C (up to -20 A pulsed)
Gate Threshold Voltage (V_GS(th)): -2.0 V to -4.0 V
R_DS(on)): ~0.5 Ω @ V_GS = -10 V
Package: TO‑220 (Through Hole)
Power Dissipation: 58 W

Features

High voltage and current handling capability
Low gate drive requirements
Fast switching performance
Efficient thermal performance in TO‑220 package
RoHS compliant

Applications

Power supplies and inverters
Motor control
Battery-operated systems
Switching regulators
DC-DC converters

Physical Attributes

Package: TO‑220
Mounting Type: Through Hole
Dimensions: ~10.1 mm × 4.6 mm × 9.0 mm
Weight: ~0.6 g

Package Includes

1 × IRF9520 – P-Channel MOSFET (TO‑220)
