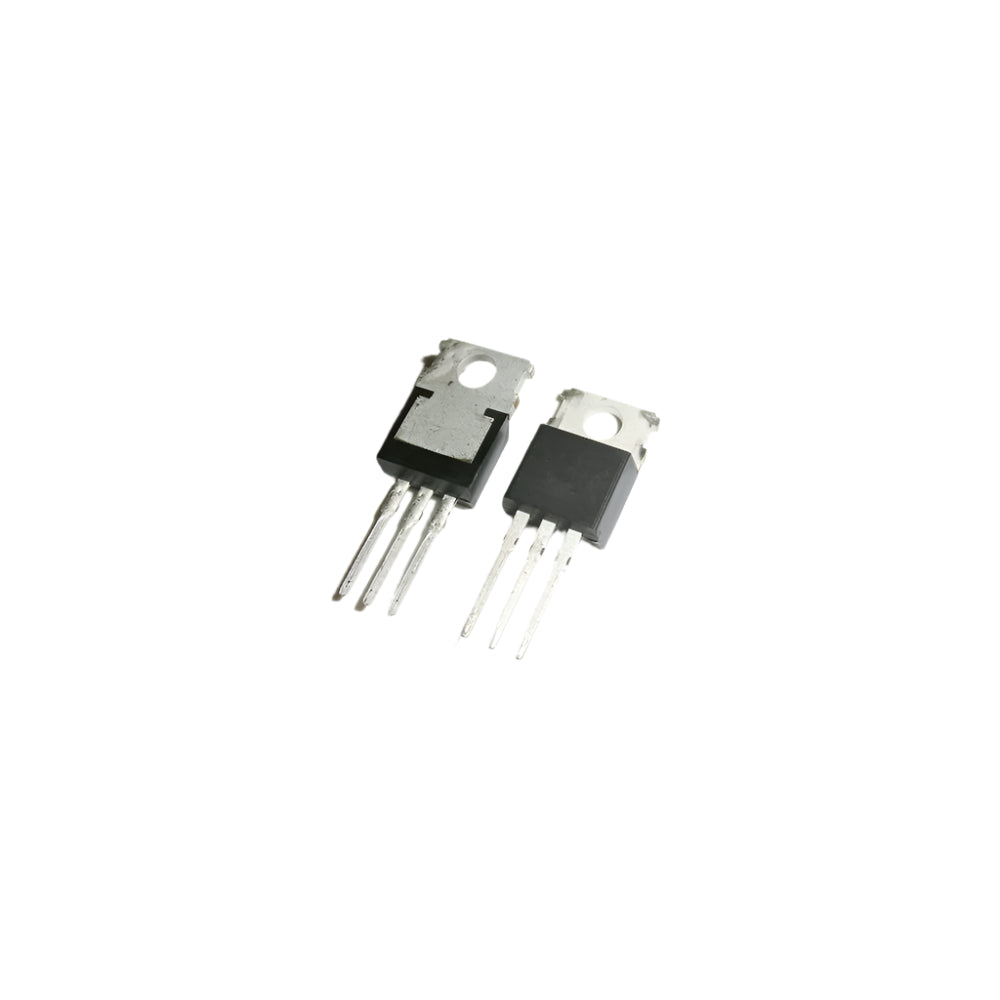

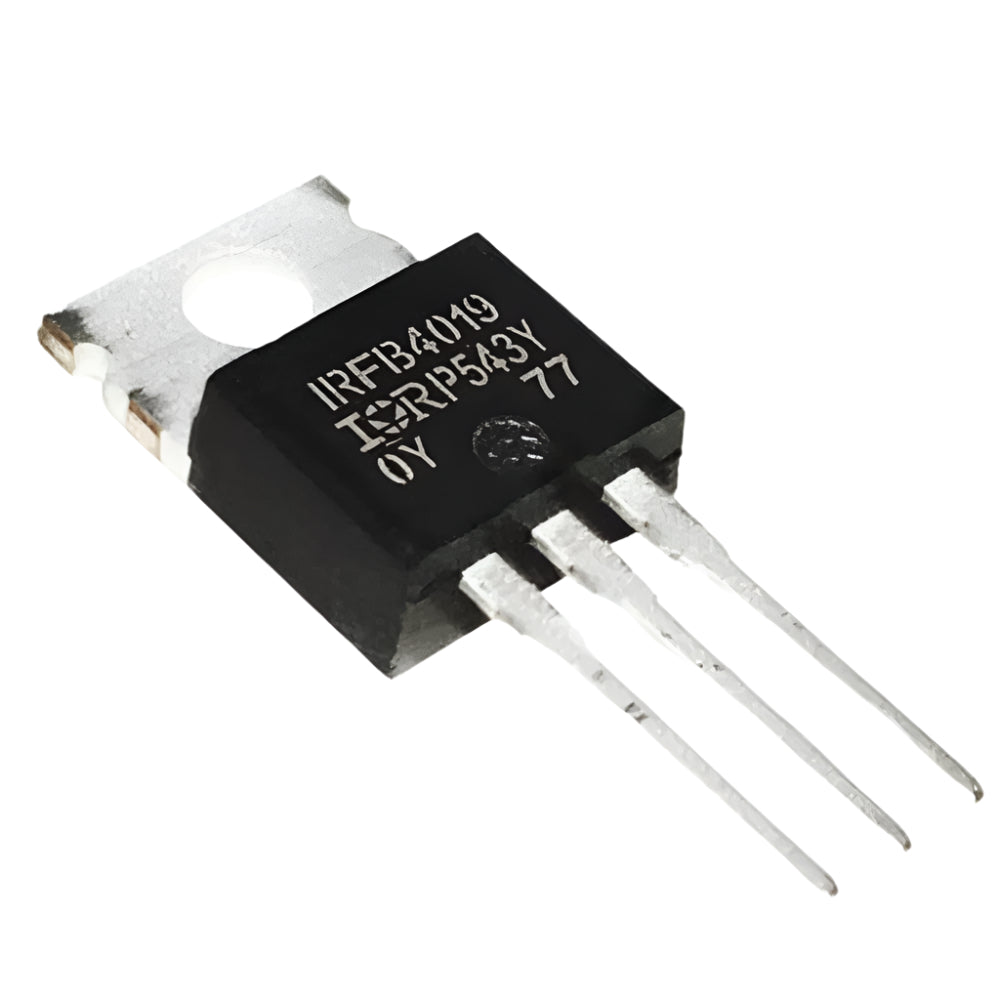

IRFB4019 N-Channel MOSFET 100V 75A in TO-220 package for Class-D audio and power switching applications-1
IRFB4019 N-Channel MOSFET 100V 75A in TO-220 package for Class-D audio and power switching applications-2
IRFB4019 N-Channel MOSFET 100V 75A in TO-220 package for Class-D audio and power switching applications-3
IRFB4019 N-Channel MOSFET 100V 75A in TO-220 package for Class-D audio and power switching applications-1
IRFB4019 N-Channel MOSFET 100V 75A in TO-220 package for Class-D audio and power switching applications-2
IRFB4019 N-Channel MOSFET 100V 75A in TO-220 package for Class-D audio and power switching applications-3

IRFB4019 N-Channel MOSFET SMD (TO-220)

Available:In Stock
  • Product SKU: INTEG429
Wishlist
₹ 109 ₹ 219
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 100V, 75A N-Channel MOSFET
  • Low RDS(on): 7.8mΩ
  • Optimized for Class-D Audio Amps
  • Low Gate & Recovery Charge
  • TO-220 Through-Hole Package
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   12E-131E

Secure

Specification

Description

IRFB4019 N-Channel MOSFET SMD (TO-220)

IRFB4019 N CHANNEL Digital Audio MOSFET is specifically designed for Class-D audio amplifier applications. This MOSFET utilizes the latest processing techniques to achieve low on-resistance per silicon area. Furthermore, Gate charge, body-diode reverse recovery and internal Gate resistance are optimized to improve key Class-D audio amplifier performance factors such as efficiency, THD, and EMI. Additional features of this MOSFET are 175°C operating junction temperature and repetitive avalanche capability.

Technical Details

  • Transistor Type: N-Channel MOSFET
  • Drain-Source Breakdown Voltage (VDSS): 100V
  • Continuous Drain Current (ID): 75A
  • Drain-Source On-State Resistance (RDS(on)): 7.8mΩ
  • Gate Threshold Voltage (VGS(th)): 2.0V – 4.0V
  • Gate Charge Total (QG): 44nC (typ)
  • Reverse Recovery Charge (QRR): 46nC (typ)
  • Power Dissipation: 230W
  • Max Junction Temperature (TJ): 175°C
  • Package: TO-220AB
  • Mounting Type: Through Hole

Features

  • Key parameters optimized for Class-D audio amplifier applications
  • Low RDS(on) for improved efficiency
  • Low QG and QSW for better THD and efficiency
  • Low QRR for reduced EMI and improved THD
  • 175°C operating junction temperature for enhanced ruggedness
  • Supports up to 200W per channel into 8Ω load (half-bridge amplifier)

Applications

Motor Control Systems: Ideal for driving high-current motors in industrial and automotive applications

DC-DC Converters: Efficient switching in buck, boost, and synchronous converter designs

Power Supplies: Used in high-efficiency AC-DC and DC-DC power regulation

Battery Management: Handles high discharge currents in battery-powered devices

Physical Attributes

  • Dimensions: ~10mm × 4.5mm × 15.6 mm (including leads)(L x W x H)
  • Weight: ~2g

Package Includes

  • 1 x IRFB4019 N-Channel MOSFET SMD (TO-220)
