IRFB4110 N-Channel MOSFET SMD (TO-220)
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-50%

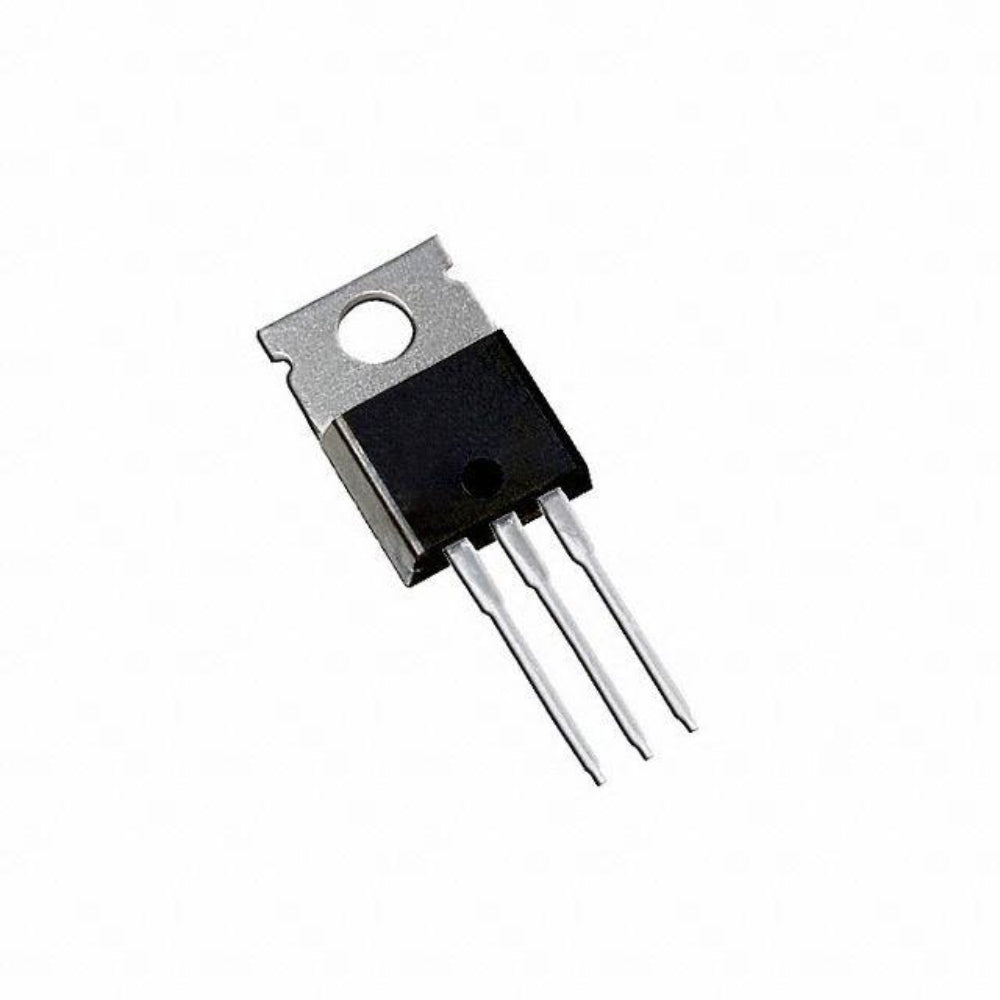

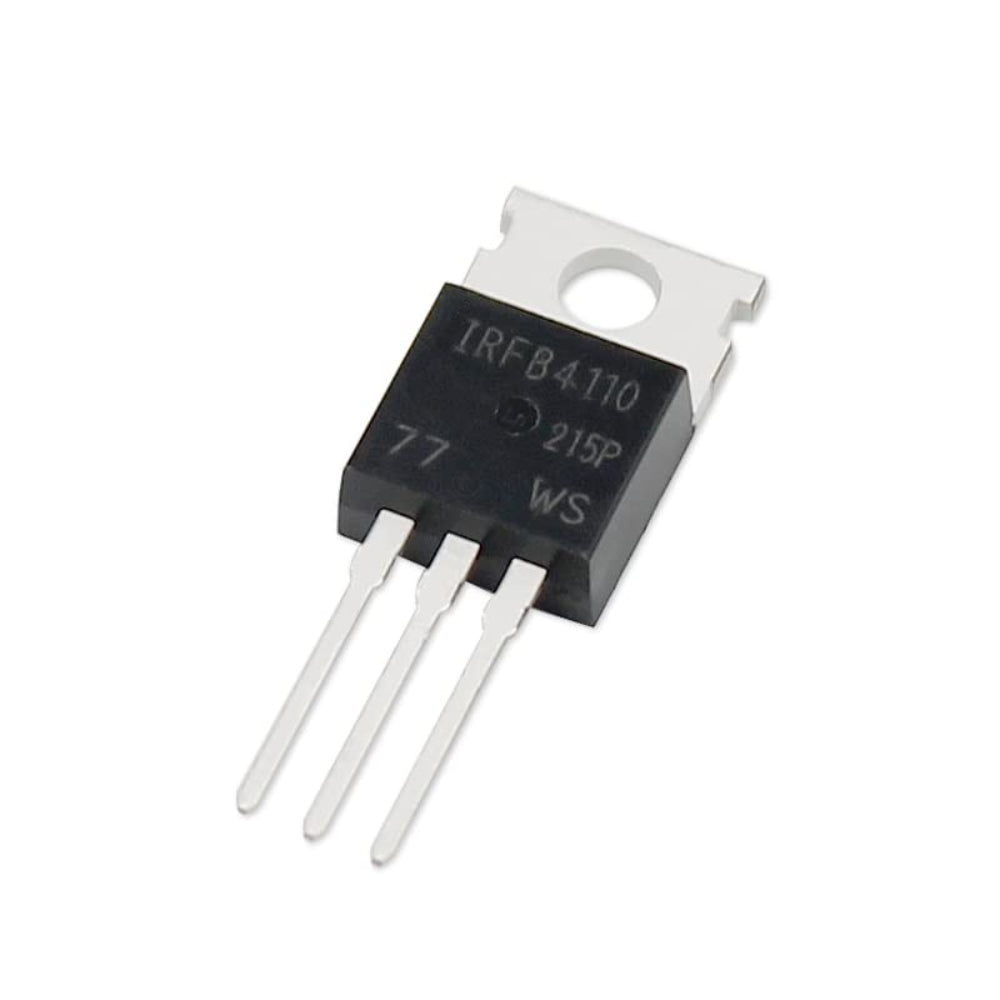

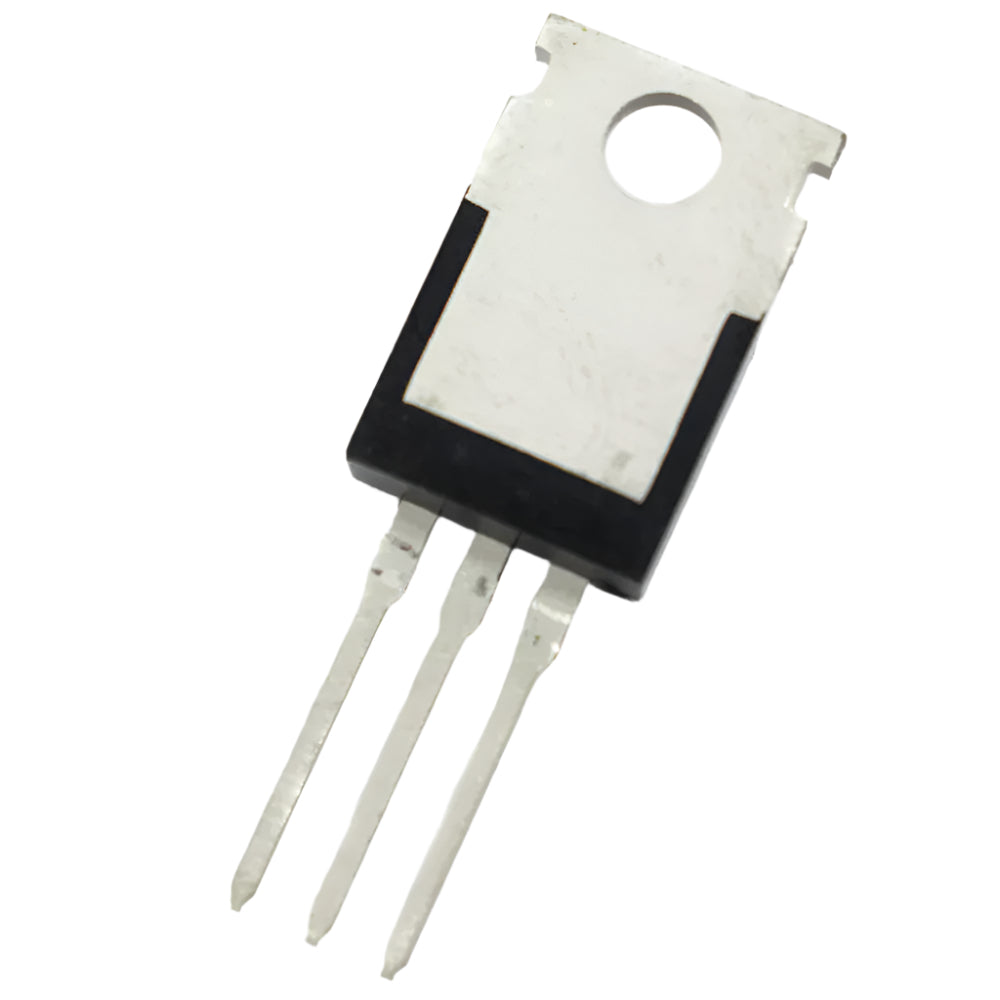

IRFB4110 N-Channel MOSFET 100V 180A in TO-220 package for high-current power switching applications-1
IRFB4110 N-Channel MOSFET 100V 180A in TO-220 package for high-current power switching applications-2
IRFB4110 N-Channel MOSFET 100V 180A in TO-220 package for high-current power switching applications-3
IRFB4110 N-Channel MOSFET 100V 180A in TO-220 package for high-current power switching applications-1
IRFB4110 N-Channel MOSFET 100V 180A in TO-220 package for high-current power switching applications-2
IRFB4110 N-Channel MOSFET 100V 180A in TO-220 package for high-current power switching applications-3

IRFB4110 N-Channel MOSFET SMD (TO-220)

Available:In Stock
  • Product SKU: INTEG428
Wishlist
₹ 109 ₹ 219
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 100V, 180A N-Channel MOSFET
  • Low RDS(on): 3.7mΩ
  • High Power Dissipation: 370W
  • Fast Switching: 150nC Gate Charge
  • TO-220 Through-Hole Package
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   12E-131D

Secure

Specification

Description

IRFB4110 N-Channel MOSFET SMD (TO-220)

IRFB4110 is a new generation of high voltage MOSFET family that utilizes an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.

Technical Details

  • Transistor Polarity: N-Channel
  • Number of Channels: 1 Channel
  • Configuration: Single
  • Drain-Source Breakdown Voltage: 100V
  • Continuous Drain Current: 180A
  • Drain-Source Resistance (RDS(on)): 3.7mΩ
  • Gate-Source Voltage: -20V to +20V
  • Gate-Source Threshold Voltage: 1.8V
  • Gate Charge: 150nC
  • Minimum Operating Temperature: -55°C
  • Maximum Operating Temperature: +175°C
  • Power Dissipation: 370W
  • Packaging: Tube
  • Mounting Style: Through Hole
  • Package/Case: TO-220-3

Features

  • High Current Capacity: Supports up to 180A continuous current
  • Low RDS(on): Reduces power loss and improves efficiency
  • Fast Switching: Optimized for high-speed switching circuits
  • TO-220 Package: Easy integration with DIP-style mounting

Applications

Motor Control Systems: Ideal for driving high-current motors in industrial and automotive applications

DC-DC Converters: Efficient switching in buck, boost, and synchronous converter designs

Power Supplies: Used in high-efficiency AC-DC and DC-DC power regulation

Battery Management: Handles high discharge currents in battery-powered devices

Physical Attributes

  • Dimensions: ~10mm × 4.5mm × 15.6 mm (including leads)(L x W x H)
  • Weight: ~2g

Package Includes

  • 1 x IRFB4110 N-Channel MOSFET SMD (TO-220)
