IRFB4115 N-Channel MOSFET SMD (TO-220)
Review: 5 - "A masterpiece of literature" by John Doe, written onMay 4, 20020
Great
-50%

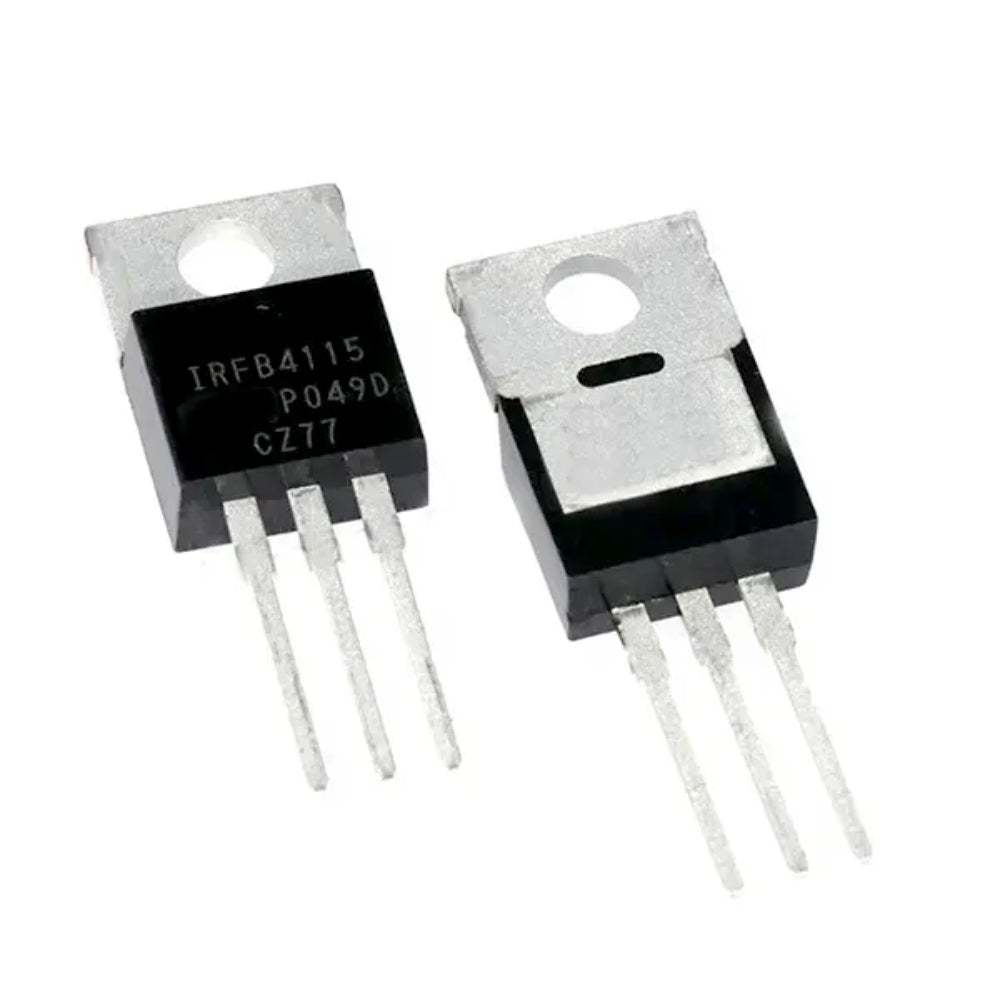

IRFB4115 N-Channel MOSFET 150V 104A in TO-220 package for high-power switching applications-1

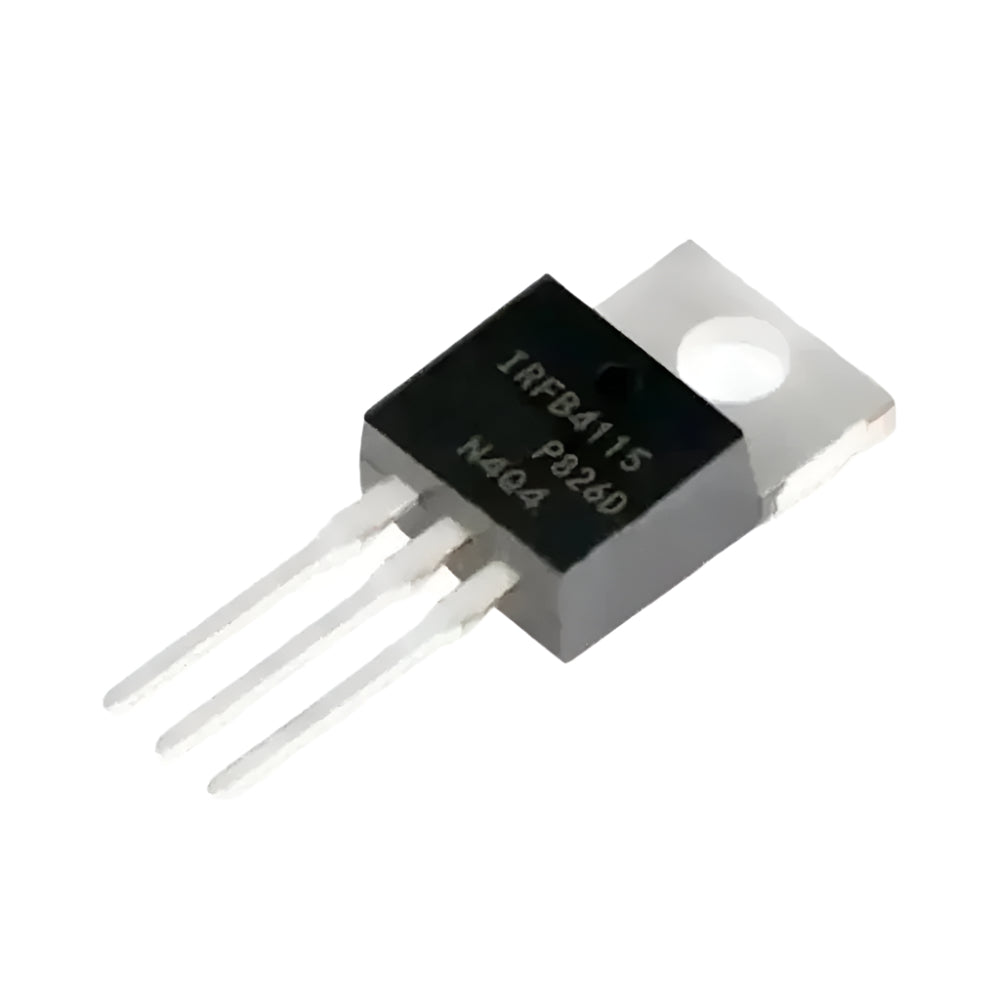

IRFB4115 N-Channel MOSFET 150V 104A in TO-220 package for high-power switching applications-2

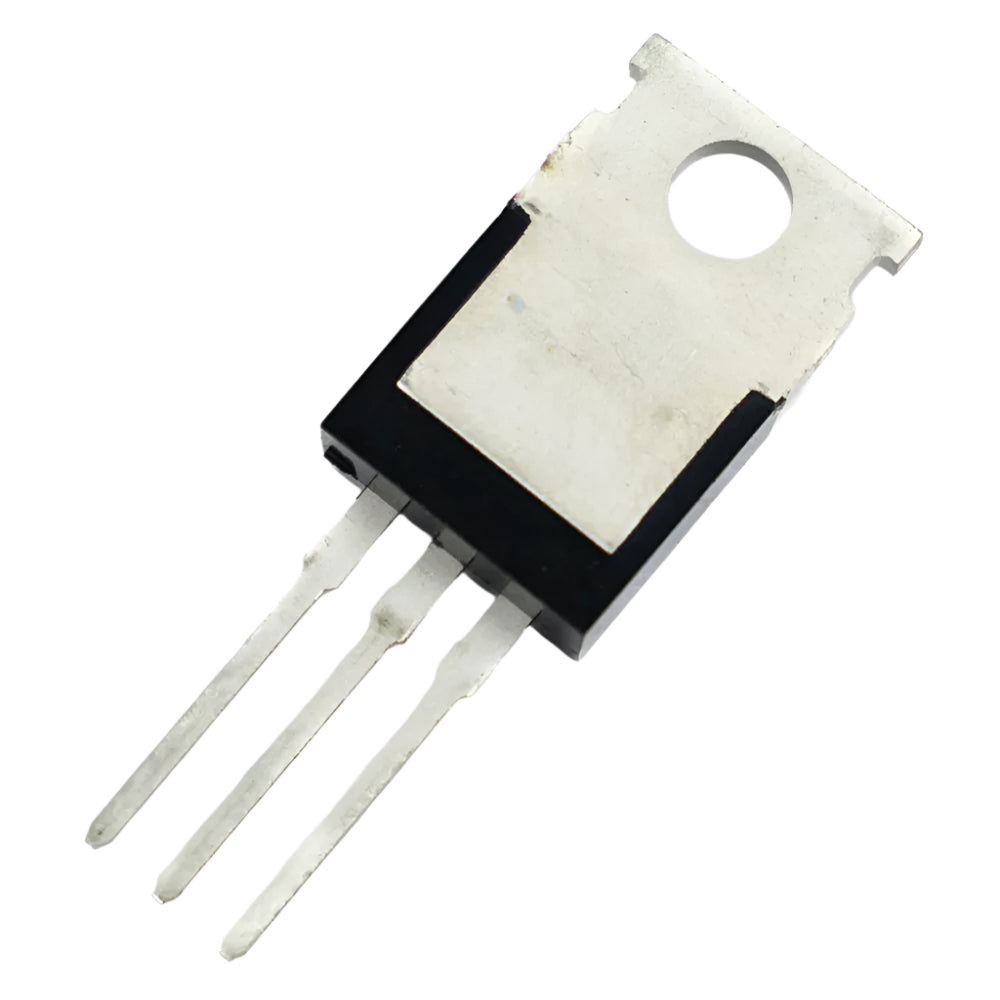

IRFB4115 N-Channel MOSFET 150V 104A in TO-220 package for high-power switching applications-3
IRFB4115 N-Channel MOSFET 150V 104A in TO-220 package for high-power switching applications-1
IRFB4115 N-Channel MOSFET 150V 104A in TO-220 package for high-power switching applications-2
IRFB4115 N-Channel MOSFET 150V 104A in TO-220 package for high-power switching applications-3

IRFB4115 N-Channel MOSFET SMD (TO-220)

Available:In Stock
  • Product SKU: INTEG427
Wishlist
₹ 99 ₹ 199
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • 150V, 104A N-Channel MOSFET
  • Low RDS(on): 0.0093Ω
  • High Power Dissipation: 380W
  • Fast Switching: 73ns Rise Time
  • TO-220 Through-Hole Package
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   12E-131C

Secure

Specification

Description

IRFB4115 N-Channel MOSFET SMD (TO-220)

The IRFB4115PBF is a 150V single N-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using Trench MOSFET technology. Suitable for high efficiency synchronous rectification in SMPS, uninterruptible power supply, high speed power switching, hard switched, and high frequency circuits.

Technical Details

  • Model: IRFB4115
  • Brand: Infineon
  • Transistor Type: MOSFET
  • Type of Control Channel: N-Type
  • Max. Drain-Source Voltage: 150V
  • Max. Gate-Source Voltage: 20V
  • Continuous Drain Current (VGS @ 10V): 74–104A
  • No. of Pins: 3 pins
  • Pulsed Drain Current: 420A
  • Max. Operating Junction Temperature: 175°C
  • Rise Time: 73ns
  • Max. Drain-Source On-State Resistance: 0.0093Ω
  • Max. Power Dissipation: 380W
  • Package: TO-220
  • Mounting: Through Hole

Features

  • Improved gate, avalanche, and dynamic dv/dt ruggedness
  • Fully characterized capacitance and avalanche SOA
  • Enhanced body diode dV/dt and dI/dt capability
  • Halogen-free

Applications

Power Switching: Ideal for high-efficiency power supply circuits

Motor Control: Used in electric motor drivers and speed controllers

DC-DC Converters: Suitable for synchronous buck and boost converters

Battery Management Systems: Handles high current loads with low losses

Physical Attributes

  • Dimensions: ~10mm × 4.5mm × 15.6 mm (including leads)(L x W x H)
  • Weight: ~2g

Package Includes

  • 1 x IRFB4115 N-Channel MOSFET SMD (TO-220)
