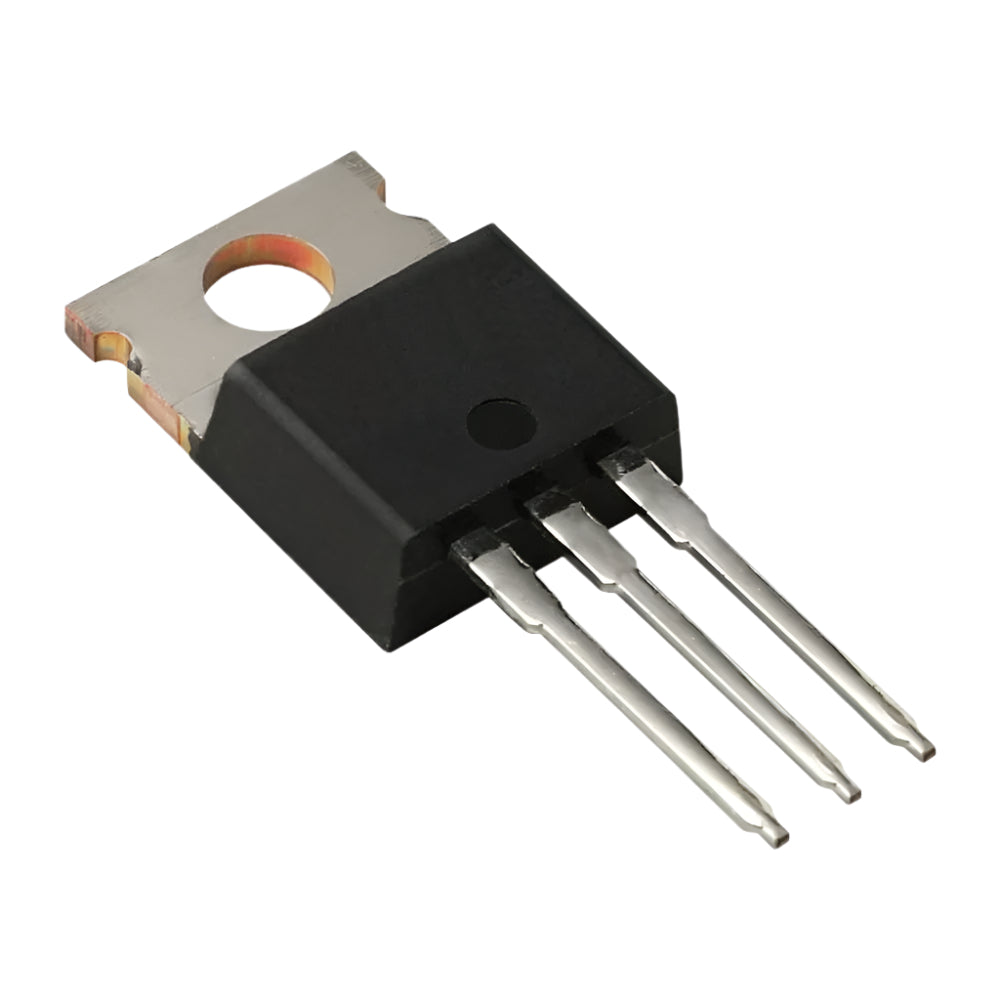

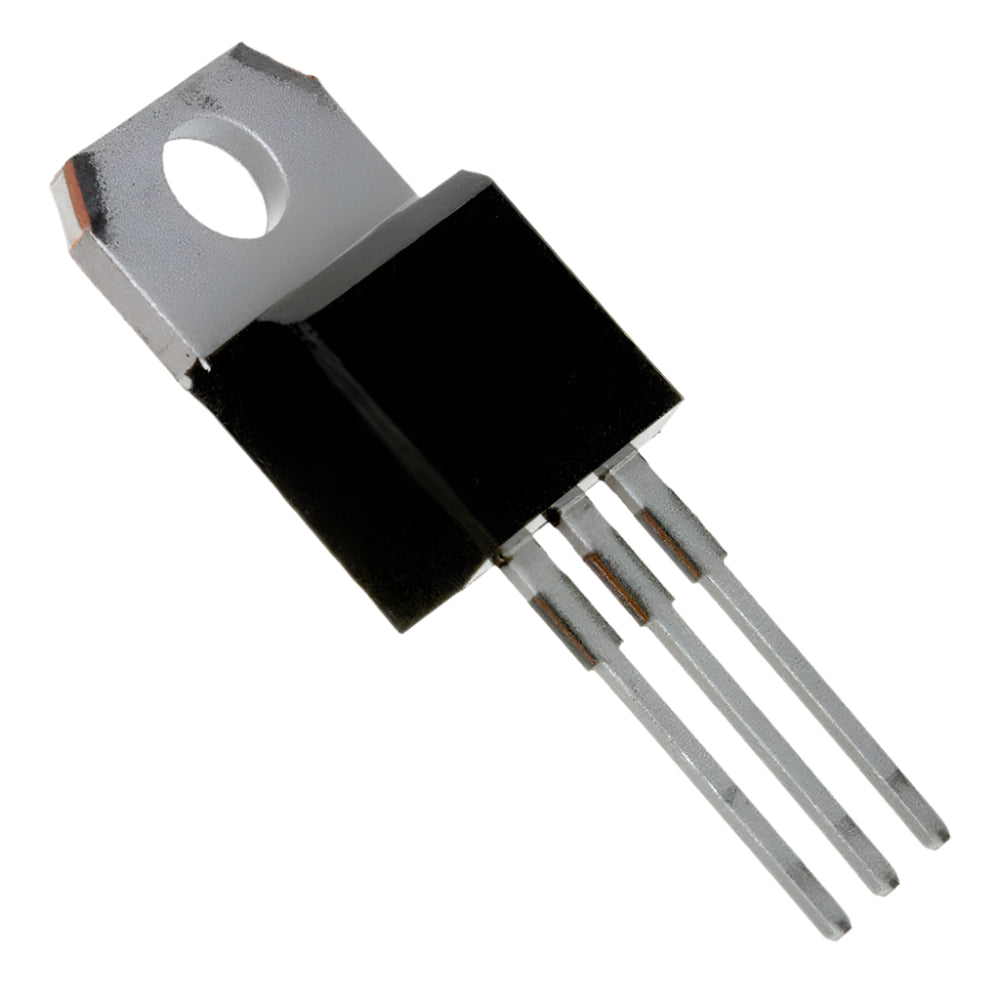

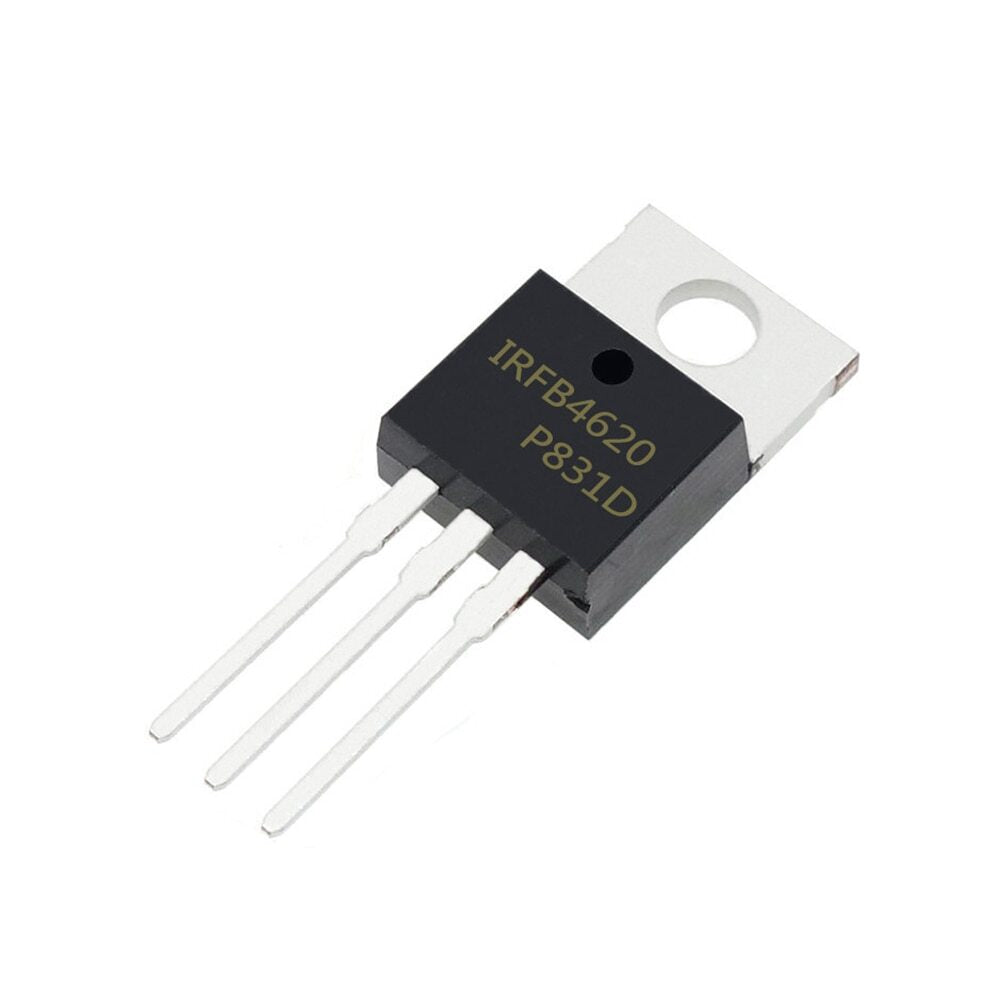

IRFB4620 N-Channel MOSFET SMD (TO-220)

The IRFB4620 is an N-Channel metal-oxide semiconductor field-effect transistor (MOSFET) is the most common type of field-effect transistor (FET). This transistor has a three-terminal device with Gate (G), Drain (D) and Source (S) terminals.

Technical Details

  • Transistor Code: IRFB4620
  • Transistor Type: MOSFET
  • Control Channel Type: N-Channel
  • Package: TO-220AB
  • Drain-Source Voltage (VDS): 200V
  • Gate-Source Voltage (VGS): ±20V
  • Continuous Drain Current (ID): 25A
  • Drain-Source On-State Resistance (RDS(on)): 0.0725Ω
  • Power Dissipation (PD): 144W
  • Total Gate Charge (Qg): 25nC

Features

  • High-voltage capability: 200V VDS
  • Low RDS(on): 0.0725Ω for reduced conduction losses
  • Fast switching with low total gate charge (25nC)
  • High power dissipation: up to 144W
  • TO-220AB package for efficient thermal performance
  • Suitable for high-speed switching and power conversion
  • N-channel design for efficient load control

Applications

Switching Power Supplies: Ideal for high-efficiency SMPS designs

DC-DC Converters: Suitable for buck, boost, and flyback topologies

Motor Control: Used in speed control and drive circuits for motors

Battery Management: Supports charging and protection in battery-powered devices

Physical Attributes

  • Dimensions: ~10mm × 4.5mm × 15.6 mm (including leads)(L x W x H)
  • Weight: ~2g

Package Includes

  • 1 x IRFB4620 N-Channel MOSFET SMD (TO-220)
