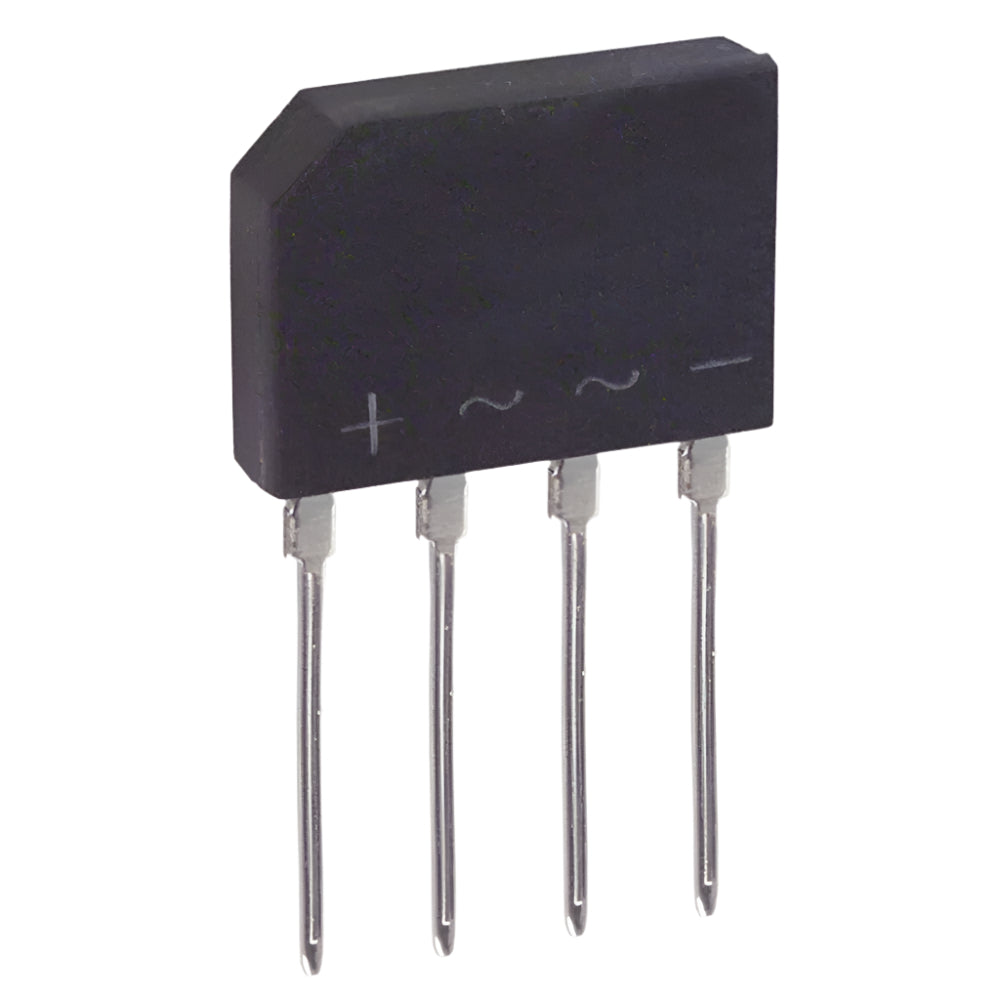

KBP206 Bridge Rectifier 600V 2A | KBP-4 DIP Package | AC to DC Converter-1

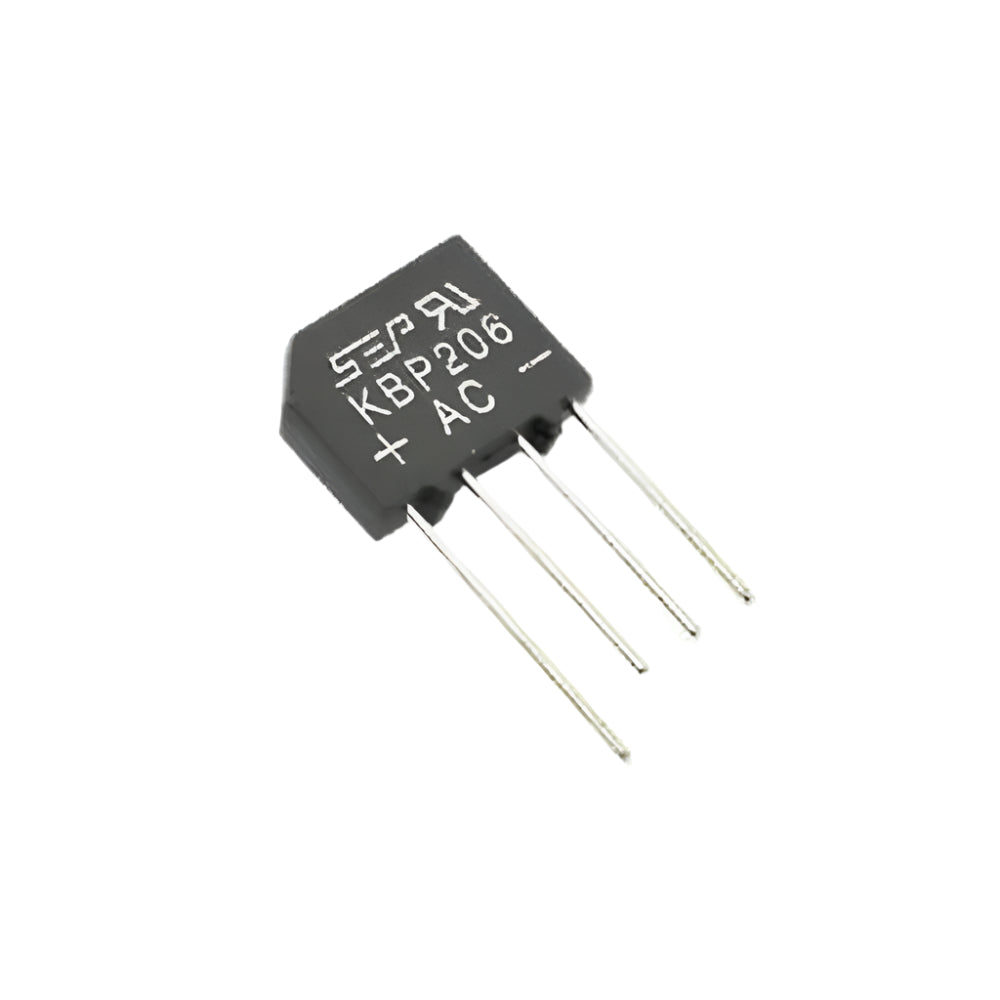

KBP206 Bridge Rectifier 600V 2A | KBP-4 DIP Package | AC to DC Converter-2

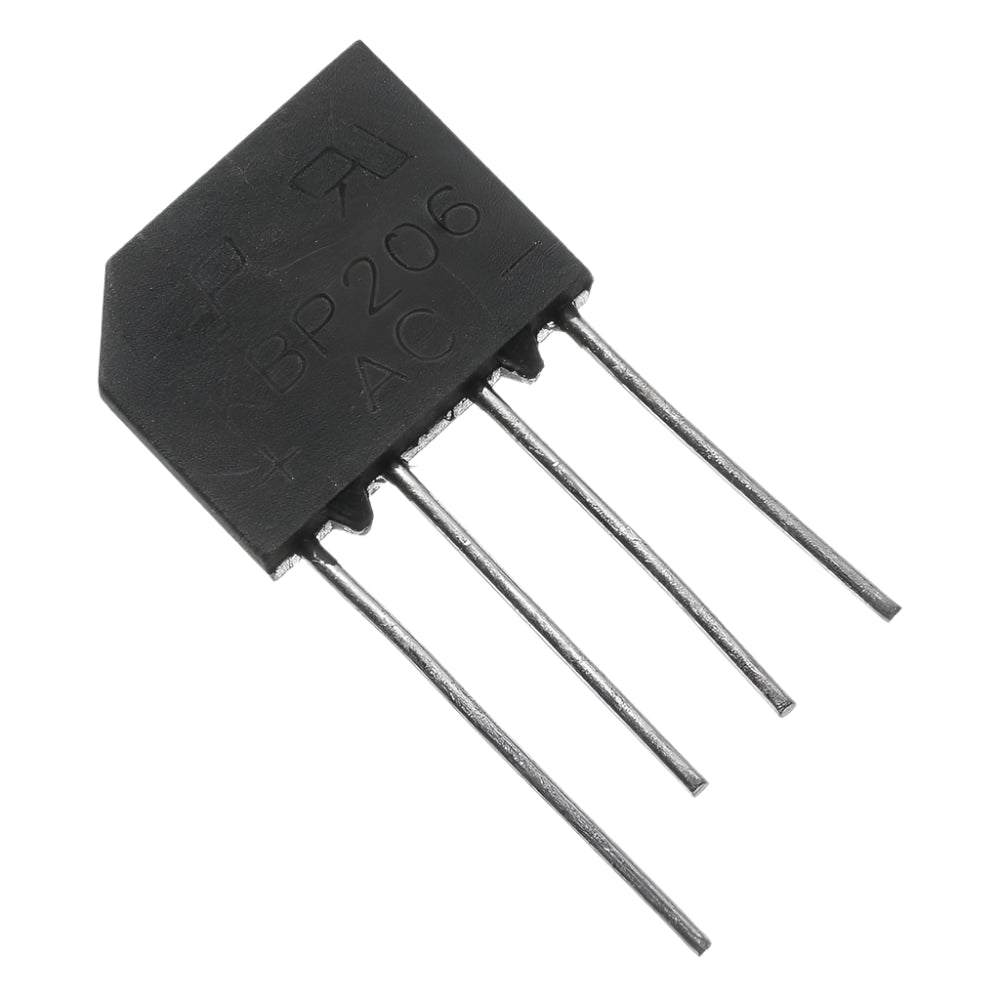

KBP206 Bridge Rectifier 600V 2A | KBP-4 DIP Package | AC to DC Converter-3

KBP206 Bridge Rectifier KBP-4 600V 2A DIP Package

Available:In Stock

Product SKU: INTEG370

Wishlist

₹ 15 ~~₹ 29~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
600V, 2A Bridge Rectifier
Compact KBP-4 DIP Package
Ideal for AC to DC Conversion
High Surge Capability: 30A
Reliable for Power Supplies & Chargers

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

Warehouse Details 36G-157R

Specification

Description

KBP206 Bridge Rectifier KBP-4 600V 2A DIP Package

The KBP206 is a high-efficiency bridge rectifier designed to convert AC to DC in compact electronic circuits. Encased in a KBP-4 DIP package, this 4-pin rectifier can handle up to 600V reverse voltage and 2A forward current, making it suitable for a wide range of low- to medium-power applications.

Technical Details

Rated for 600V reverse voltage and 2A average forward current
Low forward voltage drop of 1.1V @ 2A
Compact 4-pin KBP DIP package for easy PCB mounting
High surge current capability up to 30A
Low reverse leakage current of 10µA @ 600V
Operating temperature range: -55℃ to +150℃
Ideal for full-wave AC to DC conversion
Reliable performance in power adapters and chargers

Features

TO-126 NPN Silicon Power Transistor
Collector-Emitter Voltage: 60V
Collector Current: 1.5A
Power Dissipation: Up to 1.5W
Fast switching and low saturation
Ideal for audio amplifiers and switching circuits
Original component for reliable performance

Applications

AC to DC Conversion – Converts alternating current to direct current in various electronic devices.

Power Supply Units – Used in linear and switch-mode power supplies for rectification stages.

Battery Chargers – Provides full-wave rectification in low to medium current charging circuits.

LED Drivers – Ensures constant DC output for LED lighting applications.
