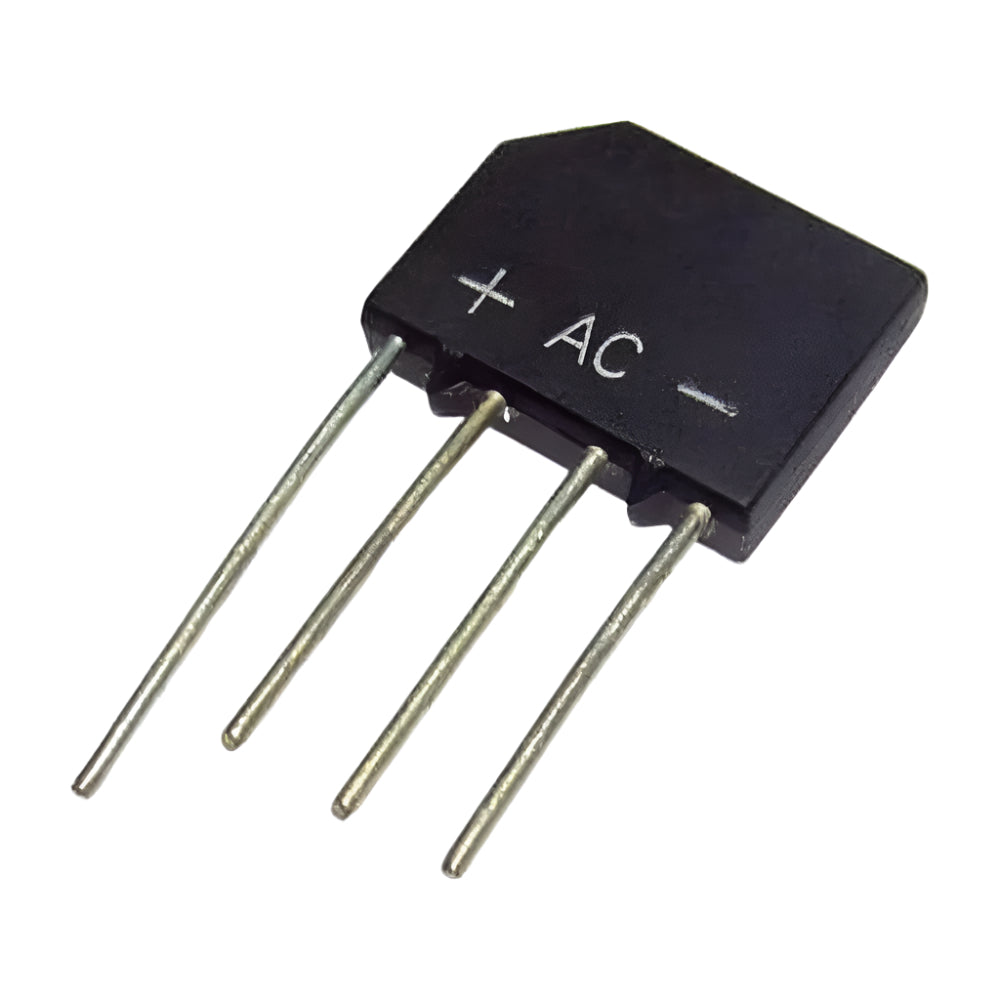

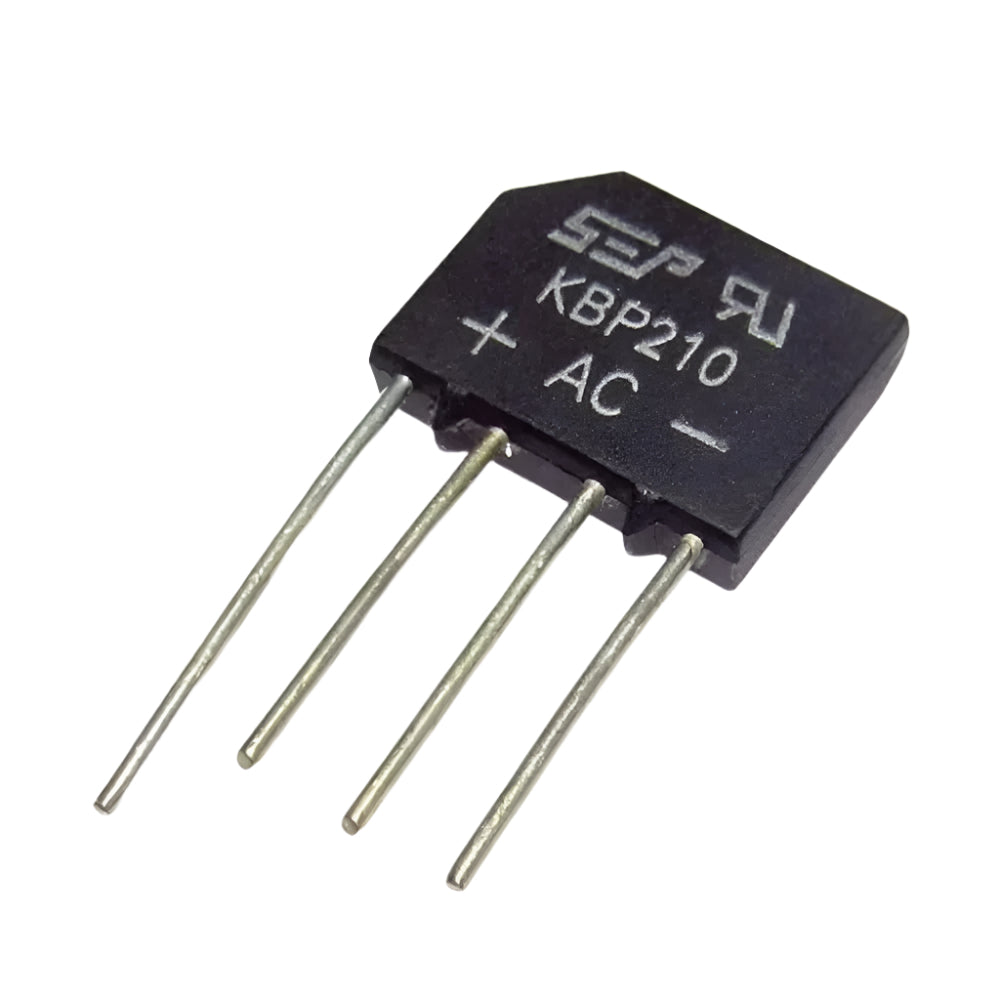

KBP210 Bridge Rectifier KBP-4 1000V 2A DIP Package

KBP210 This is the KBP210 Bridge Rectifier Diode. A bridge diode is a diode module that forms a bridge connection of 4 to 6 diodes in one package, and it is used for rectifying an Alternating Current (AC) into a Direct Current (DC) or pulsating current. This Diode is glass passivated, meaning that it also reduces any leakage current. The average forward current is 2A, while the maximum input AC RMS voltage of this Bridge Rectifier Diode is 700V. It also offers high efficiency and a high surge current capability of 60A.

Technical Details

  • Model: KBP210
  • Average Forward Current: 2A
  • Max. Recurrent Peak Reverse Voltage: 1000V
  • Max. RMS Voltage: 700V
  • Max. DC Blocking Voltage: 1000V
  • Max. Forward Voltage Drop Per Element: 1.1V
  • Operating Temperature: -55°C to 150°C
  • Storage Temperature: -55°C to 150°C
  • Package: Bridge Diode

Features

  • Molded plastic casing for durability
  • Low forward voltage drop for energy efficiency
  • Glass passivated for reduced leakage current
  • High surge current capability ensures reliability

Applications

Power Supply Circuits: Converts AC to DC for regulated outputs

Battery Chargers: Provides efficient rectification in charger circuits

LED Drivers: Ensures stable DC power for LED lighting systems

Home Appliances: Used in motors, fans, and other AC-DC applications

Industrial Control Panels: Reliable rectification for control systems

DC Motor Drives: Supplies rectified power for motor controllers.

Physical Attributes

  • Dimensions: ~10.5mm × 10.5mm × 4.8mm(L x W x H)
  • Weight: ~1.1g

Package Includes

  • 1 x KBP210 Bridge Rectifier KBP-4 1000V 2A DIP Package
