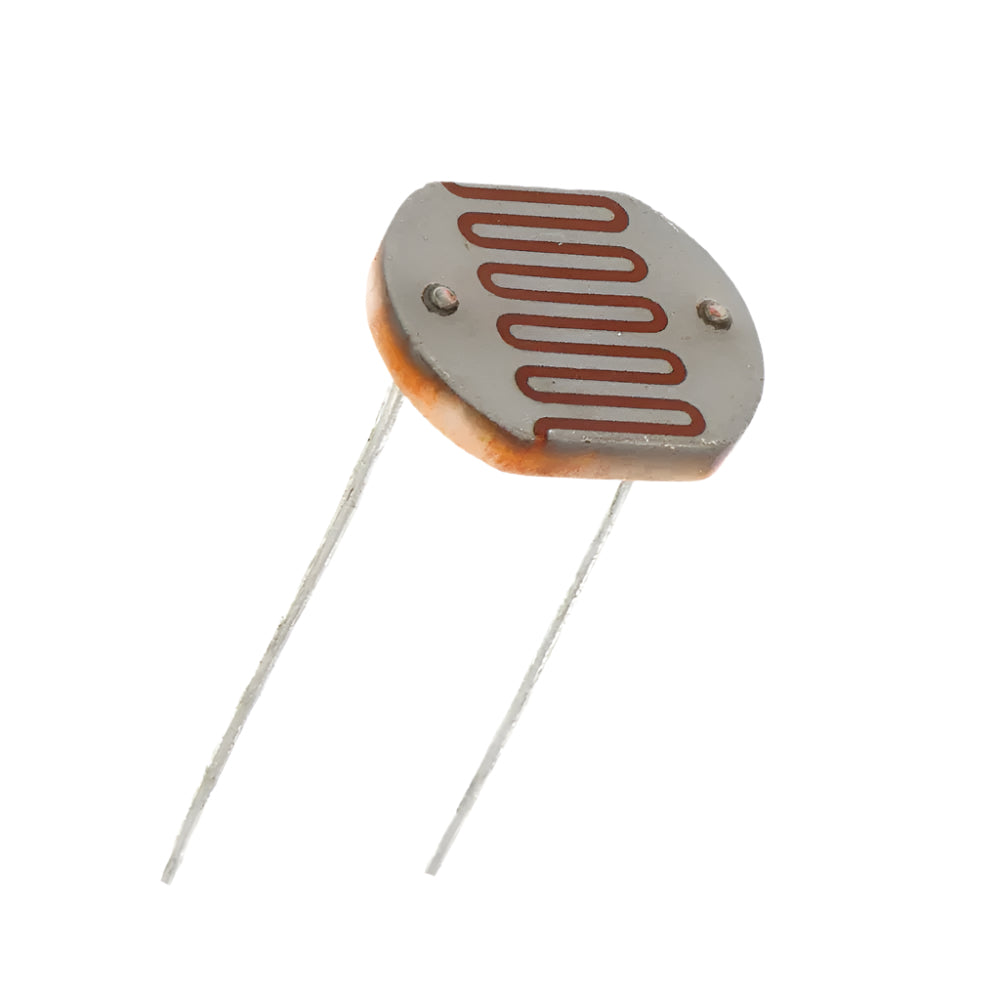

12mm LDR Sensor Photoresistor Photo Cell 12528 GL12528
![Close-up of 7mm LDR sensor for ldr light circuit projects]()
![7mm light dependant resistor LDR photo cell front view]()
![Light dependant resistor LDR wiring setup demonstration]()
![Close-up of 7mm LDR sensor for ldr light circuit projects]()
![7mm light dependant resistor LDR photo cell front view]()
![Light dependant resistor LDR wiring setup demonstration]()
As light increases, the resistance across its leads decreases; conversely, resistance rises in low light or darkness. This responsive behavior makes the device ideal for streetlights, night lamps, and solar detection systems. Furthermore, quick response under both bright and dim environments boosts versatility in automatic control.
Built with Cadmium Sulphide (CdS) photo-conductive cells, its spectral response closely matches that of the human eye. It reacts rapidly to changing lighting conditions and provides stable readings, making this ldr resistor well-suited for burglar alarms, smoke detection, and batch counters.
-22%
12mm LDR Sensor Photoresistor Photo Cell 12528 GL12528
Available:In Stock
- Product SKU: KG1052
₹ 69
₹ 89
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
🏠
Warehouse Details:
Specification
Description
12mm LDR Resistor Photoresistor Photo Cell 12528 GL12528
The 12mm GL12528 LDR Sensor is a highly reliable ldr resistor designed to vary resistance based on ambient light intensity, which makes it valuable in automation projects. Thanks to an affordable ldr sensor price and simple integration with an ldr resistor circuit, it is commonly used for daylight-based switching systems and smart lighting.As light increases, the resistance across its leads decreases; conversely, resistance rises in low light or darkness. This responsive behavior makes the device ideal for streetlights, night lamps, and solar detection systems. Furthermore, quick response under both bright and dim environments boosts versatility in automatic control.
Built with Cadmium Sulphide (CdS) photo-conductive cells, its spectral response closely matches that of the human eye. It reacts rapidly to changing lighting conditions and provides stable readings, making this ldr resistor well-suited for burglar alarms, smoke detection, and batch counters.
Technical Details – LDR Resistor Circuit Compatibility
- Diameter (mm): 12
- No. of Pins: 2
- Dark Resistance: 1 to 20MΩ
- Spectral Peak: 560 nm
- Light Resistance: 10 to 20kΩ
- Max. Voltage (V): 250 VDC
- Max. Power (W): 0.2
- Operating Temperature (°C): -30˚C to 70˚C
- Resistance Illumination: 3
- Response Time (μS): 20 (Rise), 30 (Down)
Analog Applications
- Camera exposure control
- Auto slide focus – dual cell systems
- Photocopy machines – toner density adjustment
- Colorimetric test equipment
- Densitometers and exposure meters
- Electronic scales – dual cell measurement
- Automatic gain control – modulated light sources
- Automated rear-view mirror brightness adjustment
Digital Applications – Reliable LDR Resistor Circuit Uses
- Automatic headlight dimmer
- Nightlight control circuits
- Oil burner flame detection
- Streetlight automation
- Beam-break presence or absence detection
- Position and proximity sensing
Other Applications
- Annunciator panels and indicators
- Automatic camera photometry
- Electronic toys and DIY kits
- Industrial light control systems
- Light control and switching modules
- Photoelectric detection and automation
- Smart lighting and solar systems
- Light-sensitive alarms and sensors
Features – Reasonable LDR Sensor Price
- High sensitivity to visible light (spectral peak: 560nm)
- Wide operating voltage: up to 250V DC
- Low power consumption (200mW max)
- Durable design with -30˚C to +70˚C temperature range
- Fast response time (20ms rise, 30ms fall)
- Easy to interface with analog and digital circuits
- Environmentally friendly and RoHS compliant
- Compact, lightweight, and easy to mount
Applications
- Automatic streetlight control systems
- Camera exposure and brightness control
- Nightlight and display brightness automation
- Flame and light detection modules
- Presence and position sensors in robotics
- Light-sensitive alarm and safety systems
- Solar-powered lighting and smart systems
- Industrial and home light control systems
- Brightness control in screens and indicators
Specifications
| Model | Max Pressure (VDC) | Max Power (mW) | Ambient Temp (°C) | Spectral Peak (nm) | Bright Resistor (Ω) | Dark Resistor (MΩ) | Response Time (ms) |
|---|---|---|---|---|---|---|---|
| 5506 | 150 | 100 | -30~+70 | 540 | 4–7 | 0.5 | Rise:30 Fall:30 |
| 5516 | 150 | 100 | -30~+70 | 540 | 5–10 | 0.5 | Rise:30 Fall:30 |
| 5528 | 150 | 100 | -30~+70 | 540 | 10–20 | 1 | Rise:20 Fall:30 |
| 5537 | 150 | 100 | -30~+70 | 540 | 20–30 | 2 | Rise:20 Fall:30 |
| 5549 | 150 | 100 | -30~+70 | 540 | 100–200 | 10 | Rise:20 Fall:30 |
Package Includes
- 1 × 12mm LDR Sensor Photoresistor Photo Cell 12528 GL12528
