LED 4 Digit Red Display Indicators Tachometer+Hall Proximity Switch Sensor NPN+1

LED 4 Digit Red Display Indicators Tachometer+Hall Proximity Switch Sensor NPN_3

LED 4 Digit Red Display Indicators Tachometer + Hall Proximity Switch Sensor NPN

Available:In Stock

Product SKU: KG981

Wishlist

₹ 979 ~~₹ 1,099~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Hall NPN Sensor: M12 Cylinder
Output: NPN 3-Wire (NO)
Tachometer Voltage: AC/DC 8-24V
DC Current: 40mA
Counting Range: 0-9999

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

Shipping Details

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

Warehouse Details 27C-111

Specification

Description

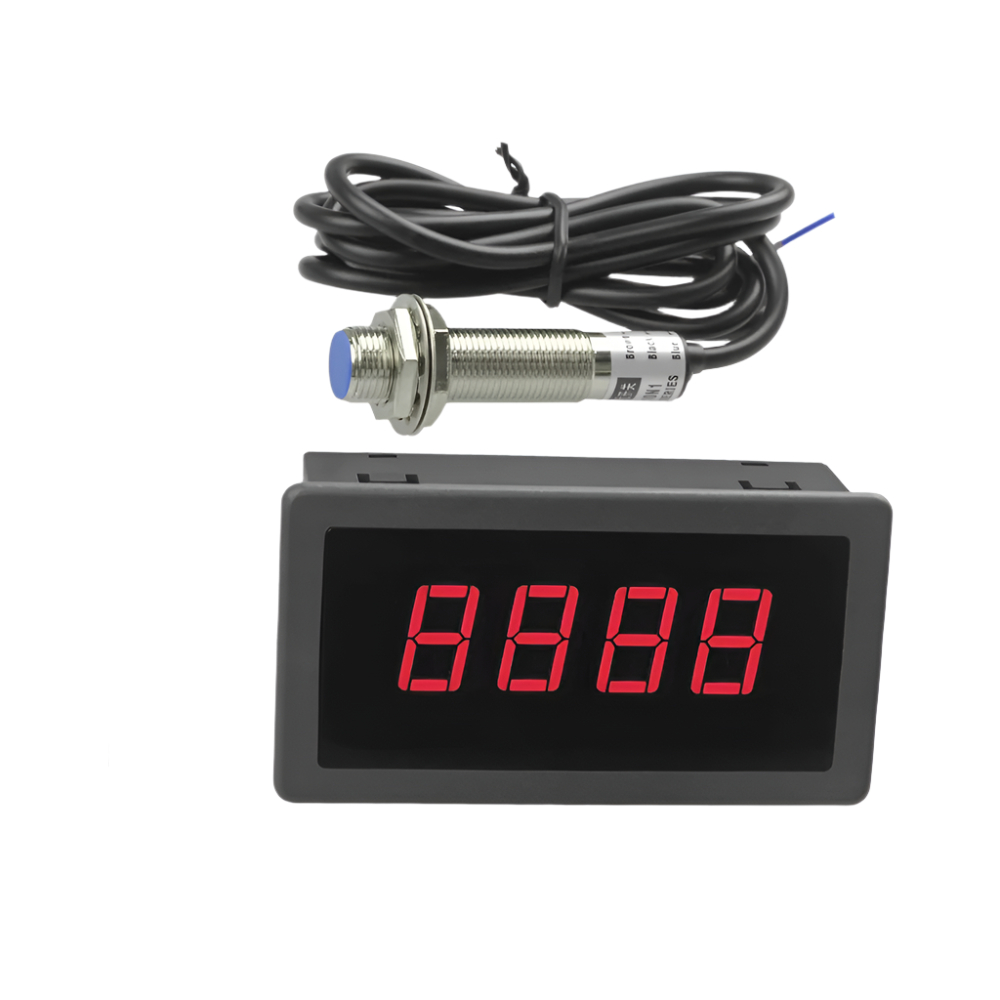

LED 4 Digit Red Display Indicators Tachometer + Hall Proximity Switch Sensor NPN

This digital display counter has a bright LED light, high accuracy, good stability, and easy installation. The meter remains the number automatically when the power is off. It has A working power supply of AC/DC 8-24V, 40mA. The product has good stability, strong anti-interference, and is ability suitable for the display of various digital instruments.

Technical Details

Operating Voltage: 8-24VDC
DC Current: 30mA
Counting Range: 0-9999
Measurement Range: 10-9999 RPM
Input Voltage: Low (-30V to 0.6V), High (4-30V)
Color Options: Blue, Green, Red
Switching Frequency: 320KHz (Hall NPN sensor)
Supply Voltage: 5-24VDC, 6-36VDC (Hall NPN sensor)

Features

4-digit bright LED light, clear to read.
Good stability, high accuracy, and easy installation.
The counting value will be retained when power fails.
Wide application to automation equipment and test equipment, etc.
Compact size, beautiful appearance, and Blue, Green, and Red, are three colors for you to choose from.

Hall NPN sensor

Appearance: M12mm cylinder
Output: NPN three wire normally open type
The detection distance: 10 mm
Supply voltage: 5-24VDC,6-36VDC
Output current: 200 mA
Objects can be detected: permanent magnets
Switching frequency: 320 KHZ
Wiring: brown- +Ve, blue- -Ve, black-signal

Applications :

Motor Speed Measurement – Accurately measures RPM in motors and engines.
Industrial Automation – Monitors rotating machinery in production lines.
Conveyor Belt Systems – Ensures consistent speed control and monitoring.
Fan and Pump Speed Monitoring – Tracks performance in HVAC and water systems.
