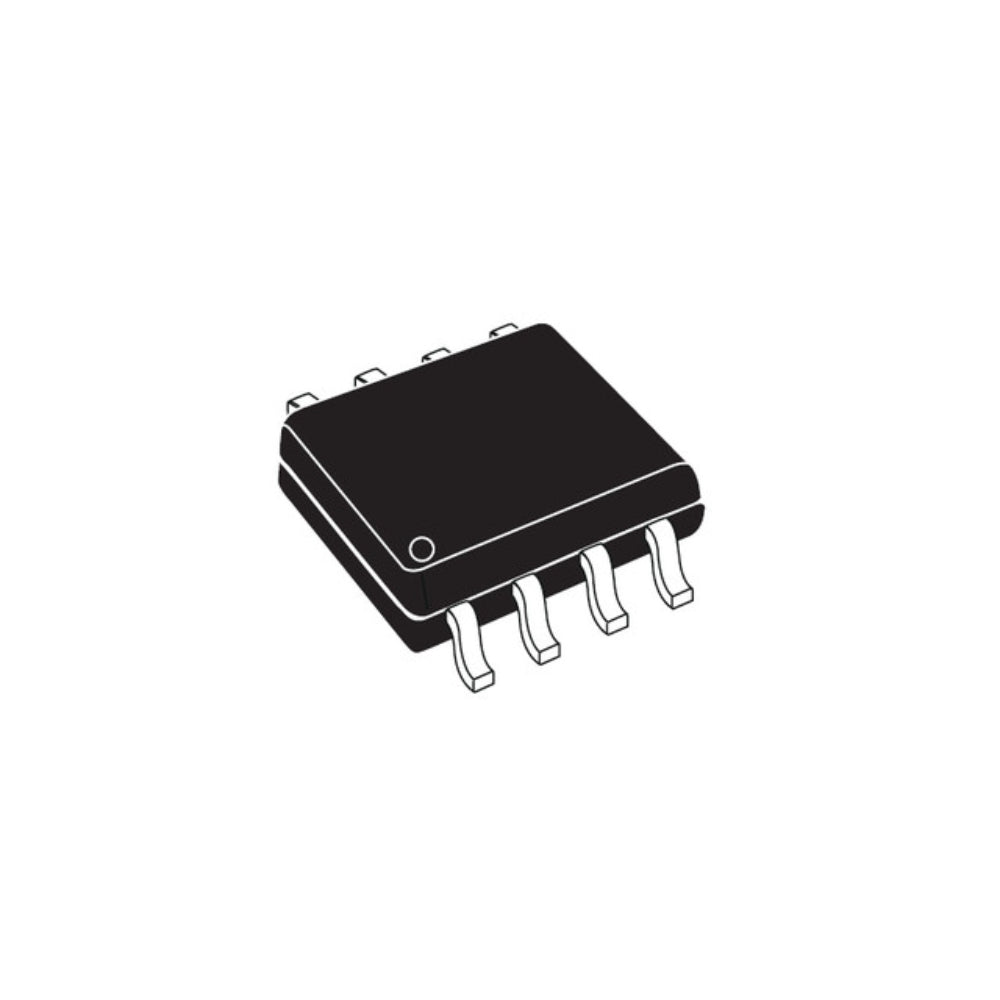

LM258D SMD SOIC-8 Low Power Dual Operational Amplifier IC-3

LM258D SMD SOIC-8 Low Power Dual Operational Amplifier IC-1

LM258D SMD SOIC-8 Low Power Dual Operational Amplifier IC-2

LM258D SMD SOIC-8 Low Power Dual Operational Amplifier IC

Available:In Stock

Product SKU: INTEG375

Wishlist

₹ 10 ~~₹ 19~~

Available offers

Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Highlights

Original, High Quality
KitsGuru Warranty
Low Power Dual Op-Amp
SOIC-8 SMD Package
Wide Supply Range: 3V–30V
Low Offset Voltage
High CMRR: 80dB

Services

Email Support
Video Support to be purchased separately

Easy Payment Options

Netbanking
Debit/Credit cards
Cash on Delivery
E-wallets/UPI

How Fast We Ship

International Shipping

Available

Quantity

Need Volume Discounts? Deals are specially designed for you. Click here

Need Customization? Provide us more details Click here

🏠 Warehouse Details:

36 G - 158 E

Specification

Description

LM258D SMD SOIC-8 Low Power Dual Operational Amplifier IC

The LM258D is a low-power, dual operational amplifier IC housed in a compact SOIC-8 SMD package, designed for precision signal amplification in a wide range of analog applications. With its low supply current and wide voltage range, this op-amp is ideal for battery-powered and energy-sensitive systems.

Technical Details

Number of Channels: 2
Total Supply Voltage (Max): 30V
Total Supply Voltage (Min): 3V
Rail-to-Rail: In to V−
Gain Bandwidth Product (Typ): 0.7 MHz
Slew Rate (Typ): 0.3 V/µs
Offset Voltage at 25°C (Max): 5 mV
Quiescent Current per Channel (Typ): 0.35 mA
Voltage Noise at 1kHz (Typ): 40 nV/√Hz
Rating: Catalog
Operating Temperature Range: -25°C to 85°C
Offset Drift (Typ): 7 µV/°C
Input Bias Current (Max): 150,000 pA
Common Mode Rejection Ratio (CMRR Typ): 80 dB
Output Current (Typ): 0.03 A
Architecture: Bipolar
Input Common Mode Headroom to Negative Supply (Typ): 0V
Input Common Mode Headroom to Positive Supply (Typ): -1.5V
Output Swing Headroom to Negative Supply (Typ): 0.005V
Output Swing Headroom to Positive Supply (Typ): -2V

Features

Wide supply range of 3V to 36V (B, BA versions)
Quiescent current: 300µA/channel (B, BA versions)
Unity-gain bandwidth of 1.2MHz (B, BA versions)
Common-mode input voltage range includes ground
2mV input offset voltage max at 25°C (BA version)
3mV input offset voltage max at 25°C (A, B versions)
Internal RF and EMI filter (B, BA versions)
MIL-PRF-38535 compliant products are fully tested
Production processing may vary for commercial versions

Applications

Signal Conditioning: Amplifies and filters analog sensor signals

Active Filters: Used in low-pass, high-pass, and band-pass filters

Industrial Controls: Ideal for analog control loops and automation systems

Battery-Powered Devices: Low power consumption makes it suitable for portable electronics

Audio Preamplifiers: Used in basic audio signal amplification circuits.
