LM2596 HV DC-DC Buck Converter 4.5-40V to 3-35V Adjustable Step Down Module
- Product SKU: KG132
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
- Order within
Efficient Voltage Regulation: LM2596 Module
Section 1: Stable Power ConversionExperience stable power conversion with the LM2596 Module. This module is designed to regulate voltage efficiently, allowing for reliable and precise power supply in various applications. Whether you're powering electronic devices, driving motors, or implementing voltage regulation systems, this module ensures efficient power conversion, empowering you to provide a stable power source for your projects.
Voltage Regulation Technology
Leverage the advanced voltage regulation technology of the LM2596 Module. It efficiently steps down or steps up the input voltage to the desired output voltage level, providing a stable power supply for your devices. With its high conversion efficiency and low power dissipation, this module enables efficient power management, ensuring optimal performance of your electronic components.
Adjustable Output Voltage
Customize the output voltage to match your project requirements with the adjustable output voltage feature of the LM2596 Module. It allows you to fine-tune the output voltage within a specified range, providing flexibility in adapting to different voltage requirements. Whether you need to power sensitive electronic components or drive motors with specific voltage levels, this module offers precise voltage control.
Section 2: Easy Integration and Versatile ApplicationsSimple Wiring and Setup
The LM2596 Module offers a simple wiring and setup process. With clearly labeled connection points and a user-friendly design, this module simplifies integration into your projects. Whether you're a beginner or an experienced electronics enthusiast, you can quickly and effortlessly incorporate this module, saving time and effort during the setup phase.
Wide Range of Applications
Unlock a wide range of applications with the LM2596 Module. Its versatility makes it suitable for various projects and systems. Whether you're involved in electronics prototyping, DIY projects, motor control, or battery charging, this module provides reliable voltage regulation capabilities. Experience the convenience and flexibility of efficient power conversion in your projects.
Section 3: Reliable Performance and SafetyStable and Consistent Operation
Rely on the LM2596 Module for stable and consistent voltage regulation. Crafted with high-quality components and designed for reliable operation, this module delivers consistent output voltage, ensuring stable power supply to your devices. Its stability allows you to trust the module for powering sensitive electronic components or driving motors with precision.
Built-in Protection Features
The LM2596 Module incorporates built-in protection features to safeguard your devices and the module itself. It includes protection mechanisms such as overcurrent protection, thermal shutdown, and short circuit protection. With its reliable protection measures, this module ensures safe operation and prevents damage caused by unexpected voltage spikes or current surges.
- Input Voltage (V) : 4 ~ 40 VDC
- Output Voltage(V) : 3 ~ 35
- Max. Output Current (A) : 3
- Conversion efficiency : 92%(highest)
- Switching frequency : 150 KHz
- Output ripple : 30mA (maximum)
- Load Regulation : ± 0.5%
- Voltage Regulation : ± 0.5%
- Dynamic Response speed : 5% 200uS
- Operating Temperature (°C) : -40 to 90
- Length * Width * Height (mm) :43 * 20 * 12 mm
- Weight (gm) : 10
- 1 x LM2596 HV DC-DC Buck Converter 4.5-40V to 3-35V Adjustable Step Down Module

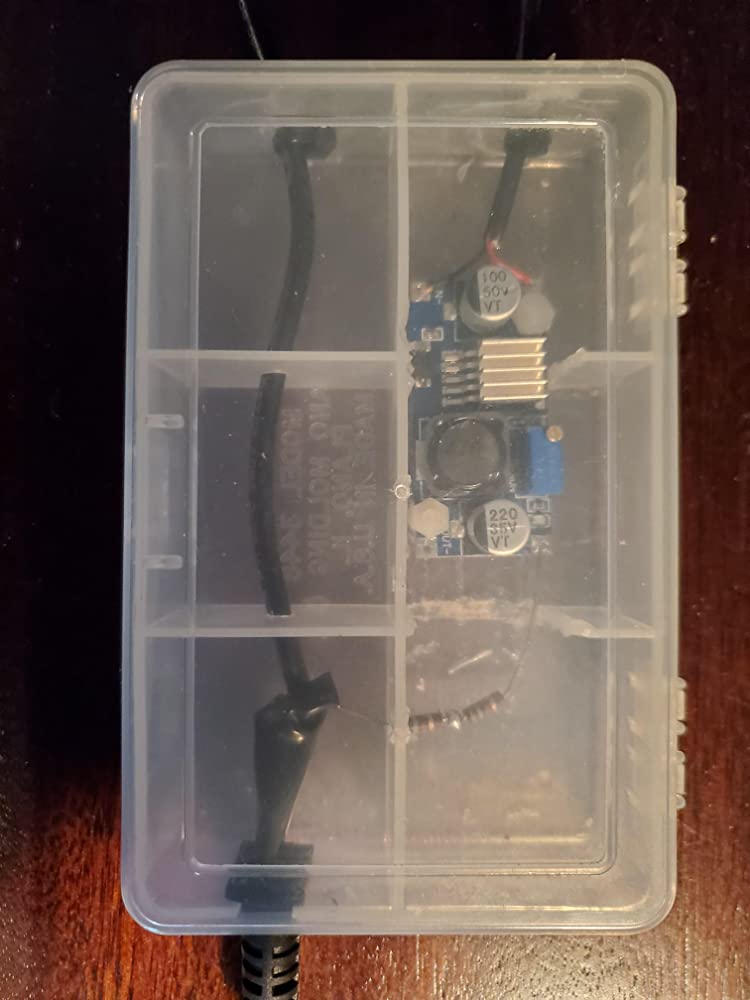

I used one of these converters with output adjusted to 2.5vdc. It powers a triple exhaust fan for my car from 12vdc. It's so small it fits into the battery cavity replacing 2 AA batteries. Love it.
I used this to knock 24vdc down to 5vdc for a Raspberry Pi. It was easy and straight forward.
Bought it to wire 12v fan on my 24v 3d printer.Holes big enough for easy wire soldering, adjustment screw is solid, set it up for 12v using multimeter and it works flawlessly so far.Still have a second one unpacked for future projects.
The product was exactly what I wanted and I am so happy with my purchase.
Inexpensive for what it is. Easy to adjust and put into service.
Simply solder in the line side, adjust the voltage on the output side, then solder on your output wires. Too easy!
These are working great for my projects. Easy enough to hook up. They are a little bulky. But if space is non issue I can't fault the unit.
It worked first time but when i charged second time It stopped working
