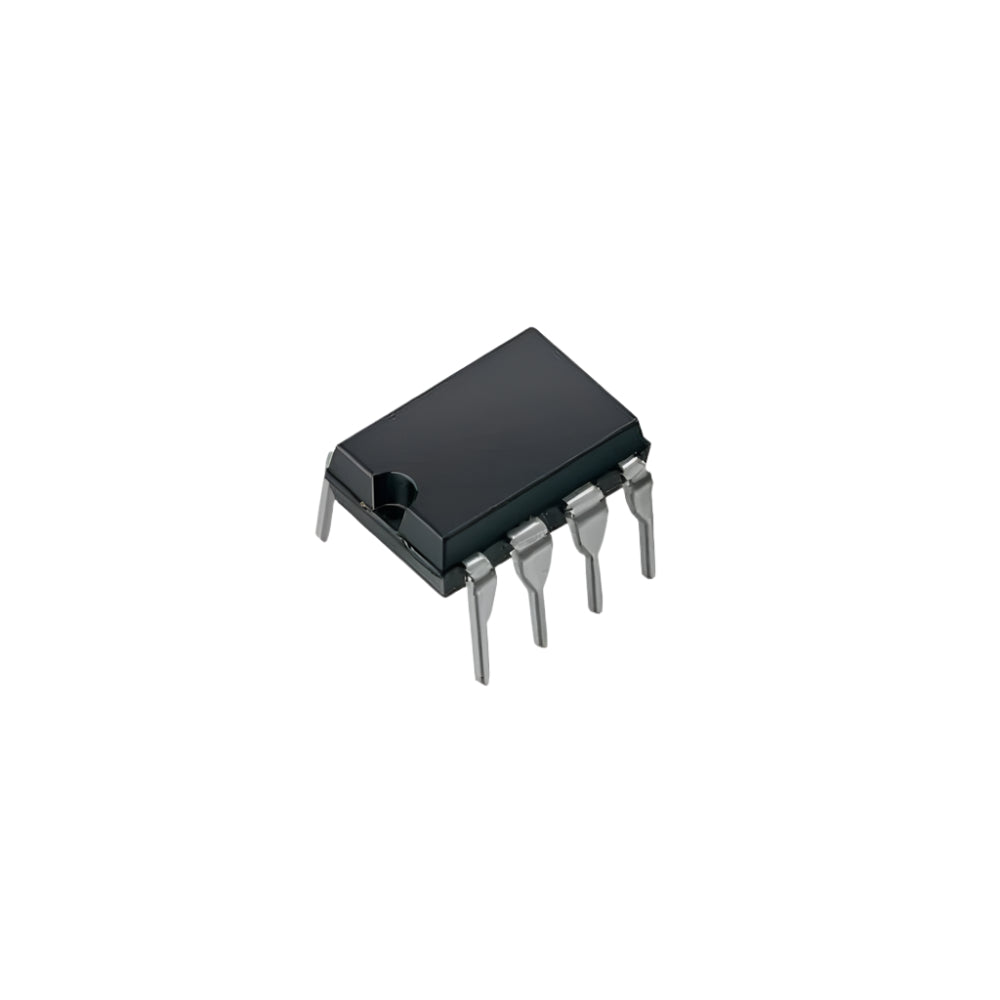

LM2904N/P Dual Low Power Operational Amplifier IC in DIP-8 package for signal amplification-1

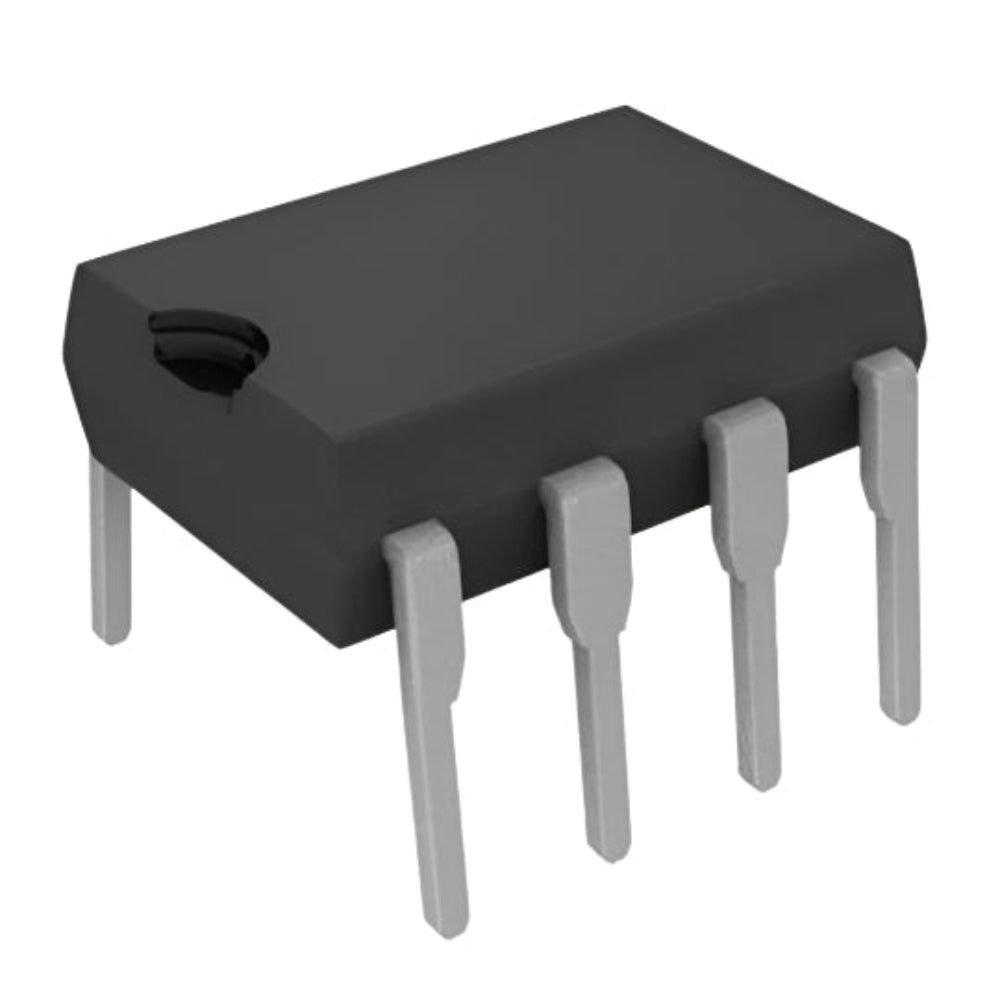

LM2904N/P Dual Low Power Operational Amplifier IC in DIP-8 package for signal amplification-2
LM2904N/P Dual Low Power Operational Amplifier IC in DIP-8 package for signal amplification-3
LM2904N/P Dual Low Power Operational Amplifier IC in DIP-8 package for signal amplification-1
LM2904N/P Dual Low Power Operational Amplifier IC in DIP-8 package for signal amplification-2
LM2904N/P Dual Low Power Operational Amplifier IC in DIP-8 package for signal amplification-3

LM2904N/P DIP-8 Low Power Dual Operational Amplifier IC

Available:In Stock
  • Product SKU: INTEG380
Wishlist
₹ 29 ₹ 59
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs69.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts

for colleges, Schools, Companies & resellers Contact us

Cash on Delivery

Available above Rs 499

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
  • Dual Low-Power Op-Amp
  • DIP-8 Through-Hole Package
  • Wide Supply Range: 3V–32V
  • Unity-Gain Stable
  • Low Input Offset Voltage
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

Warehouse Details   36G-158J

Secure

Specification

Description

LM2904N/P DIP-8 Low Power Dual Operational Amplifier IC

The LM2904N is a dual operational amplifier optimized for low power consumption in automotive and industrial environments. It functions effectively across a wide voltage range and can handle both single and split power supply configurations. This makes it a best possible for various applications like transducer amplifiers and DC gain blocks. Its robustness and simplicity in design enable it to perform reliably in tough conditions and integrate easily into both new and existing systems without major redesigns.

Technical Details

  • Package Type: DIP-8
  • Number of Channels: 2 (Dual Op-Amp)
  • Supply Voltage Range: 3V to 32V (Single Supply)
  • Input Offset Voltage: Max ±7 mV
  • Input Bias Current: Max 250 nA
  • Gain Bandwidth Product: 1 MHz (typ)
  • Slew Rate: 0.5 V/µs (typ)
  • Output Current: ±20 mA (typ)
  • Operating Temperature Range: -40°C to +85°C
  • Input Common Mode Range: Includes Ground
  • Assembly: Through-Hole (THT)

Features

  • Dual low-power op-amp in a single package
  • Wide voltage supply range: single or dual supply
  • Internally frequency-compensated for unity gain
  • Low power consumption, ideal for battery-powered devices
  • Input voltage range includes ground
  • Compatible with all standard logic levels
  • Low input offset voltage for improved accuracy
  • Reliable performance over a wide temperature range

Applications

Signal Conditioning: Amplifies and filters sensor outputs in analog systems

Active Filters: Used in low-pass, high-pass, and band-pass filter designs

Voltage Follower Buffers: Provides high input impedance and low output impedance

Analog Computation: Performs operations like summation, integration, and differentiation.

Physical Attributes

  • Dimensions: ~4.9mm × 3.9mm × 1.5mm(L x W x H)
  • Weight: ~0.05g

Package Includes

  • 1 x LM2904N/P DIP-8 Low Power Dual Operational Amplifier IC
