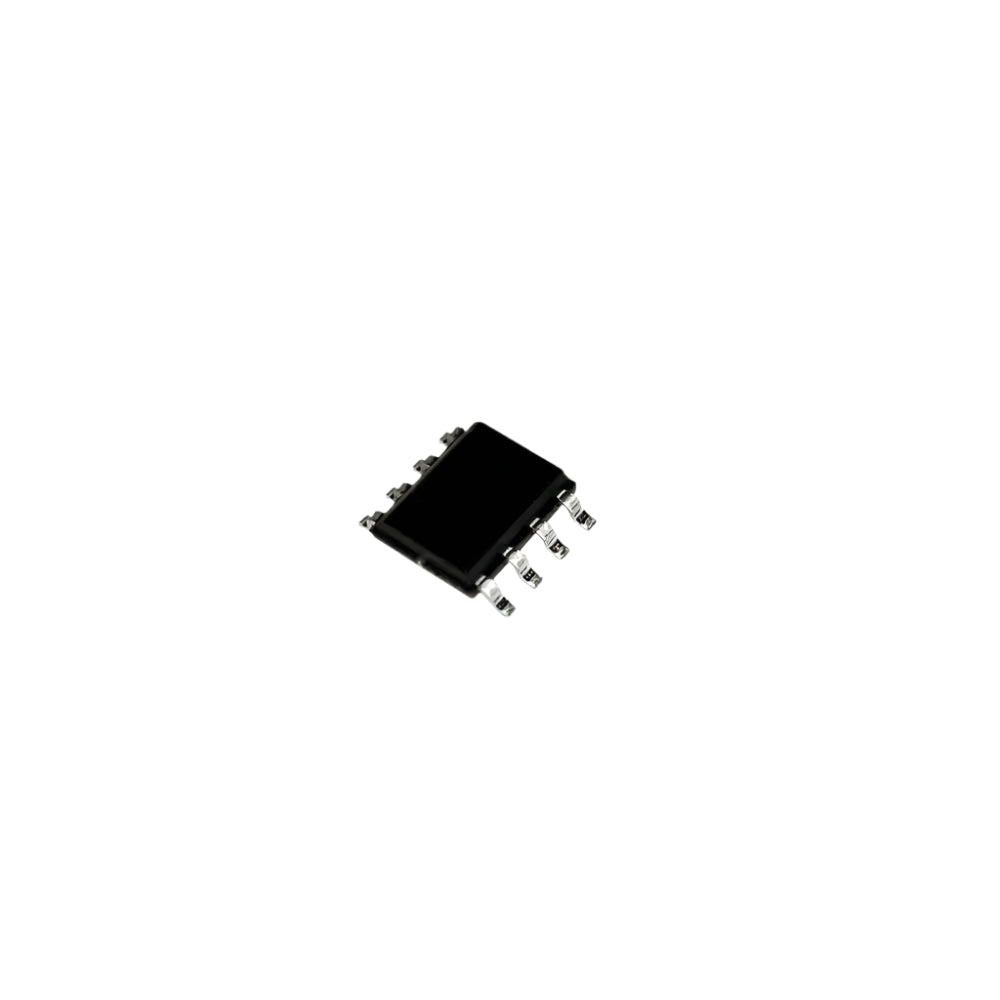

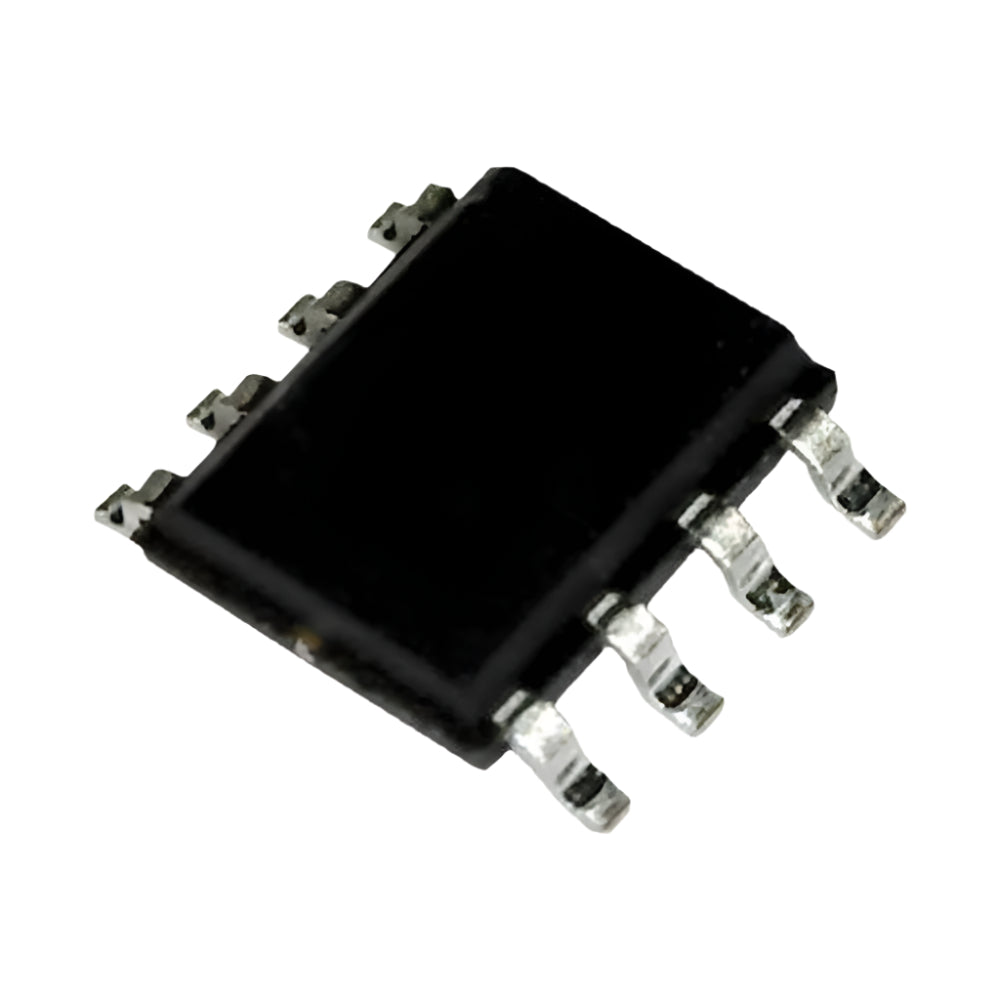

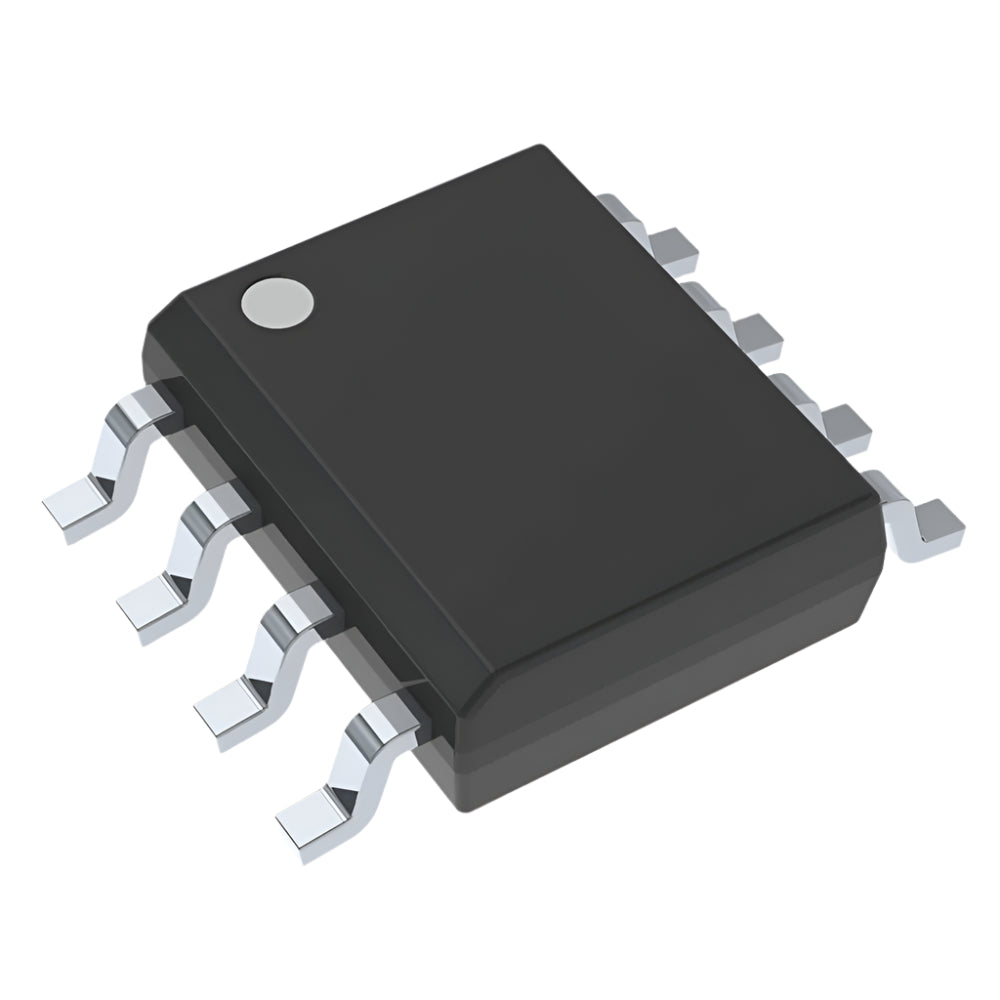

LM293DR Analogue Comparator, Differential, 2 Comparators, 1.3 µs, 2V to 30V, SOIC, 8 Pins
![LM293DR Analogue Comparator-1]()
![LM293DR Analogue Comparator-2]()
![LM293DR Analogue Comparator-3]()
![LM293DR Analogue Comparator-1]()
![LM293DR Analogue Comparator-2]()
![LM293DR Analogue Comparator-3]()
Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.
-47%
LM293DR Analogue Comparator, Differential, 2 Comparators, 1.3 µs, 2V to 30V, SOIC, 8 Pins
Available:In Stock
- Product SKU: INTEG169
₹ 10
₹ 19
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
LM293DR Analogue Comparator, Differential, 2 Comparators, 1.3 µs, 2V to 30V, SOIC, 8 Pins
The LM293DR is a Dual Differential Comparator designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 to 36V and VCC is at least 1.5V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM293 device is characterized for operation from -25 to 85°C.Note:
Product Images are shown for illustrative purposes only and may differ from the actual product.
Technical Details
- No. of Pins: 8 Pins
- Supply Voltage Range: 2V to 30V
- Operating Temperature (°C): -25 to 85
- IC Mounting: Surface Mount
- Case/Package: SOIC
Features
- IC Case / Package: SOIC
- Supply Voltage Range: 2V to 30V
- Operating Temperature Min: -25°C
- Response Time / Propagation Delay: 1.3µs
- No. of Pins: 8 Pins
- Power Supply Type: Single & Dual Supply
- Product Range: Multicomp Pro RJ45 Adapter
- Comparator Output Type: Open Collector
- IC Mounting: Surface Mount
- Comparator Type: Differential
- No. of Channels: 2 Channels
- Operating Temperature Max: 85°C
Applications :
- Voltage level detection
- Zero-crossing detectors
- Oscillators and waveform generators
- Over-voltage and under-voltage protection circuits
- Pulse-width modulation (PWM) circuits
- Analog-to-digital signal interfacing
Physical Attributes
- Weight (g): 2
- Length: 2.92mm
- Width: 1.3mm
- Height: 1.1mm
Package Includes
- 1 x LM293DR Analogue Comparator, Differential, 2 Comparators, 1.3 µs, 2V to 30V, SOIC, 8 Pins
