LM311P DIP-8 Voltage Comparator IC

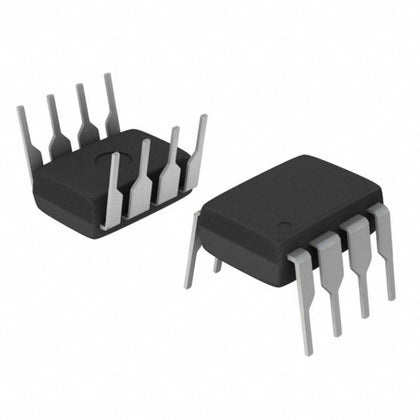

![LM311P Voltage Comparator IC DIP-8 Package for fast analog signal comparison-1]()

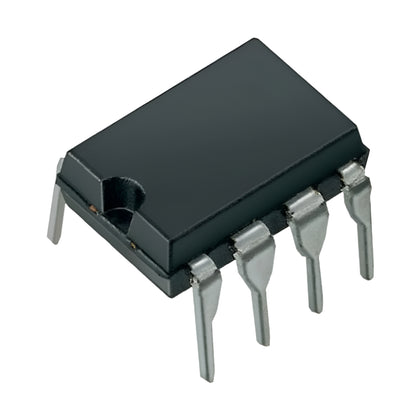

![LM311P Voltage Comparator IC DIP-8 Package for fast analog signal comparison-2]()

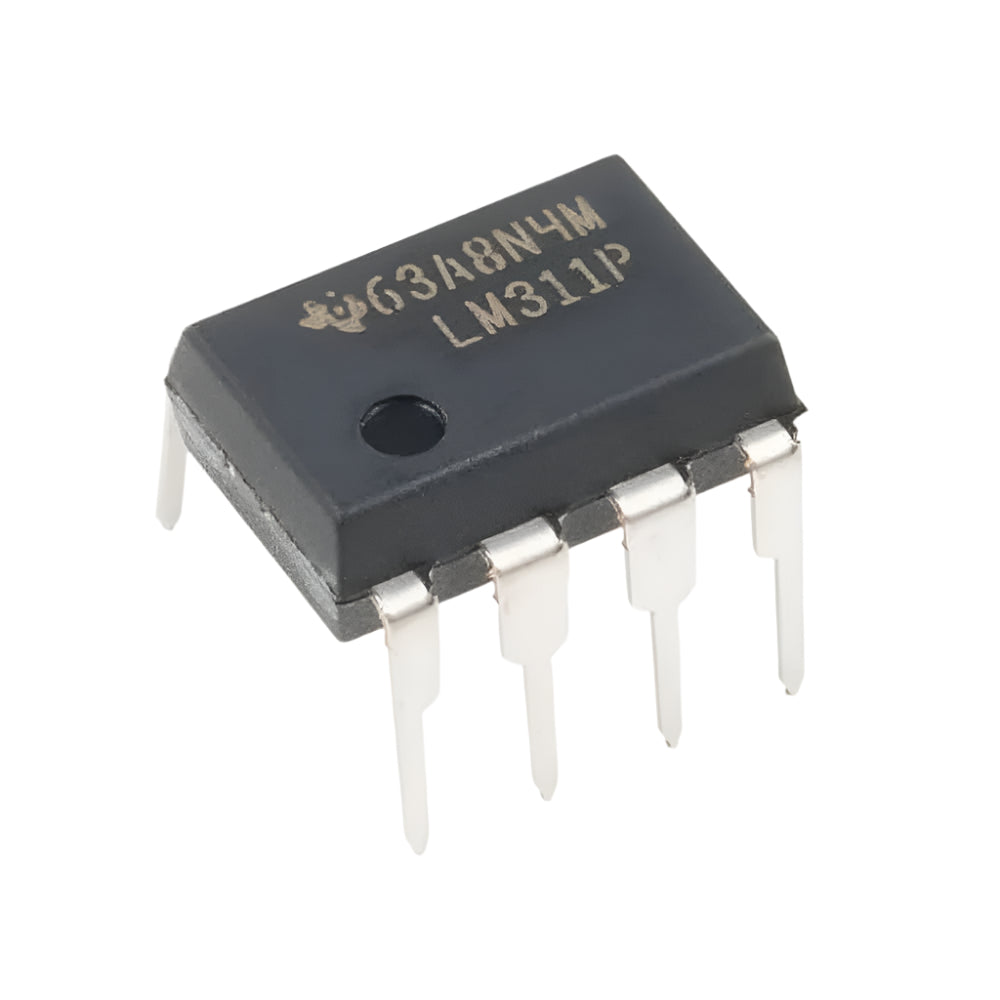

![LM311P Voltage Comparator IC DIP-8 Package for fast analog signal comparison-3]()

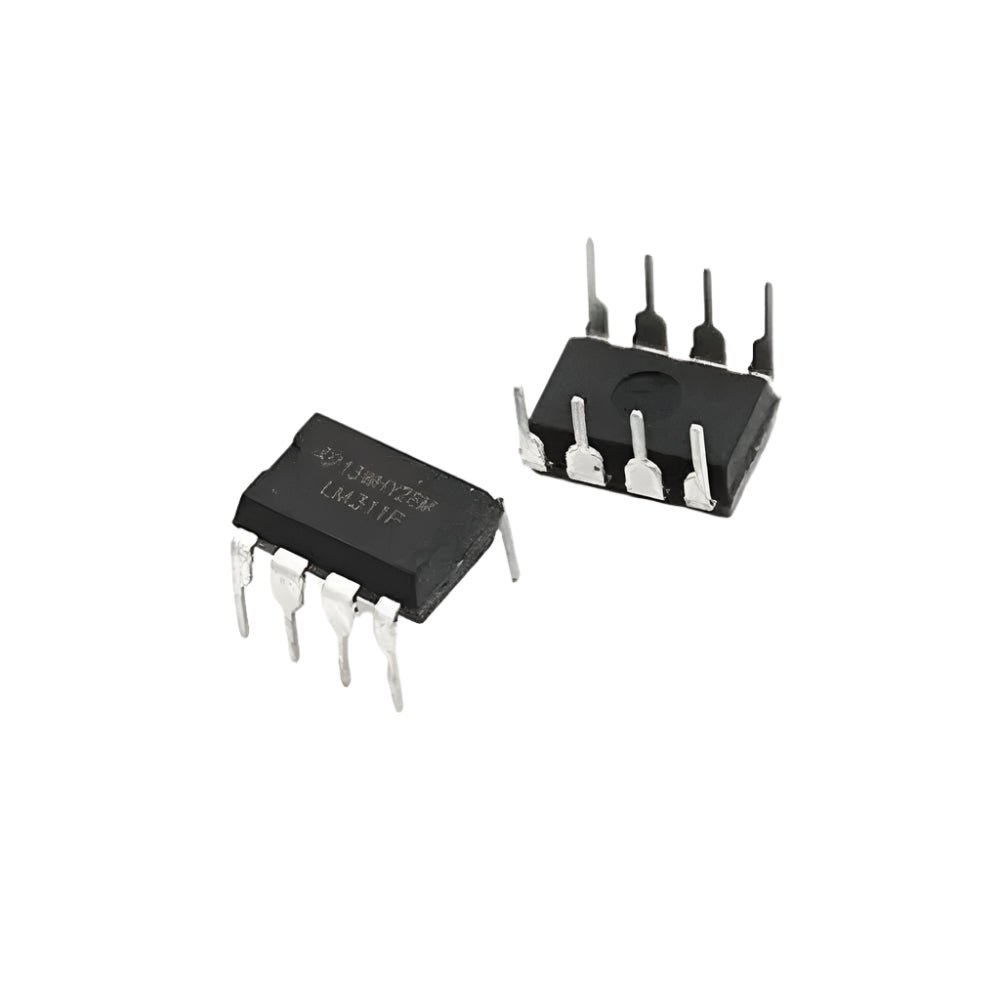

![LM311P Voltage Comparator IC DIP-8 Package for fast analog signal comparison-1]()
![LM311P Voltage Comparator IC DIP-8 Package for fast analog signal comparison-2]()
![LM311P Voltage Comparator IC DIP-8 Package for fast analog signal comparison-3]()
NOTE: Product Images are shown for illustrative purposes only and may differ from the actual product.
Voltage Level Sensing: Compares input voltage to a reference threshold
Oscillator Circuits: Used in waveform generation and timing applications
Pulse Width Modulation (PWM): Controls duty cycles in switching circuits.
-36%
LM311P DIP-8 Voltage Comparator IC
Available:In Stock
- Product SKU: INTEG376
₹ 12
₹ 19
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
LM311P DIP-8 Voltage Comparator IC
The LM311 is a voltage comparator IC in a DIP-8 package, offering fast response and low power consumption. It features an open-collector output, making it compatible with various logic levels. Ideal for applications like PWM, zero-crossing detection, and overvoltage protection, the LM311 provides excellent performance with a wide supply voltage range.NOTE: Product Images are shown for illustrative purposes only and may differ from the actual product.
Technical Details
- Series: LM311
- Product Type: Analog Comparator
- Number of Channels: 1 Channel
- Output Type: CMOS, TTL
- Response Time: 115 ns
- Comparator Type: Differential
- Supply Voltage Range: 3.5V ~ 30V
- Operating Supply Current: 7.5 mA
- Output Current per Channel: 50 mA
- Input Offset Voltage: 7.5 mV
- Input Bias Current: 250 nA
- Operating Temperature Range: 0°C ~ +70°C
- Dual Supply Voltage: ±3V, ±5V, ±9V, ±12V
- Input Type: Differential
- Input Offset Current: 50 nA
- Reference Voltage: No
- Shutdown: No Shutdown
- Supply Type: Single, Dual
- Common Mode Voltage: 500 mV
- Voltage Gain: 106.02 dB
- Mounting Style: Through Hole
- Package/Case: PDIP-8
Features
- Open-Collector Output: Compatible with various logic levels
- Wide Supply Voltage Range: Operates from 3V to 40V
- Low Power Consumption: Efficient for battery-powered applications
- Fast Response Time: Suitable for high-speed switching
- Low Input Offset Voltage: Ensures accurate voltage comparison
- Compact DIP-8 Package: Easy to integrate into circuits
- High Noise Immunity: Reliable performance in noisy environments
Applications
Zero-Crossing Detectors: Identifies signal transitions for waveform analysisVoltage Level Sensing: Compares input voltage to a reference threshold
Oscillator Circuits: Used in waveform generation and timing applications
Pulse Width Modulation (PWM): Controls duty cycles in switching circuits.
Physical Attributes
- Dimensions: ~4.9mm × 3.9mm × 1.5mm(L x W x H)
- Weight: ~0.05g
Package Includes
- 1 x LM311P DIP-8 Voltage Comparator IC
