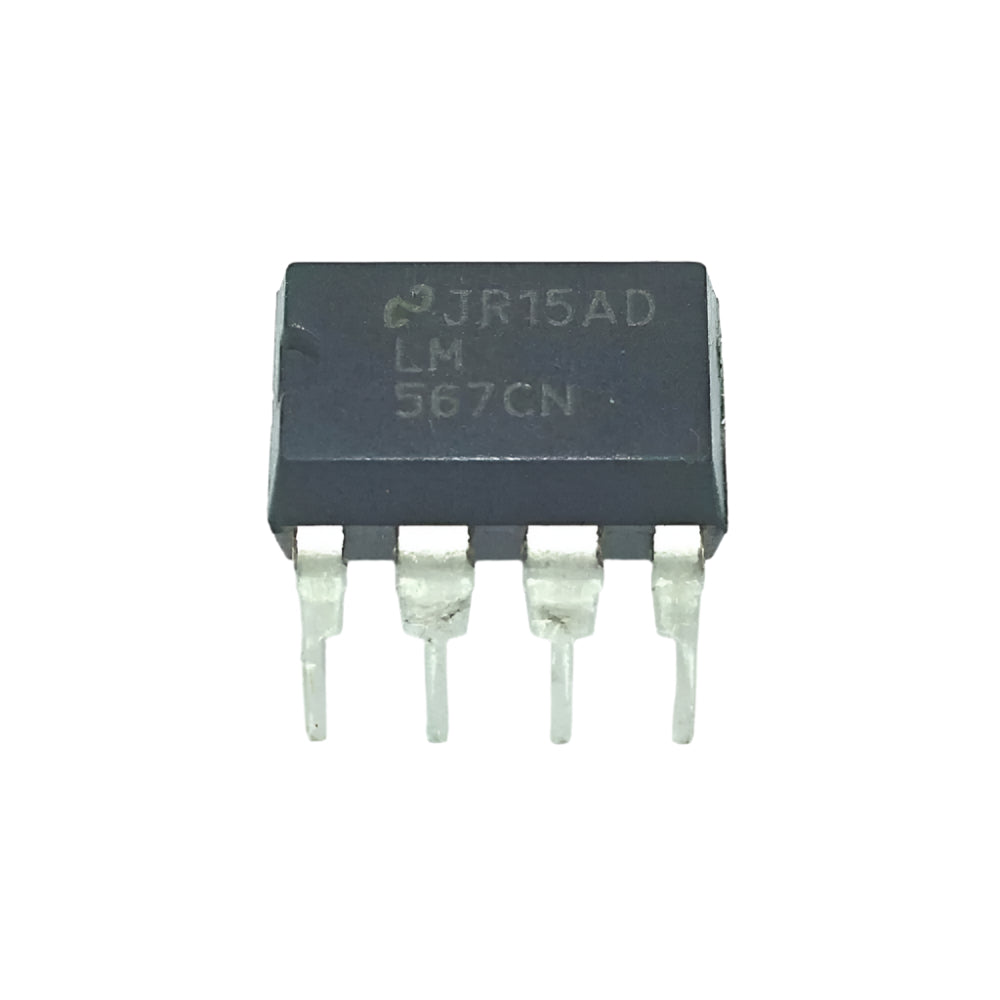

LM567CN DIP-8 Tone Decoder IC with Phase-Locked Loop for frequency detection-1

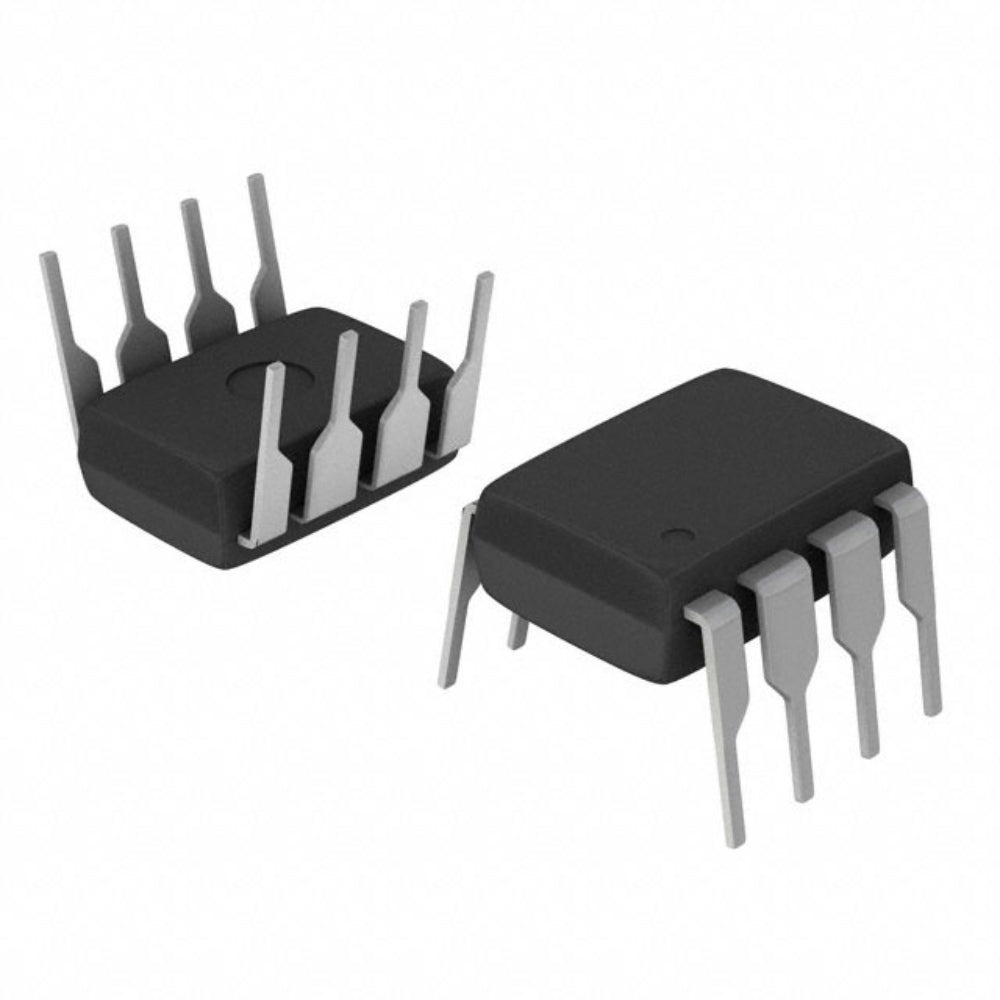

LM567CN DIP-8 Tone Decoder IC with Phase-Locked Loop for frequency detection-2

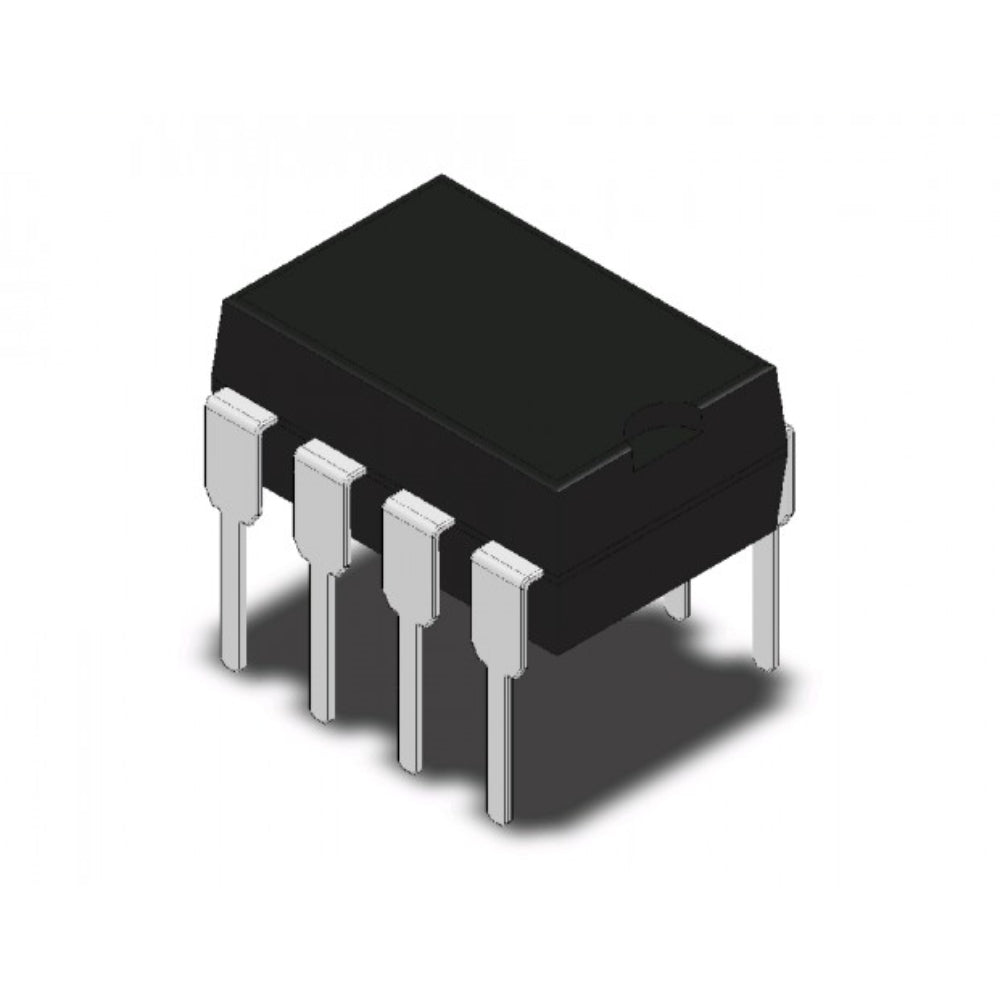

LM567CN DIP-8 Tone Decoder IC with Phase-Locked Loop for frequency detection-3

LM567CN DIP-8 Tone Decoder Phase-Locked Loop (PLL) IC

Available:Out of Stock

Product SKU: INTEG378

Wishlist

₹ 29 ~~₹ 59~~

Pre-order

Specification

Description

LM567CN DIP-8 Tone Decoder Phase-Locked Loop (PLL) IC

The LM567CN is a tone decoder and phase-locked loop (PLL) IC designed for frequency detection and signal conditioning applications. It provides high sensitivity and reliability, making it ideal for tone detection, frequency shift keying (FSK) decoding, and communication systems.

NOTE: Product Images are shown for illustrative purposes only and may differ from the actual product.

Technical Details

Supply Voltage: 5V to 9V
Center Frequency: 0.01Hz to 500kHz
Bandwidth: Adjustable
Operating Temperature Range: -40°C to +85°C
Package Type: DIP-8 / SOIC-8

Features

Wide Frequency Range: Operates from 0.01Hz to 500kHz
High Stability: PLL-based design ensures accurate frequency locking
Adjustable Bandwidth: Supports narrowband or wideband configurations
Low Power Consumption: Suitable for battery-powered applications
Compact Package: Available in DIP-8 and SOIC-8 formats for easy PCB integration

Applications

Tone Decoding: Detects specific audio frequencies for control or signaling

Frequency Monitoring: Identifies presence of specific signals in communication systems

Remote Control Systems: Enable tone-based switching or triggering

Touch-Tone Decoding: Used in telephone and DTMF applications.
