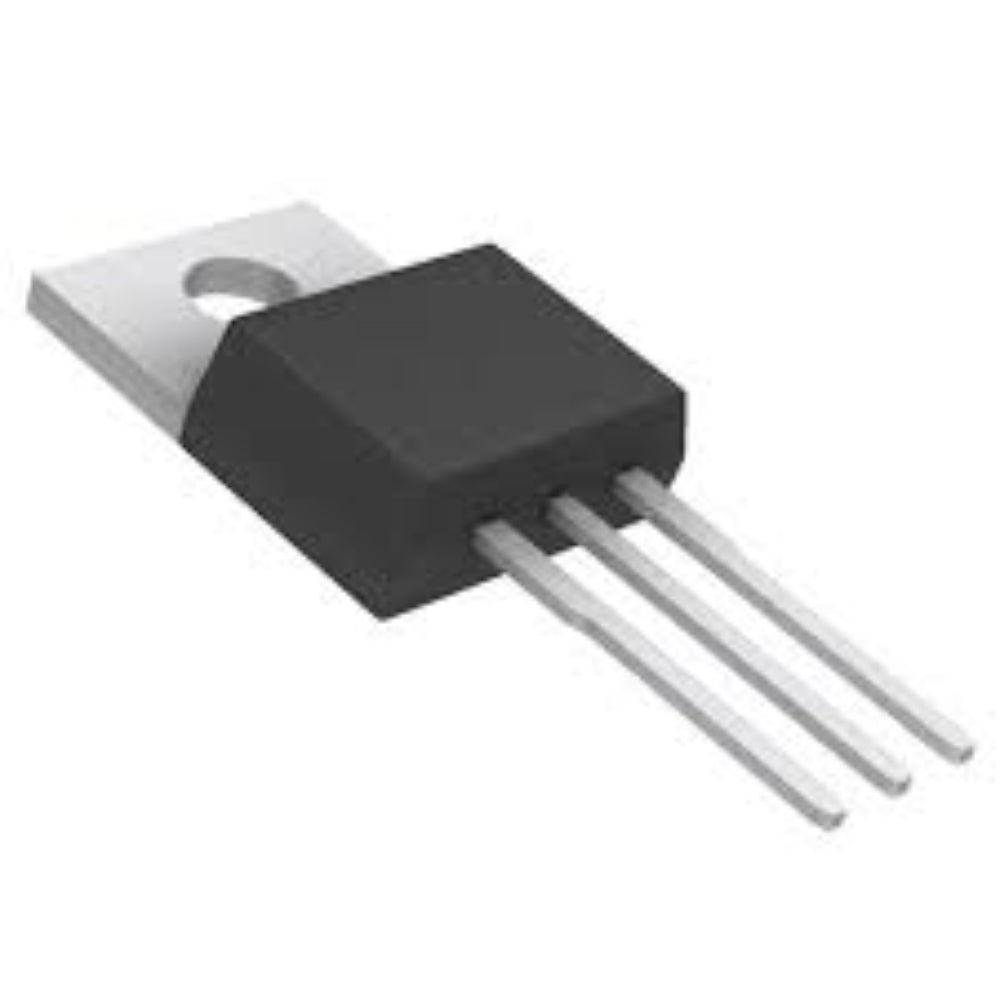

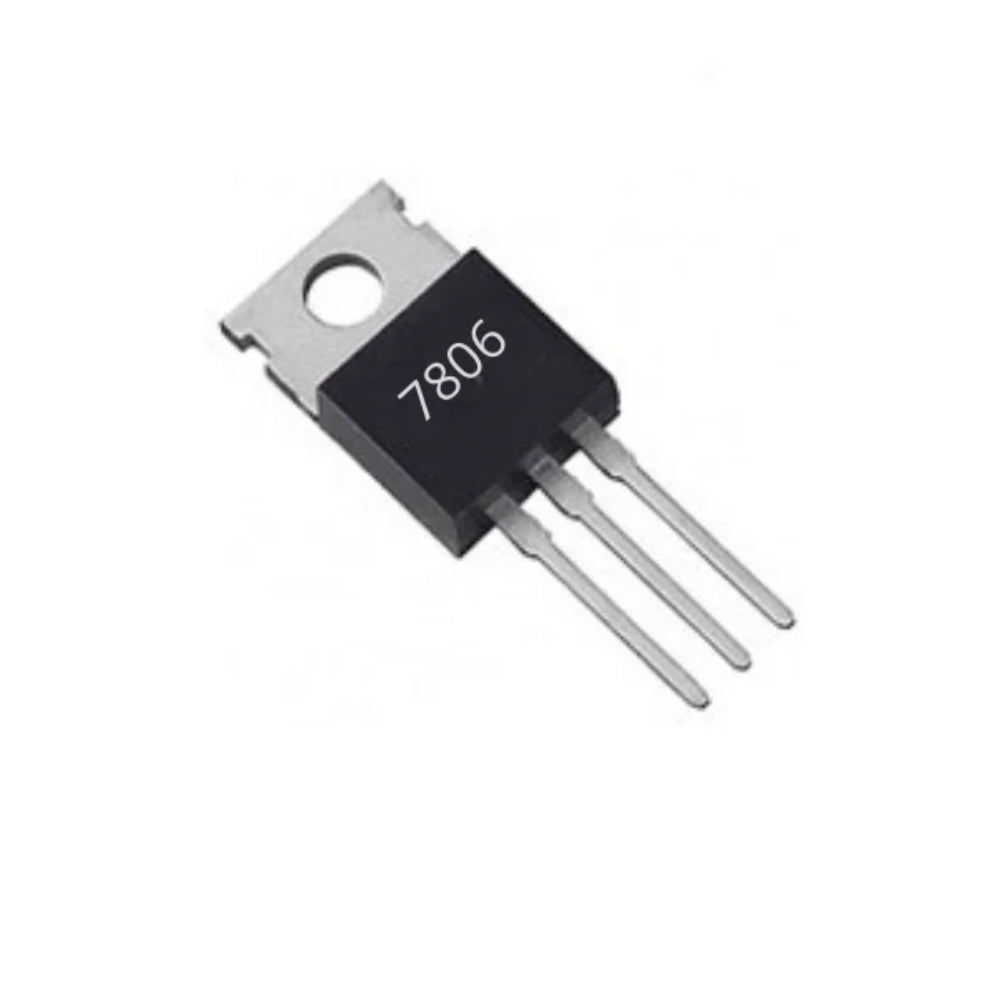

LM7906 IC - 6V Negative Voltage Regulator IC
![LM7906 IC - 6V Negative Voltage Regulator IC_2]()
![LM7906 IC - 6V Negative Voltage Regulator IC]()
![LM7906 IC - 6V Negative Voltage Regulator IC_1]()
![LM7906 IC - 6V Negative Voltage Regulator IC_3]()
![LM7906 IC - 6V Negative Voltage Regulator IC_2]()
![LM7906 IC - 6V Negative Voltage Regulator IC]()
![LM7906 IC - 6V Negative Voltage Regulator IC_1]()
![LM7906 IC - 6V Negative Voltage Regulator IC_3]()
High Output Current Capability: Can deliver up to 1.5A of current, suitable for powering a variety of electronic devices.
Integrated Protection: Includes thermal and short-circuit protection to ensure safe and reliable operation.
Low Dropout Voltage: Ensures efficient regulation with minimal voltage drop between input and output.
Minimal External Components: Requires few external components for operation, simplifying circuit design and implementation.
Analog Electronics: Ideal for use in analog circuits where a stable negative voltage is necessary.
Audio Systems: Provides consistent negative voltage for audio equipment, ensuring high-quality performance.
Communication Equipment: Suitable for communication systems needing a dependable negative voltage supply.
Consumer Electronics: Applicable in various consumer electronic devices where a regulated negative voltage is needed.
-48%
LM7906 IC - 6V Negative Voltage Regulator IC
Available:In Stock
- Product SKU: INTEG146
₹ 15
₹ 29
Need Volume Discounts? Deals are specially designed for you. Click here
Need Customization? Provide us more details Click here
Warehouse Details
Specification
Description
The LM7906 is a reliable negative voltage regulator IC designed to provide a stable -6V output. It is part of the 79xx series of linear voltage regulators, renowned for its robust performance and ease of use in various electronic applications requiring negative voltage regulation.Features:
Fixed Output Voltage: Provides a precise -6V output, ideal for applications requiring a stable negative voltage supply.High Output Current Capability: Can deliver up to 1.5A of current, suitable for powering a variety of electronic devices.
Integrated Protection: Includes thermal and short-circuit protection to ensure safe and reliable operation.
Low Dropout Voltage: Ensures efficient regulation with minimal voltage drop between input and output.
Minimal External Components: Requires few external components for operation, simplifying circuit design and implementation.
Applications:
Power Supply Circuits: Perfect for circuits requiring a reliable -6V power source, such as analog signal processing circuits.Analog Electronics: Ideal for use in analog circuits where a stable negative voltage is necessary.
Audio Systems: Provides consistent negative voltage for audio equipment, ensuring high-quality performance.
Communication Equipment: Suitable for communication systems needing a dependable negative voltage supply.
Consumer Electronics: Applicable in various consumer electronic devices where a regulated negative voltage is needed.
Technical Details
- Output Voltage: -6V ± 4% (typical tolerance)
- Input Voltage Range: -7V to -35V (optimal input range is -7V to -25V for stable operation)
- Output Current: Up to 1.5A
- Dropout Voltage: Typically 2V at 1.5A (the minimum difference between input and output voltage needed for proper regulation)
- Line Regulation: 0.01%/V (typical) - Indicates how well the regulator maintains the output voltage as the input voltage varies.
- Load Regulation: 0.1% (typical) - Indicates how well the regulator maintains the output voltage as the load current varies.
- Thermal Overload Protection: Integrated thermal shutdown feature to protect the IC from overheating.
- Short-Circuit Protection: Built-in short-circuit protection to safeguard the IC and connected components.
- Ripple Rejection: 50dB (typical) - Measures the regulator’s ability to filter out ripple from the input supply.
Thermal Resistance
- Junction-to-Ambient: 50°C/W (typical) - Indicates the IC’s ability to dissipate heat into the surrounding environment.
- Junction-to-Case: 5°C/W (typical) - Indicates the thermal resistance between the junction and the case of the IC.
- Package Types: Available in TO-220 and TO-92 packages.
Pin Configuration
- Pin 1 (Input): Connects to the negative input voltage.
- Pin 2 (Ground): Ground reference for the regulator.
- Pin 3 (Output): Provides the regulated -6V output voltage.
Package Includes
- 1 x LM7906 IC - 6V Negative Voltage Regulator IC
