M274 360 Degree Rotary Encoder Brick Sensor Module
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
-24%
Rotary-Encoder-Brick-Sensor-Module
rotary encoder module
M274 360 Degree Rotary Encoder Brick Sensor Module

M274 360 Degree Rotary Encoder Brick Sensor Module

Available:In Stock
  • Product SKU: KG189
Wishlist
₹ 75 ₹ 99
Available offers
Best Rates

on Express Shipping – Hurry! Shipping starts from Rs59.

Tc
Free Shipping Offer -

Avail free shipping on all orders above Rs999.

Tc
Volume Discounts-

Buy More Save More! Discounts upto 20%. Contact us.

Tc
Special Bulk Discounts

for colleges, Schools, Companies and resellers

Tc
Cash on Delivery

Available above Rs 999

Tc
Highlights
  • Original, High Quality
  • KitsGuru Warranty
Services
  • Email Support
  • Video Support to be purchased separately
Easy Payment Options
  • Netbanking
  • Debit/Credit cards
  • Cash on Delivery
  • E-wallets/UPI
Shipping Details
International Shipping
Available

  Need Volume Discounts? Deals are specially designed for you. Click here

  Need Customization? Provide us more details Click here

  • Order within
Secure

Specification

Description

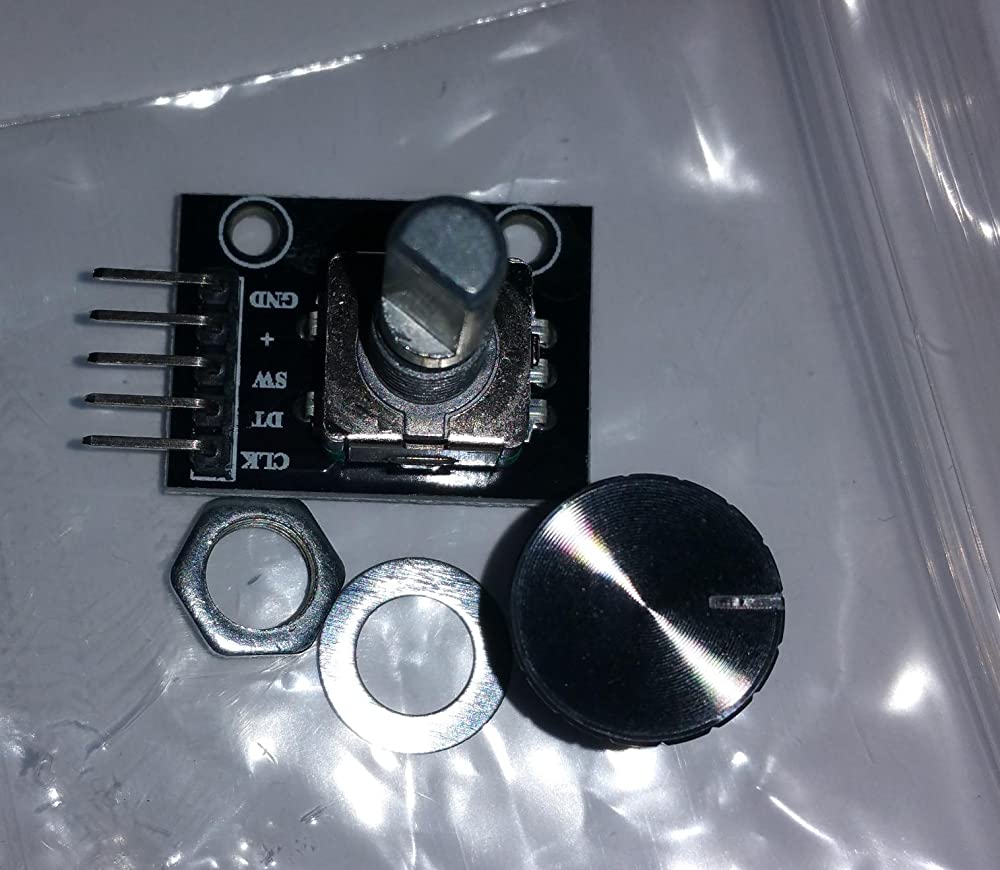

The M274 360 Degree Rotary Encoder Module Brick Sensor is a rotary input device (as in knob) that provides an indication of how much the knob has been rotated AND what direction it is rotating in. It’s a great device for stepper and servo motor control. You could also use it to control devices like digital potentiometers.

M274 360 rotary Degree encoder is an incremental electro-mechanical device that converts the angular position or motion of a shaft or axle to digital code. The output of incremental encoders provides information about the motion of the shaft, which is typically further processed in processor/controllers into information such as speed, distance, and position.
  • The rotary encoder can be counted the number of pulse output reverse directions during the rotation in the positive direction and through the rotation and this count Rotation is not limited.
  • With the key on the rotary encoder, you can reset to the initial state, that is, count from 0.
  • Material of Knob Cap: Aluminum Alloy

Note: This module does not come with a fitting nut or washer, you have to buy it separately (the size required is 6.6mm).

Technical Details

  • Model: KY-040
  • Encoder Type: Incremental
  • Cycles Per Revolution (CPR) : 20
  • Operating Voltage (VDC) : 5

Physical Attributes

  • PCB Hole Diameter(mm) : 2.75
  • PCB Hole pitch distance(mm) : 13.75
  • Length × Width × Height(mm) : 25 × 18 × 30
  • Weight (gm) : 8
